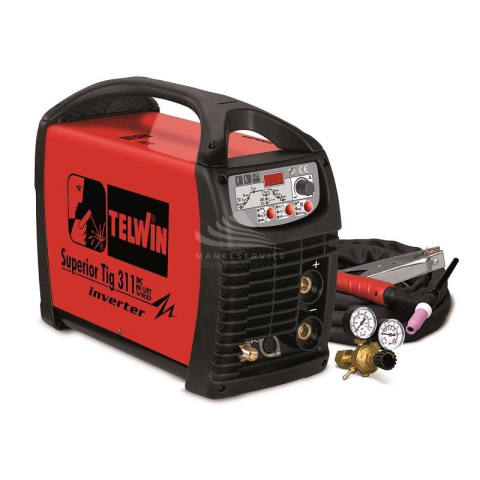

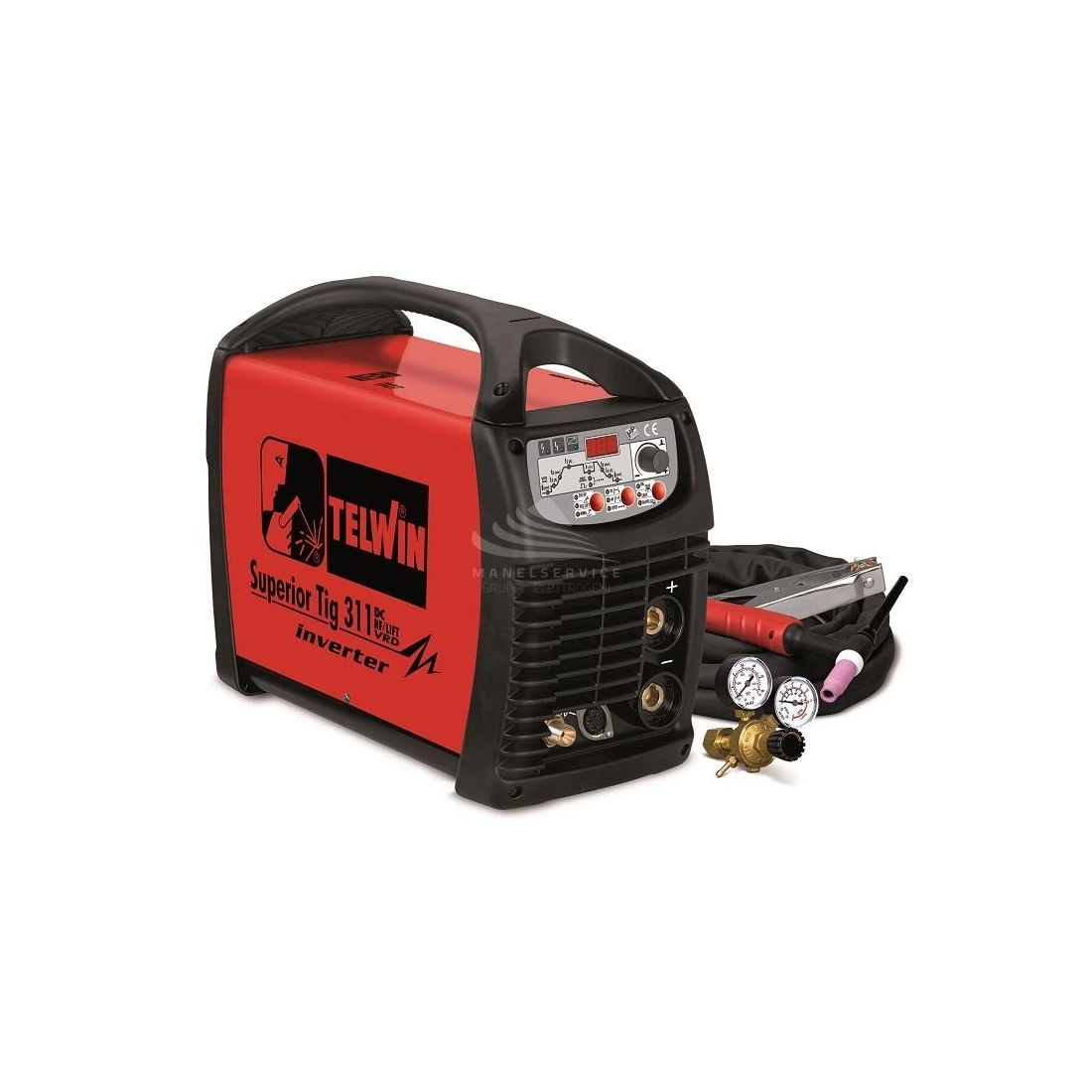

TELWIN SUPERIOR TIG 311 DC-HF/LIFT 230-400V
816123
New product
Phase: Single phase / Three phase
Frequency: 50/60 Hz
Voltage: 230 / 400 V
Type of welding: TIG/MMA
No-load voltage: 61 / 64 V
Regulation current: 10 - 250 / 10 - 300 A
Current max: 200 / 300 A
Diameter electrodes: 1.6 - 5 mm
Length: 470 mm
Width: 190 mm
Height: 355 mm
Weight: 18 Kg
Technical features
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Efficiency (%)
- 91
- Protection degree
- IP23
- No-load voltage (V)
- 61 / 64
- Regulation current (A)
- 10 - 250 / 10 - 300
- Diameter electrodes (mm)
- 1.6 - 5
- Type of welding
- MMA / MIG
- Current max (A)
- 200 / 300
- Length (mm)
- 470
- Width (mm)
- 190
- Height (mm)
- 355
- Voltage regulator
- Inverter
- Weight (Kg)
- 0.115
Details
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- pulse and EASY pulse operation
- TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC, square wave frequency
- THINSPOT function for quick and precise tack welding - MMA regulations: arc force and hot start
- anti-stick device
- VRD device
- remote control and G.R.A. water cooling connector
- thermostatic, overvoltage, undervoltage, overcurrent, water cooling unit protections.
Complete with TIG welding accessories.
Not binding images and technical data.
List price
tax incl.
tax excl.
Discounted Price
1.836,10 € tax incl.
1.505,00 € tax excl.
Technical features
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Efficiency (%)
- 91
- Protection degree
- IP23
- No-load voltage (V)
- 61 / 64
- Regulation current (A)
- 10 - 250 / 10 - 300
- Diameter electrodes (mm)
- 1.6 - 5
- Type of welding
- MMA / MIG
- Current max (A)
- 200 / 300
- Length (mm)
- 470
- Width (mm)
- 190
- Height (mm)
- 355
- Voltage regulator
- Inverter
- Weight (Kg)
- 0.115
Details
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
- pulse and EASY pulse operation
- TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC, square wave frequency
- THINSPOT function for quick and precise tack welding - MMA regulations: arc force and hot start
- anti-stick device
- VRD device
- remote control and G.R.A. water cooling connector
- thermostatic, overvoltage, undervoltage, overcurrent, water cooling unit protections.
Complete with TIG welding accessories.
Not binding images and technical data.
