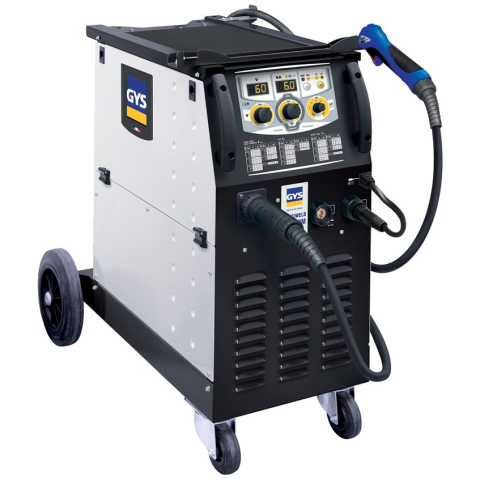

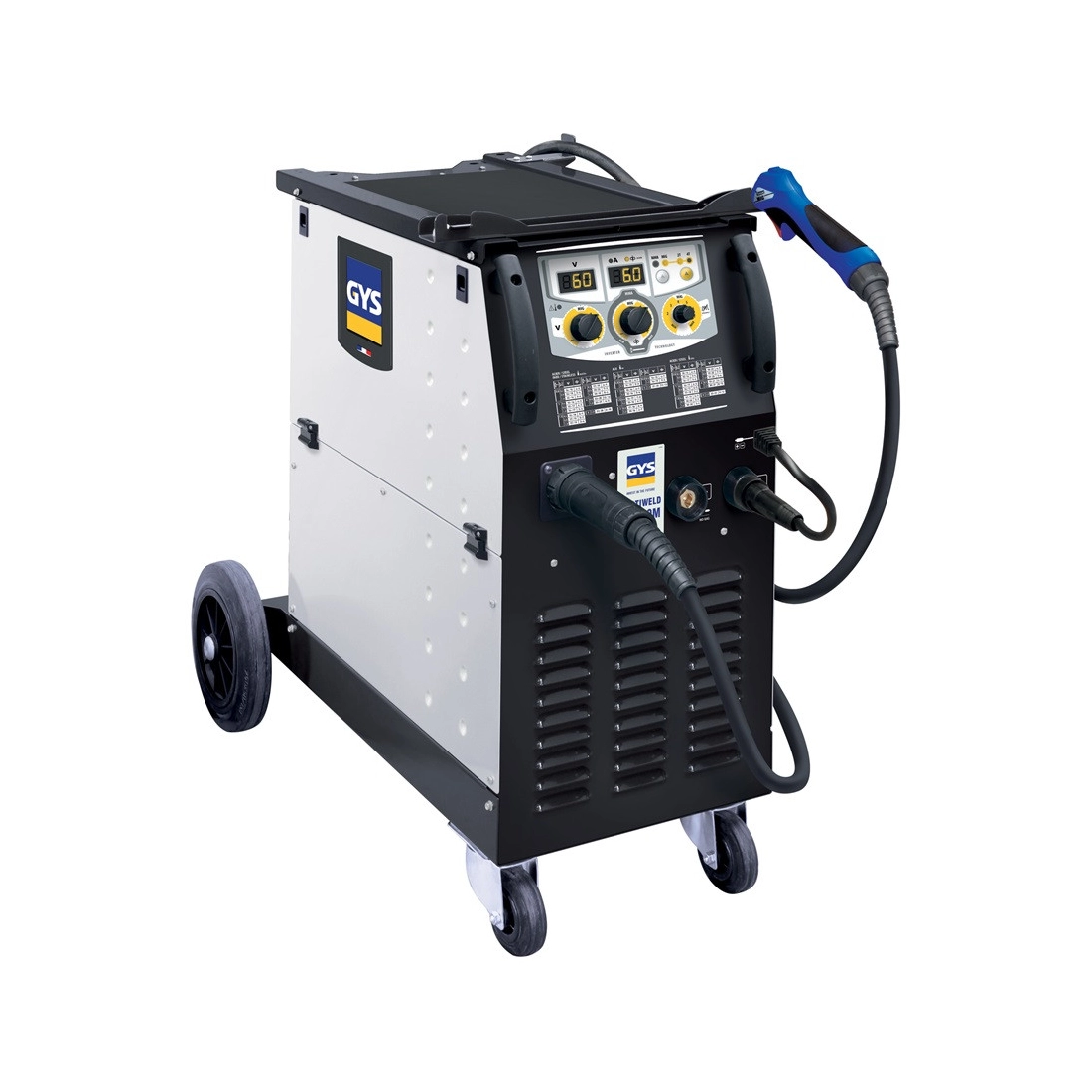

GYS MULTIWELD FV220M MIG-MAG INVERTER WELDING MACHINE

The GYS MULTIWED FV220M MIG-MAG Inverter Welder Machine is a state-of-the-art single-phase inverter welder machine,
designed to perfectly combine the welding processes of MIG-MAG, flux-cored wire, and MMA. Thanks to its
Inverter technology and FV (Flexible Voltage) power supply, it can operate with a voltage range between 85 and 265V,
ensuring high performance even with unstable power sources. Ideal for professional use, the GYS MULTIWED FV220M
delivers impeccable results on steel, stainless steel, and aluminum.

Main Features of the GYS MULTIWED FV220M MIG-MAG Inverter Welder Machine:

Multiprocess versatility: supports MIG - MAG, MMA, and flux-cored wire welding, making it suitable for
a wide range of applications.

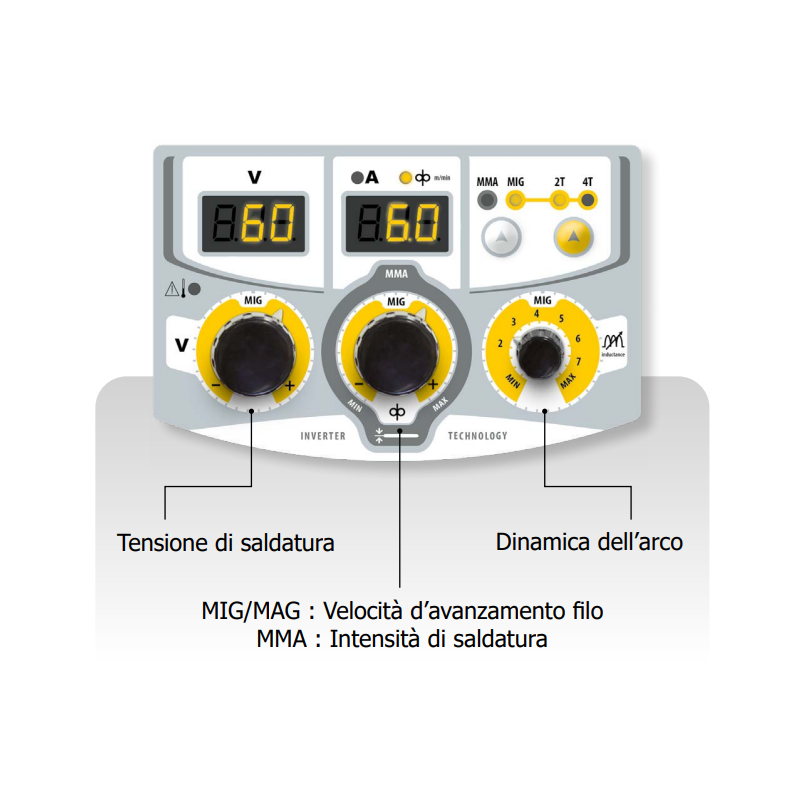

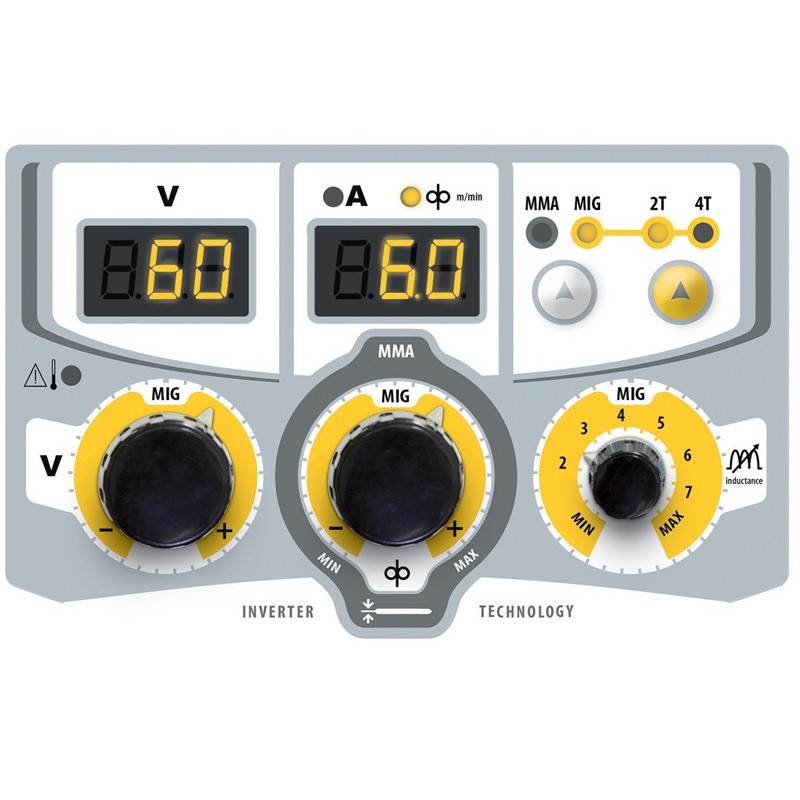

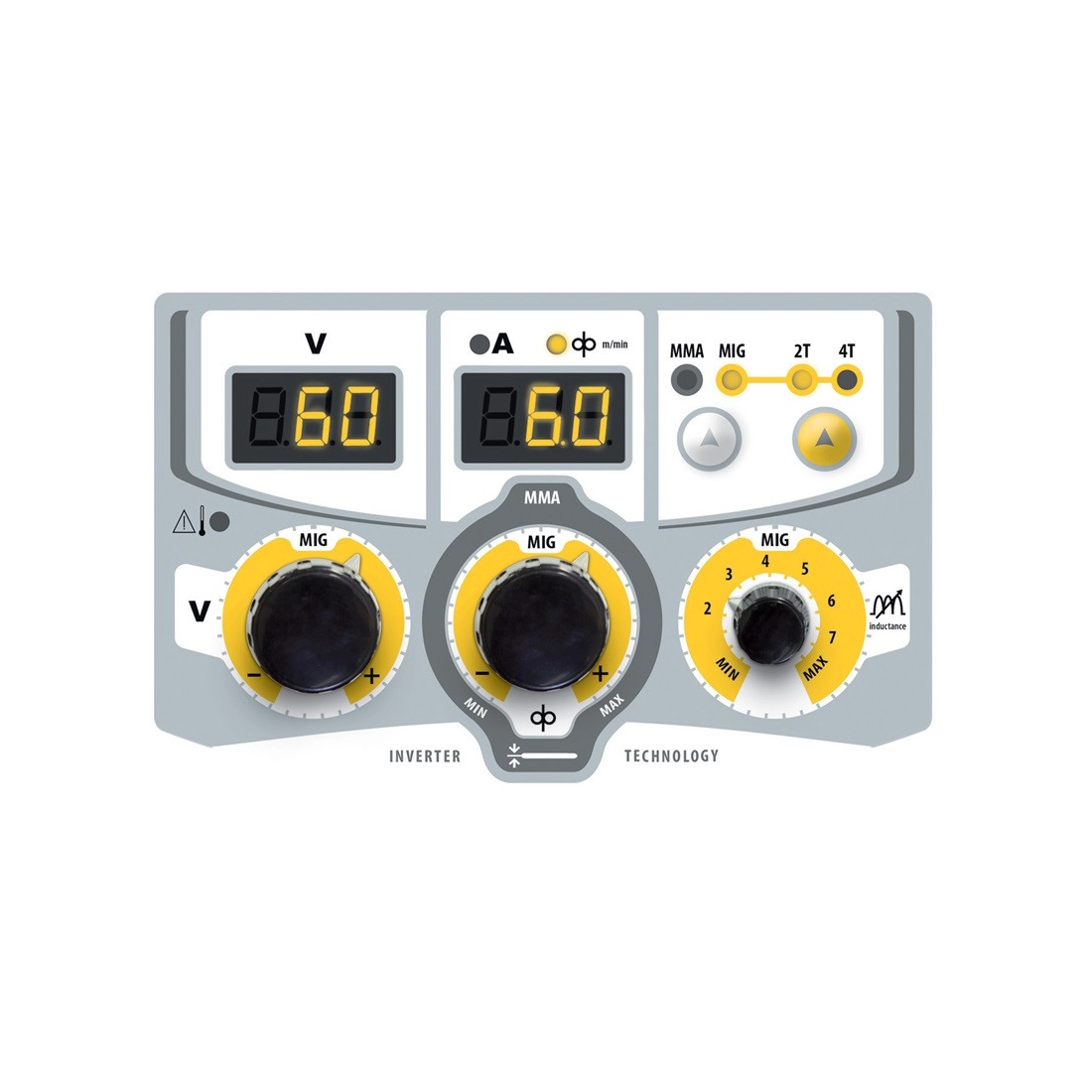

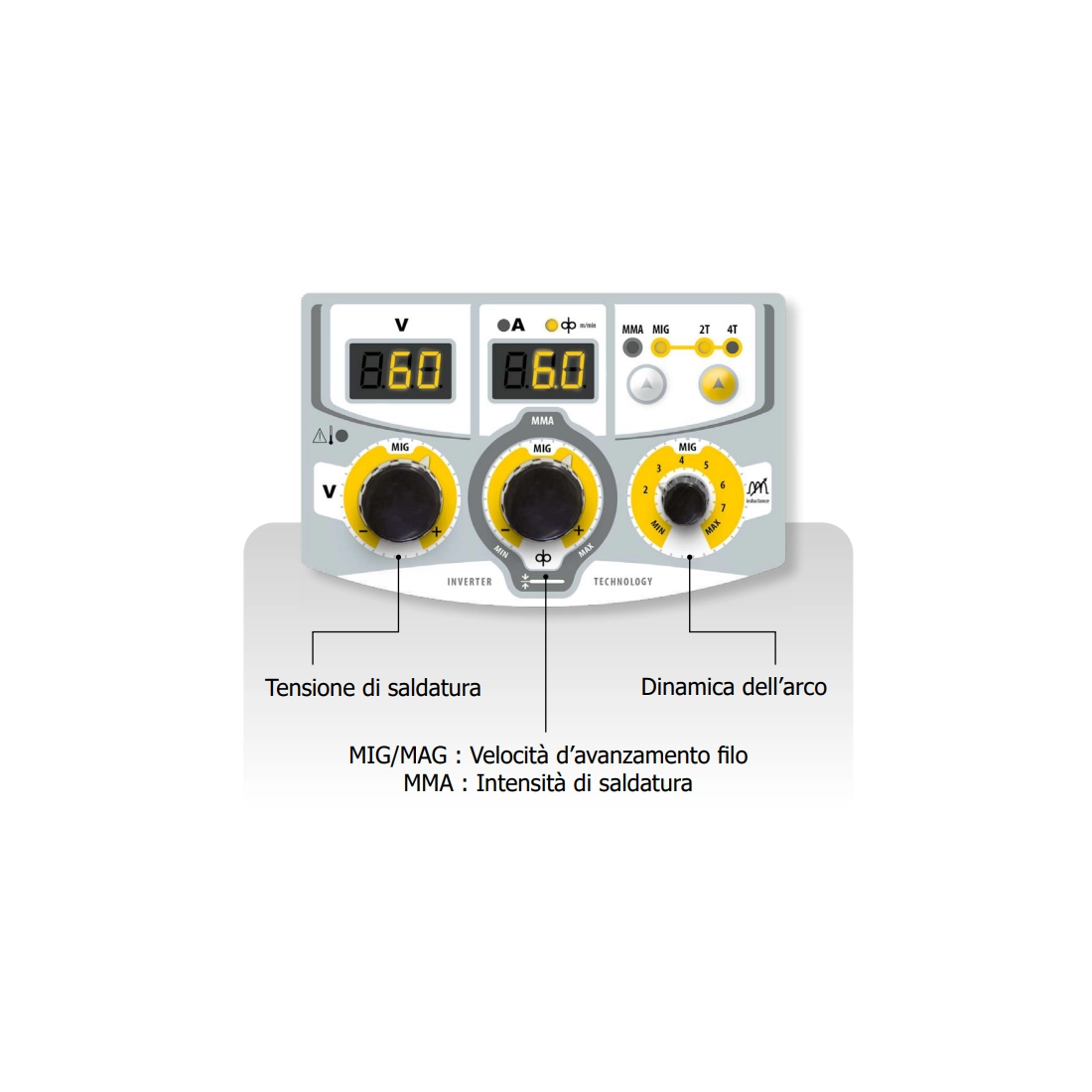

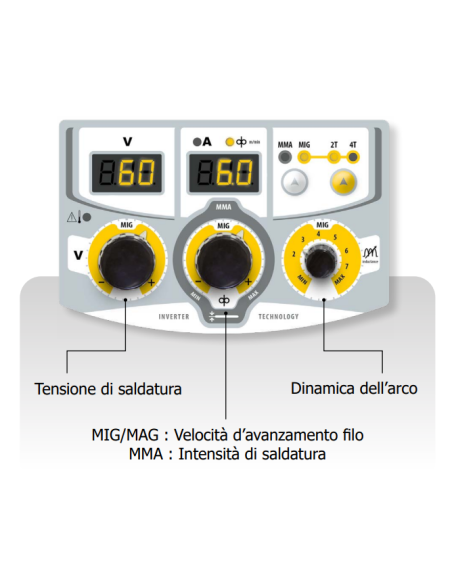

Ease of use: equipped with an intuitive interface featuring dual digital displays for quick and precise adjustments.
The optimized control of wire feed speed and welding voltage always ensures top-notch quality.

Durability and stability: thanks to the IP23 protection rating, the GYS MULTIWED FV220M welder is perfect for outdoor use,
and it can support electric extensions up to 100 meters.

Powerful wire feeder: the 4-roller wire feed system ensures a uniform and precise wire distribution, essential for
high-quality welds, especially on aluminum.

Compatibility and safety: protected against overvoltage up to 400V, it is ideal for use with generators and
for operating in tough conditions.

Technical Specifications of the GYS MULTIWED FV220M MIG-MAG Inverter Welder Machine:

Welding current: 30 - 220 A for MIG/MAG, 30 - 200 A for MMA.

Wire diameter: from 0.6 to 1.0 mm for steel and stainless steel, up to 1.2 mm for flux-cored wire.

Dimensions and weight: compact and easy to handle, it measures 77x79x47 cm and weighs 32 kg.

Input voltage: 230 V 1~ / 110 V 1~
Network frequency: 50/60 Hz
Adjustable welding current (MIG & MAG):
230V - I2 MMA: 30 - 200 / 110V - MMA: 30 - 120
230V - I2 MIG: 30 - 220 / 110V - MIG: 30 - 140
Reference standards:
EN 60974-1(40°C) MIG-MAG: 230V: 60%: 160A - 100%: 120A / 110V: 60%: 110A - 100%: 90A
EN 60974-1(40°C) MMA: 60%: 140A - 100%: 100A / 110V: 60%: 100A - 100%: 80A
Weight: 32 kg
Protection rating: IP 23
Product dimensions: 770 x 790 x 470 mm
Power consumption: 9 kW
Wire thickness:
GAS in 230V: 0.6 / in 110V: 1.0
NO GAS in 230V: 0.9 / in 110V: 1.2

With the GYS MULTIWED FV220M MIG-MAG Inverter Welder, every professional can rely on a welder that is
both dependable and high-performing, ideal for MIG/MAG and MMA welding, supported by a solid Inverter system for
working even in the most demanding conditions.

Looking for a portable welding machine with different features? Here you can find the whole range of GYS or other specialized brands

Images and technical data are not binding and may be subject to revision by the supplier
