WELDING MACHINE HELVI PUMA 278 MIG

Name: WELDING MACHINE HELVI PUMA 278 MIG
Brand: HELVI
SKU: 99825017A
Price: 1622.3 EUR
Availability: InStock

Reference 99825017A

Power supply: (3ph) 400V ± 10% • 50/60H
Continuous power at 60%: 4.8 kW
No-load voltage: 30 V
Regulation range: 30 ÷ 250A
Duty cycle at 40°C: 250A @ 35% / 190A @ 60% / 150A @ 100%
Iron: 0.8 ÷ 1.0 Ø mm
Stainless steel: 0.8 ÷ 1.0 Ø mm
Aluminum: 1.0 ÷ 1.2 Ø mm
Stranded wire: 1.0 ÷ 1.2 Ø mm
CuSi₃: 0.8 Ø mm
Insulation: H
Protection class: IP23S
Length: 450 mm
Width: 840 mm
Height: 710 mm
Box dimensions: 365x895x650 mm
Gross/net weight: 32 / 30 kg

List price

3,605.10 € tax incl.

2,955.00 € tax excl.

Discounted Price

1,622.30 € tax incl.

1,329.75 € tax excl.

Shipping from 36.60 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference 99825017A

Data sheet

Frequency (Hz): 50 / 60
Voltage (V): 400
Protection degree: IP23S
Motor insulation class: H
No-load voltage (V): 30
Type of welding: MIG-MAG
Length (mm): 450
Width (mm): 840
Height (mm): 710
Product type: Welding machine
Weight (Kg): 32
Duty Cycle 40°: 250A @ 35% / 190A @ 60% / 150A @ 100%
Power consumption 60%: 4.8 KW
Adjustment range: 30 ÷ 250A
Iron: 0,8 ÷ 1,0 Ø mm
Inox Steel: 0,8 ÷ 1,0 Ø mm
Aluminium: 1,0 ÷ 1,2 Ø mm
Animated wire: 1,0 ÷ 1,2 Ø mm
CuSi₃: 0,8 Ø mm

Specific References

Condition New

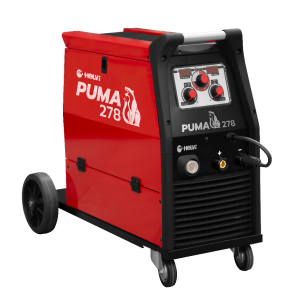

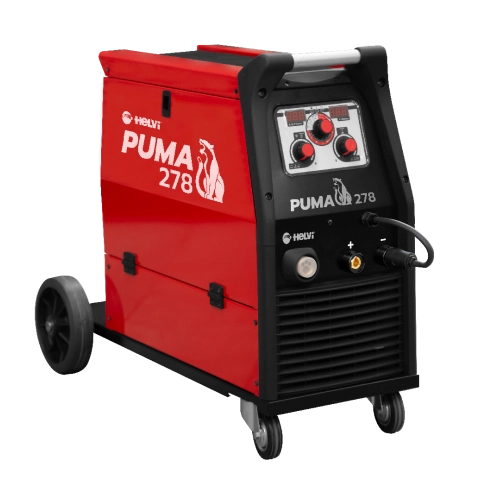

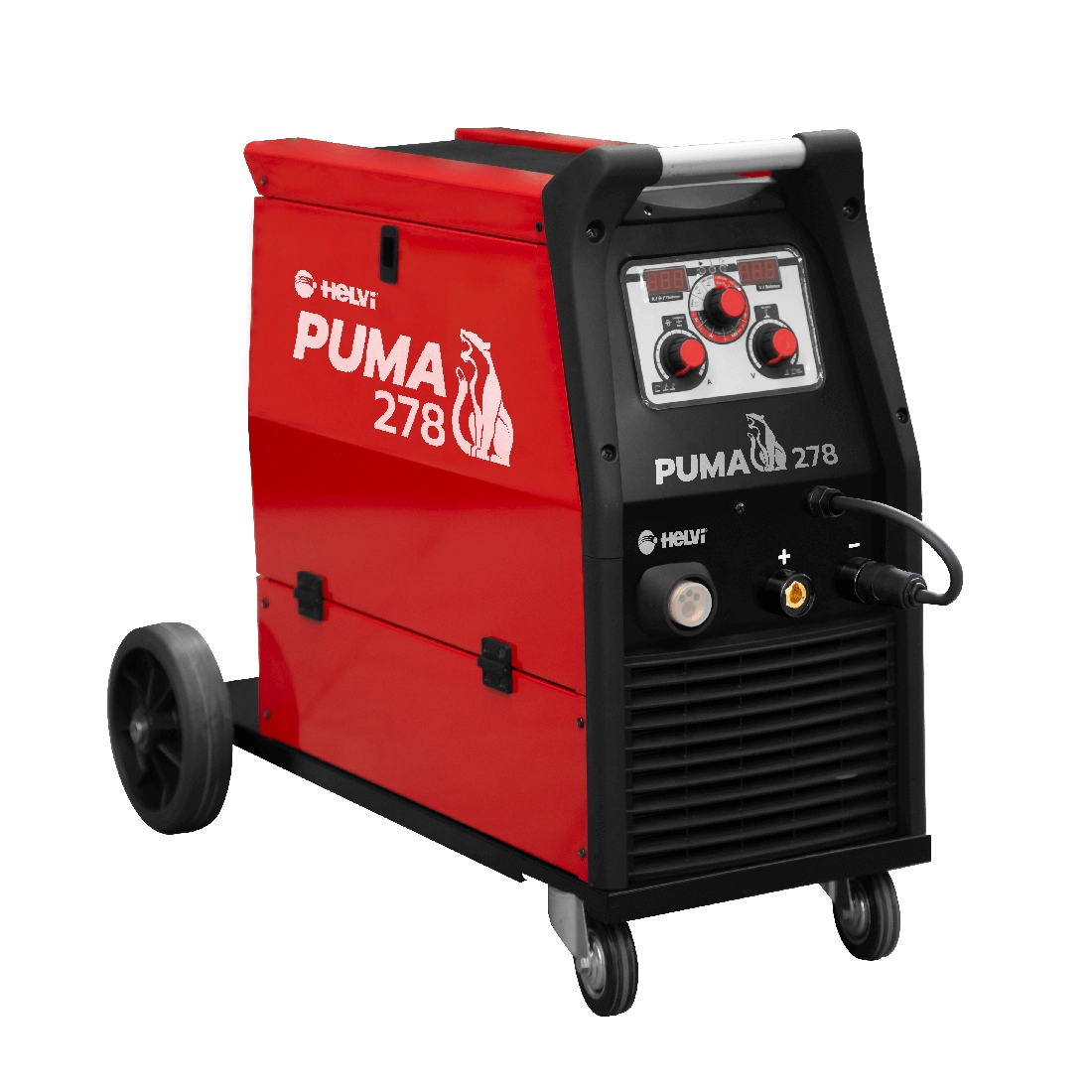

WELDING MACHINE HELVI PUMA278 MIG

The HELVI PUMA278 MIG welder is a single-phase MIG-MAG inverter welder controlled by a microprocessor, which guarantees exceptional arc stability and projection-free welding. The HELVI PUMA278 MIG welder is a great choice for those looking for a professional and versatile welder, ideal for bodywork, small carpentry, and maintenance work.

Main features of HELVI PUMA278 MIG welder:
MIG-MAG welding
Microprocessor control
Exceptional arc stability
Projection-free welding
Hotstart, Arc Force, and anti-sticking functions in stick mode
Lift arc function in TIG mode
Possibility of manual welding and total synergy in MIG mode
Ramp motor regulation
Automatic wire feed with soft arc formation
Simple and versatile
Ideal for bodywork, small carpentry, and maintenance work

Technical specifications of HELVI PUMA278 MIG welder:
Power supply: 400 V ± 10% • 50/60 Hz
Power absorbed: 60% 4.8 kW
No-load voltage: 30 V
Regulation range: 30 ÷ 250A
Duty cycle: 40°C 250A @ 35% / 190A @ 60% / 150A @ 100%
Usable materials: iron, stainless steel, aluminum, stranded wire, CuSi₃
Electrode Ø Diam.: 0.8 ÷ 1.0 Ø mm
Insulation: H
Protection class: IP23S
Dimensions: 450 x 840 x 710 mm
Weight: 32 kg

If you are looking for another product similar to the HELVI PUMA278 MIG inverter welder, we recommend that you view the entire range dedicated to welders.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
