MOSA TF IM5.5 Y L-4x150 LED Lighting Tower 4.2 kVA Genset

Reference C08P30E0

Maximum Height (mt.): 5.5
Lifting System: Manual
Illuminated Area: 1800 m²
Floodlihts: LED
Projectors: 4 x 150 W
Transportability: Wheels and Handles
Dry Weight (Kg): 335
Min. Dimensions (mm): 1125 x 1256 x 2236
Max. Dimensions (mm): 1853 x 1380 x 5500
Wind Stability (Km/h): 80
Mast rotation: ----
Stabilizers: 2
Operating Time (h): 44
Single Phase Max. Output (kVA): 5.5
Engine: Yanmar L70
Fuel: Diesel
r.p.m.: 3000
Tank Capacity (l): 23
Consumption (l/h): 0.53

Download Scheda tecnica TF IM5.5YJ-4X400 Download Technical data TF IM5.5YJ-4X400 Download Technische daten TFIM5.5YJ-4X400 Download Donnees tech TFIM5.5YJ-4X400 Download Manuale TFIM5.5YJ-4X400 Download Manual TFIM5.5YJ-4X400 Download Manuel TF IM5.5 Y Download Bedienungs TF IM5.5 Y

Product Details
Description

Phase: Single phase
Maximum power single phase (KVA): 4.5
Continuous power single phase (KVA): 4.2
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A 2P+T CEE - 1 x 115V 16A 2P+T CEE
Engine: Yanmar L70N, 4 stroke
Emissions Regulations: Stage 5
Engine rpm (rpm): 3000
Starting system: Elettrico
Engine capacity (cm³): 320
Number cylinders: 1
Cooling: Air
Inyección: Direct
Alternator: Synchronous, brushless
Poles: 2
Maximum height (m): 5
Type of lamps: LED
Lamps: 4 x 150 W
Telescopic pole: Galvanized

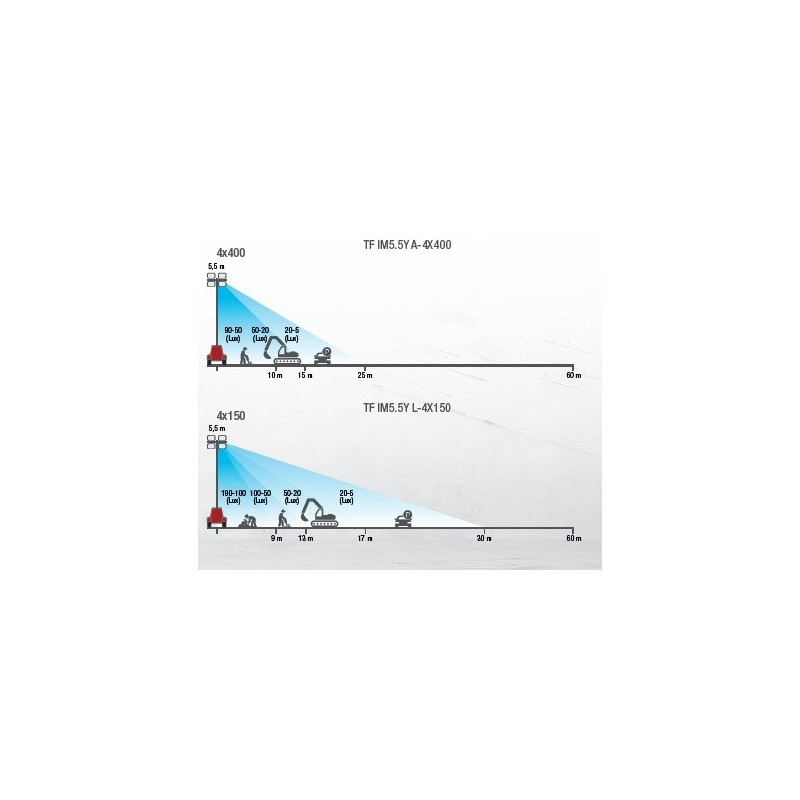

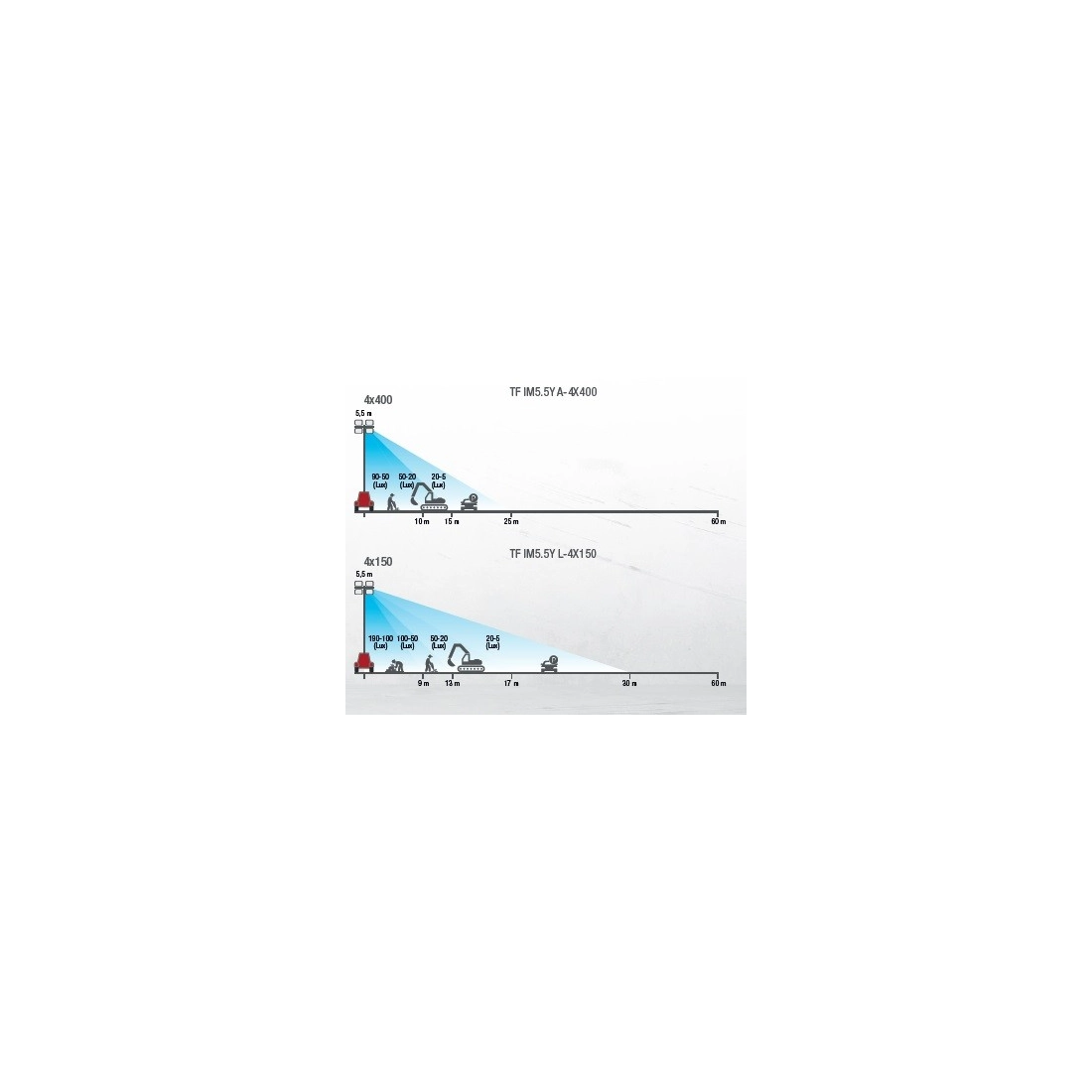

Illuminated area (m²): 1800
Total lumens (Lm): 64800
Lifting System: Manual lifting system
Open size (mm): 1853 x 1380 x 5500
Lenght closed (mm): 1125
Width closed (mm): 1256
Height closed (mm): 2246
Transportability: Wheels and handles
Stability to wind (Km/h): 80 Km/h
Fuel tank capacity (L): 23
Consumption (L/h): 0.54
Running time (h): 43
Acoustic power: 93 dB(A)
Acoustic pressure: 68 dB(A) at 7 m
Dry weight (Kg): 335
Silenced: Yes
Super silenced: Yes
Brushes: No

Brand

New compact and easy-to-handle lighting tower with an integrated power generator.

- MAXIMUM HEIGHT 5.5 M
- MANUAL LIFTING
- 4.2 kVA SUPER-SILENCED GENERATOR
- AVAILABLE BULBS: 2x300 W LED or 4x400 W METAL HALIDES
- OPERATING TIME 44 HOURS (LED)

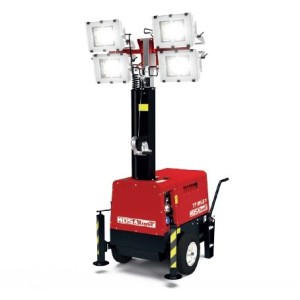

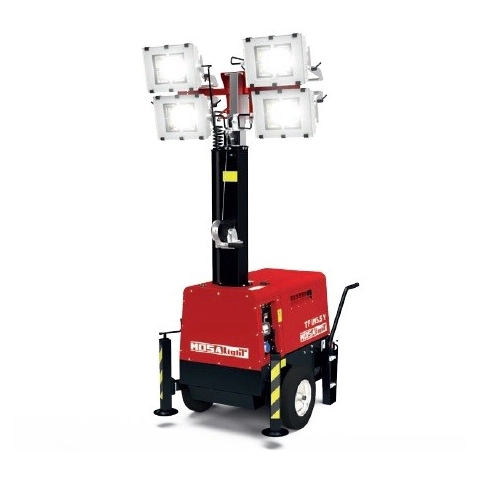

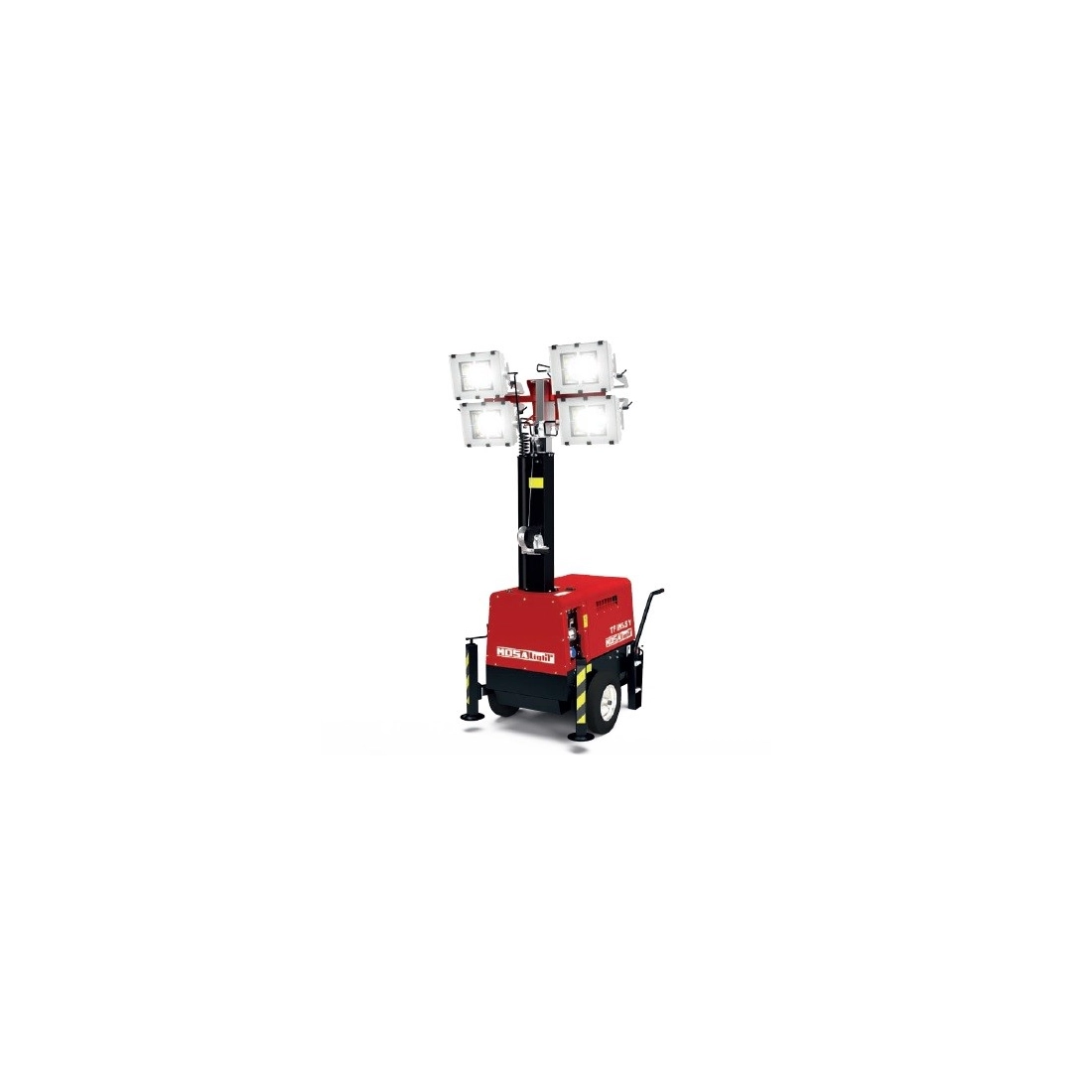

The new TF IM 5.5 Y is a compact and easy-to-carry lighting tower that can effectively illuminate areas up to 1,800 sq m with a reduced environmental impact.

TF IM 5.5 Y is fitted with a 5.5 metre telescopic, with manual lifting and two high efficiency 300 Watt LED lights (or four traditional 400 Watt metal halide lights) and a Yanmar single-cylinder engine.

Thanks to its contained weight and set-up on a manual trailer, it can be easily controlled by a single operator.

Sectors of use: rental, events, roadworks and construction sites.

The photoes are for illustrative purpose only.

^* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
