CGM BE TOWER BE4-320L
      CGM BE TOWER BE4-320L

      CGM BE TOWER BE4-320L

      OUT OF PRODUCTION

      Floodlights: 4 x 320W Iodides
      Illuminated Area: 5000 @ 5 lux
      Max Height: 8.5 Mt
      Lift: Hydraulic
      Telescopic pole: Telescopic pole in galvanized steel
      Wind Stability: nr 4 stabilizers
      Lumen per luminaire: 41550 lm
      Total lumens: 166200 lm
      Rotation: 359 degrees
      Forklift guides: nr 8
      Power outlet: 16A 3P input plug
      Connectable in series: YES
      Voltage: 230V
      Frequency: 50 Hz
      Width: 1200 mm
      Length: 1000 mm
      Height Opened: 8500 mm
      Height Closed: 2300 mm
      Dry weight: 550 Kg

      Custom Quote
      Product: CGM BE TOWER BE4-320L

      PERSONAL DATA


      Ask a question
      Product: CGM BE TOWER BE4-320L
      Offer on letterhead
      Product: CGM BE TOWER BE4-320L
      CGM
      CGM BE4-320L /

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Sockets configuration
      1 x 230V 16A 3P CEE
      Type of lamps
      LED
      Lamps
      4 x 320 W
      Telescopic pole
      Galvanized steel
      Illuminated area (m²)
      5000
      Total lumens (Lm)
      166200
      Lifting System
      Hydraulic lifting system
      Maximum height (m)
      8.5
      Mast rotation
      359°
      Open size (mm)
      1200 x 1000 x 8500
      Closed size (mm)
      1200 x 1000 x 2300
      Dry weight (Kg)
      550

      Specific References

      New

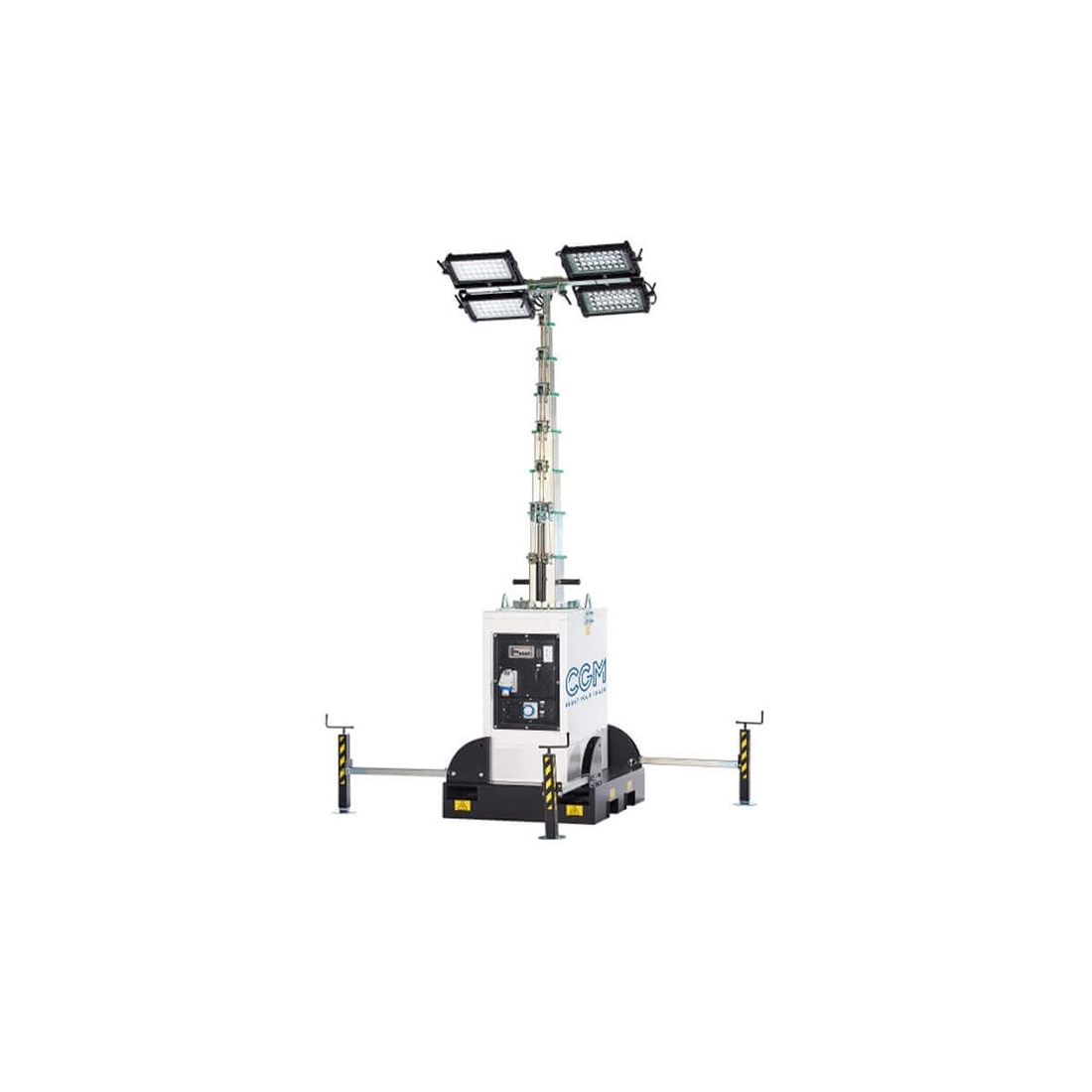

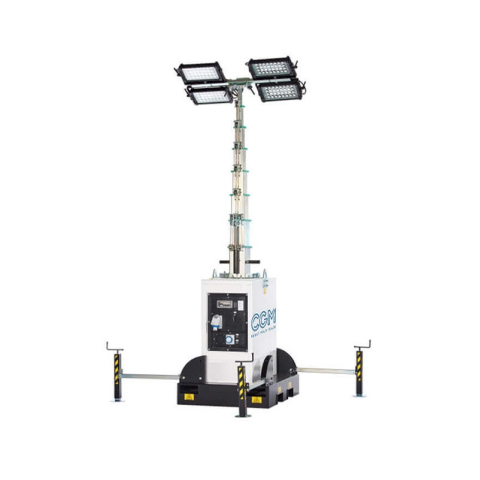

      CGM BE TOWER BE4-320L 320W X4 LIGHTER TOWER

      CGM BE4-320L is a galvanized steel telescopic light tower equipped with 4 LED projectors each capable of delivering a light output of 320W.

      The BE TOWER CGM BE4-320L light tower has an input plug and a 16A 230V output socket for the with which it can be combined with other units.
      CGM BE4-320L is designed to be combined with a CGM generator set and can be connected in series in order to use one generator for multiple lighting units.

      CGM BE4-320L TECHNICAL SPECIFICATIONS

      Projectors: 4 Ioduri 320W
      Lighted Area: 5000 @ 5 lux
      Max Height: 8. 5 Mt
      Rise: Hydraulic
      Telescopic Pole: Telescopic pole in galvanized steel
      Wind Stability: nr 4 stabilizers
      Lumen per spotlight: 41550 lm
      Total lumens: 166200 lm
      Rotation: 359 degrees
      Guides for forklift: nr 8
      Power outlet: 16A 3P input plug
      Connectable in series: YES
      Voltage: 230V
      Frequency: 50 Hz
      Width: 1200 mm
      Length: 1000 mm
      Height Open: 8500 mm
      Height Closed: 2300 mm
      Dry Weight: 550 Kg

      Looking for a Light Tower with different characteristics? Here you can find the whole range of CGM or other specialized brands

      Images and technical data are not binding and may be subject to change by the supplier
