Phase type: Single-phase
Maximum power: 11.2 KVA / 9 KW
Continuous power: 10.2 KVA / 8.2 KW
Maximum height (mt. ): 9
Illuminated Area: 4800 m²
Lift: Hydraulic
Lamps: LED
Floodlights: 4 x 240 W
Transportability: Fixed
Wind Stability (Km/h): 80
Rotation: 340°
Adjustable Stabilizers: 4
Engine: Yanmar 3TNV80F
Engine RPM: 1500 rpm
Emissions Standard: STAGE 5
Fuel: Diesel
Sound Pressure: 90 dBA (65 dBA @ 7 m)
Tank Capacity (l): 110
Autonomy only lights (h): 230
Consumption only lights (l/h): 0.50

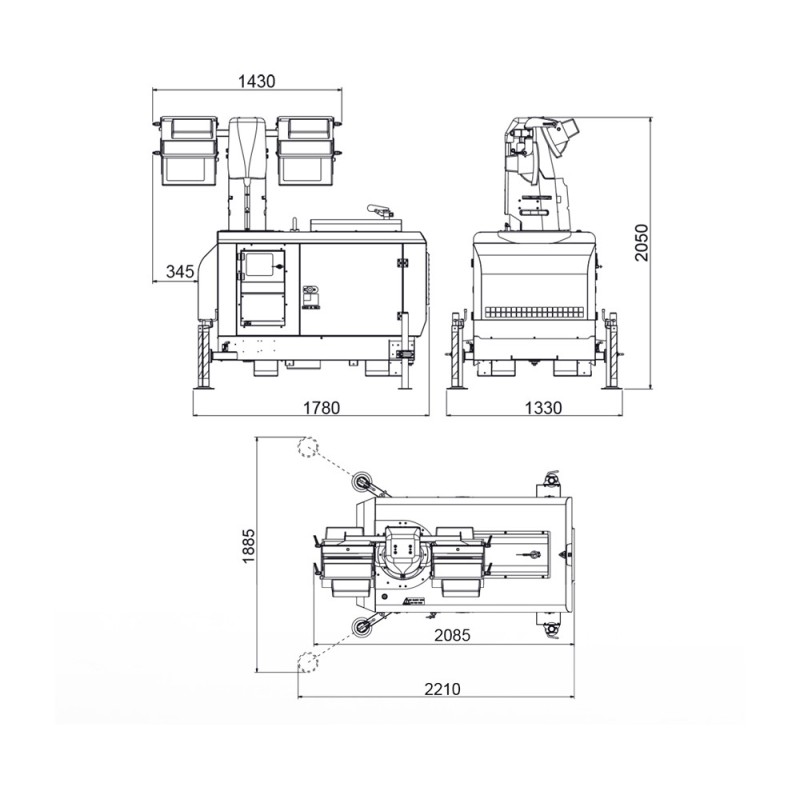

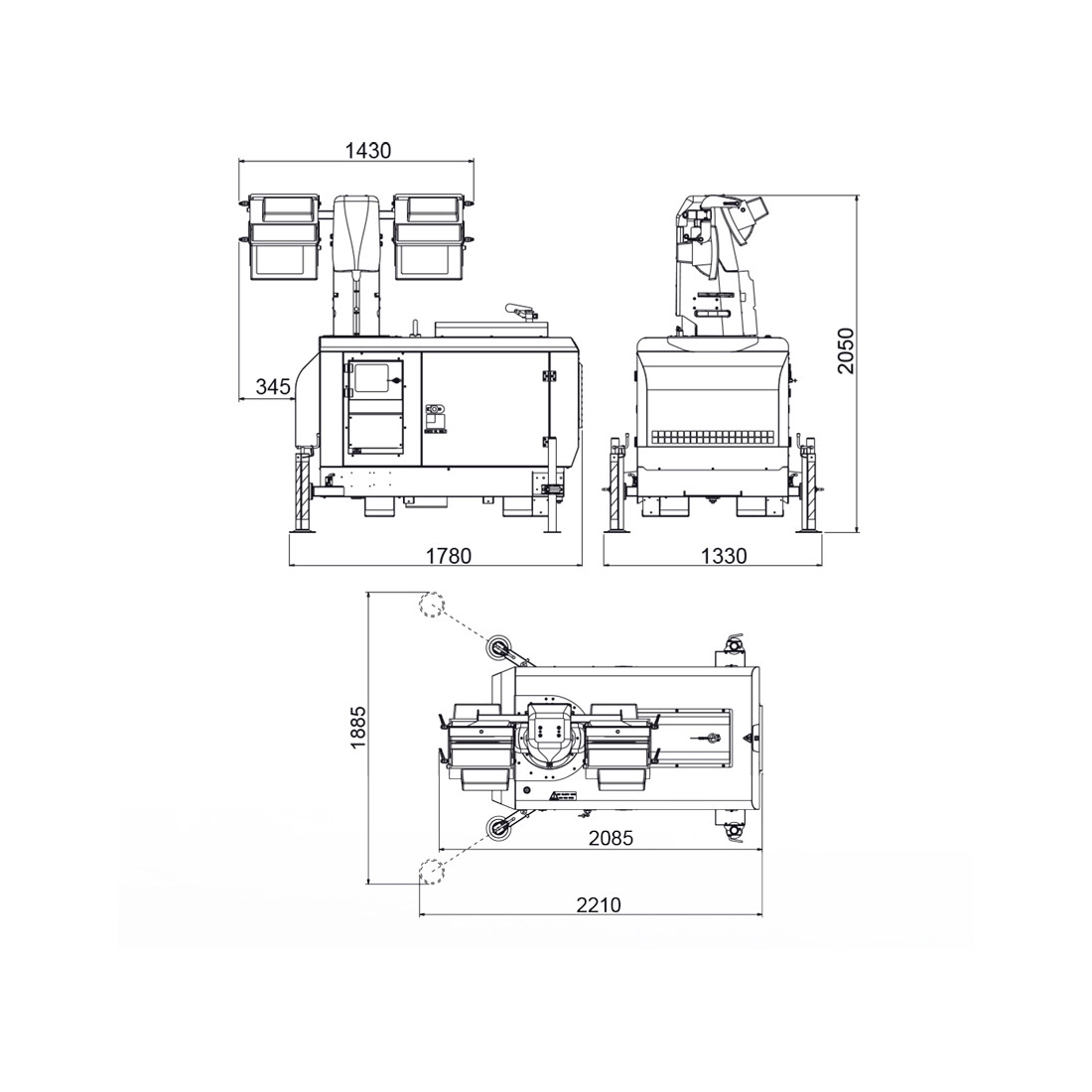

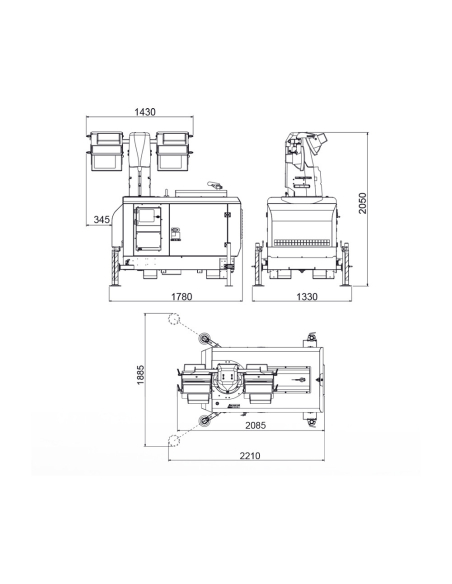

Dimensions Min. (mm): 1780 x 1330 x 2050
Dimensions Max. (mm): 2210 x 1885 x 9000
Dry weight (Kg): 885
Data sheet
Specific References

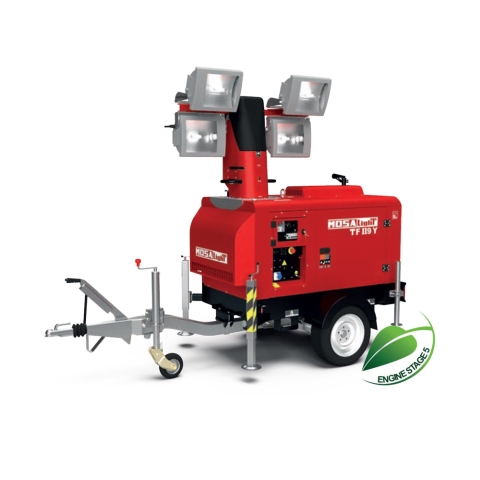

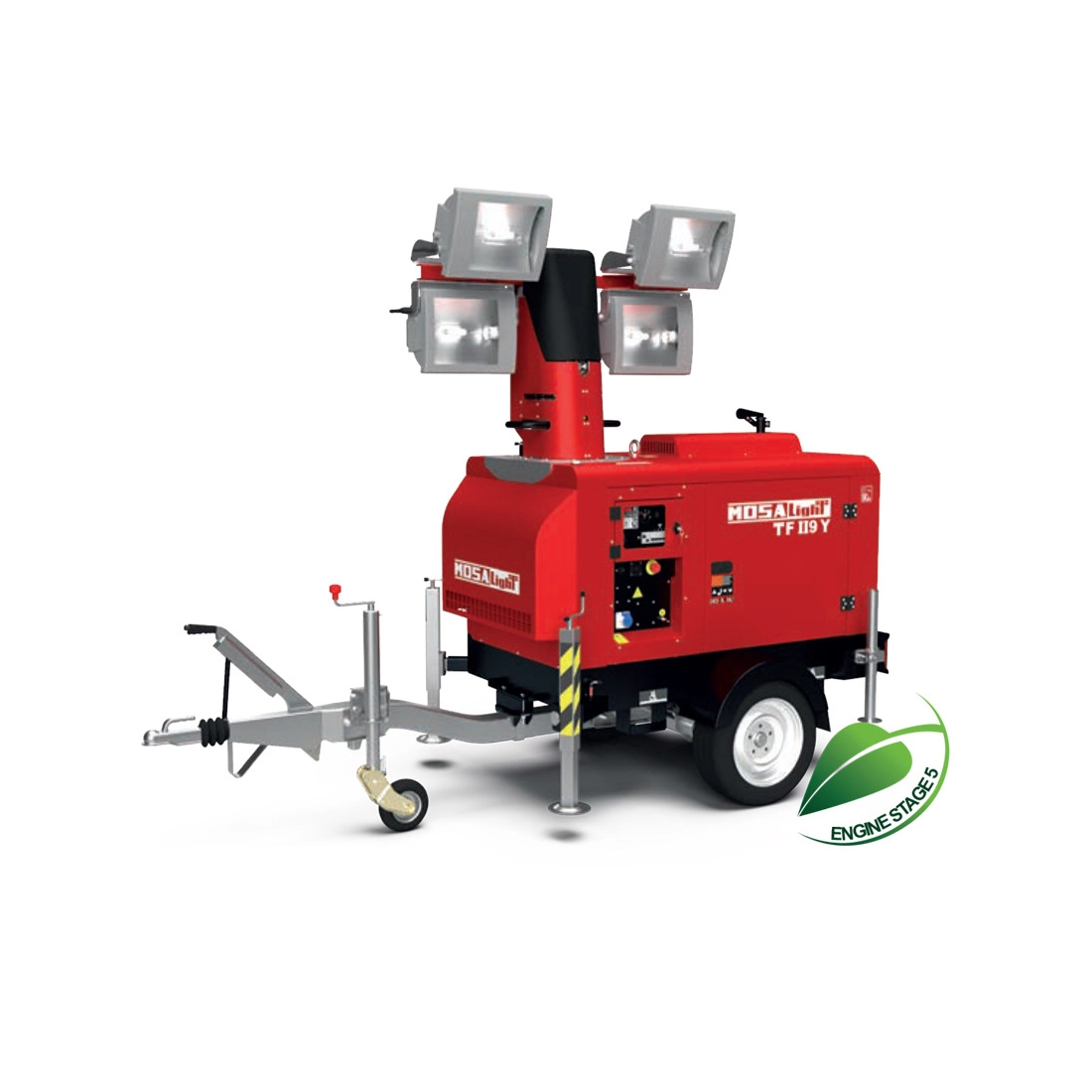

MOSA TF II9 Y J-4x240 LED is a light tower with a generator equipped with a Yanmar 3TNV80F Stage V Diesel engine, with 4 floodlights capable of delivering a output of 240W each.
MOSA TF II9 Y J-4x240 LED is equipped with a galvanized steel lifting tower capable of extending up to a maximum height of 9 meters, including 4 stabilization feet to secure the lighttower once opened. The lifting system is operated by a hydraulic system that allows for maximum extension without effort.

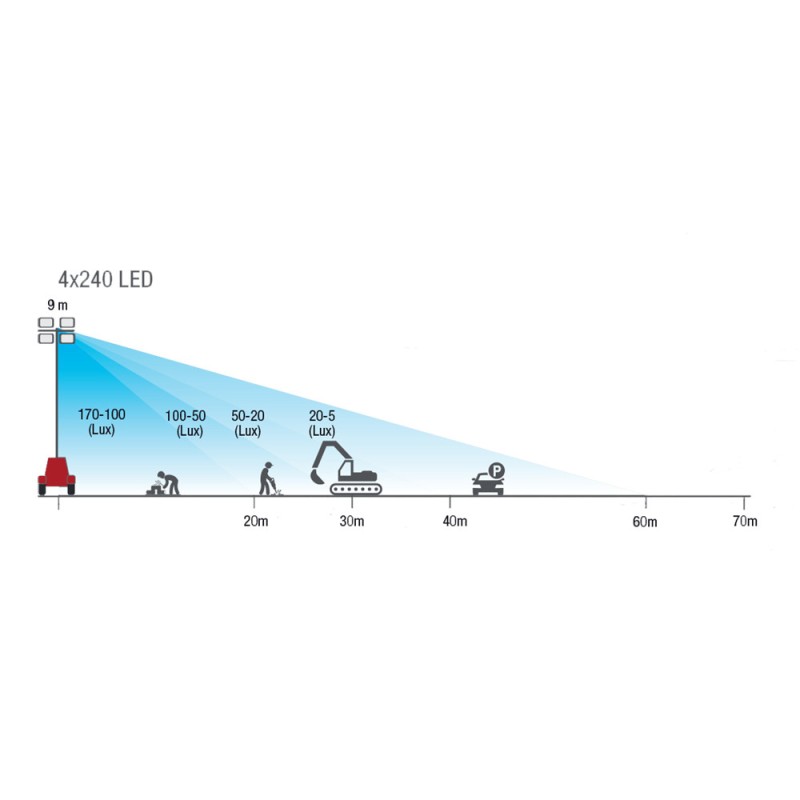

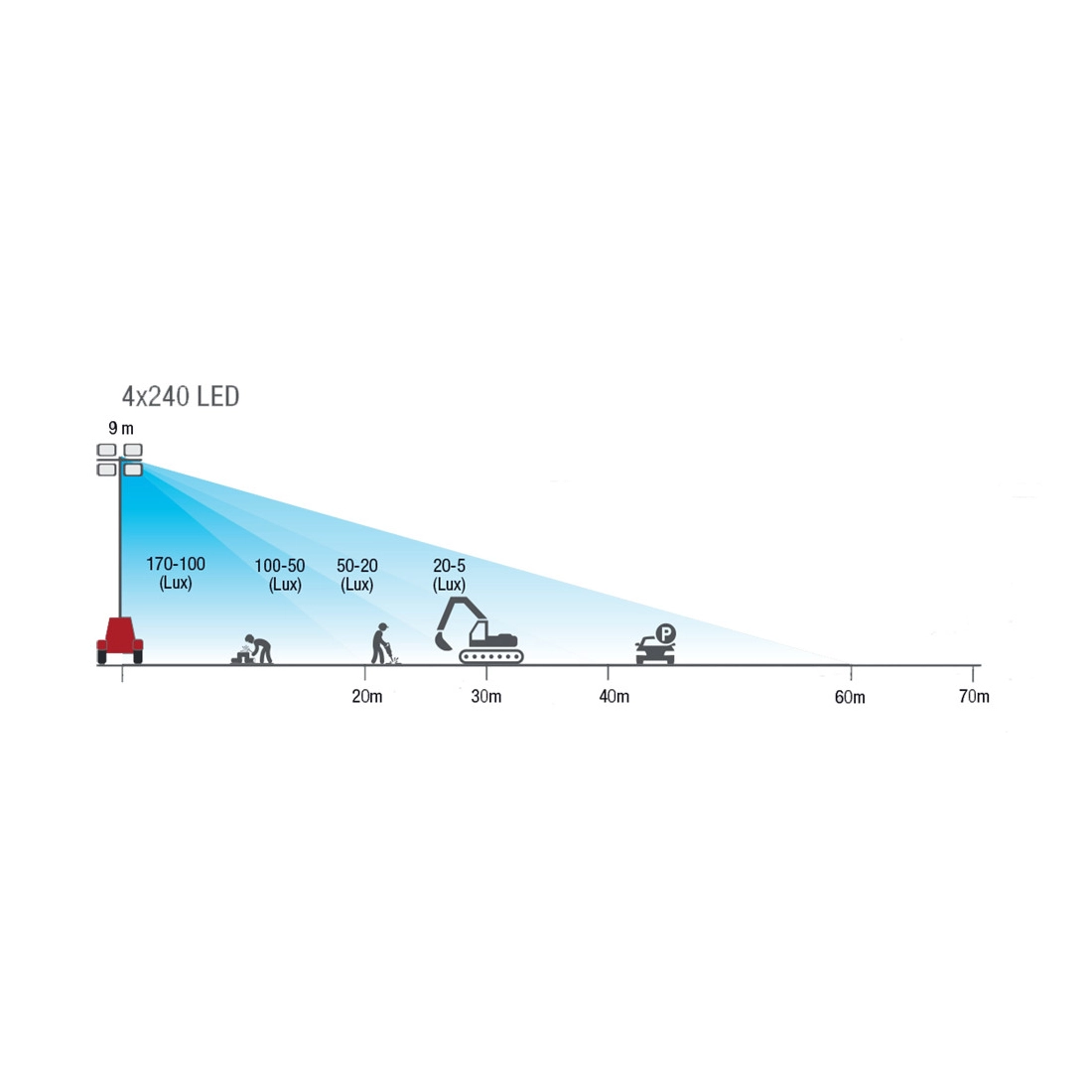

A single MOSA TF II9 Y tower can cover an area of 4800 m2, ensuring a brighter, safer and more productive site. Thanks to the side handles, located at the base of the pole, it is possible to direct the light beam of the projectors as needed.
MOSA TF II9 Y J-4x240 LED is characterized by extremely compact dimensions and square shape that optimize and facilitate the positioning and transport on mobile vehicles. The base, with 4 adjustable and removable anti-tip stabilizers, guarantees high wind stability.
TECHNICAL FEATURES MOSA TF II9 Y J-4x240 LED
Phase Type: Single Phase
Maximum Power: 11.2 KVA / 9 KW
Continuous Power: 10.2 KVA / 8.2 KW
Maximum Height (mt. ): 9
Lighted Area: 4800 m²
Lift: Hydraulic
Lamps: LED
Lights: 4 x 240 W
Transportability: Fixed
Wind Stability (Km/h): 80
Rotation: 340°
Adjustable Stabilizers: 4
Motor: Yanmar 3TNV80F
Motor RPM: 1500 rpm
Emissions Standard: STAGE 5
Fuel: Diesel
Acoustic Pressure: 90 dBA (65 dBA @ 7 m)
Tank Capacity (l): 110
Lights Only Range (h): 230
Lights Only Consumption (l/h): 0.50
Min. Dimensions. (mm): 1780 x 1330 x 2050
Max. (mm): 2210 x 1885 x 9000
Dry weight (Kg): 885
Looking for a lighttower with different technical characteristics? Here you can find the full range of lighttowers MOSA or other specialized brands.
The images are for guidance only.
