GENSET LT 5000 SS-Y - LIGHT TOWER LED 4.2 KVA

GENSET LT 5000 SS-Y - LIGHT TOWER LED 4.2 KVA
search

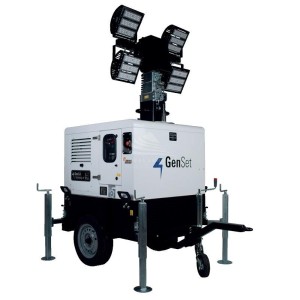

  • GENSET LT 5000 SS-Y - LIGHT TOWER LED 4.2 KVA

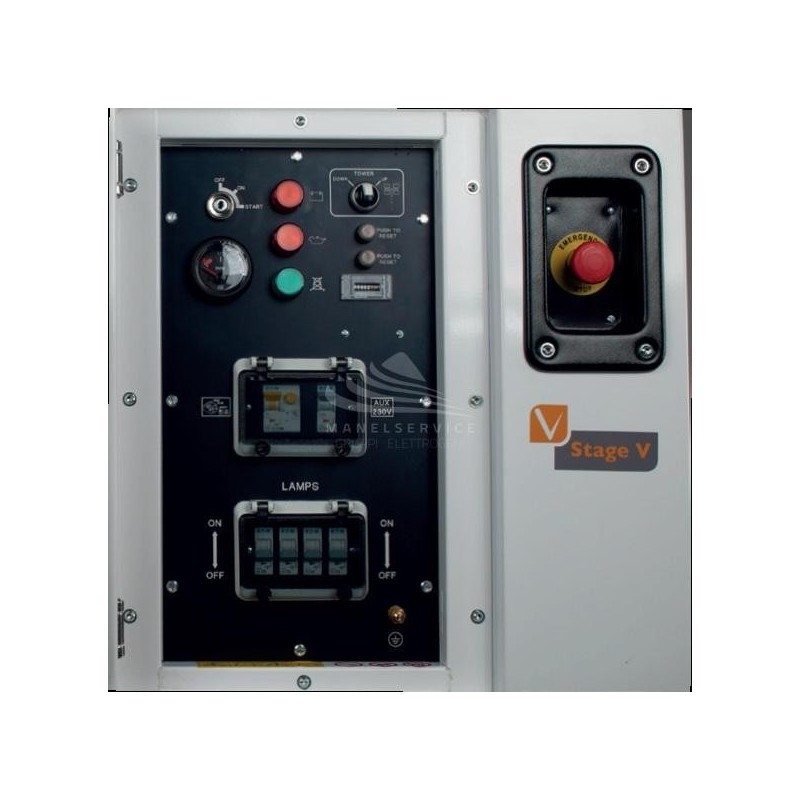

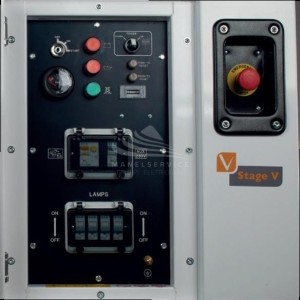

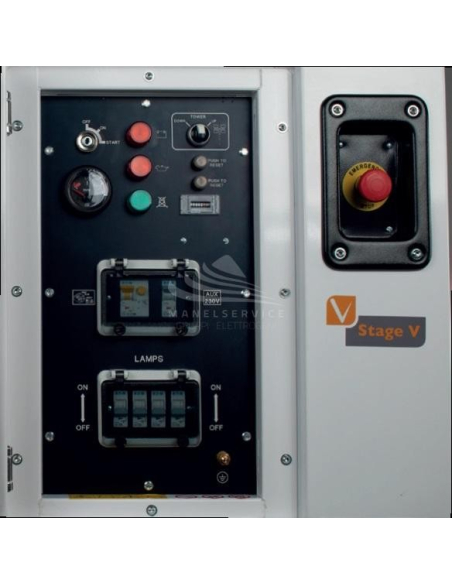

  • GENSET LT 5000 SS-Y - Control panel

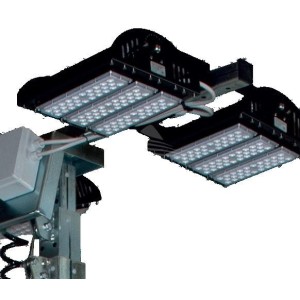

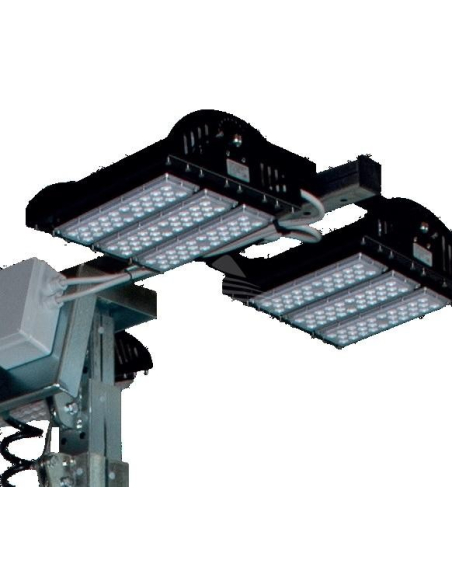

  • GENSET LT 5000 SS-Y - Low consumption LED

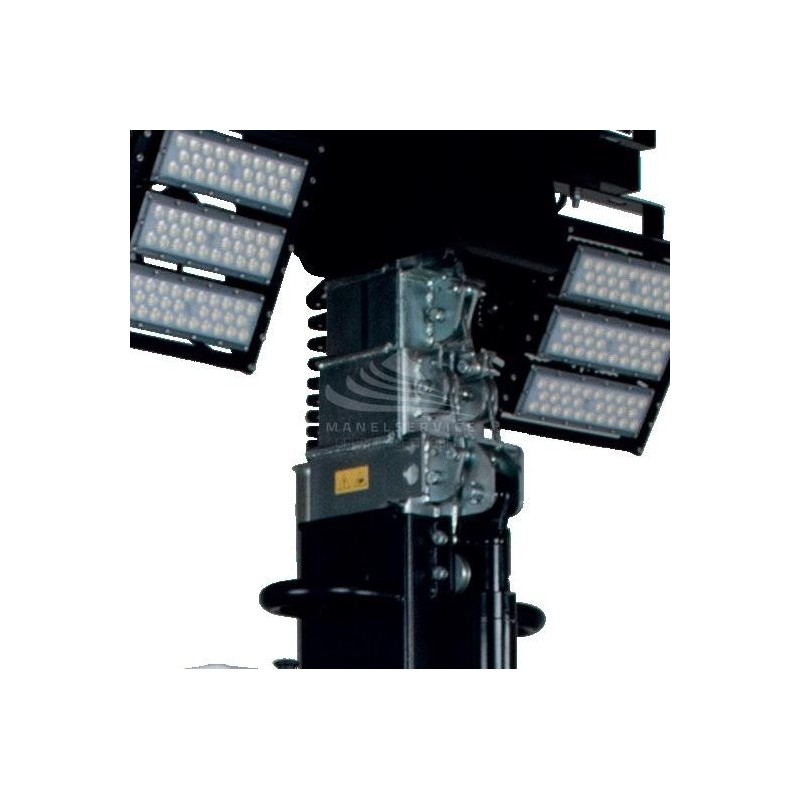

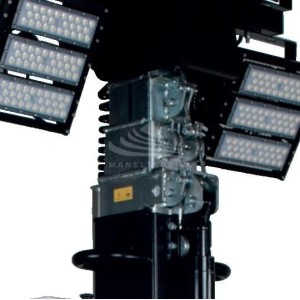

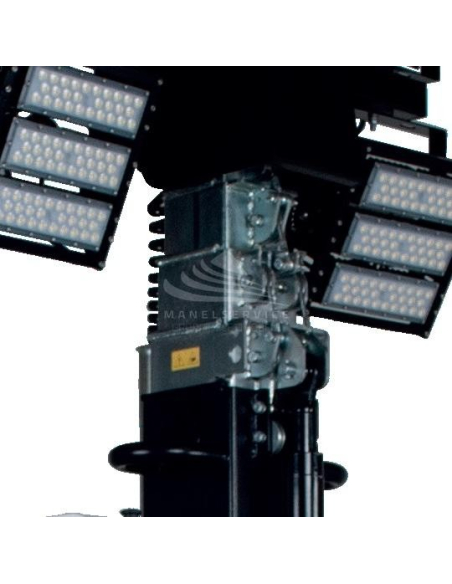

  • GENSET LT 5000 SS-Y - Hydraulic lifting (optional)
GENSET
LT 5000 SS-Y 150W
New product

Maximum power Single-phase: 4.2 KVA
Maximum power Single-phase: 3.36 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar L70V (STAGE V)
Starting: Electric
Lamps: 4x150 W LED
Illuminated area: 3400 m²
Riser: Manual
Maximum height: 8 m
Length: 2135 mm
Width: 1750 mm
Height: 2700 mm
Weight: 800 Kg
Super silenced

Technical features
Phase
Single phase
Maximum power single phase (KW)
3.6
Maximum power single phase (KVA)
4.2
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x 230V 16A CEE
Engine
Yanmar L70V, 4 stroke
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
320
Number cylinders
1
Cooling
Air
Alternator
Synchronous
Protection degree
IP23
Motor insulation class
H
Type of lamps
LED
Lamps
4 x 150 W
Illuminated area (m²)
3400
Total lumens (Lm)
110000
Lifting System
Manual lifting system
Maximum height (m)
8
Mast rotation
340°
Open size (mm)
2135 x 2840 x 10700
Closed size (mm)
2135 x 1750 x 2700
Lenght closed (mm)
2135
Width closed (mm)
1750
Height closed (mm)
2700
With generator / Without generator
With generator
Transportability
Slow Trailer
Fuel tank capacity (L)
100
Consumption (L/h)
1
Running time (h)
100
Acoustic power
95 dB(A)
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
500
Silenced
Yes
Super silenced
Yes
Product type
Light tower
Voltage regulator
No
Engine manufacturer
Yanmar
Details

GENSET LT 5000 SS-Y

The GENSET LT 5000 SS-Y is a light tower with 4.2 KVA single-phase diesel generator set with electric start.
With a maximum height of 8 meters and thanks to its 4 LED lamps of 150 W each, the GENSET LT 5000 SS-Y can illuminate an area of 3400 m².
The GENSET LT 5000 SS-Y also has low fuel consumption.
Thanks to the high quality and efficiency of its components, the GENSET LT 5000 SS-Y light tower is ideal for lighting various sites - from small sites to large construction sites.

Images and technical data are not binding.
