CGM ADB4-160L
CGM ADB4-160L /
OUT OF PRODUCTION
Floodlights: 4 LED 160W
Illuminated Area: 3000 Mq
Max Height: 8.5 Mt
Lift: Hydraulic
Telescopic pole: galvanized steel with self-braking winch from 450
Wind stability: nr 4 stabilizers
Guides for forklift forks: n.4
Lumen per light: 20350 lm
Rotation: 359 degrees
Towing trolley: Slow
Voltage: 230V
Frequency: 50 Hz
Autonomy with headlight working at 30%: 60 hr
Battery technology: AGM 2V
Control technology: Inverter - Onduleur
Battery pack capacity: 400 Ah
Number of batteries: 12
Recharge time: 12 hr
Expected battery life: 400 cycles
Width: 2330 mm
Length: 1470 mm
Height Closed: 2450 mm
Height Opened: 8500 mm
Dry weight: 950 Kg
CGM ADB4-160L /
Data sheet
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Tank capacity (L)
- 120
- Battery type
- AGM 2V
- Number of batteries
- 12
- Type of lamps
- LED
- Lamps
- 4 x 160W
- Telescopic pole
- Galvanized steel
- Illuminated area (m²)
- 3000
- Lifting System
- Hydraulic lifting system
- Maximum height (m)
- 8.5
- Mast rotation
- 359°
- Open size (mm)
- 2330 x 1470 x 8500
- Closed size (mm)
- 2330 x 1470 x 2450
- Dry weight (Kg)
- 950
- Super silenced
- Yes
Specific References
New

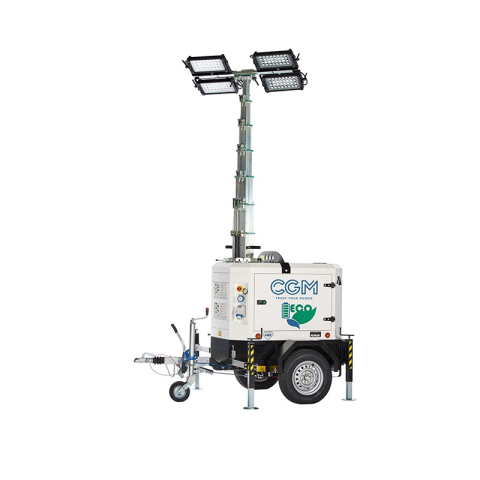

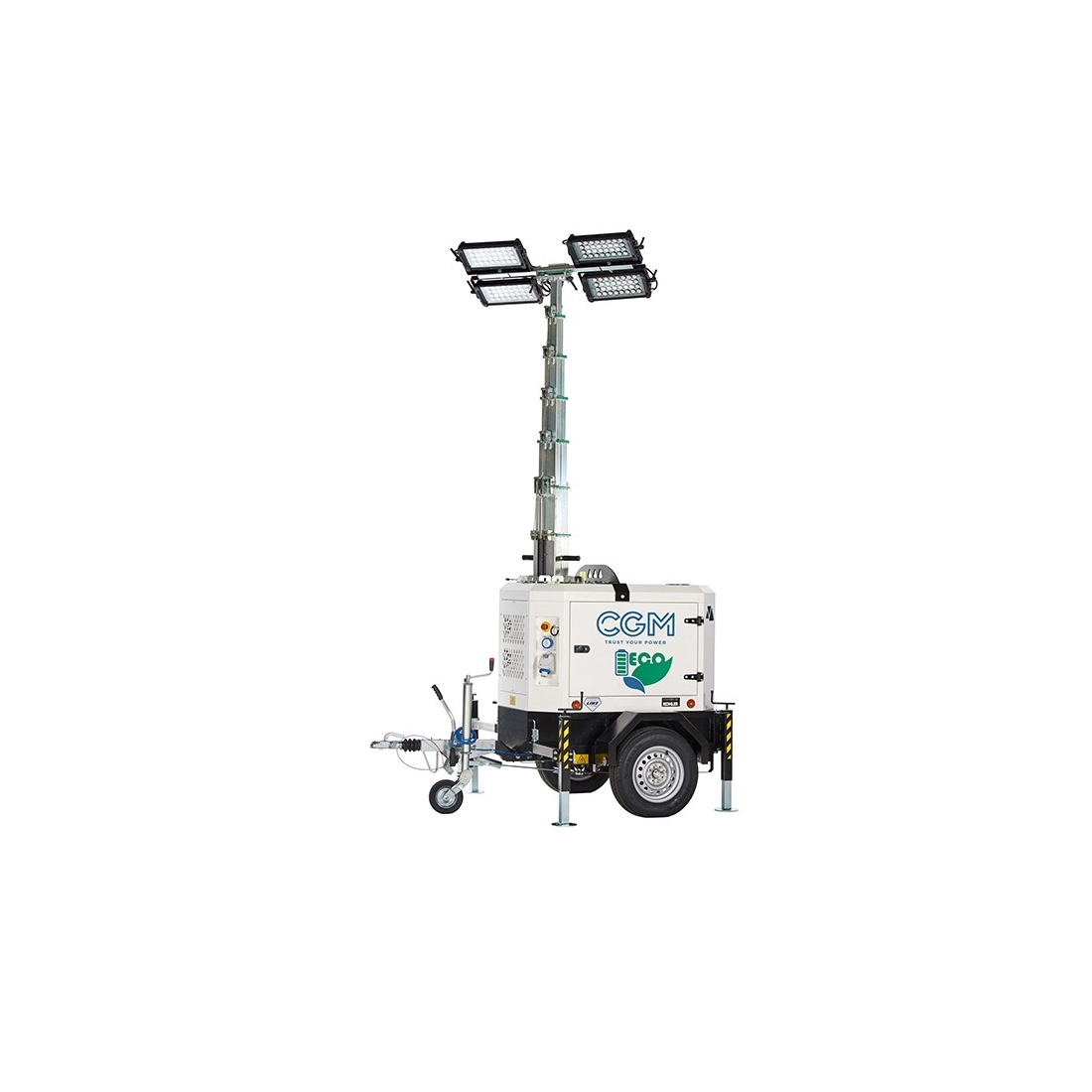

CGM ADB4-160L 4 X 160W
CGM ADB4-160L is a fully electric and environmentally friendly light tower, equipped with a battery that allows 60 hours of autonomy of work.
CGM ADB4-160L equipped with 4 floodlights capable of delivering a light output of 160W each.
CGM ADB4-160L is equipped with a galvanized steel lifting tower capable of extending up to a maximum height of 8.5 meters, including 4 stabilization feet to secure the light tower once opened. The lifting tower is operated electrically and by a hydraulic system that allows maximum extension without effort.
CGM ADB4-160L is equipped with extremely efficient and completely environmentally friendly AGM 2V battery technology, coupled with an inverter that optimizes the voltage supply from the battery pack, increasing its life.
CGM ADB4-160L TECHNICAL FEATURES
Floodlights: 4 LED 160W
Illuminated Area: 3000 Mq
Max Height: 8.5 Mt
Lift: Hydraulic
Telescopic pole: galvanized steel with self-braking winch from 450
Wind stability: nr 4 stabilizers
Guides for forklift forks: n.4
Lumen per light: 20350 lm
Rotation: 359 degrees
Towing trolley: Slow
Voltage: 230V
Frequency: 50 Hz
Autonomy with headlight working at 30%: 60 hr
Battery technology: AGM 2V
Control technology: Inverter - Onduleur
Battery pack capacity: 400 Ah
Number of batteries: 12
Recharge time: 12 hr
Expected battery life: 400 cycles
Width: 2330 mm
Length: 1470 mm
Height Closed: 2450 mm
Height Opened: 8500 mm
Dry weight: 950 Kg
Looking for a light tower with different characteristics? Here you can find the full range of CGM or other specialized brands.
Images and technical data are not binding and may be subject to revision by the supplier.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
