MOSA TF NM9 L-4x350 LED Lighting Tower
      MOSA TF NM9 L-4x350 LED Lighting Tower
      MOSA TF NM9 L-4x350 LED Lighting Tower
      MOSA TF NM9 L-4x350 LED Lighting Tower
      MOSA TF NM9 L-4x350 LED Lighting Tower

      MOSA TF NM9 L-4x350 LED Lighting Tower

      Maximum height (mt.): 9
      Lift: Manual

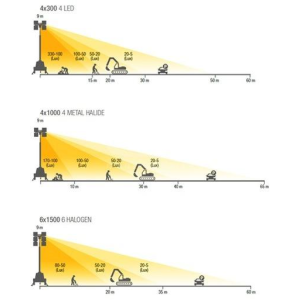

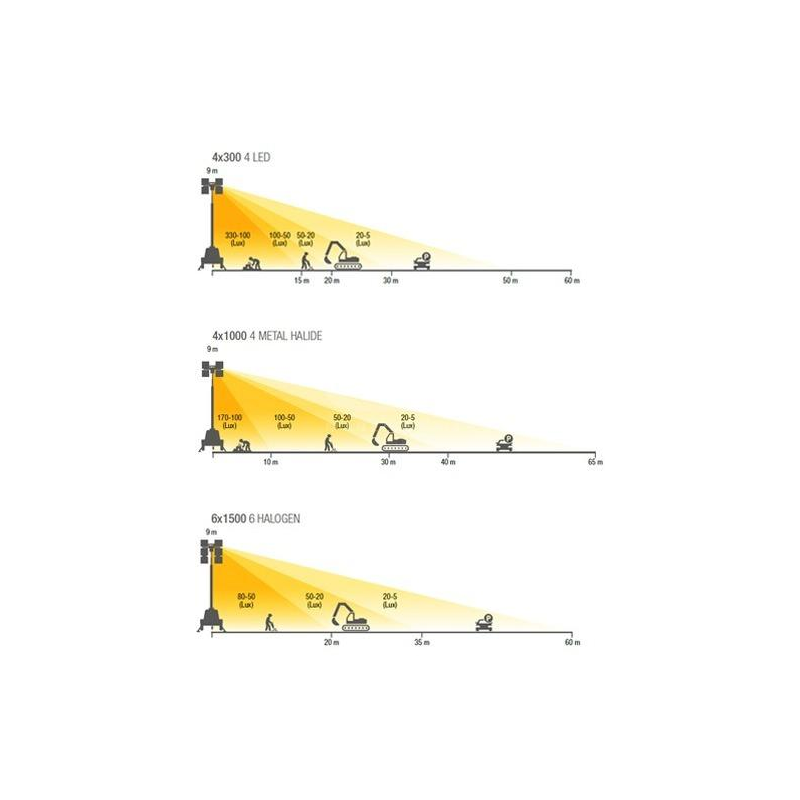

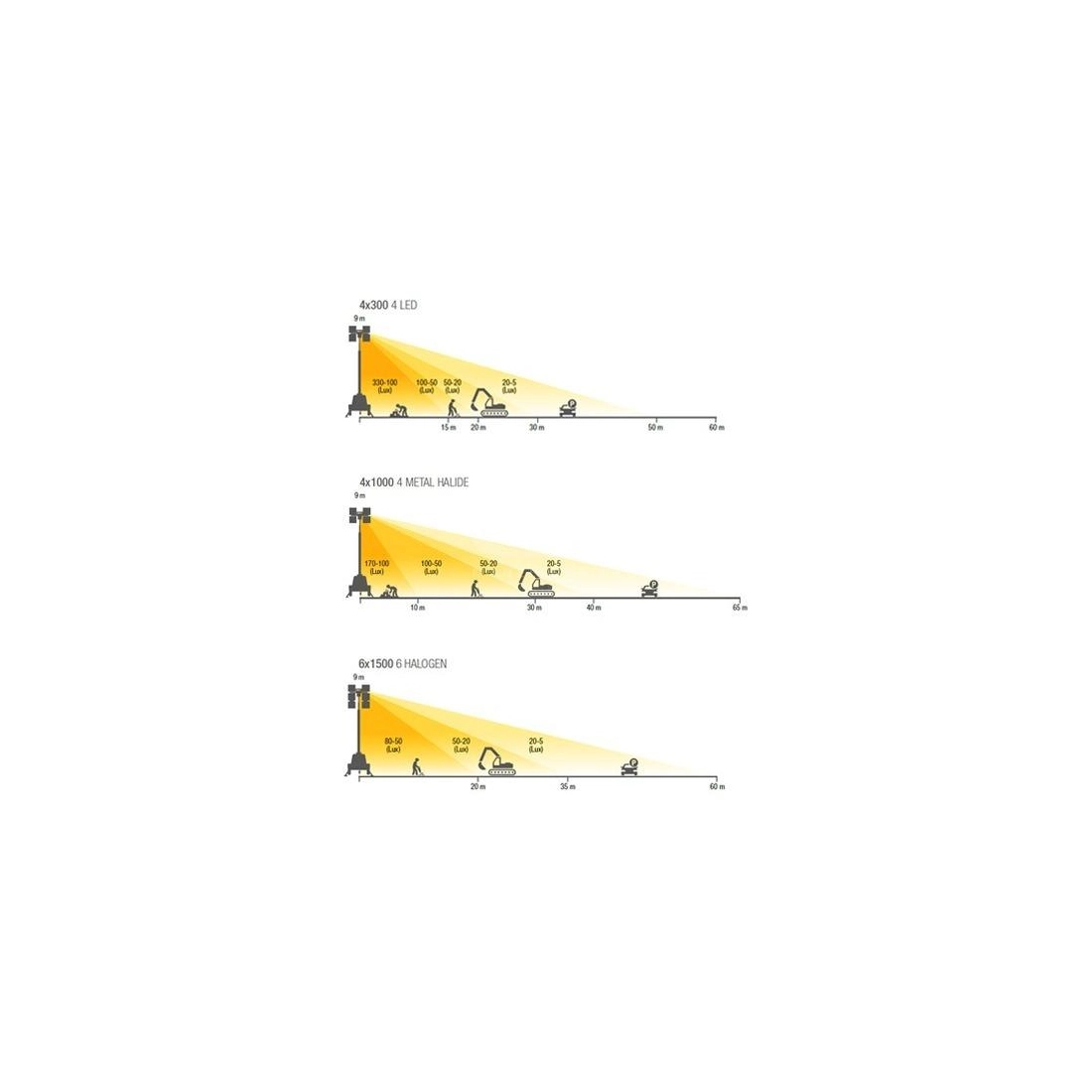

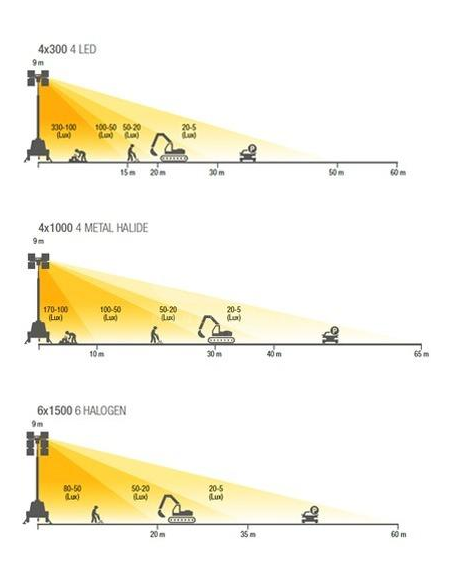

      Illuminated area: 4800 m²
      Lamps: LED
      Floodlights: 4 x 350 W
      Transportability: Slow Towing Trolley
      Dry weight (Kg): 800
      Dimensions Min. (mm): 3920x1410x2240
      Dimensions Max. (mm): 3920x1975x9000
      Wind stability (Km/h): 80
      Pole rotation: 340
      Frame designed for coupling with single-phase generators from 8 to 20 KVA

      List price
      8,863.30 € tax incl.
      7,265.00 € tax excl.
      Discounted Price
      8,863.30 € tax incl.
      7,265.00 € tax excl.
      Calculate Shipping Cost
      Ask a question
      Offer on letterhead
      Quantity :
      Download PDF
      Custom Quote
      Product: MOSA TF NM9 L-4x350 LED Lighting Tower

      PERSONAL DATA

      Ask a question
      Product: MOSA TF NM9 L-4x350 LED Lighting Tower
      Offer on letterhead
      Product: MOSA TF NM9 L-4x350 LED Lighting Tower
      MOSA
      C01000G0

      Data sheet

      Type of lamps
      LED
      Lamps
      4 x 350 W
      Telescopic pole
      Galvanized
      Illuminated area (m²)
      4800
      Total lumens (Lm)
      223820
      Lifting System
      Manual lifting system
      Maximum height (m)
      9
      Mast rotation
      340°
      Open size (mm)
      3920x1975x9000
      Closed size (mm)
      3920x1410x2240
      Stability to wind (Km/h)
      80 Km/h
      Dry weight (Kg)
      800
      Brushes
      No
      Feed Type
      Single-Phase

      Specific References

      New

      MOSA TF NM9 L-4x350 LED Light Tower

      MOSA TF NM9 L-4x350 is a lighting tower equipped with 4 halogen lamps 350 W, provides a high illuminated area of over 4800 square meters.

      MOSA TF NM9 L-4x350 are mobile lighting units designed to ensure maximum reliability of operation even in the harshest environments.

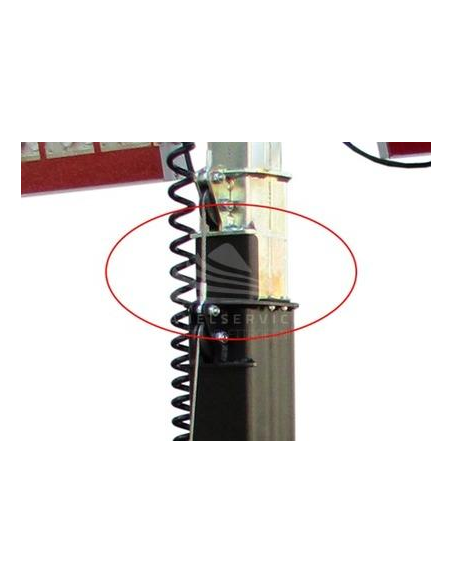

      Among the most characteristic elements is the upper protection of the telescopic pole, a MOSA exclusive, which safeguards one of the most delicate points of the entire MOSA TF NM9 L-4x350 from atmospheric agents, building site waste, dust and leaves.

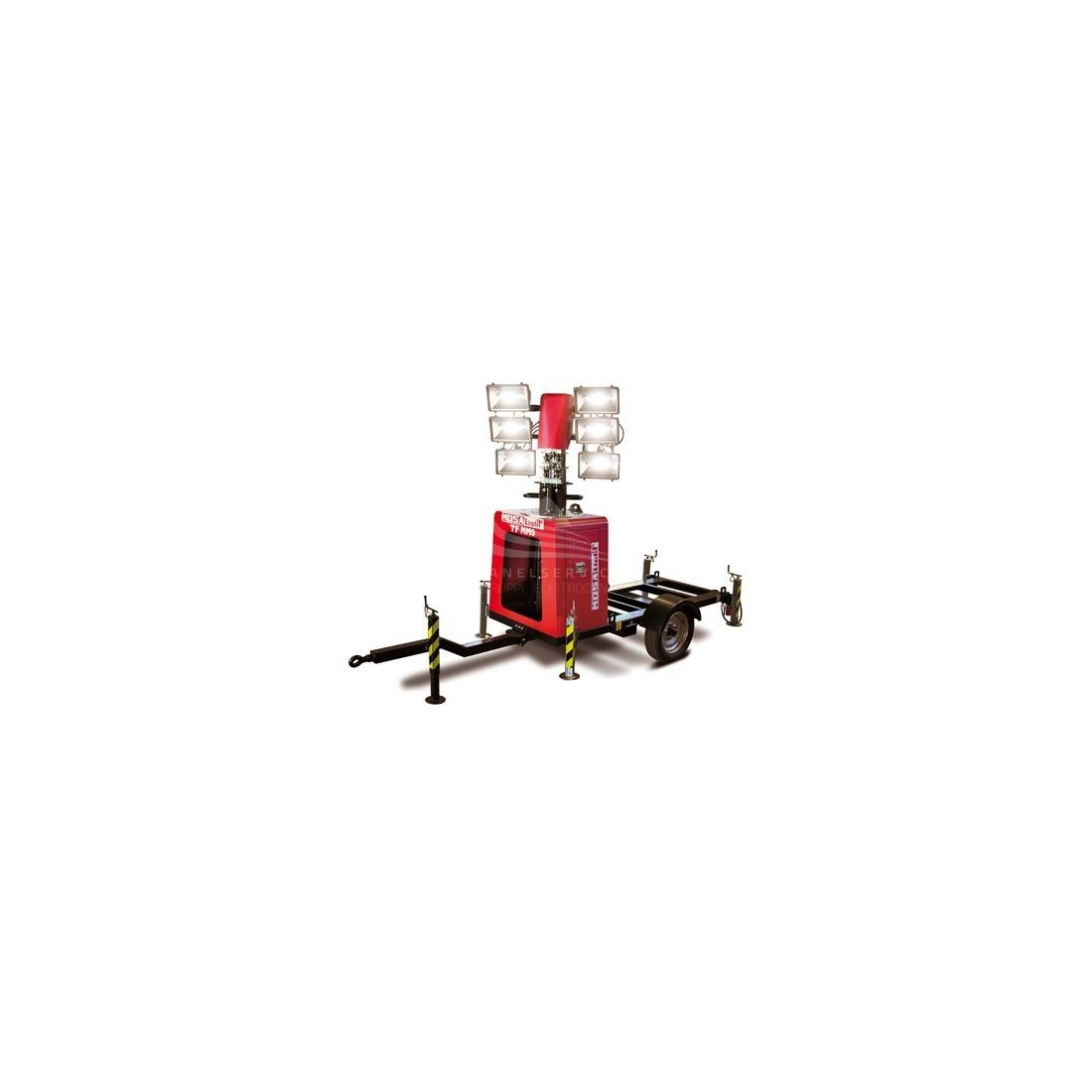

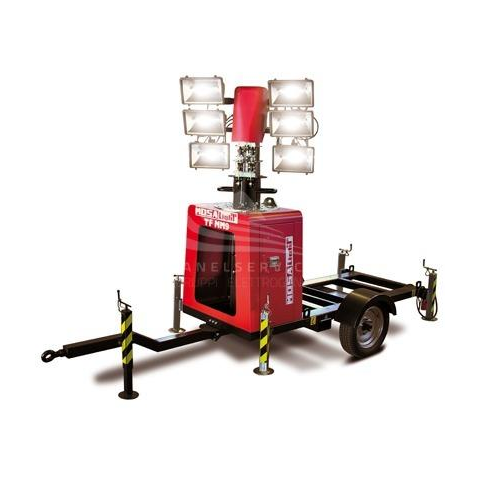

      MOSA TF NM9 L-4x350 is essentially composed of:
      - a supporting frame or base on which the generating set is fixed
      - four height-adjustable stabilizers, two of which are extendable, to guarantee the stability of the tower on any working surface
      - a single-axle, slow-moving towing trolley with wheels and mudguards, complete with drawbar and height-adjustable parking foot
      - a telescopic pole with manual lifting, vertical elevation with maximum working height of 9 meters and manual rotation of 340°.
      - an electrical panel and power cable, complete with all the protection, command and control devices required for a simple and safe use of the lighting tower.

      Thanks to the lateral handles, placed at the base of the pole, it is possible to direct the light beam of the floodlights according to the needs, acting in the following two ways
      - by adjusting the inclination of each floodlight

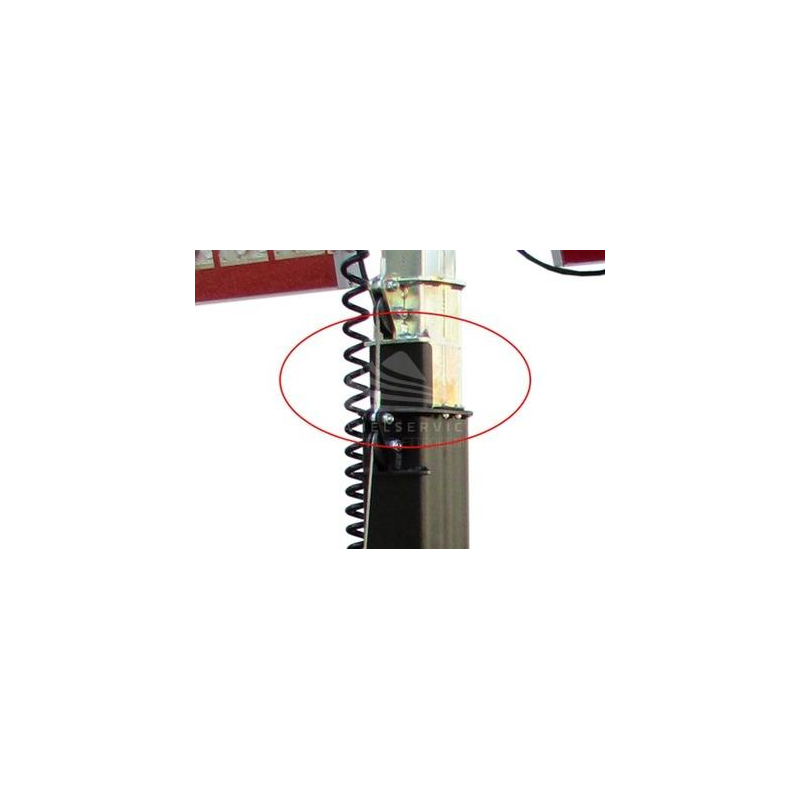

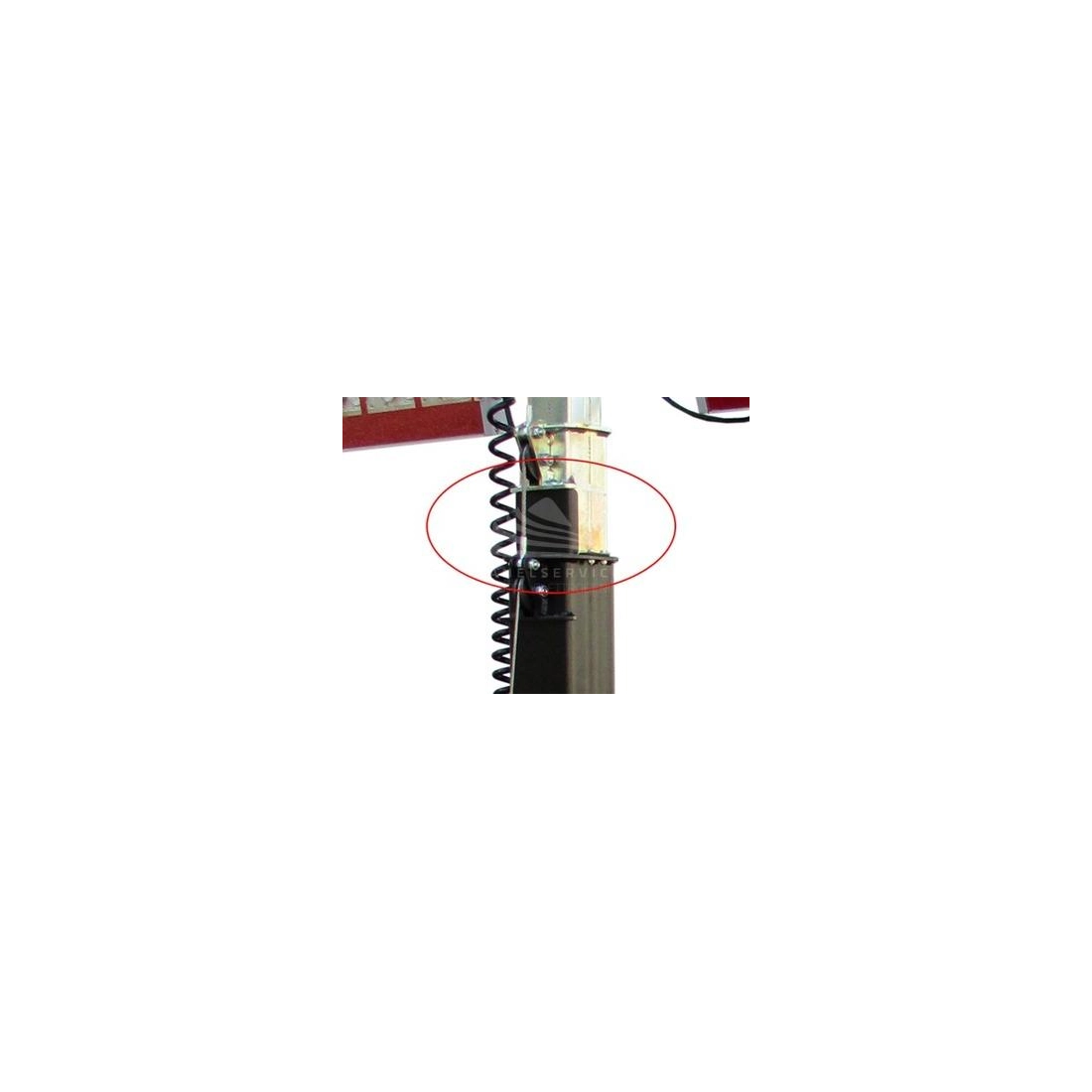

      The safety stop stops the descent at a safe height that avoids the risk of collisions with the floodlights during the normal descent phase or in the event of sudden breakage of the telescopic cables or the automatic brake of the lifting winch.

      TECHNICAL CHARACTERISTICS MOSA TF NM9 L-4x350

      Maximum height (mt.): 9
      Lift: Manual
      Lit area: 4800 m²
      Lamps: LED
      Lamps: 4 x 350 W
      Transportability: Slow Towing Trolley
      Dry weight (Kg): 800
      Dimensions Min. (mm): 3920x1410x2240
      Max. (mm): 3920x1975x9000
      Wind stability (Km/h): 80
      Pole rotation: 340°
      Frame designed for coupling with single-phase power generators from 8 to 20 KVA

      Looking for a light tower with different characteristics? Here you can find the entire range Mosa or other brands specializing in the field.

      The images are purely indicative.
