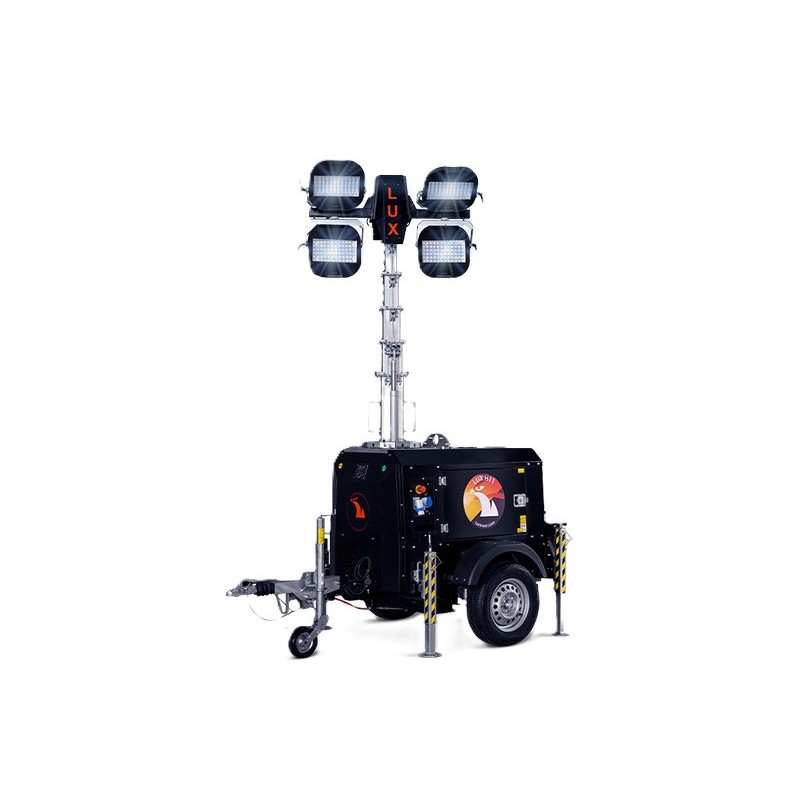

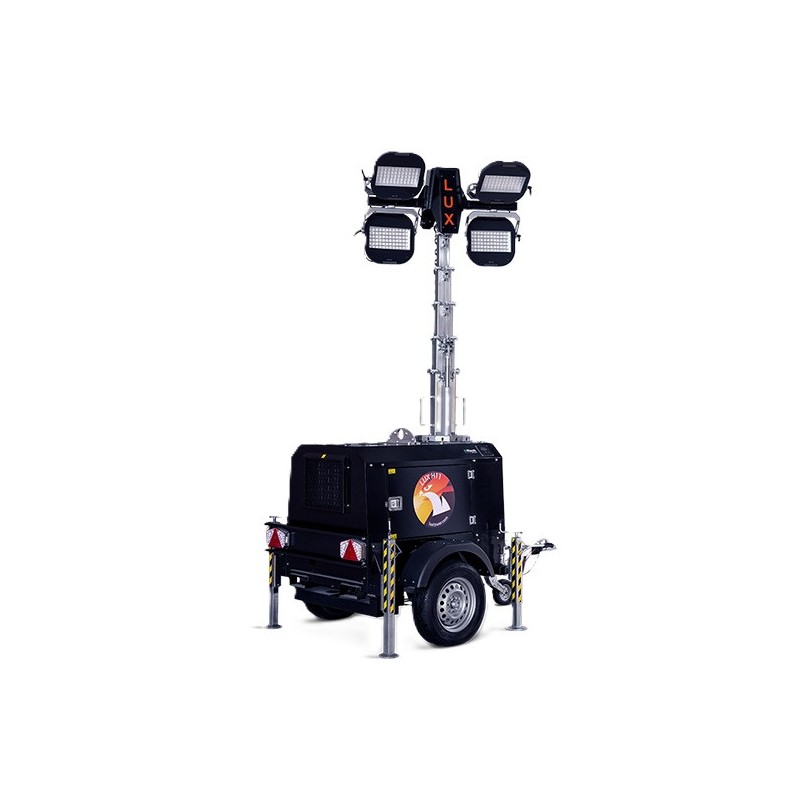

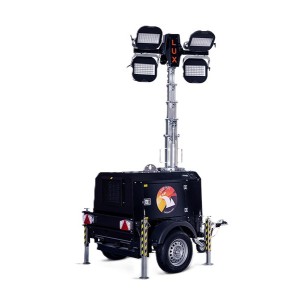

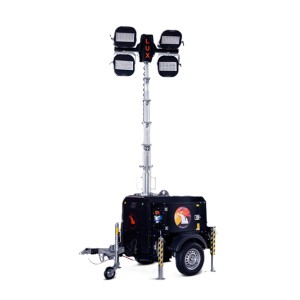

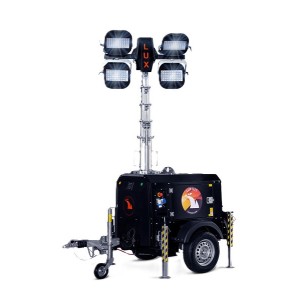

LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing

LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing

Name: LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing
Brand: LUXTOWER
SKU: LUX H11PLUS TV
Price: 12296 EUR
Availability: InStock

Phase type: Single-phase
Maximum single-phase power: 3.5 KVA
Fuel: Diesel
Frequency: 50 Hz
Voltage: 230 V
Engine: KUBOTA Z482
Engine speed: 1500 rpm
Starting system: Electric
Illuminated area: 9300 m²
Lifting system: Hydraulic lifting system
Maximum height: 8 m
Wind stability: 80 Km/h
Fuel tank capacity: 80 L
Acoustic pressure: 65 dB(A) at 7 m
Silenced: Yes
Super silenced: Yes
Pole rotation: 340°
Engine brand: Kubota
Lights: 4 x 320 W
Minimum dimensions: 1800 X 1400 X 2600 mm
Maximum dimensions: 2400 X 2500 X 8000 mm
Dry weight - Fixed towbar: 800 Kg
Dry weight - Adjustable towbar: 850 Kg
Protection class: IP23

List price

15,001.12 € tax incl.

12,296.00 € tax excl.

Discounted Price

15,001.12 € tax incl.

12,296.00 € tax excl.

Shipping from 480.00 € to Italy buy it today.

Calculate Shipping Cost

Payment methods:

Product: LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: LUXTOWER LUX H11PLUS LED Lighting Tower 4x320W Fast Towing

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LUX H11PLUS TV

Data sheet

Phase: Single phase
Maximum power single phase (KVA): 3.5
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Engine: Kubota Z482
Emissions Regulations: Stationary Use
Engine rpm (rpm): 1500
Starting system: Elettrico
Number cylinders: 2
Cooling: Liquid
Alternator: Linz Synchronous or equivalent
Protection degree: IP23
Maximum height (m): 8
Type of lamps: LED
Lamps: 4 x 320 W
Telescopic pole: Vertical
Illuminated area (m²): 9300
Lifting System: Hydraulic lifting system
Mast rotation: 340°
With generator / Without generator: With generator
Stability to wind (Km/h): 80 Km/h
Fuel tank capacity (L): 80
Consumption (L/h): 0.55
Running time (h): 145
Acoustic pressure: 65 dB(A) at 7 m
Silenced: Yes
Super silenced: Yes
Product type: Light tower
Engine manufacturer: Kubota
Auxiliary socket (kVA): 1.3
Dimensioni min. (mm): 1800 X 1400 X 2600
Dimensioni max. (mm): 2400 X 2500 X 8000
Peso a secco - Timone fisso (Kg): 800
Peso a seco - Timone Regolabile (Kg): 850

Specific References

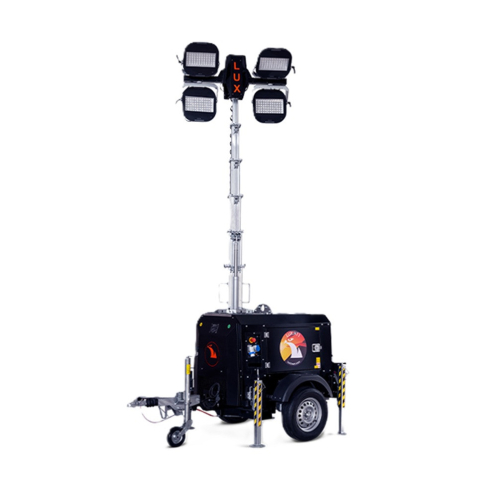

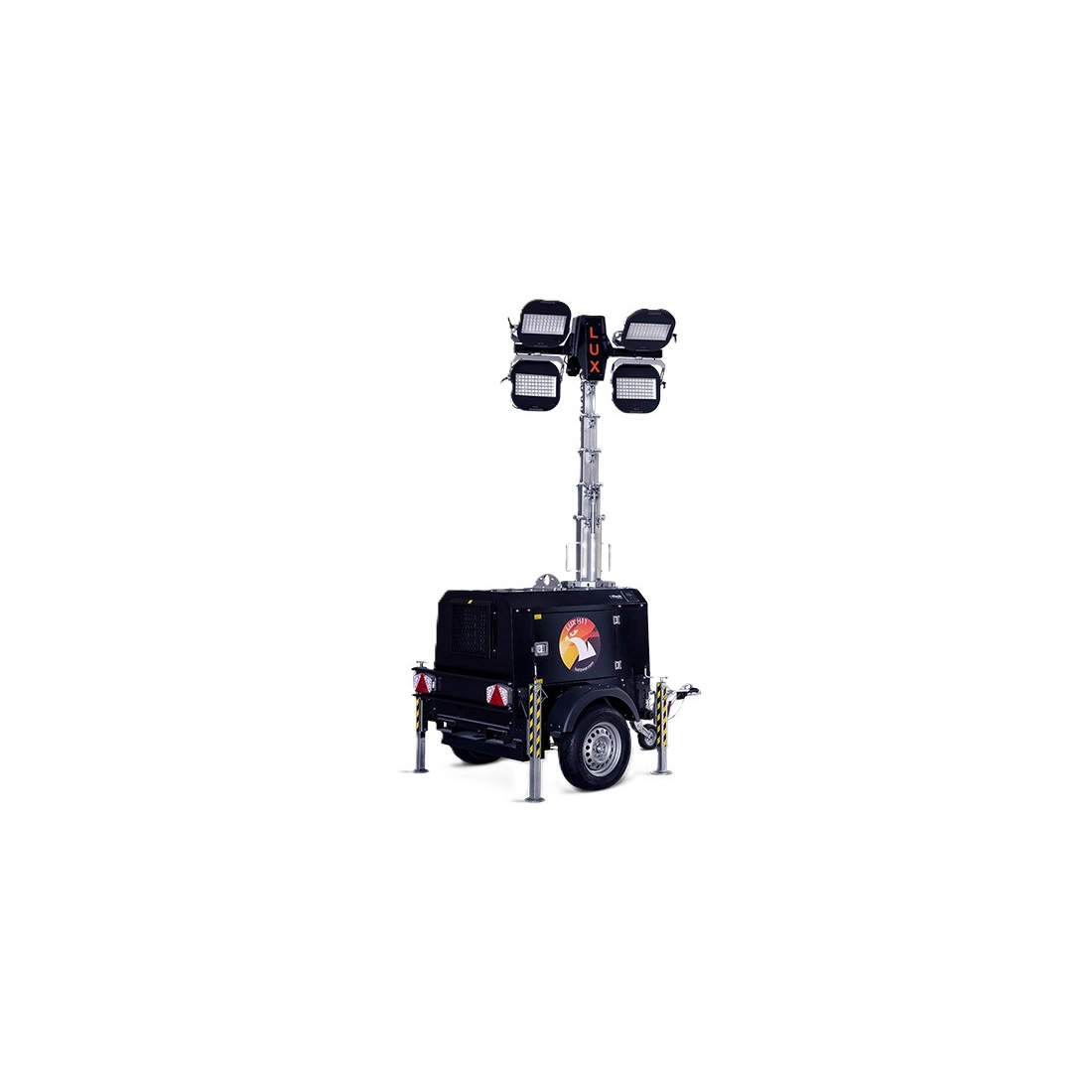

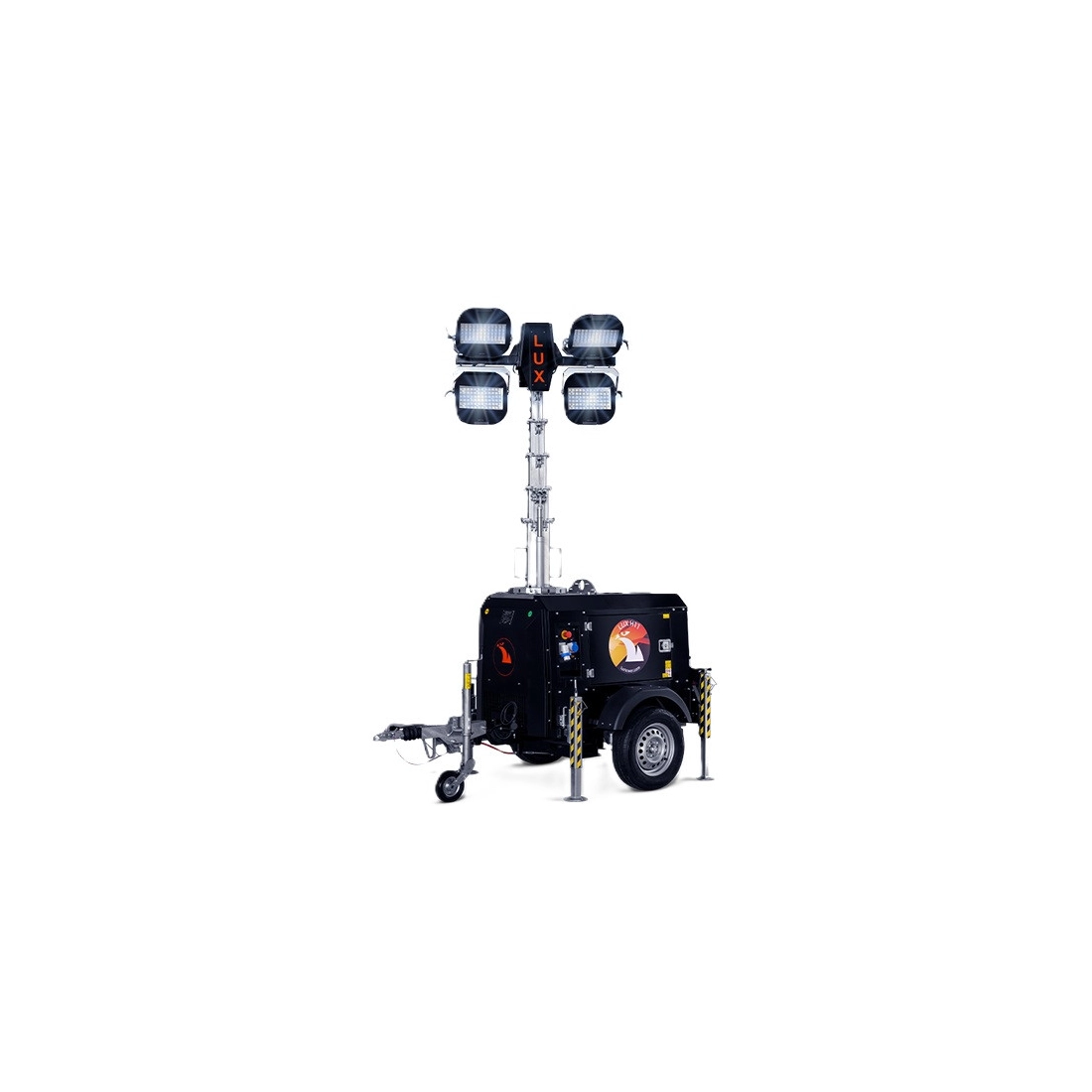

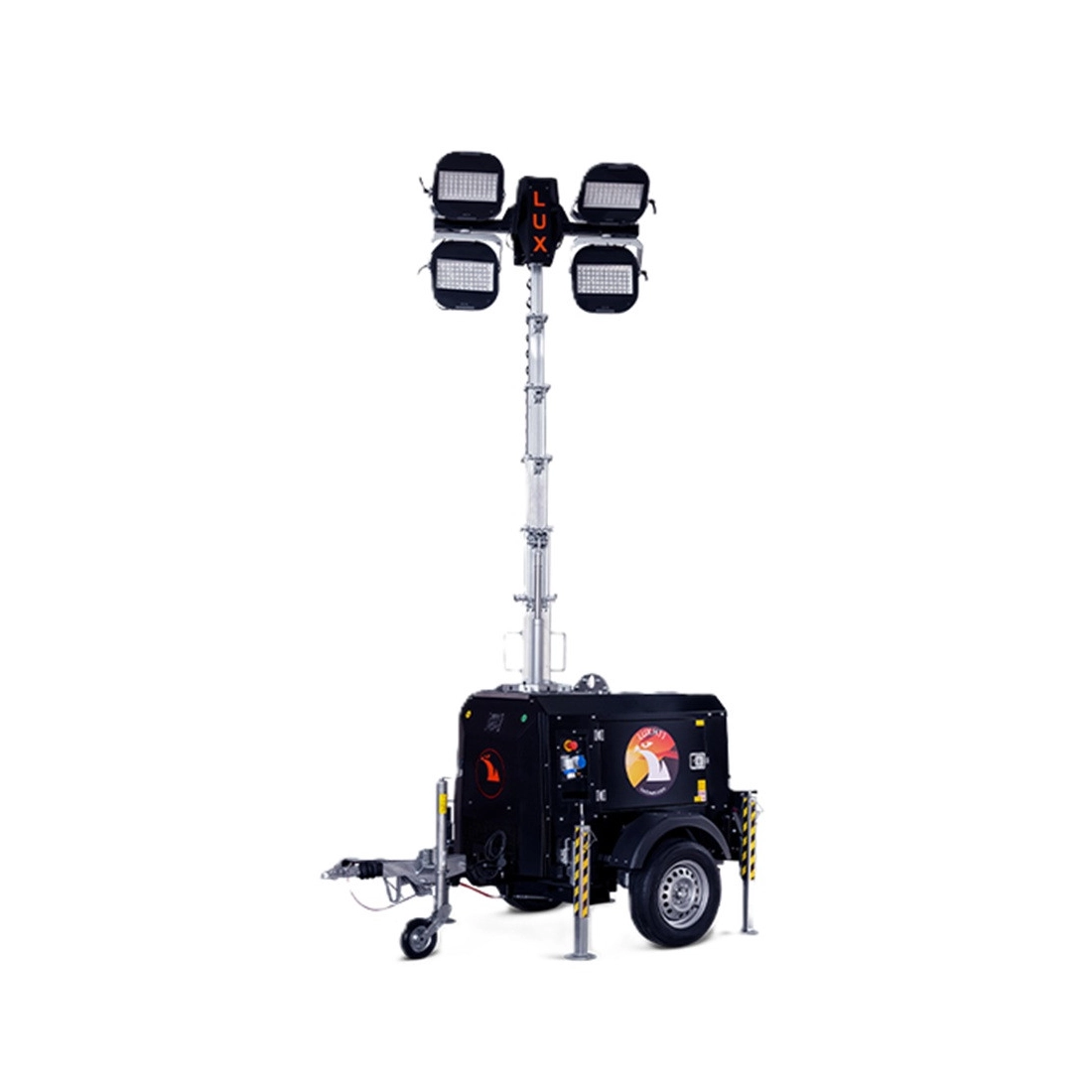

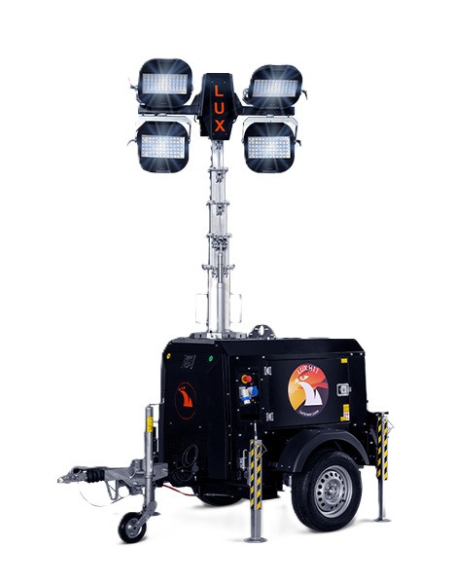

LUXTOWER LUX H11PLUS LED LIGHT TOWER 4x320W FAST TRAILER

The LUXTOWER LUX H11PLUS LED Light Tower 4x320W Fast Trailer is a high-performance portable lighting solution designed to provide superior power in demanding work environments. Equipped with advanced LED technology, this LUXTOWER LUX H11PLUS Fast Trailer, ensures exceptional lighting across large areas, combining energy efficiency, robustness, and ease of use. Ideal for construction projects, outdoor events, or any industrial application that requires powerful and reliable lighting, the LUXTOWER LUX H11PLUS is the perfect choice for those seeking a versatile, high-quality product.

High-performance Lighting LUXTOWER LUX H11PLUS:

MULTILED projectors / 4 x 320W

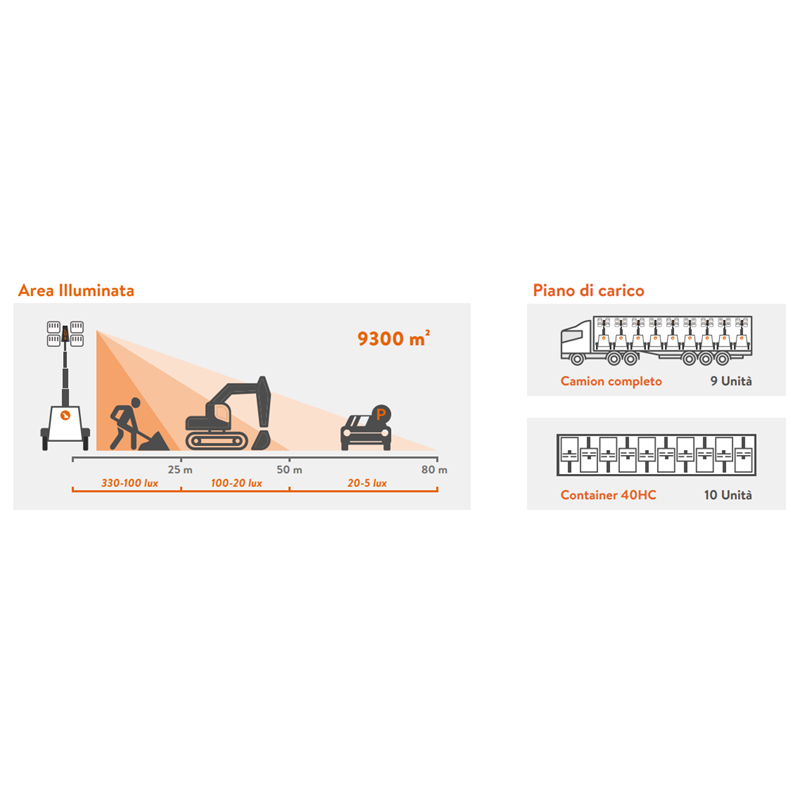

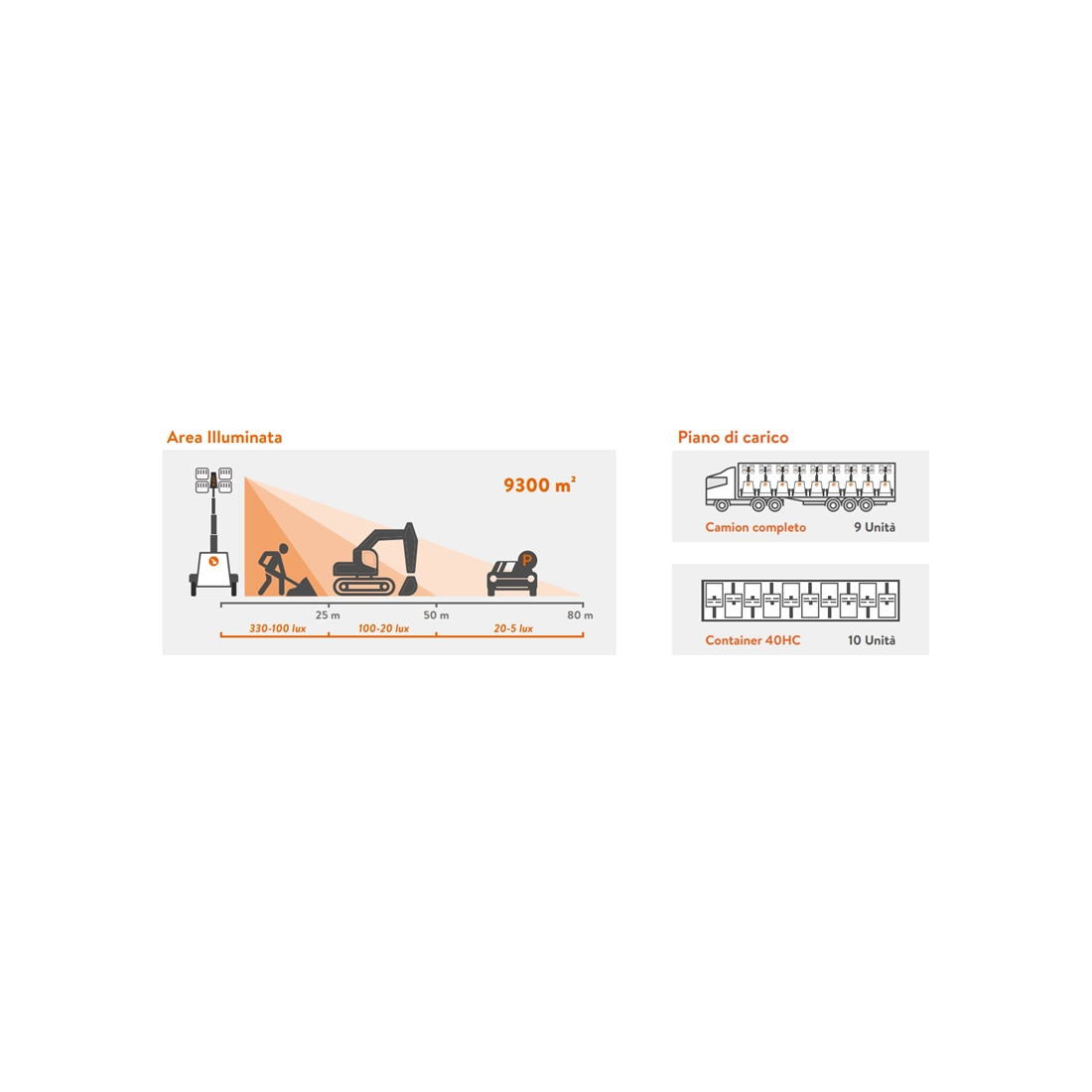

Illuminated area: up to 9300 m²

Adjustable projectors with manual mast rotation of 340°

Maximum height: 8 m thanks to the telescopic mast with hydraulic lifting

Technical Features of LUXTOWER LUX H11PLUS Fast Trailer:

Engine: KUBOTA Z482 - 2 cylinders, 1500 RPM

Generator power: 3.5 kVA - 230V

Frequency: 50 Hz

Fuel consumption: 0.55 l/h

Autonomy: up to 145 hours

Mast rotation: 340°

Lamp type: LED

Auxiliary socket: 1.3 kVA - 230V

Ease of Use LUXTOWER LUX H11PLUS Fast Trailer:

Road-legal trailer for practical and safe transportation

Adjustable towbar for greater flexibility during transport

80-liter fuel tank for long operational duration

Durable and Safe Structure of LUXTOWER LUX H11PLUS Fast Trailer:

Machine body: made of galvanized steel and powder-coated for corrosion resistance

IP23 protection rating for safe outdoor use in adverse weather conditions

Silenced: 65 dB(A) at 7 m, ideal for low-noise environments

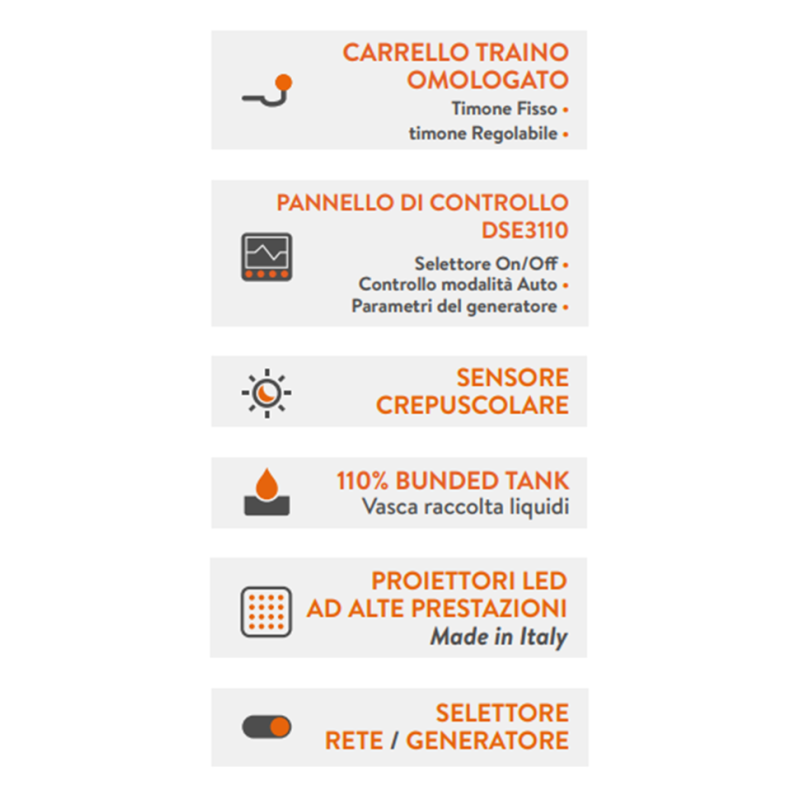

Advanced Control LUXTOWER LUX H11PLUS:

Dusk sensor for automatic activation

DSE3110 control panel with selector for Auto mode and choice between grid or generator

The LUXTOWER LUX H11PLUS LED 4x320W Fast Trailer is the ideal solution for those looking for a powerful and efficient light tower that combines intense lighting with high durability and performance features. With its advanced technology and ease of use, this light tower is the perfect choice for various industrial and construction applications.

If you are looking for other light towers like the LUXTOWER H11PLUS Fast Trailer but with different technical features, you can browse our full catalog dedicated to light towers from LUXTOWER or other brands.

Images and technical data are non-binding. Please always consult the technical datasheet provided by the manufacturer. Manel Service is not responsible for any changes made by the manufacturer.
