      LUX-HAWK

      Phase Type: Single Phase
      Maximum Single Phase Power: 3.5 KVA
      Voltage: 230 V
      Fuel: Diesel
      Engine: Kubota Z482
      Engine Speed: 1500 rpm
      Lamp Type: LED
      Lamps: 4 x 320 W
      Telescopic Boom: Vertical
      Illuminated Area: 9300 m²
      Lifting: Manual
      Maximum Height: 8 m
      Boom Rotation: 340°
      Minimum Dimensions: 1840 x 1240 x 2560 mm
      Maximum Dimensions: 2436 x 1867 x 8000 mm
      Transportability: Slow-tow trailer
      Wind stability: 80 km/h
      Weight: 603 kg

      Prezzo
      14,100.00 € tax excl.
      17,202.00 € tax incl.

      Volume discounts

      QuantityUnit priceYou Save
      831917,202.00 €Up to 0.00 €
      Quantity :
      Shipping from 229.36 € to Italy buy it today. tax incl.
      Calculate Shipping Cost
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LUXTOWER
      LUX-HAWK

      Data sheet

      Phase
      Single phase
      Maximum power single phase (KVA)
      3.5
      Fuel
      Diesel
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine
      KUBOTA Z482
      Emissions Regulations
      Stage 5
      Engine rpm (rpm)
      1500
      Starting system
      Electric
      Number cylinders
      2
      Cooling
      Liquid
      Alternator
      Linz Synchronous or equivalent
      Maximum height (m)
      8
      Type of lamps
      LED
      Lamps
      4 x 320 W
      Telescopic pole
      Vertical
      Illuminated area (m²)
      9300
      Lifting System
      Manual lifting system
      Mast rotation
      340°
      With generator / Without generator
      With generator
      Transportability
      Slow Trailer
      Stability to wind (Km/h)
      80 Km/h
      Fuel tank capacity (L)
      125
      Consumption (L/h)
      0.55
      Running time (h)
      227
      Acoustic pressure
      65 dB(A) at 7 m
      Silenced
      Yes
      Super silenced
      Yes
      Product type
      Light tower
      Engine manufacturer
      Kubota
      Weight (Kg)
      603
      Auxiliary socket (kVA)
      1.3
      Dimensioni min. (mm)
      1840 X 1240 X 2560
      Dimensioni max. (mm)
      2436 X 1867 X 8000

      Specific References

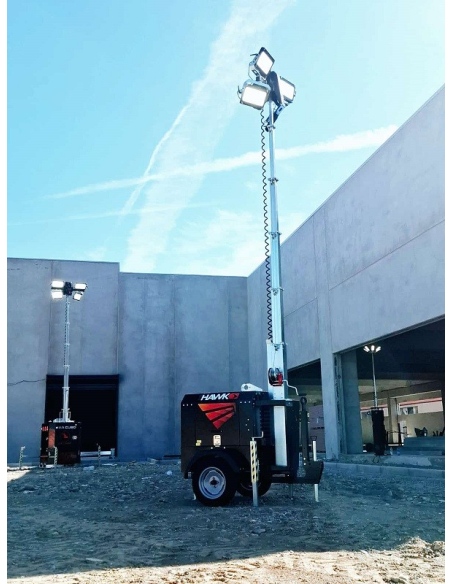

      LUXTOWER LUX HAWK LED LIGHTING TOWER

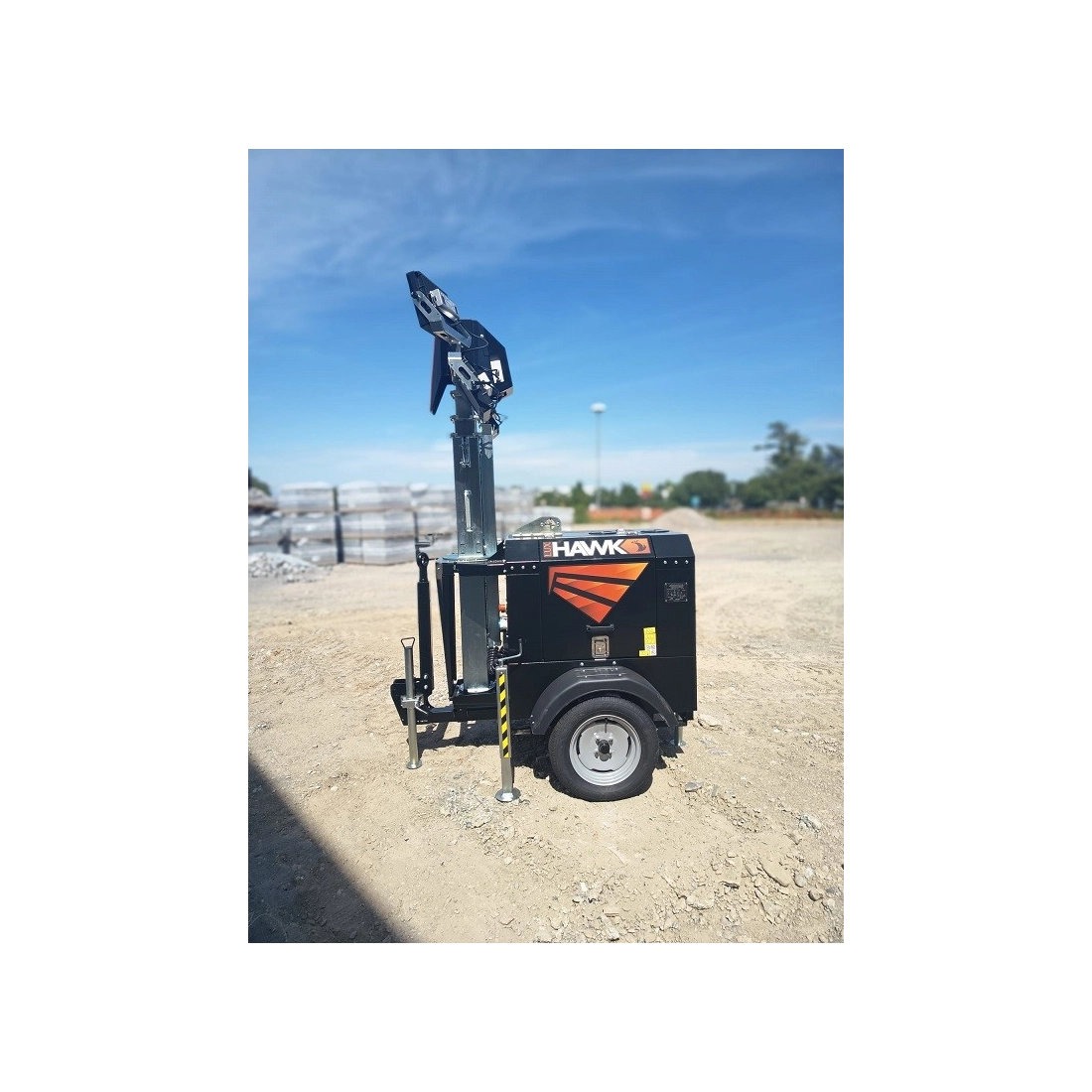

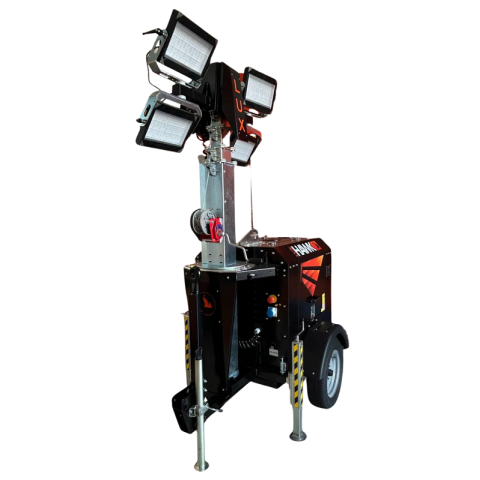

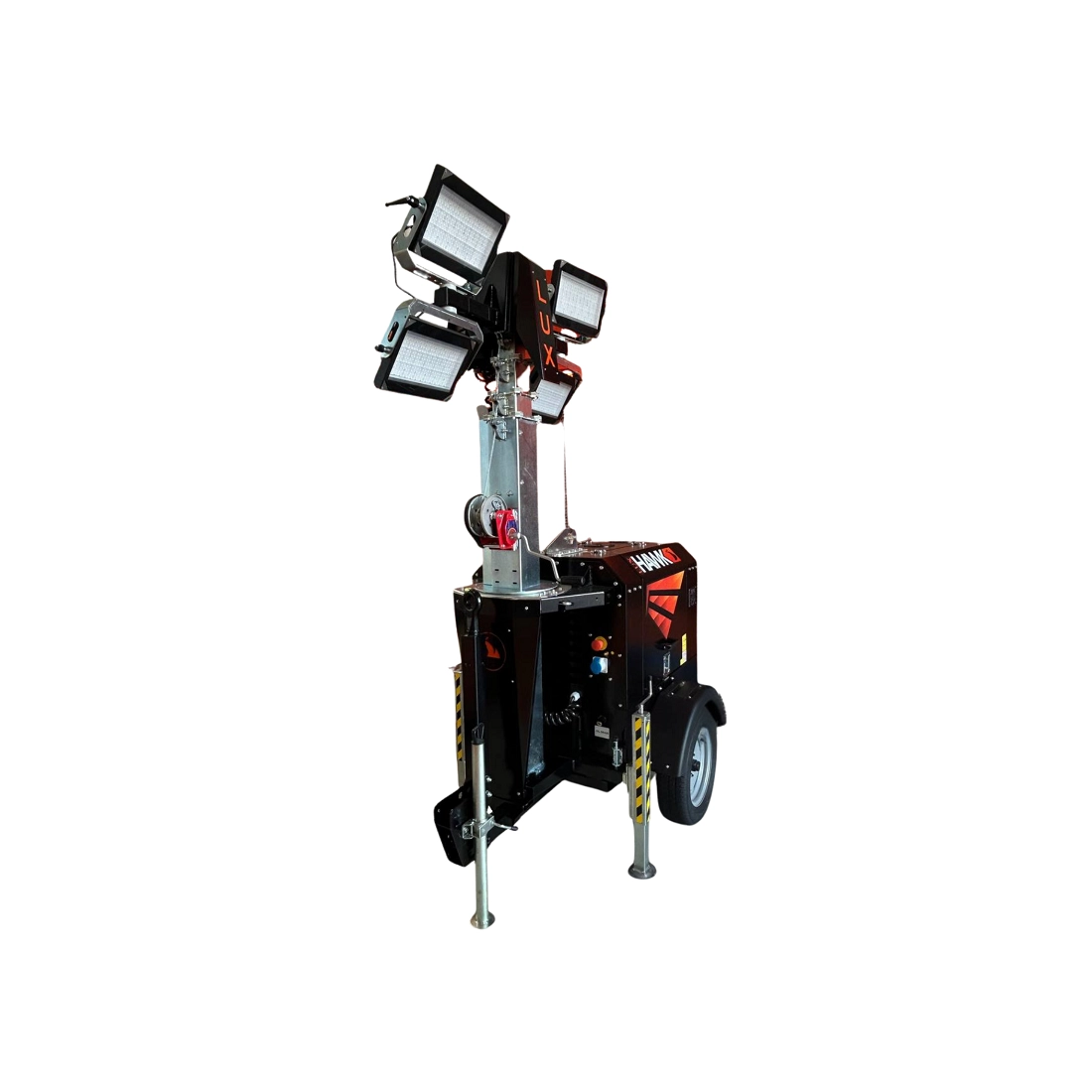

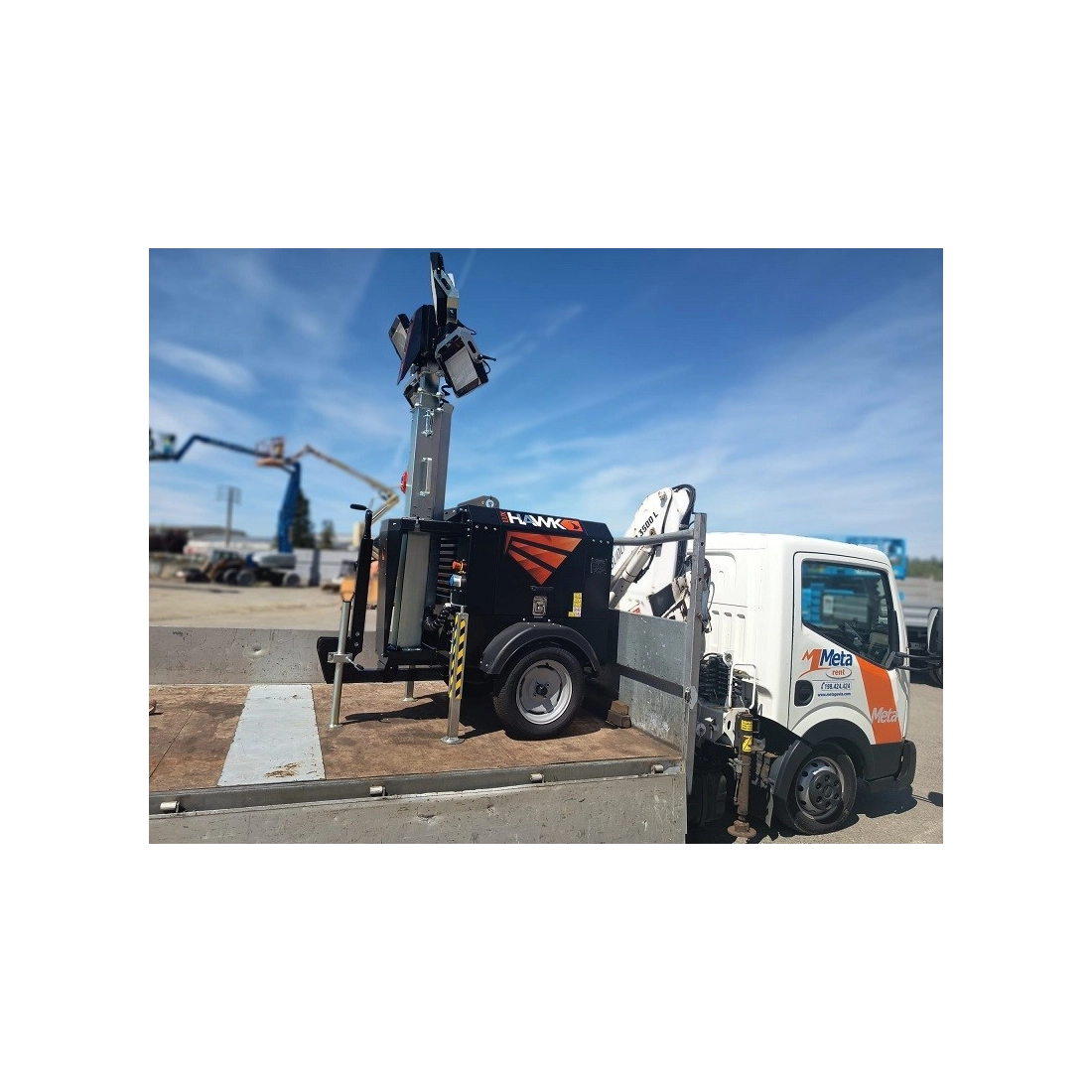

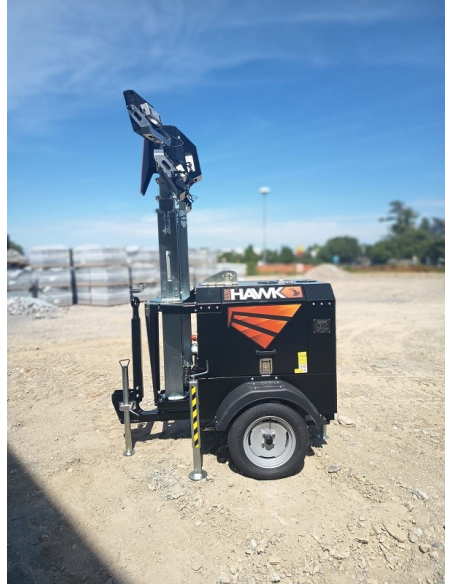

      The LUXTOWER Lux HAWK LED Lighting Tower is a versatile and powerful lighting solution, designed for excellent performance in outdoor environments. The LUXTOWER Lux HAWK is a compact and easily transportable tower, capable of effectively illuminating areas up to 9,300 m² with a reduced environmental impact. The LUXTOWER Lux HAWK lighting tower is equipped with an 8-meter vertical telescopic mast, which can be raised manually, and four high-efficiency 320 W LED floodlights. The LUXTOWER Lux HAWK lighting tower includes a 3.5 KVA single-phase generator with a Kubota Z482 diesel engine running at 1,500 rpm and a soundproof enclosure, making it extremely quiet. Thanks to its towing trolley, it can be easily moved by a single operator. The LUXTOWER Lux HAWK is the brilliant result of a development process that integrates innovative LED technologies. The new LED towers are ideal for the rental sector and stand out for their low consumption, compactness, robustness, and immediate ease of use.

      Main features of the LUXTOWER Lux HAWK:
      LED power: 4 x 320 W.
      Rotation: 340°.
      Wind resistance: up to 80 km/h.
      Twilight sensor and remote control.
      Kubota Z482 diesel engine.
      Long battery life, 125-liter fuel tank.
      Low noise level (65 dB at 7 m).

      Compared to metal halide lamps, LED floodlights offer:
      - Instant lighting, without waiting for cooling.
      - Fuel savings of up to 60% compared to incandescent systems.
      - Lamp life five times longer than traditional lamps.
      - Low environmental impact with a reduction of approximately 50% CO2.

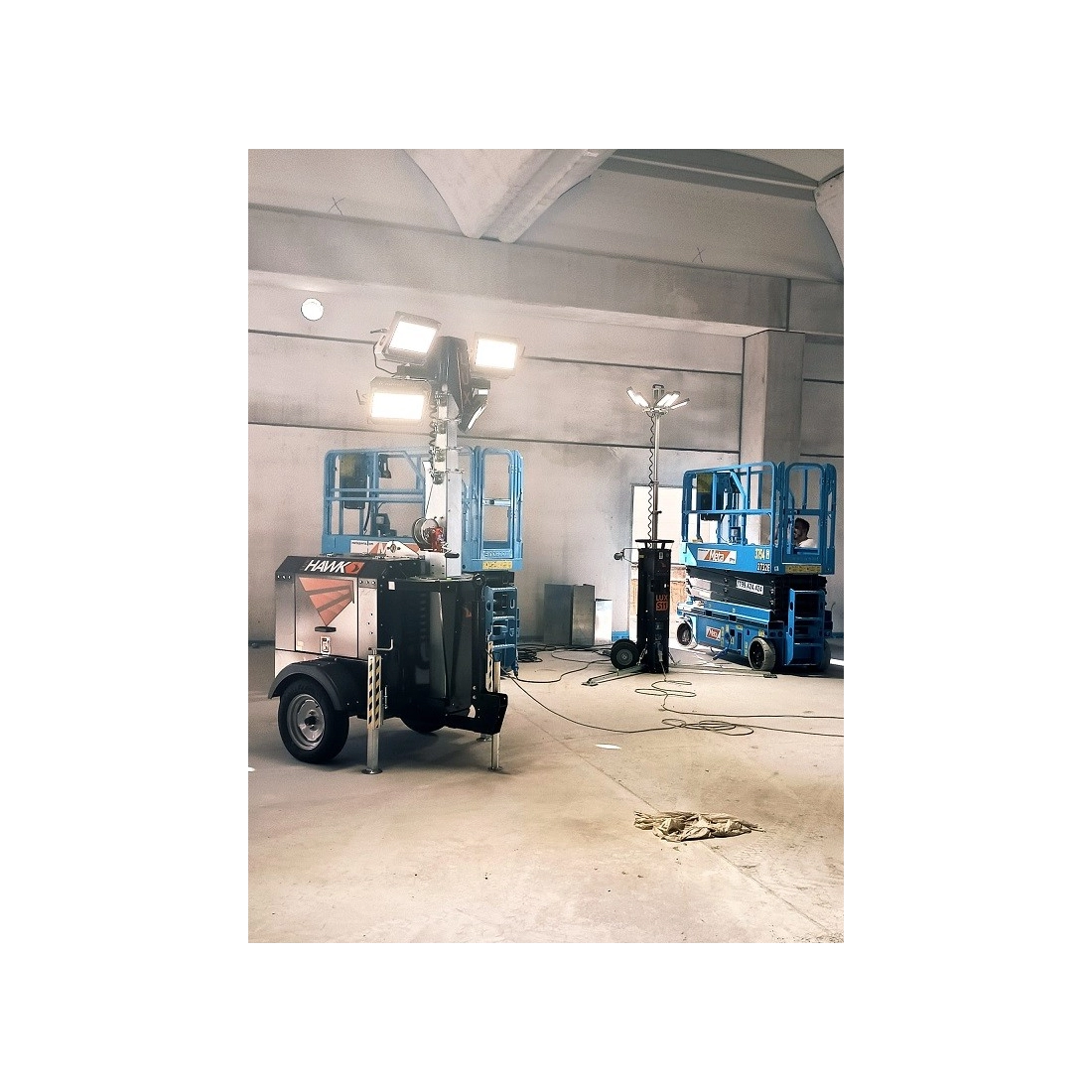

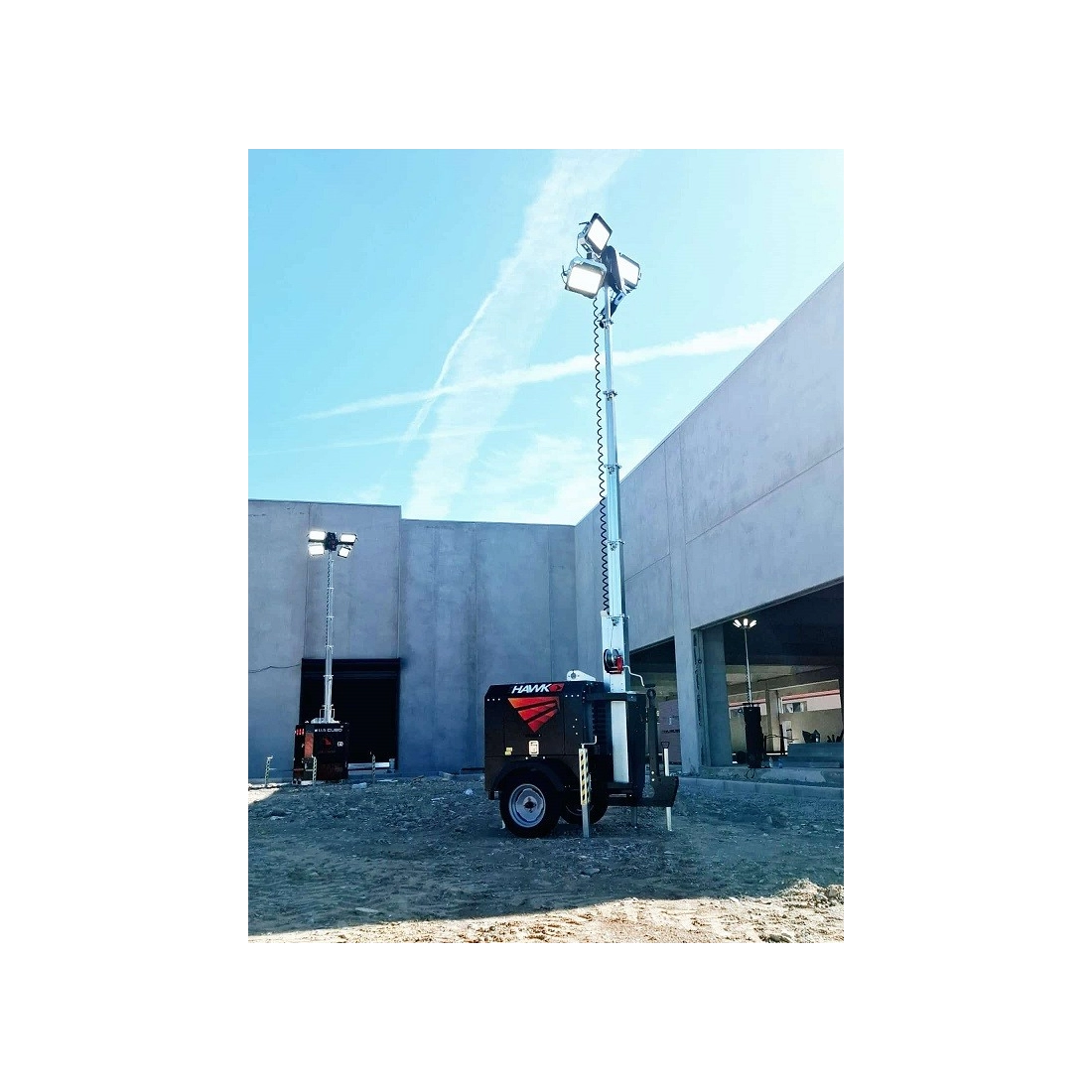

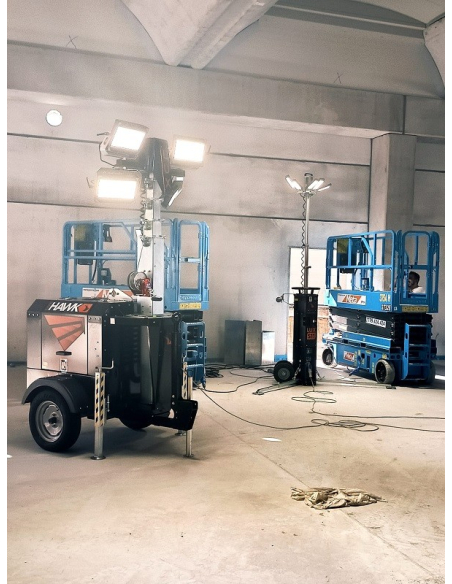

      The LUXTOWER Lux HAWK light tower is the ideal solution for the following outdoor applications:
      - Construction sites
      - Rental companies
      - Quarrying sites
      - Events

      Are you looking for other light towers like the LUXTOWER HAWK? You can consult our complete catalog of lighting towers from LUXTOWER or other brands.


      Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any modifications made by the manufacturer.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
