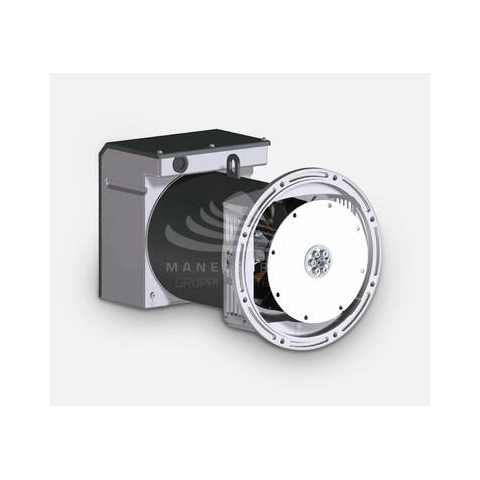

MECC ALTE ECP3-3L/4 THREEPHASE ALTERNATOR 15 KVA AVR

The alternator MECC ALTE ECP3-3L/4 threephase is capable of delivering a power of 15KVA equipped with AVR voltage regulator.

MECC ALTE ECP3-3L/4 is equipped with self-regulation, which is achieved by means of a digital electronic regulator powered by an auxiliary winding.

The versatility of the ECP3-3L/4 alternators and their robust design make them suitable to meet the demands of the industry and the most demanding technological specifications needed in various applications. They are available as a bearing in single or dual bearing configuration. To couple them to a main engine, you can choose from a wide range of flanges and fittings.

All alternators consist of a fixed stator with inclined slots and a rotating inductor. In addition, models above 15 KVA are equipped with a damping cage as standard. All alternator windings have a 2/3 pitch in order to reduce the harmonic content.

The alternators manufactured by Mecc Alte ECP3-3L/4 comply with the Italian regulation CEI 2-3 file 11111. This standard corresponds to the European EN 60034-1 and the international IEC 60034-1, is linked to the British BS 4999 Part 101, is equivalent to the German standard VDE 0530 Part 1 and is included in the French standard NF 51.111.

TECHNICAL CHARACTERISTICS MECC ALTE ECP3-3L/4

Phase Type: SinglePhase/ThreePhase
Maximum ThreePhase Output: 12.8 KW
Continuous ThreePhase Use Output: 12 KW
Maximum ThreePhase Power: 16 KVA
Continuous ThreePhase Use Power: 15 KVA
Maximum SinglePhase Output: 10.7 KW
Continuous SinglePhase Use Output: 10 KW
Maximum SinglePhase Power: 10. 7 KVA
Singlephase continuous use power: 10 KVA
Frequency: 50 / 60 Hz
Voltage: 230 V / 400 V
Protection class: IP23
Alternator speed: 1500 / 1800 rpm
Number of poles: 4
Efficiency: 86.3%
Weight: 93 Kg
Constant speed alternator
Brushless
Voltage regulator: AVR

Are you looking for an alternator with different characteristics? Here you can find the entire range of MECC ALTE or other brands specializing in the field

Images and technical data are not binding.
