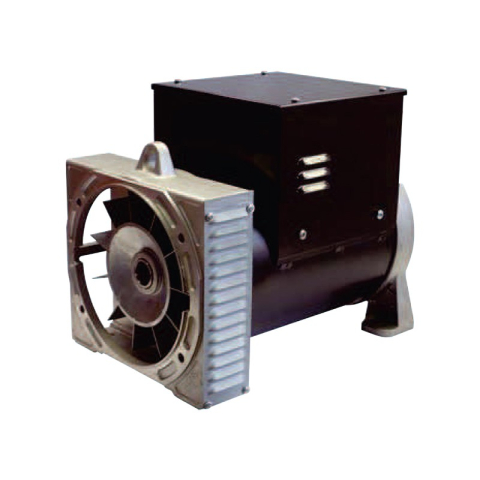

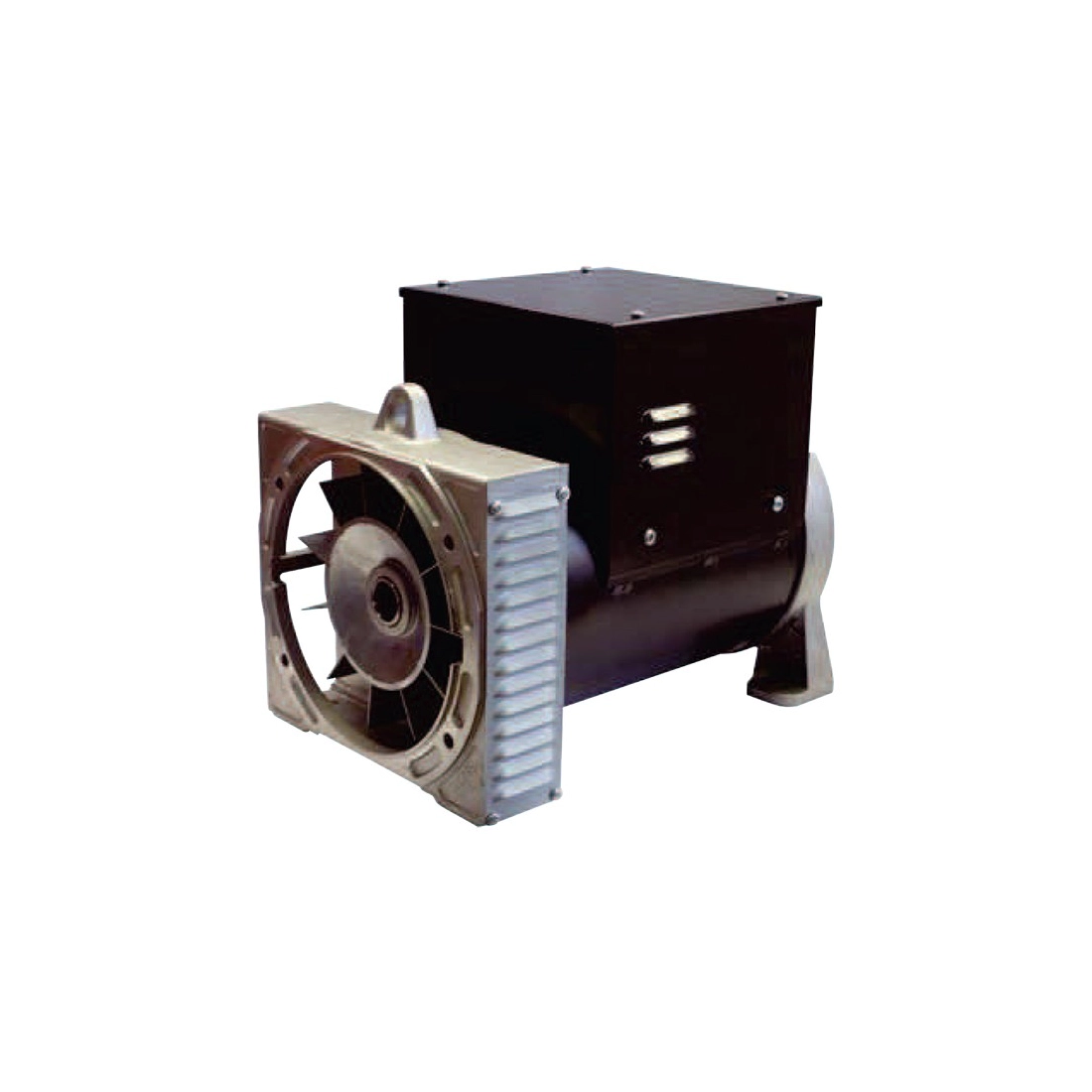

SINCRO FB2 SB SINGLE-THREE PHASE ALTERNATOR 14KVA AVR

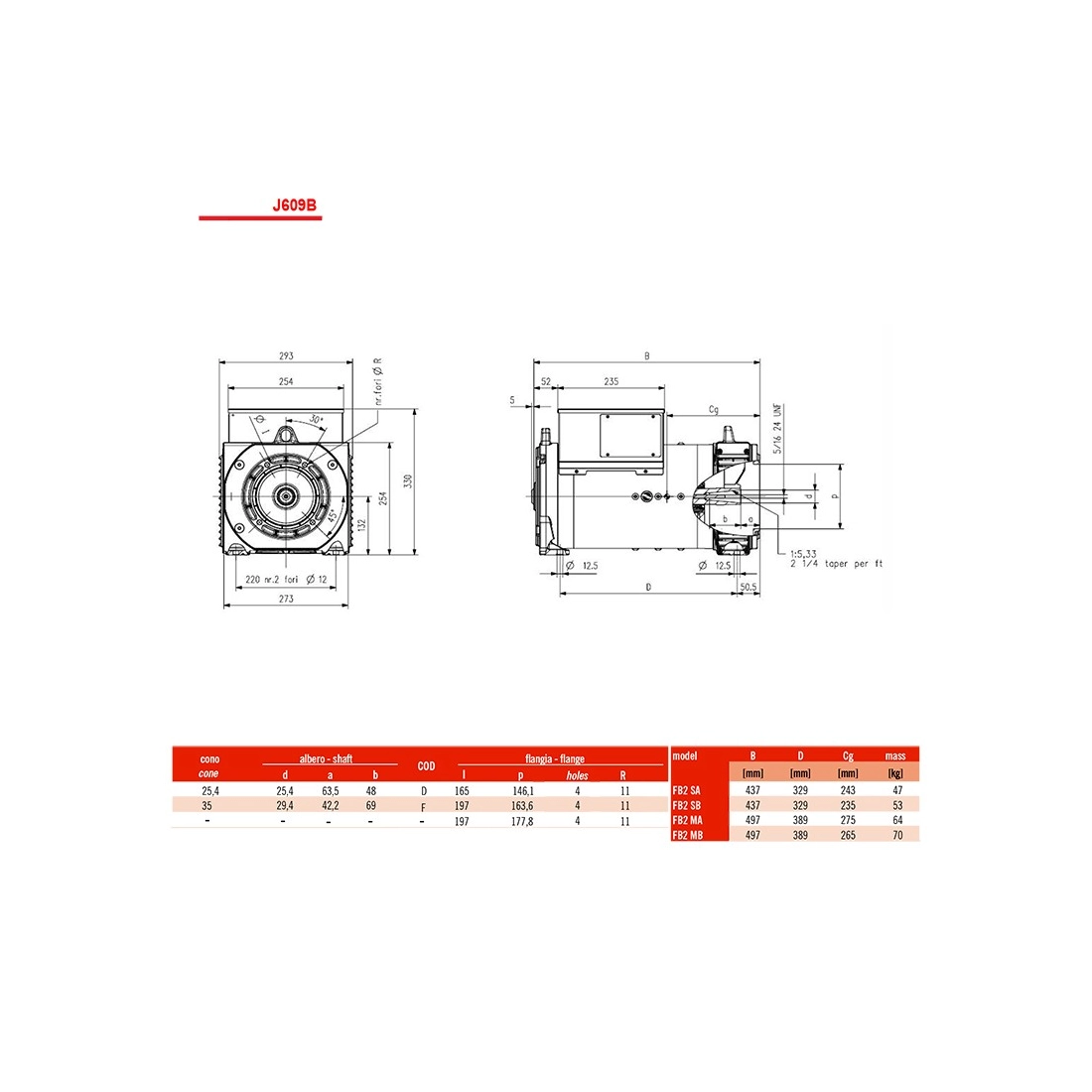

FB2 SB J609b c25.4
Phase: Single / Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 8.4
Three Phase Output (kVA): 14
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 57.5
Protection: IP23
FB2 SB J609b c25.4
Data sheet
- Phase
- Single phase / Three phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 3000
- Poles
- 2
- Single-phase power (KW)
- 6.72
- Single-phase power (KVA)
- 8.4
- Three-phase power (KW)
- 11.2
- Three-phase power (KVA)
- 14
- Efficiency (%)
- 85.4
- Protection degree
- IP23
- Dry weight (Kg)
- 57.5
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
Specific References
New
Three phase brushless alternator - AVR.
- Insulation class H
- IP23
- Standard voltage 230/400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: FB2 alternators can be connected for single-phase use
The image is purely indicative.
