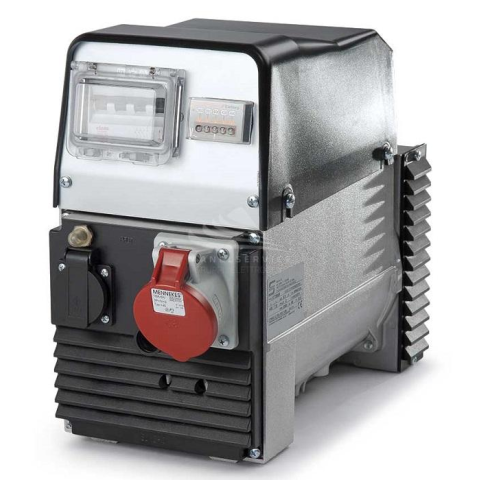

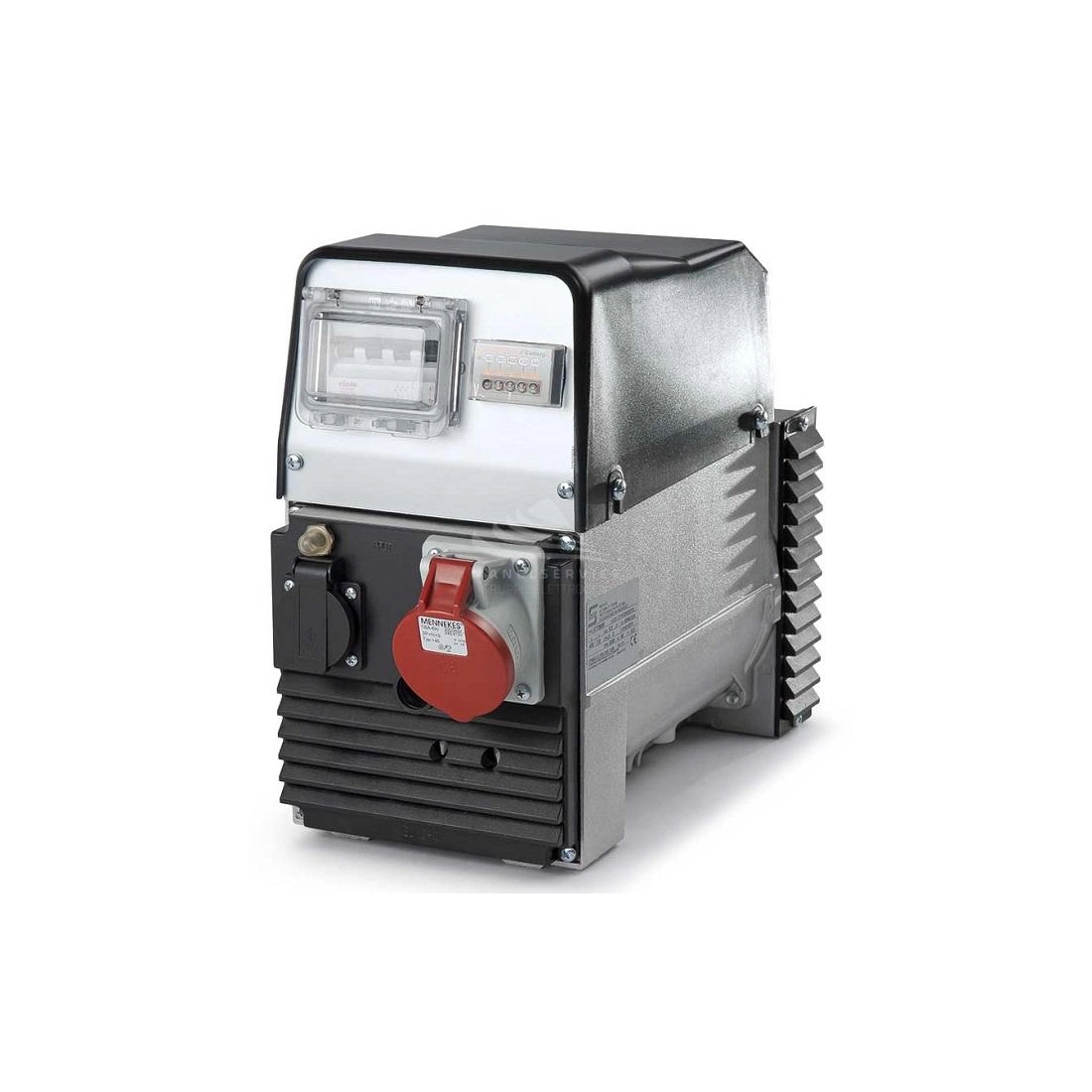

SINCRO ET2 LBS Three Phase Synchronous AC Alternator 10 kVA Compound
      SINCRO ET2 LBS Three Phase Synchronous AC Alternator 10 kVA Compound
      SINCRO ET2 LBS Three Phase Synchronous AC Alternator 10 kVA Compound

      SINCRO ET2 LBS Three Phase Synchronous AC Alternator 10 kVA Compound

      ET2 LBS J609b c25.4

      Phase Type: Three-phase
      Number of Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Revolutions per minute (rpm): 3000
      Three-phase Power (kVA): 10
      Type of Alternator: Constant Speed
      Voltage Regulator: Compound
      Protection Class: IP23
      Efficiency: 83%
      With Brushes
      Width: 212 mm
      Length: 436 mm
      Height: 337 mm
      Weight: 41.3 kg

      List price
      1,166.32 € tax incl.
      956.00 € tax excl.
      Discounted Price
      707.11 € tax incl.
      579.60 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      ET2 LBS J609b c25.4

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Three-phase power (KW)
      8
      Three-phase power (KVA)
      10
      Efficiency (%)
      83
      Protection degree
      IP23
      Dry weight (Kg)
      41.3
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound

      Specific References

      New

      SINCRO ET2 LBS ALTERNATOR 10KVA THREE-PHASE

      SINCRO ET2 LBS is an alternator with a power of 10KVA, this unit has a Brushless self-exciting and self-regulating operation equipped with Compound voltage regulator.

      The alternator SINCRO ET2 LBS is foreseen for the operation at frequency 50 or 60 HZ, the possibility to work on these two frequencies makes possible its application for any service voltage increasing its versatility, for the correct operation. For correct operation it is only necessary to verify that the calibrations are correct for the intended use.

      SINCRO ET2 LBS is supplied with 12 terminals (7 terminals), with which it is normally possible to connect the alternator both in series star and parallel star. According to the needs it is possible to pass from one connection to another, keeping in mind that it is necessary to verify the connection of the Compound.

      SINCRO ET2 LBS can be used as single-phase depending on the needs. SINCRO ET2 LBS is equipped with a compound current regulator. The regulator is suitable for operation on both three-phase and single-phase generators, allowing fast, accurate and reliable set-up.

      The structure and the high know-how of the companies allow to internalize almost completely the various stages of production, for full real-time control of the entire manufacturing process

      Select the alternator that meets thetechnical specifications you require, visit our dedicated section to find out how.

      TECHNICAL FEATURES OF 10KVA SINCRO ET2 LBS ALTERNATOR

      Phase Type: Three-phase
      Number of Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Revolutions per minute (rpm): 3000
      Three-phase Power (kVA): 10
      Type of Alternator: Constant Speed
      Voltage Regulator: Compound
      Protection Class: IP23
      Efficiency: 83%
      With Brushes
      Width: 212 mm
      Length: 436 mm
      Height: 337 mm
      Weight: 41.3 kg

      Looking for a product with different characteristics? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to change by the manufacturer

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      B3/B9 coupling (cone 23, cone 30).
          B3/B9 coupling (cone 23, cone 30).
          0.00 €Price
          SINCRO IM B34 COUPLINGSINCRO IM B34 COUPLING FOR ET MODELS
              IM B34 coupling for ET models.
              32.00 €Price
              SAE 5, SAE 4 coupling for alternators SINCRO ET, FT, FT STEEL, GT.
                  SAE 5, SAE 4 coupling for ET, FT, FT STEEL, GT models.
                  55.00 €Price
                  SINCRO ET01 PANEL FOR ET MODELS
                      ET01 panel for ET models. - 1 400V 3P+N+T 16A CEE - 1 Schuko - Single phase thermal protection
                      35.00 €Price
                      SINCRO ET02 PANEL FOR ET MODELS
                          ET02 panel for ET models. - 1 400V 3P+N+T 16A CEE - 1 Schuko - Single phase thermal protection - Voltmeter
                          53.00 €Price
                          SINCRO ET04 PANEL FOR ET MODELS
                              ET04 panel for ET models. - 1 400V 3P+N+T 16A CEE - 1 230V 2P+T 16A CEE - Single phase thermal protection
                              41.00 €Price
                              SINCRO ET21 panel for ET models.
                                  ET21 panel for ET models. - 4-pole magnetothermic switch + IP65 cover - Voltmeter
                                  136.00 €Price
                                  SINCRO ET22 panel for ET models.
                                      ET22 panel for ET models. - 4-pole magnetothermic switch + earth leakage breaker (Id = 0.03A) + IP65 cover - Voltmeter
                                      180.00 €Price
