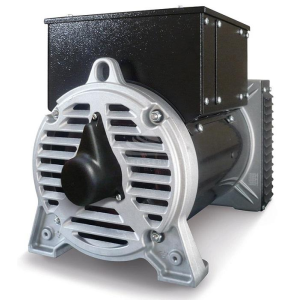

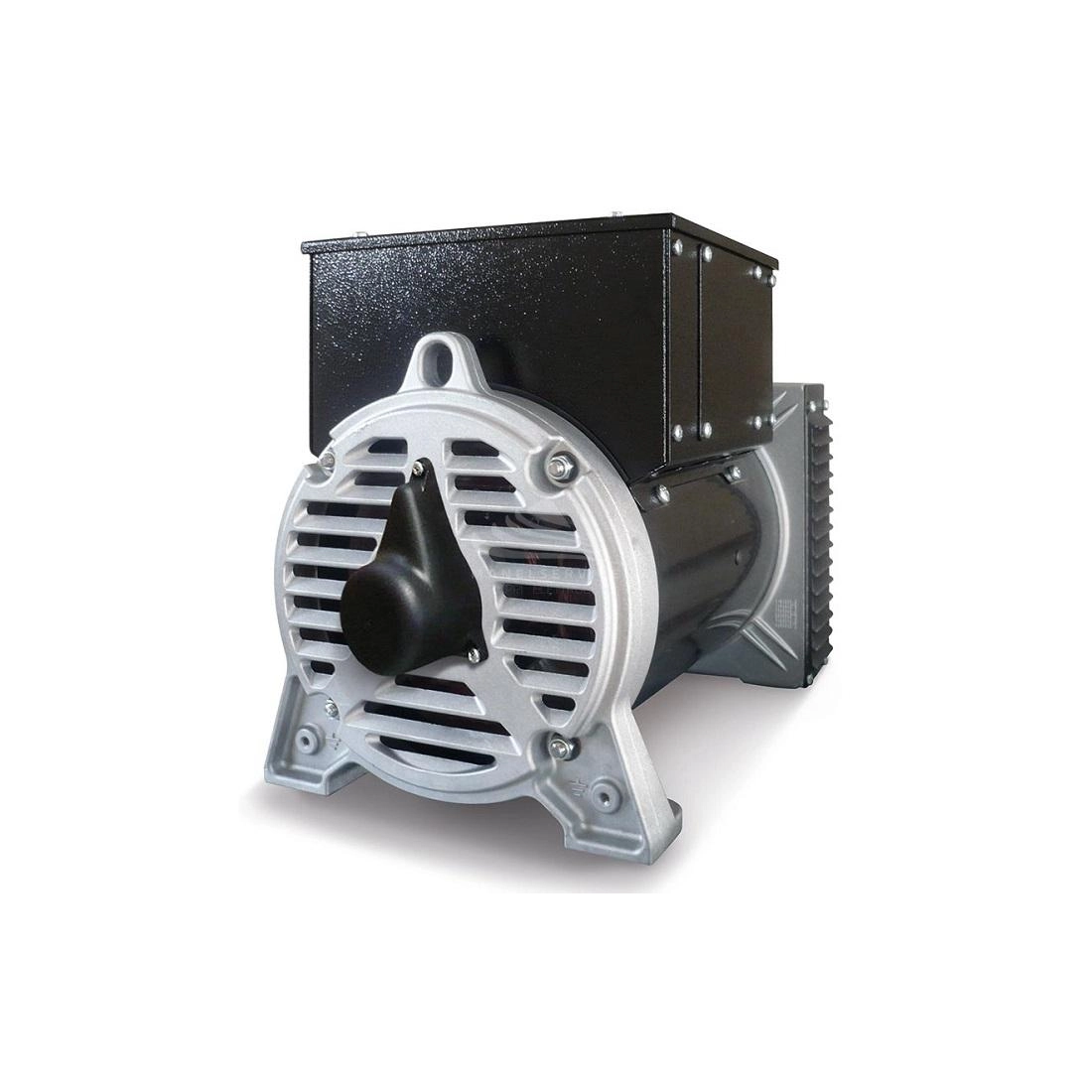

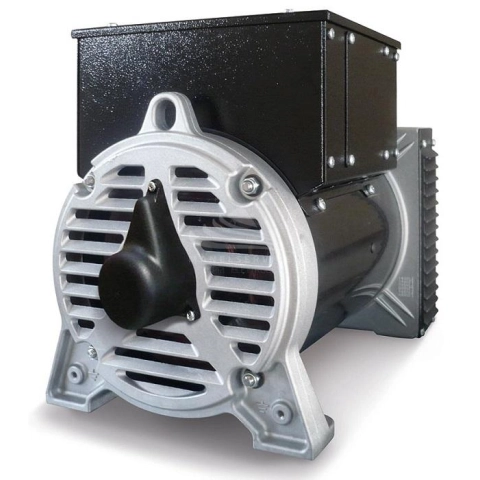

SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound
      SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound
      SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound

      SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound

      FT2 LA Steel J609b c25.4

      Phase: Three phase
      Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 3000
      Single Phase Output (kVA): ----
      Three Phase Output (kVA): 20
      Constant Speed Alternator
      Compound
      Brushes
      Weight (Kg): 72
      Protection: IP23

      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Custom Quote
      Product: SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound

      PERSONAL DATA

      Ask a question
      Product: SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound
      Offer on letterhead
      Product: SINCRO FT2 LA Three Phase Synchronous AC Alternator 20 kVA Compound
      SINCRO
      FT2 LA Steel J609b c25.4

      Data sheet

      Phase
      Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Three-phase power (KW)
      16
      Three-phase power (KVA)
      20
      Efficiency (%)
      85
      Protection degree
      IP23
      Dry weight (Kg)
      72
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound

      Specific References

      New

      Three phase brushes alternator - Compound.

      - Self-regulated
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Short circuit current greater than 3 In

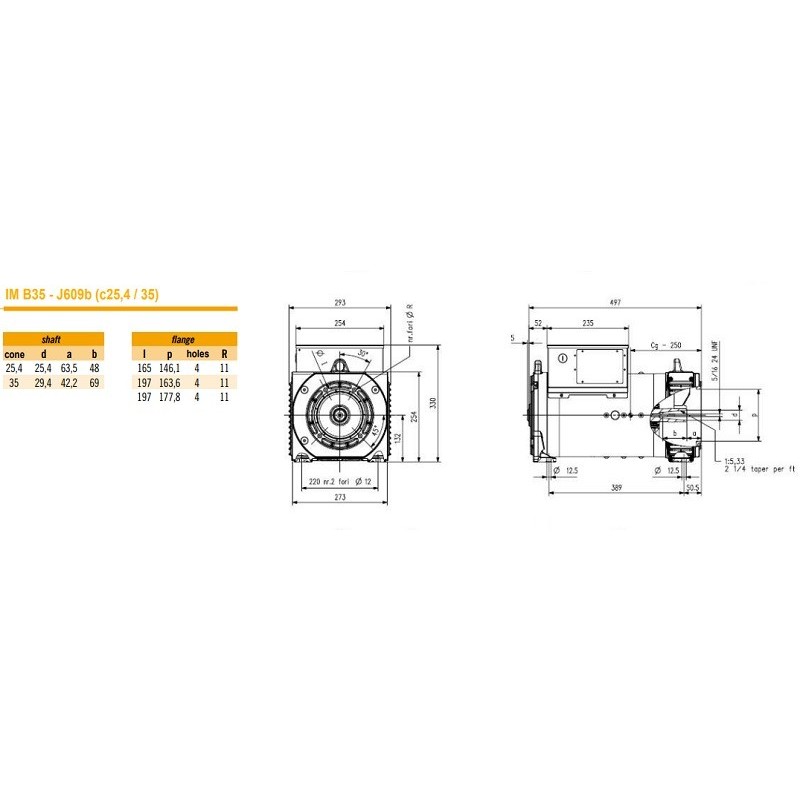

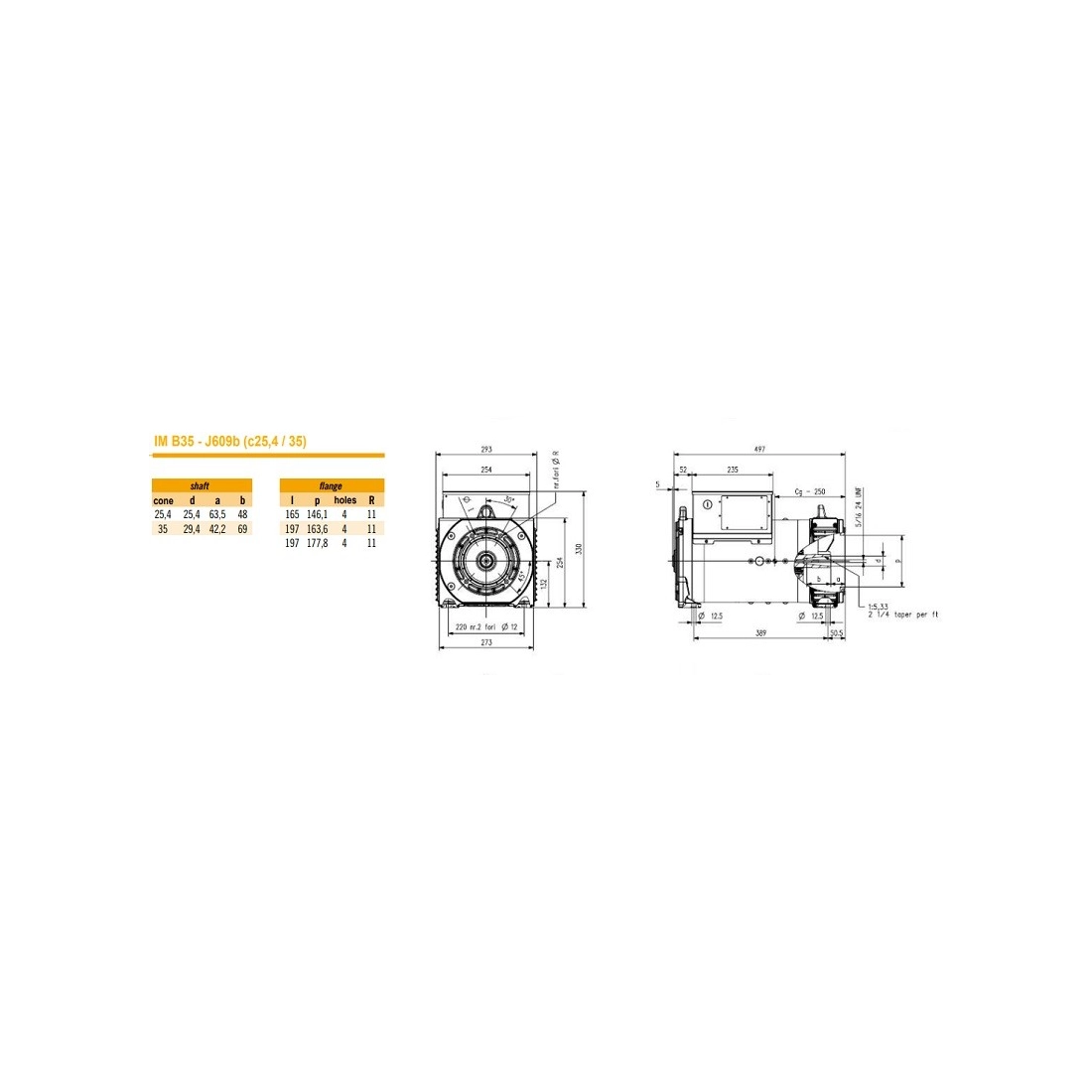

      - Standard coupling IM B35 cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE

      The image is purely indicative.

      SINCRO IM B34 COUPLINGSINCRO IM B34 COUPLING FOR FT, FT STEEL, GT MODELS
          SINCRO IM B34 COUPLING FOR FT, FT STEEL, GT MODELS
          FOR ALTERNATORS
          IM B34 coupling for FT, FT STEEL, GT models.
          55.00 €Price
          Quick View
          SAE 5, SAE 4 coupling for alternators SINCRO ET, FT, FT STEEL, GT.
              SINCRO SAE 5, SAE 4 COUPLING FOR ET, FT, FT STEEL, GT MODELS
              FOR ALTERNATORS
              SAE 5, SAE 4 coupling for ET, FT, FT STEEL, GT models.
              55.00 €Price
              Quick View
              SAE 3 coupling for alternators SINCRO FT, FT STEEL.
                  SINCRO SAE 3 COUPLING FOR FT, FT STEEL MODELS
                  FOR ALTERNATORS
                  SAE 3 coupling for FT, FT STEEL models.
                  110.00 €Price
                  Quick View
                  B3/B9 coupling (cone 30). | Manel Service
                      SINCRO B3/B9 COUPLING (cone 30)
                      FOR ALTERNATORS
                      B3/B9 coupling (cone 30).
                      0.00 €Price
                      Quick View

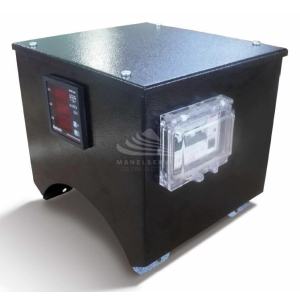

                      SINCRO FT12 PANEL FOR FT STEEL MODELSSINCRO FT12 PANEL FOR FT STEEL MODELS
                          SINCRO FT12 PANEL FOR FT STEEL MODELS
                          FOR ALTERNATORS
                          FT12 panel for FT STEEL models. - 4-pole magnetothermic switch + IP65 cover - Voltmeter + frequencymeter - 1 CEE 400V (3P+N+E) 32A - 1 CEE 230V (2P+E) 16A - 1 Schuko - 2 Single phase thermal protection
                          250.00 €Price
                          Quick View

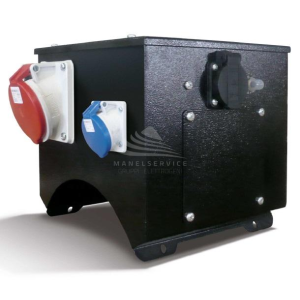

                          SINCRO FT13 PANEL FOR FT STEEL MODELSSINCRO FT13 PANEL FOR FT STEEL MODELS
