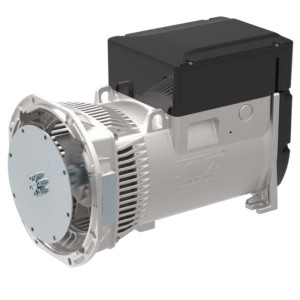

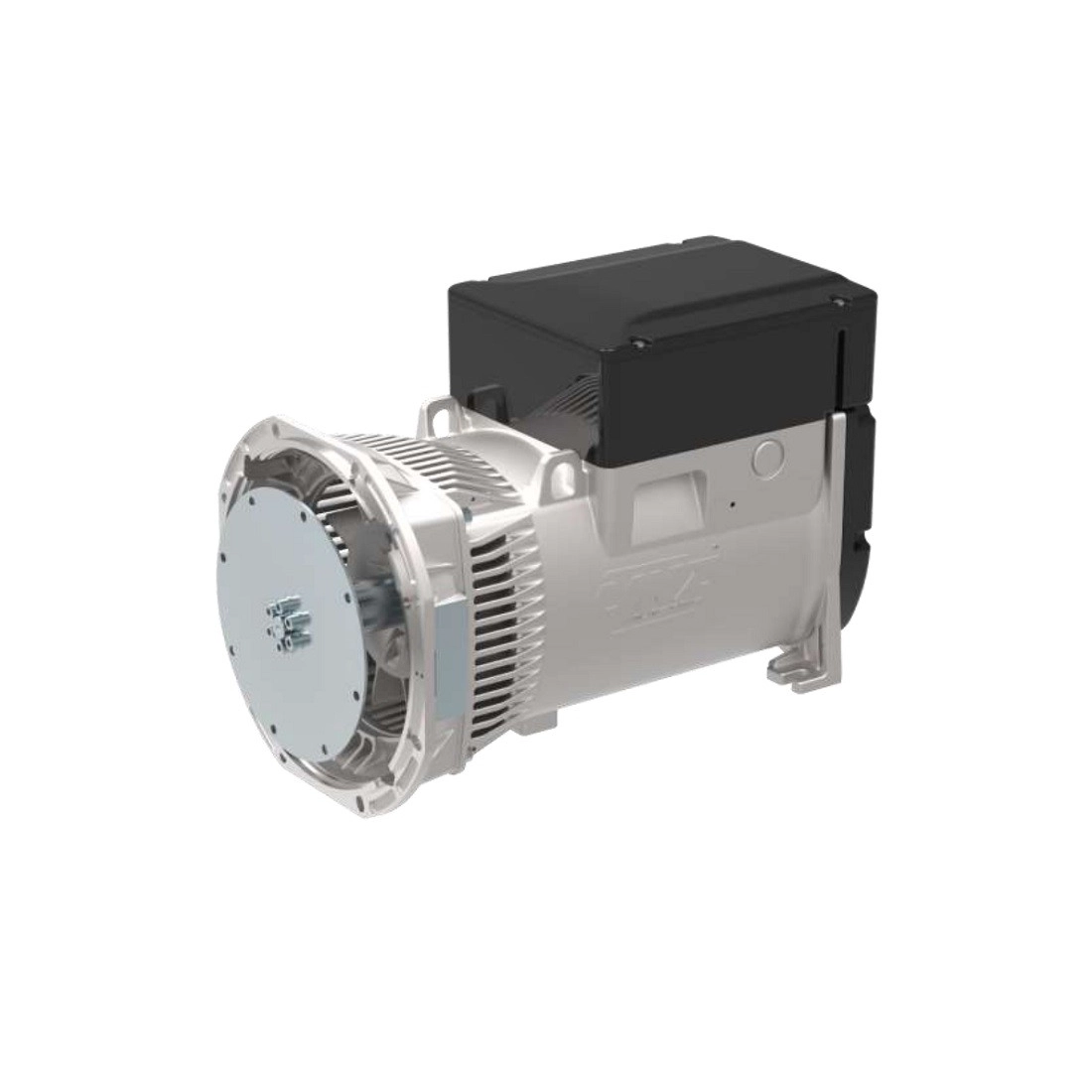

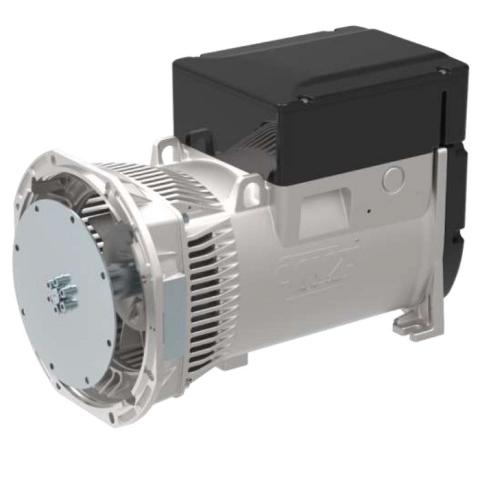

LINZ E1S13M E/4 Three-phase alternator 4 poles 19 kVA 60 Hz Compound

LINZ E1S13M E/4 Three-phase alternator 4 poles 19 kVA 60 Hz Compound
search
  • LINZ E1S13M E/4 Three-phase alternator 4 poles 19 kVA 60 Hz Compound
  • LINZ E1S13M E/4 Three-phase alternator 4 poles 19 kVA 60 Hz Compound
LINZ ELECTRIC

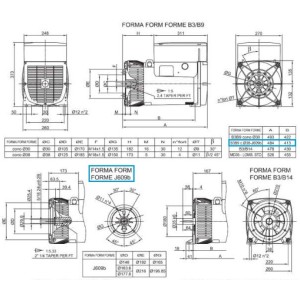

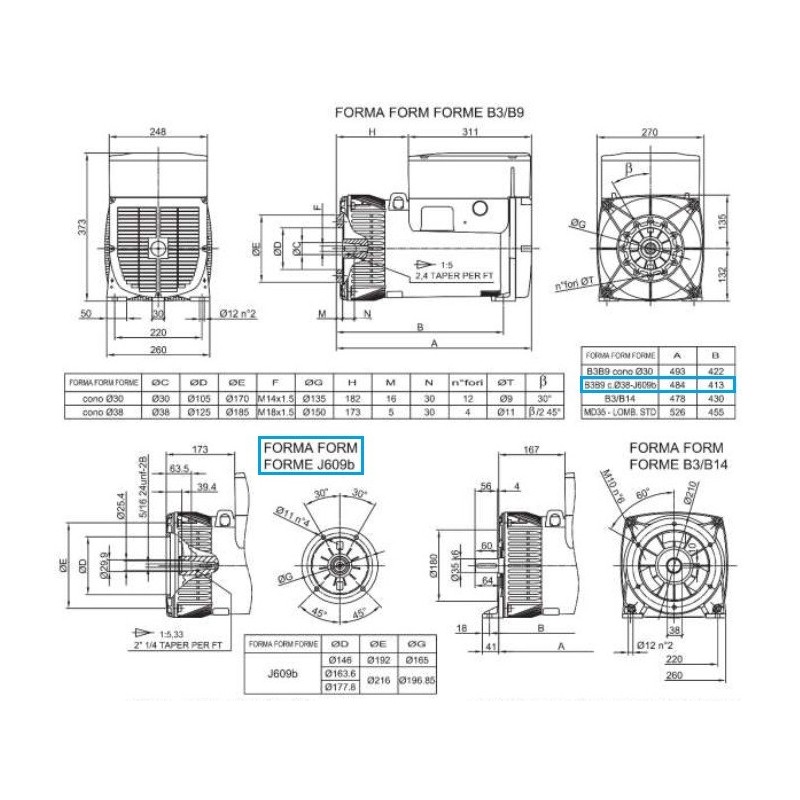

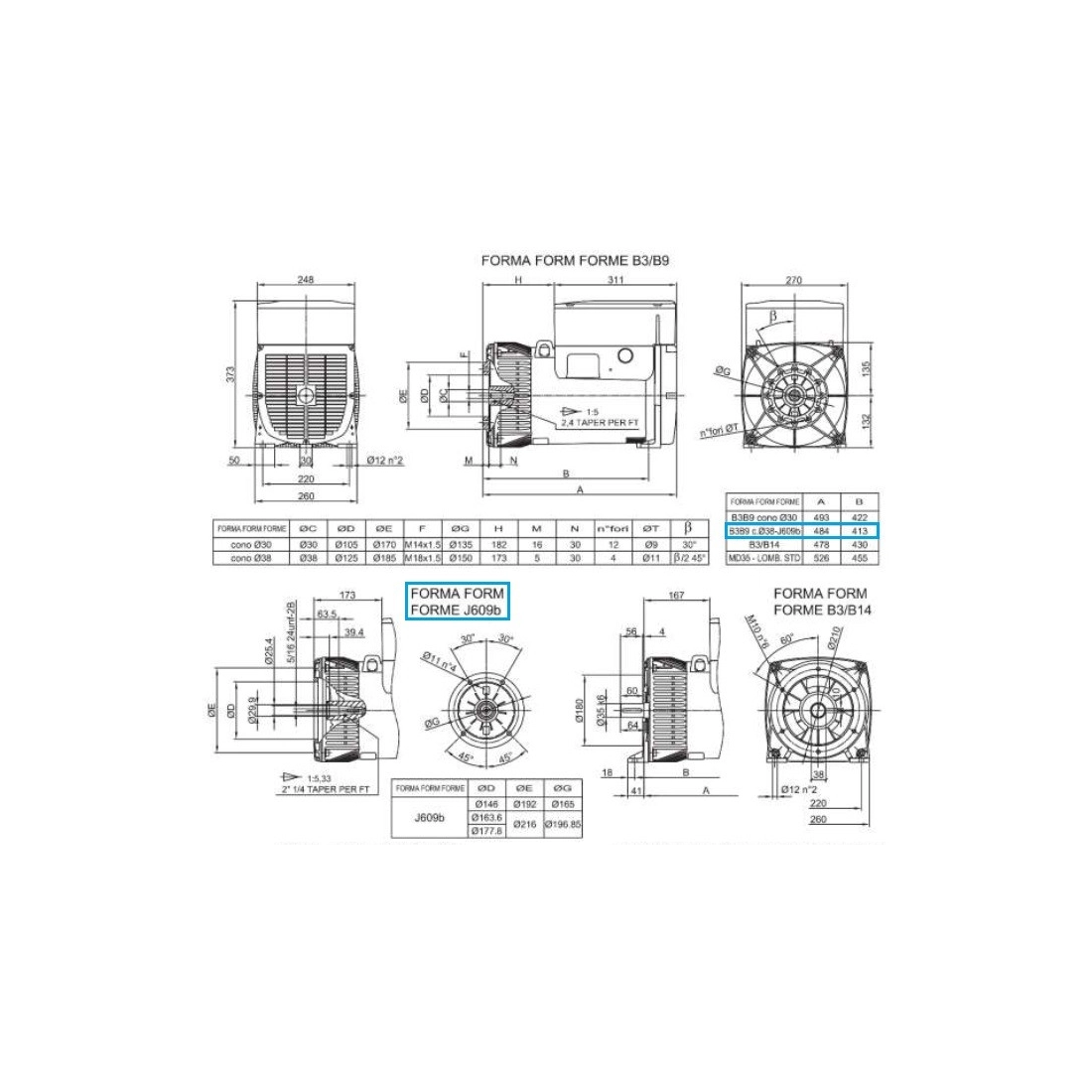

E1S13M E/4 60 Hz J609b
New product

Rated power at 60 Hz (kVA): 19
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Type of regulation: Compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 5.6 at 60 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
15.2
Continuous power three phase (KVA)
19
Frequency (Hz)
60
Voltage (V)
277 / 480
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
19
Protection degree
IP21
Motor insulation class
H
Length (mm)
403
Width (mm)
270
Height (mm)
373
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
83.5
Details

E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE

Technical Sheet / Manuals
Related Accessories
List price
1.815,36 € tax incl.
1.488,00 € tax excl.
Discounted Price
1.453,33 € tax incl.
1.191,25 € tax excl.
