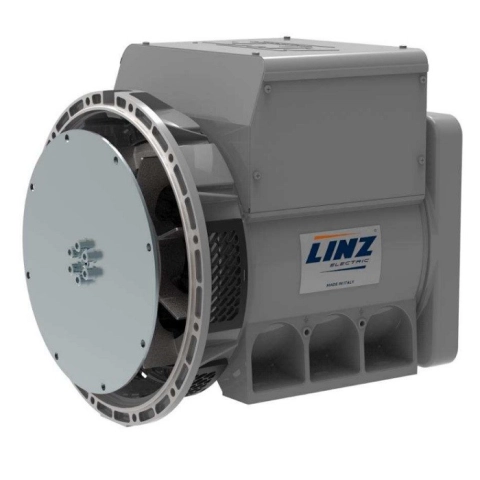

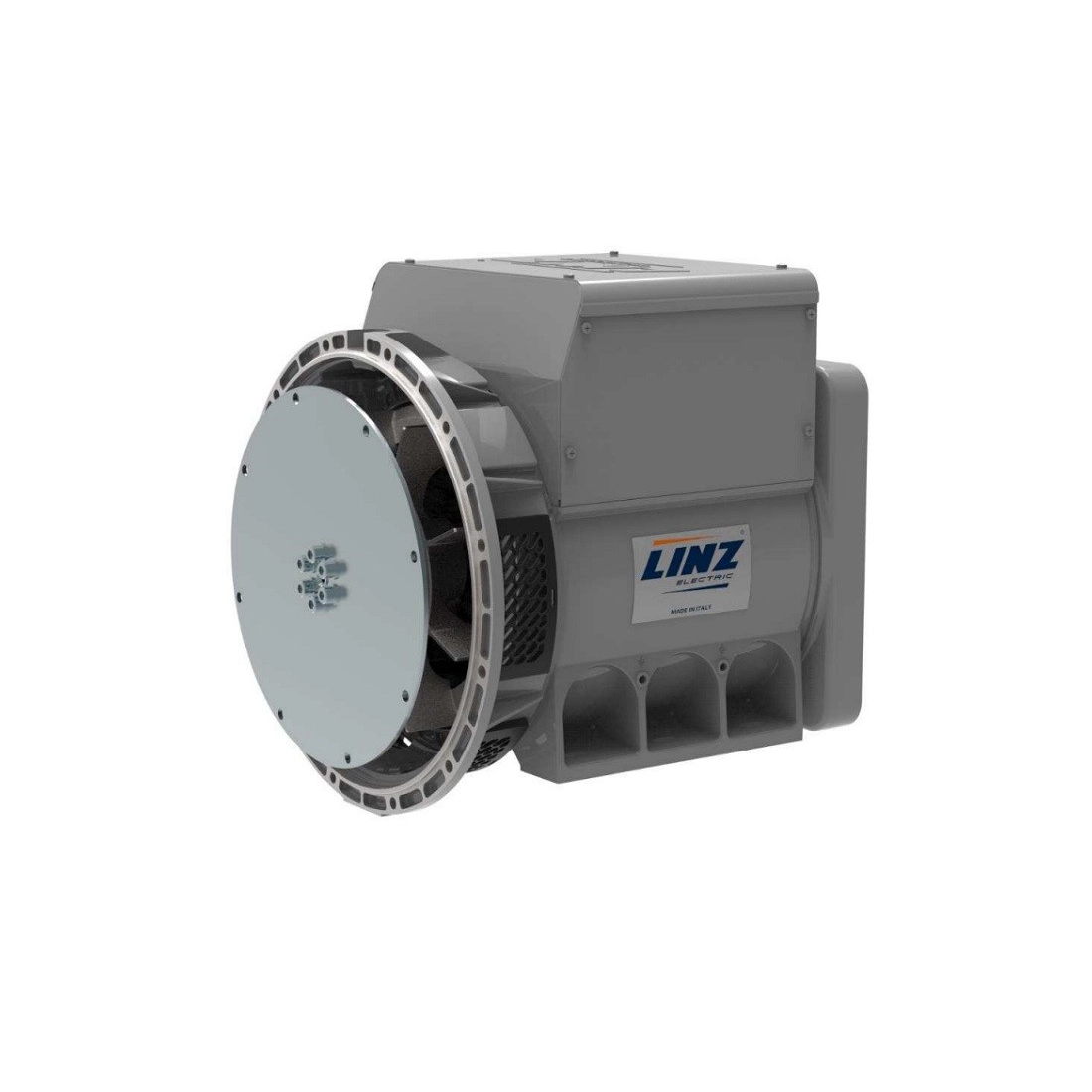

LINZ PRO18S B/4 Three-phase alternator 4 poles 25 kVA 50 Hz AVR

LINZ PRO18S B/4 Three-phase alternator 4 poles 25 kVA 50 Hz AVR
search
  • LINZ PRO18S B/4 Three-phase alternator 4 poles 25 kVA 50 Hz AVR
  • LINZ PRO18S B/4 Three-phase alternator 4 poles 25 kVA 50 Hz AVR
LINZ ELECTRIC
PRO18S B/4 50 Hz SAE3 d6.5
New product

Rated power at 50 Hz (kVA): 25
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 6.3 at 50 Hz
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KW)
20
Continuous power three phase (KVA)
25
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
25
Protection degree
IP23
Motor insulation class
H

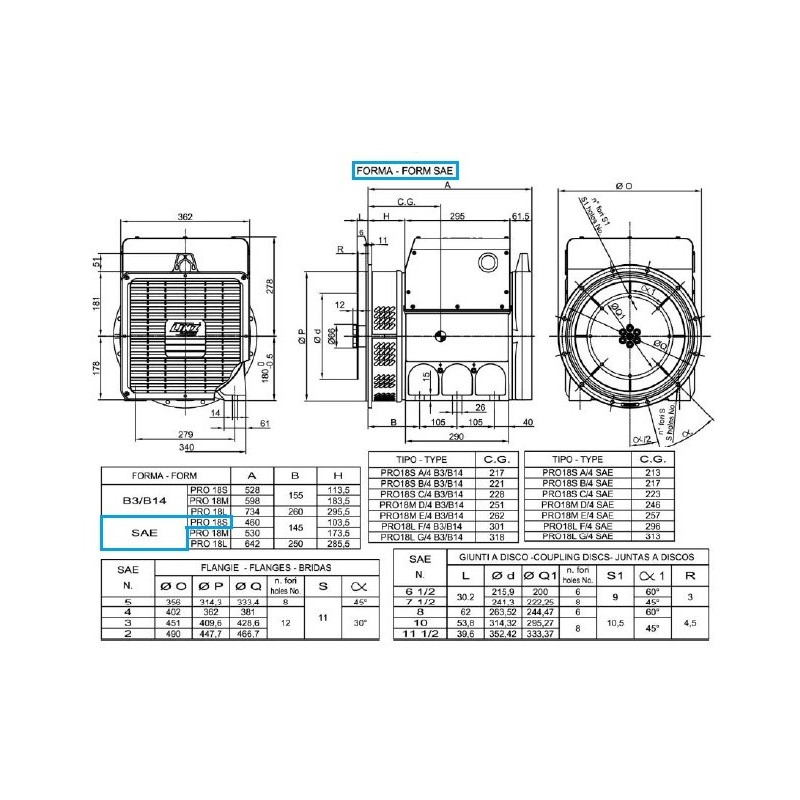

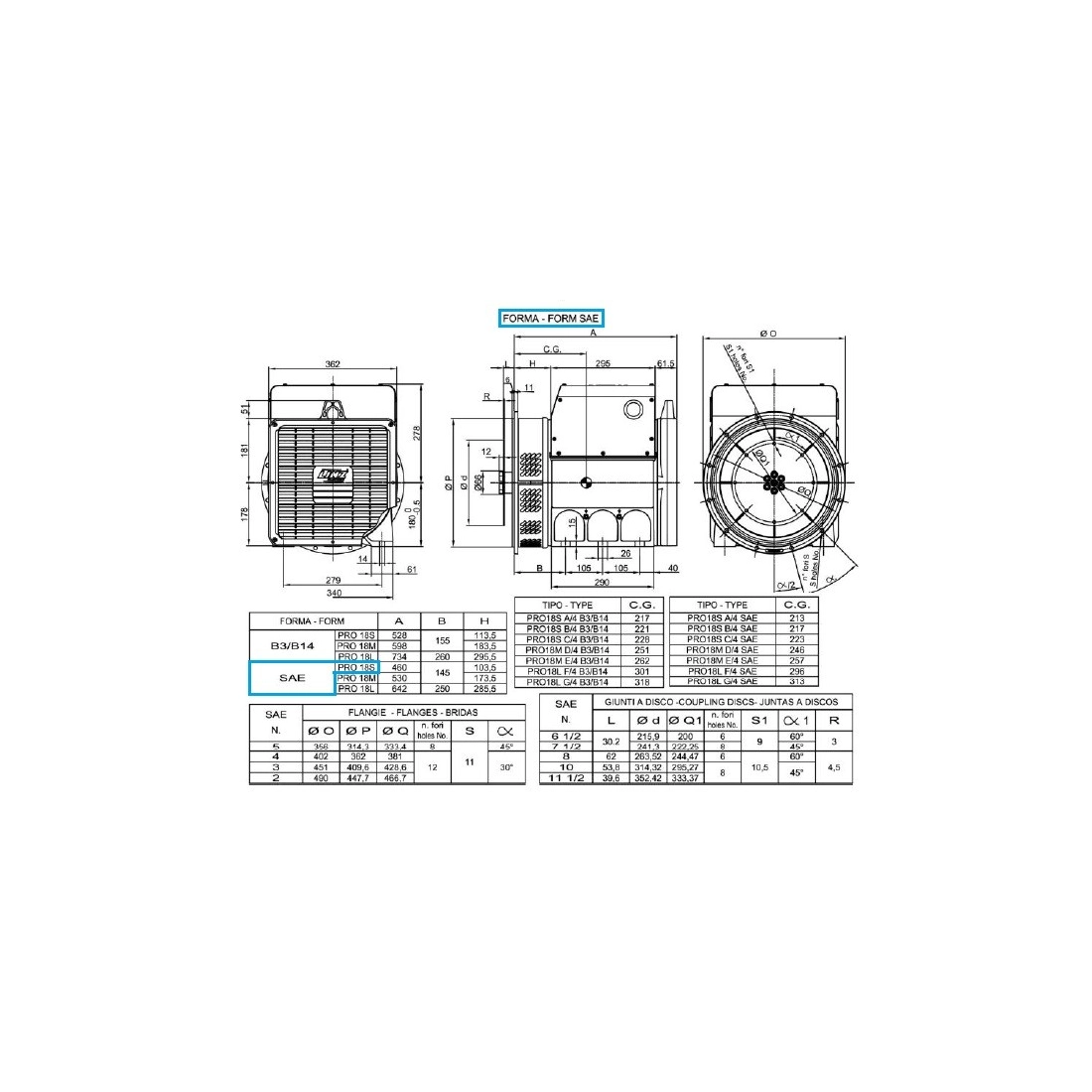

Length (mm)
460
Width (mm)
362
Height (mm)
373
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
134.5
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Technical Sheet / Manuals
Related Accessories
List price
2.893,84 € tax incl.
2.372,00 € tax excl.
Discounted Price
1.796,40 € tax incl.
1.472,46 € tax excl.
