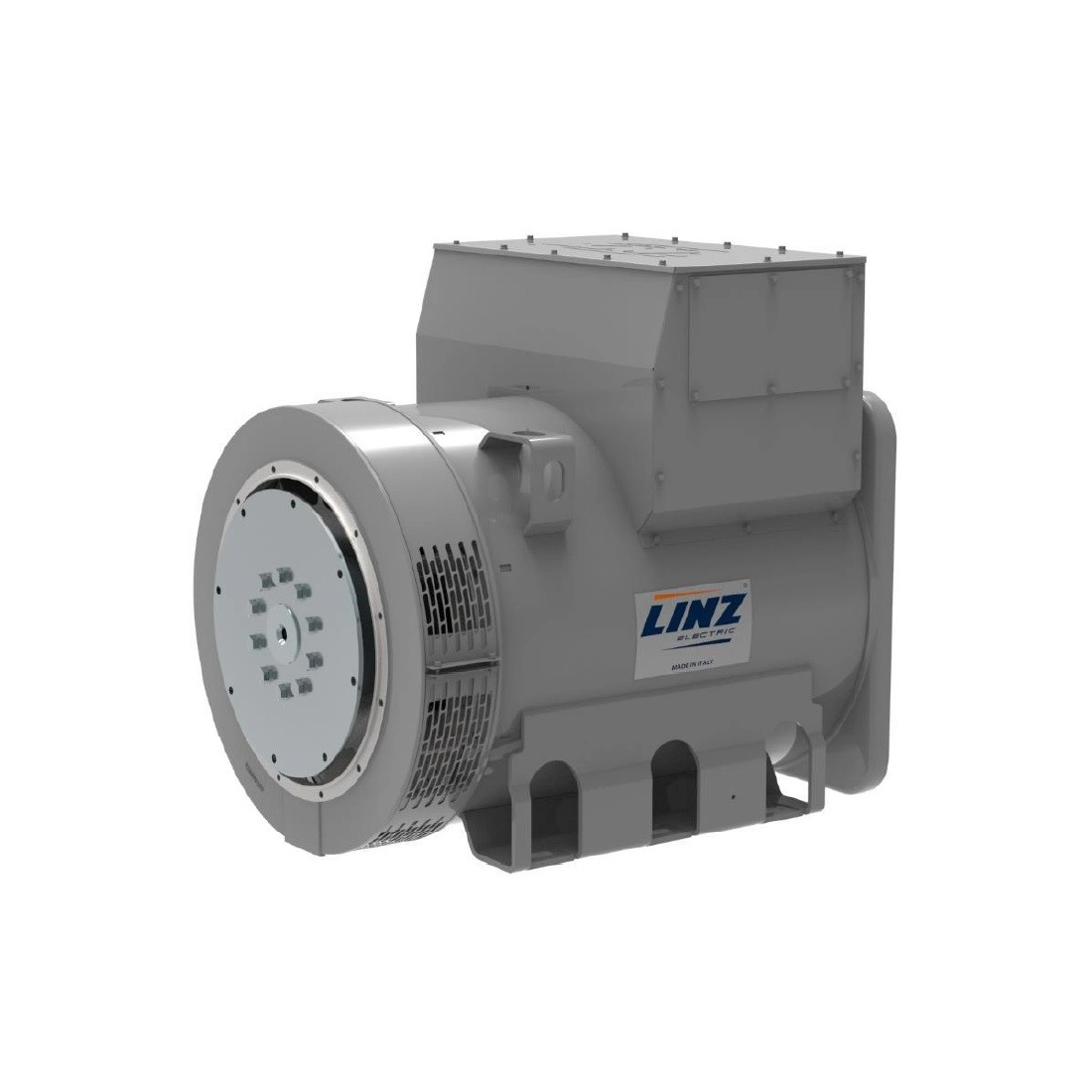

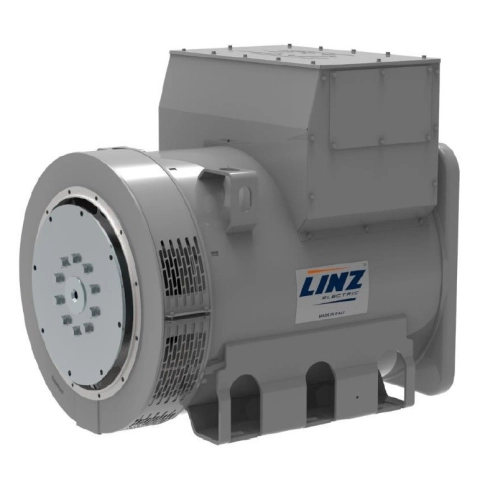

LINZ PRO35S C/4 Three-phase alternator 4 poles 600 kVA 60 Hz AVR

Name: LINZ PRO35S C/4 Three-phase alternator 4 poles 600 kVA 60 Hz AVR
Brand: LINZ ELECTRIC
SKU: PRO35S C/4 60 Hz
Price: 12371.9 EUR
Availability: InStock

LINZ PRO35S C/4 Three-phase alternator 4 poles 500 kVA 50 Hz AVR

Reference PRO35S C/4 60 Hz SAE1 d14

Rated power at 60 Hz (kVA): 600
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011
6 wires winding

List price

21,520.80 € tax incl.

17,640.00 € tax excl.

Discounted Price

12,371.90 € tax incl.

10,140.90 € tax excl.

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference PRO35S C/4 60 Hz SAE1 d14

Data sheet

Phase: Three phase
Continuous power three phase (KVA): 600
Frequency (Hz): 60
Voltage (V): 230 / 400
Engine rpm (rpm): 1800
Alternator: Synchronous
Poles: 4
Three-phase power (KVA): 500
Protection degree: IP23
Motor insulation class: H

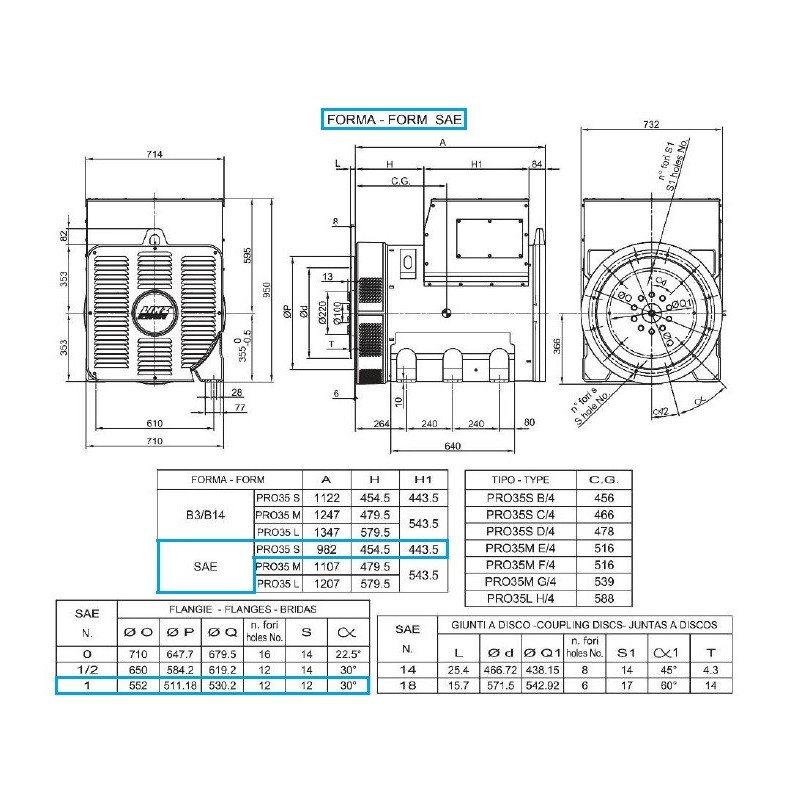

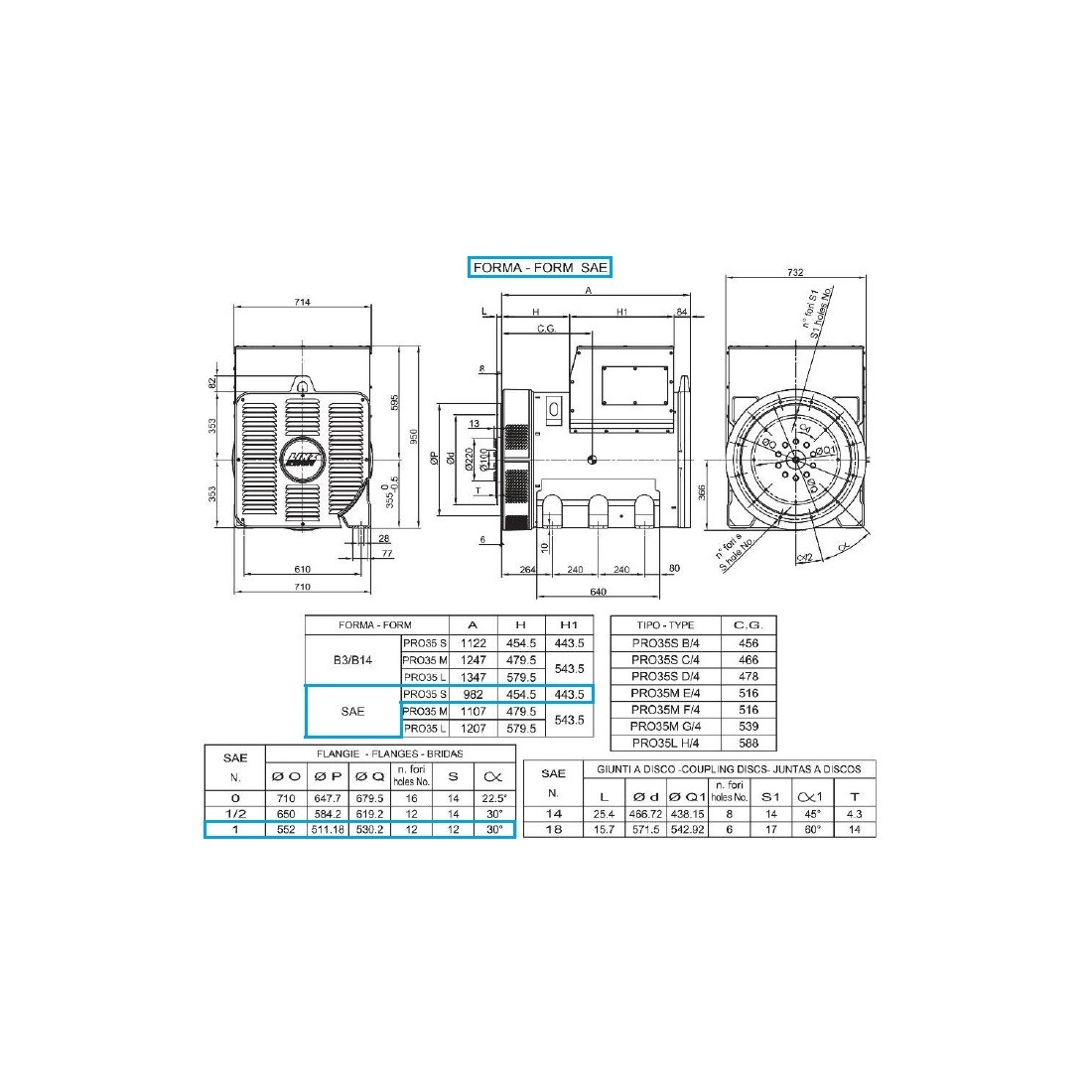

Length (mm): 982
Width (mm): 732
Height (mm): 788
Brushes: No
PMG: Optional
Type of alternator: Constant Speed
Voltage regulator: AVR
Weight (Kg): 1262.5

Specific References

Condition New

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

Compact and mechanically resistant
Excellent wave form
Minimum maintenance
High efficiency

Type: Three-phase alternators
Poles: 4
Phases: Three-phase
Regulation: AVR
Application: INDUSTRIAL, COGENERATION

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
