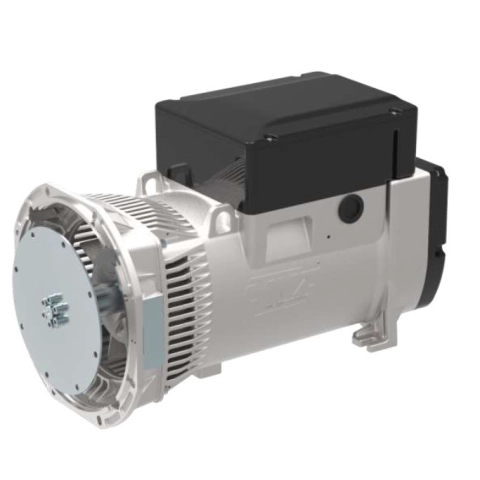

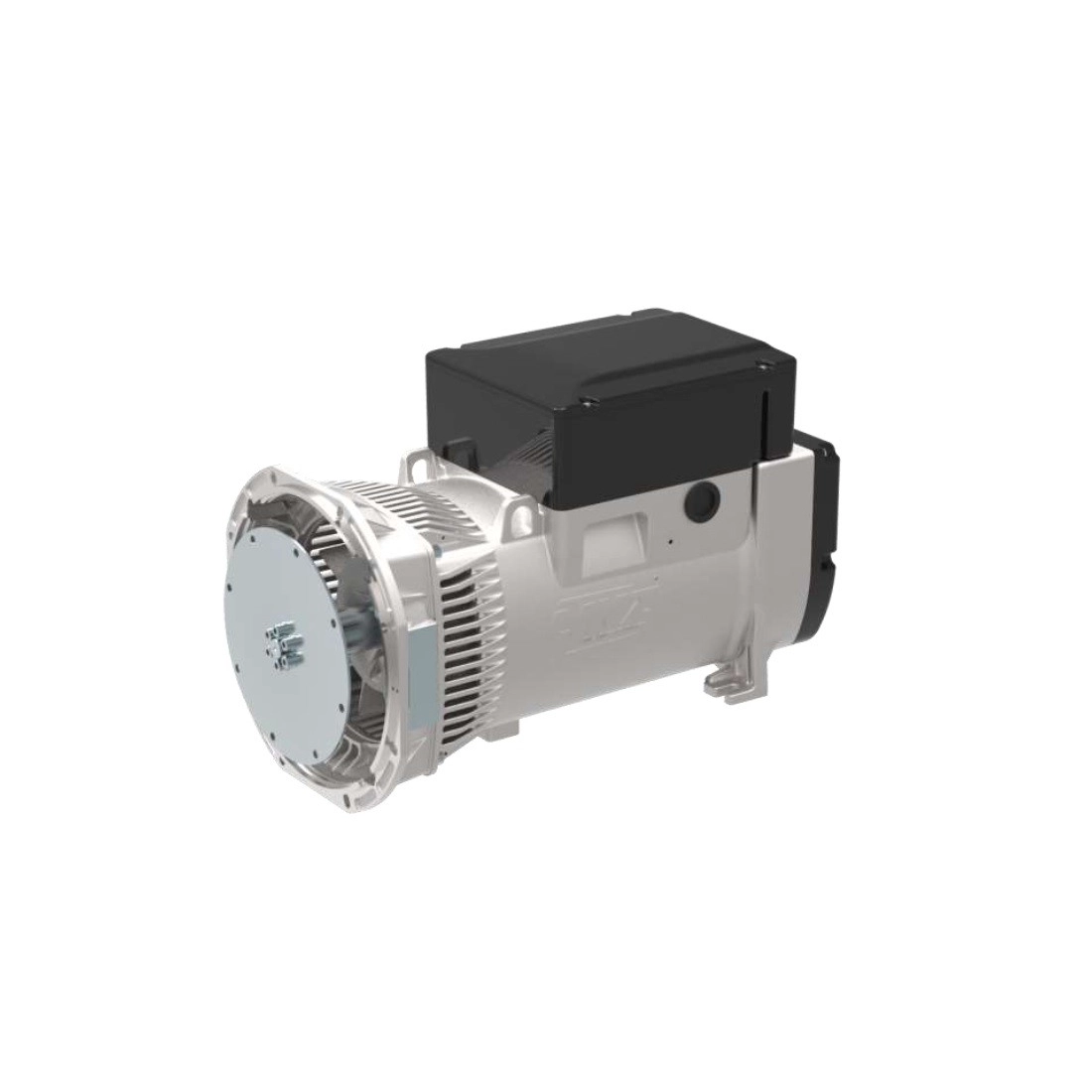

LINZ E1X13M E/2 Three-phase alternator 230V/400V 22 kVA 50 Hz AVR
E1X13M E/2 50 Hz J609b
Rated power at 50 Hz (kVA): 22
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 7.9 at 50 Hz
Suppression standard R.F.F.I. EN55011
List price
tax incl.
tax excl.
Discounted Price
1,614.12 € tax incl.
1,323.05 € tax excl.
E1X13M E/2 50 Hz J609b
Data sheet
- Phase
- Three phase
- Continuous power three phase (KW)
- 17.6
- Continuous power three phase (KVA)
- 22
- Frequency (Hz)
- 50 / 60
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 3000
- Alternator
- Synchronous
- Poles
- 2
- Three-phase power (KVA)
- 22
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 554
- Width (mm)
- 270
- Height (mm)
- 375
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- AVR
- Weight (Kg)
- 97
Specific References
New
E1X/2 series are three-phase brushless 2 poles alternators with exciter and electronic regulation (AVR).
CHARACTERISTICS
- Compact and mechanically resistant
- Minimum maintenance
- High efficiency
- Type: Three-phase alternators
- Poles: 2
- Phases: Three-phase
- Regulation: AVR
- Application: PORTABLE, TELECOMMUNICATION
product available in 50 Hz and 60 Hz versions
