SINCRO GTR2 MB Three Phase Synchronous AC Alternator 27 kVA D-AVR

SINCRO THREE PHASE ALTERNATOR GTR2
search
  • SINCRO THREE PHASE ALTERNATOR GTR2
  • SINCRO THREE PHASE ALTERNATOR GTR2
SINCRO
GTR2 MB J609b c25.4
New product

Phase: Three phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): ----
Three Phase Output (kVA): 27
Constant Speed Alternator
D-AVR
Brushes
Weight (Kg): 85
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
21.6
Three-phase power (KVA)
27
Efficiency (%)
86
Protection degree
IP23
Dry weight (Kg)
85
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Details

Three phase brushes alternator - DIGITAL AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In

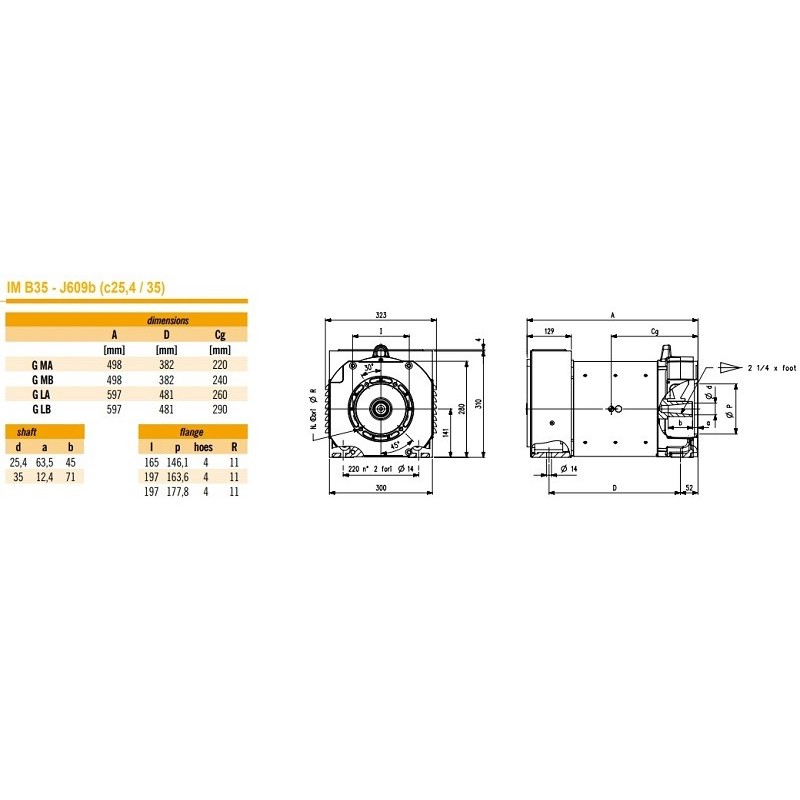

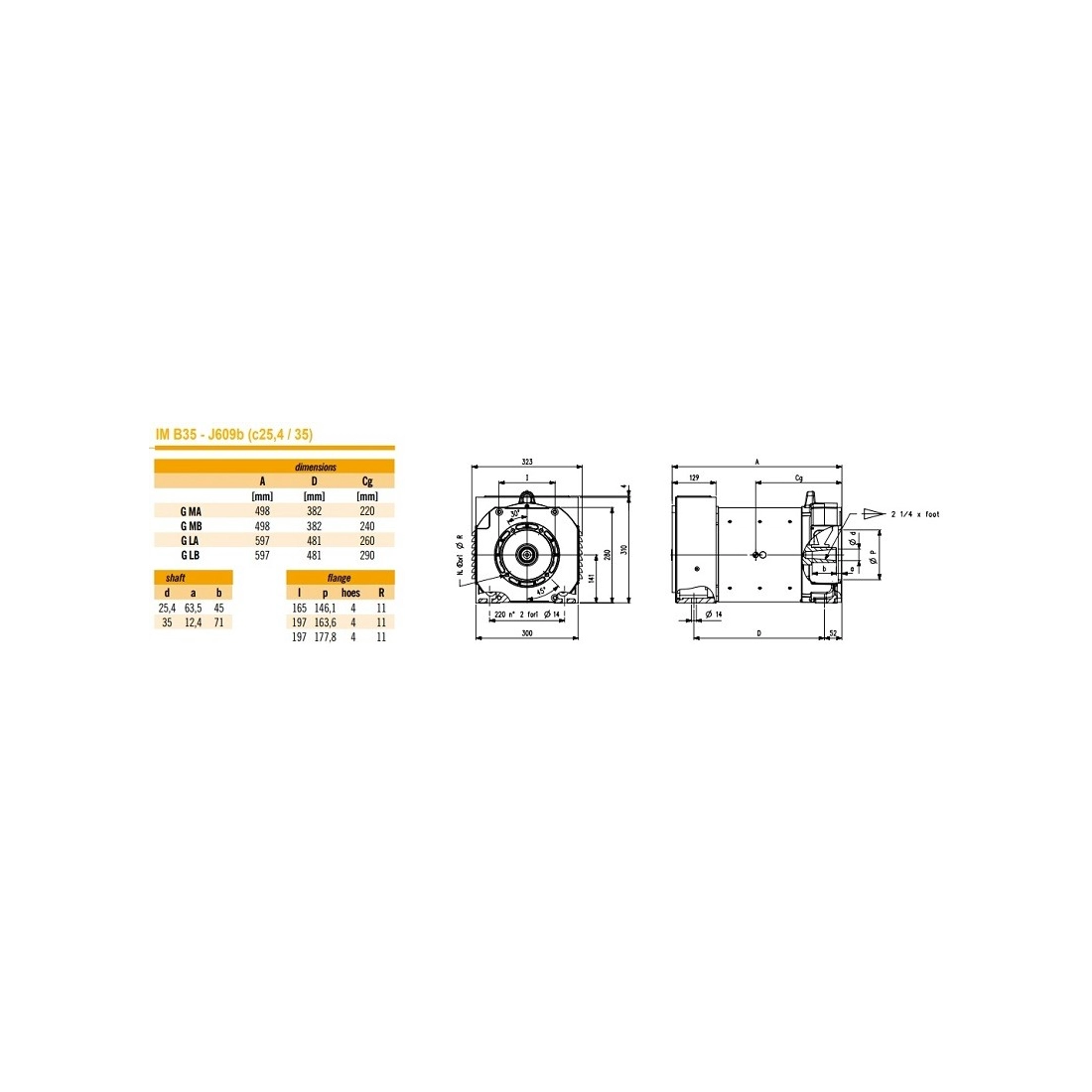

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

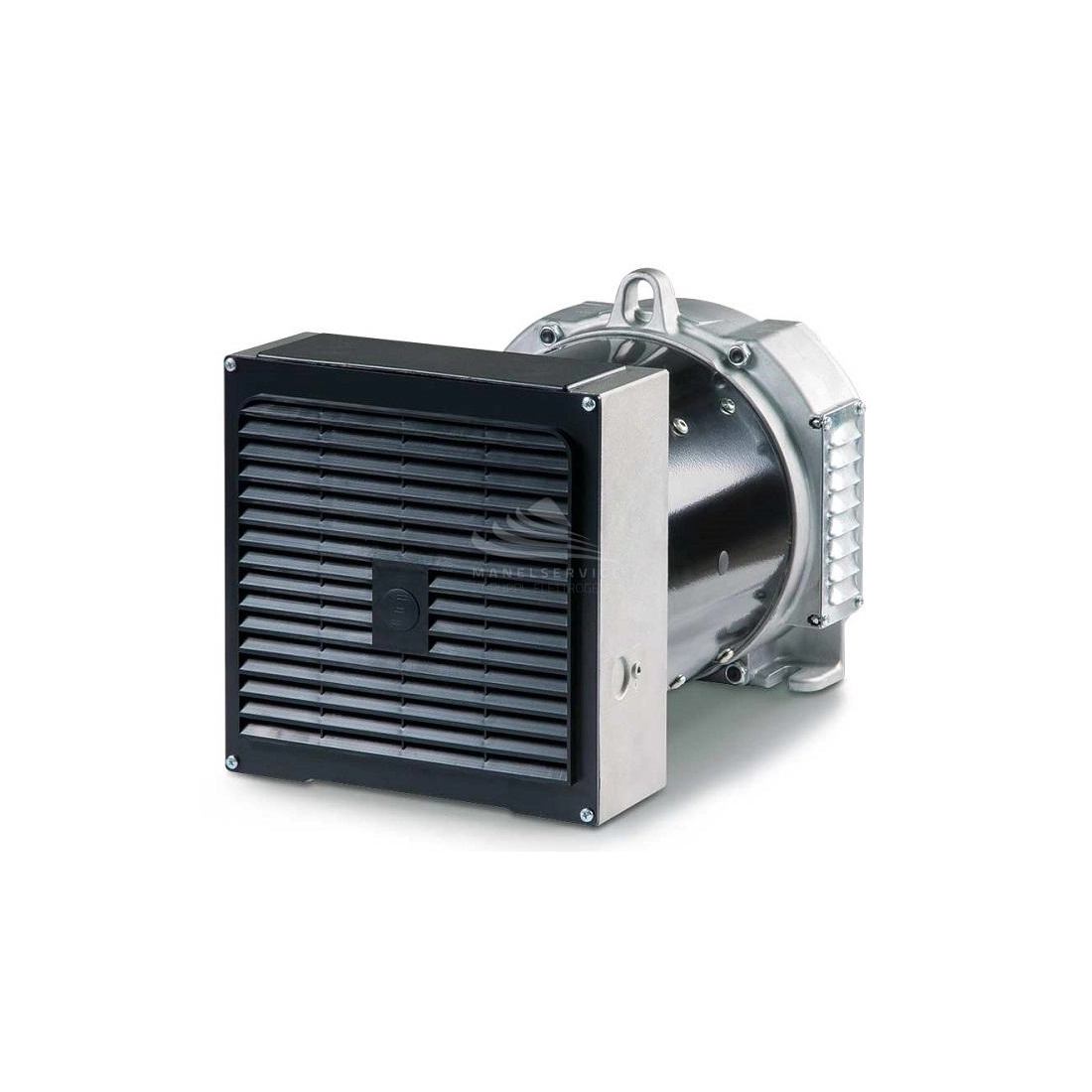

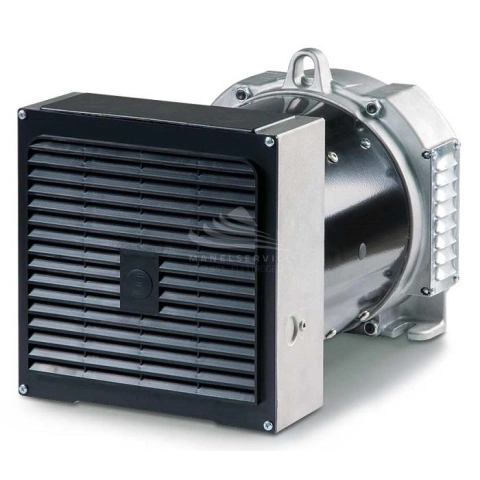

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
2.520,52 € tax incl.
2.066,00 € tax excl.
Discounted Price
1.528,07 € tax incl.
1.252,51 € tax excl.
