SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor
      SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor
      SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor

      SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor

      FK2 LC Steel j609b C25.4

      Phase Type: Single-phase
      Maximum singlephase output: 17.6 KW
      Maximum singlephase continuous output: 14.4 KW
      Maximum singlephase output: 22.0 KVA
      Maximum singlephase continuous output: 18.5 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection rating: IP23
      Agent speed: 3000 rpm
      Number of poles: 2
      Weight: 96Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      Choose the type of coupling :
      Download PDF
      Custom Quote
      Product: SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor

      PERSONAL DATA


      Ask a question
      Product: SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor
      Offer on letterhead
      Product: SINCRO FK2 LC Steel Single Phase Synchronous AC Alternator 18.5 kVA Capacitor
      SINCRO
      FK2 LC Steel j609b C25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      18.5
      Single-phase power (KVA)
      18.5
      Efficiency (%)
      84
      Protection degree
      IP23
      Dry weight (Kg)
      96
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

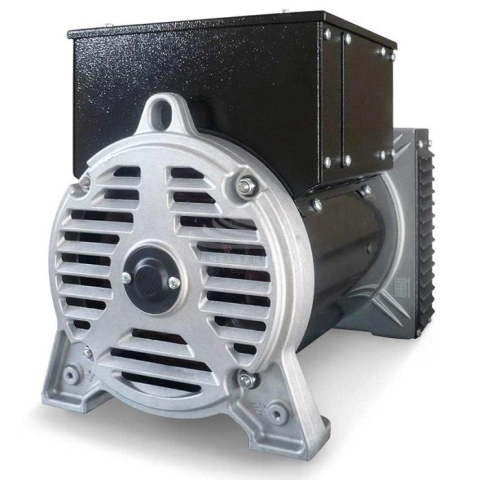

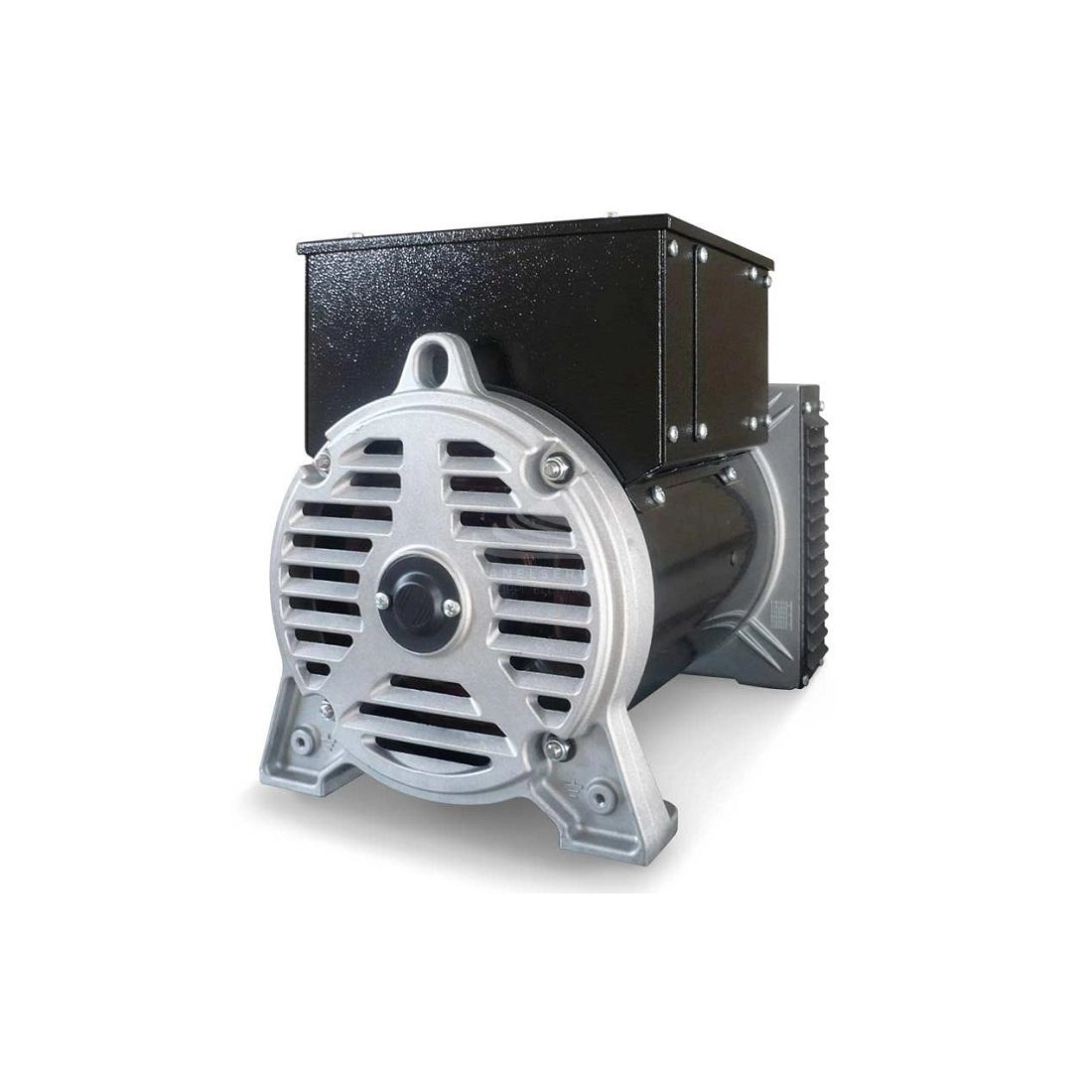

      SINCRO FK2 LC ALTERNATOR 22,0 KVA SINGLE-PHASE

      Alternator SINCRO FK2 LC single phase with a power of 22.0KVA, this unit has a Brushless operation equipped with capacitor voltage regulator.

      The alternator is designed for operation at frequency 50 or 60 HZ, the possibility of working on these two frequencies makes it possible the application for any service voltage increasing its versatility, for the correct operation. SINCRO FK2 LC has been realized with the body entirely in steel, this makes the alternator very resistant and suitable for heavy duty use.

      All the components that make up the SINCRO FK2 LC alternator are subjected to a specific coating and/or impregnation process to safeguard the generator's functionality and protect the critical parts under various conditions of use.

      SINCRO FK2 LC is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the FK2 LC model with a capacitor.

      Select the alternator that meets thetechnical specifications you require, visit our dedicated section to find out how.

      TECHNICAL FEATURES SINCRO FK2 LC

      Phase Type: Single-phase
      Maximum singlephase output: 17.6 KW
      Maximum singlephase continuous output: 14.4 KW
      Maximum singlephase output: 22.0 KVA
      Maximum singlephase continuous output: 18.5 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection rating: IP23
      Agent speed: 3000 rpm
      Number of poles: 2
      Weight: 96Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer
