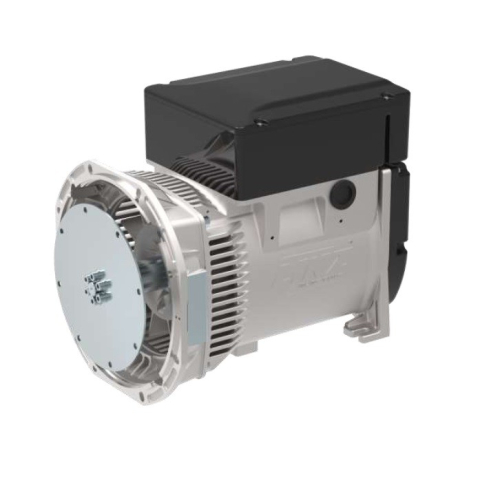

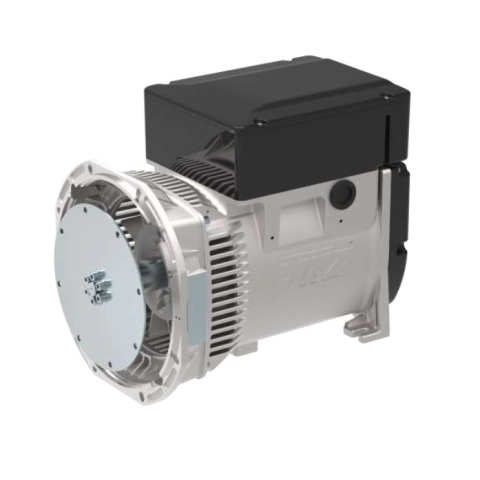

LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
      LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound
      LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound

      LINZ E1S13S C/2 Three-phase alternator 230V/400V 16 kVA 50 Hz Compound

      E1S13S C/2 50 Hz J609 c25.4

      Rated power at 50 Hz (kVA): 16
      Rated power factor: 0.8
      Rated temperature (°C): 40
      Control system: self-excited
      Design: brushes
      Type of regulation: compound
      Insulation class: H
      Frequency: 50 Hz 60 Hz
      Protection: IP21
      Maximum excess travel speed (rpm): 4500
      110% overload of rated power for one hour in a 6-hour cycle
      Airflow requirement (m3/min): 9.4 at 50 Hz
      Suppression standard R.F.F.I. EN55011

      List price
      1,432.28 € tax incl.
      1,174.00 € tax excl.
      Discounted Price
      1,239.02 € tax incl.
      1,015.59 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      LINZ ELECTRIC
      E1S13S C/2 50 Hz J609 c25.4

      Data sheet

      Phase
      Three phase
      Continuous power three phase (KW)
      12.8
      Continuous power three phase (KVA)
      16
      Frequency (Hz)
      50 / 60
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Alternator
      Synchronous
      Poles
      2
      Three-phase power (KVA)
      16
      Protection degree
      IP21
      Motor insulation class
      H
      Length (mm)
      405
      Width (mm)
      270
      Height (mm)
      379
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound
      Weight (Kg)
      61

      Specific References

      New

      E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

      CHARACTERISTICS

      • Possibility to feed any type of load
      • Compact and easy to assemble
      • High starting capacity
      • High efficiency
      • Type: Three-phase alternators
      • Poles: 2
      • Phases: Three-phase
      • Regulation: COMPOUND
      • Application: PORTABLE
        product available in 50 Hz and 60 Hz versions

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
