SINCRO SK250 LS SINGLE-THREE PHASE ALTERNATOR 250KVA AVR

SINCRO THREE PHASE ALTERNATOR SK250
search
  • SINCRO THREE PHASE ALTERNATOR SK250
  • SINCRO THREE PHASE ALTERNATOR SK250
SINCRO
SK250 LS SAE3 d11.5
New product

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 250
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 680
Protection: IP23

Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
200
Three-phase power (KVA)
250
Efficiency (%)
92.9
Protection degree
IP23
Dry weight (Kg)
647
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 6
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

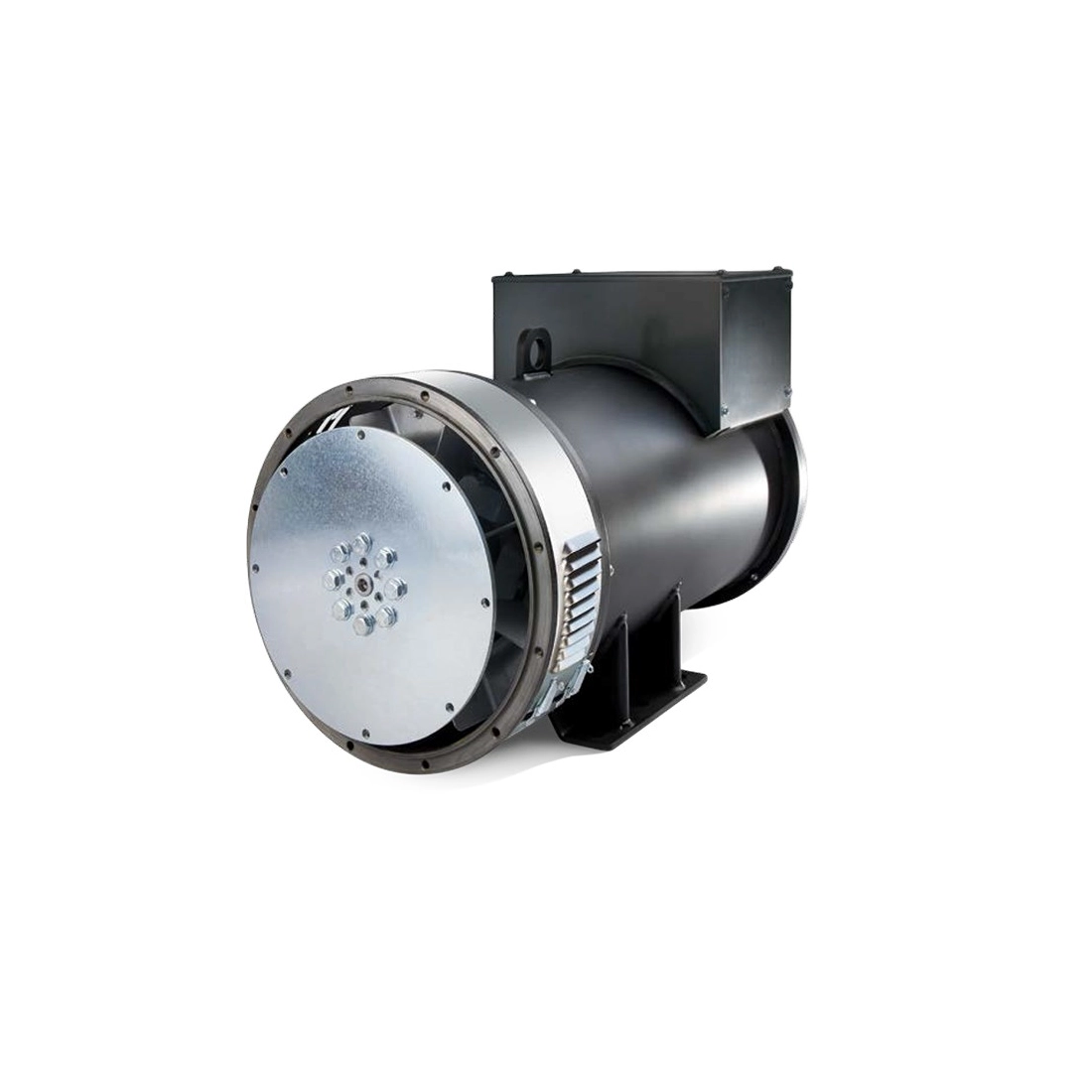

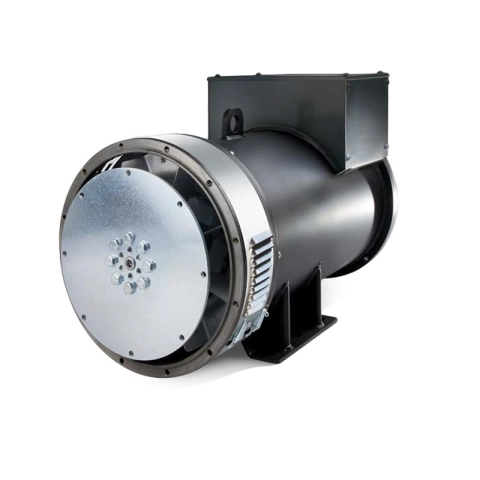

The image is purely indicative.

Technical Sheet / Manuals
Related Accessories
List price
12.825,86 € tax incl.
10.513,00 € tax excl.
Discounted Price
7.777,50 € tax incl.
6.375,00 € tax excl.
Choose the type of coupling
Ask for availability
Add to wishlist
Download PDF
Ask a question
Product: SINCRO SK250 LS SINGLE-THREE PHASE ALTERNATOR 250KVA AVR
Offer on letterhead
Product: SINCRO SK250 LS SINGLE-THREE PHASE ALTERNATOR 250KVA AVR
Technical features
Phase
Three phase
Frequency (Hz)
50
Voltage (V)
400
Engine rpm (rpm)
1500
Poles
4
Three-phase power (KW)
200
Three-phase power (KVA)
250
Efficiency (%)
92.9
Protection degree
IP23
Dry weight (Kg)
647
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Details
Technical Sheet / Manuals
Related Accessories
