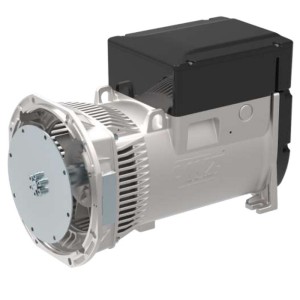

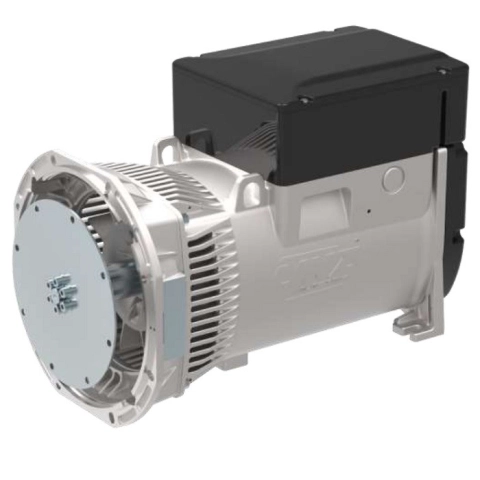

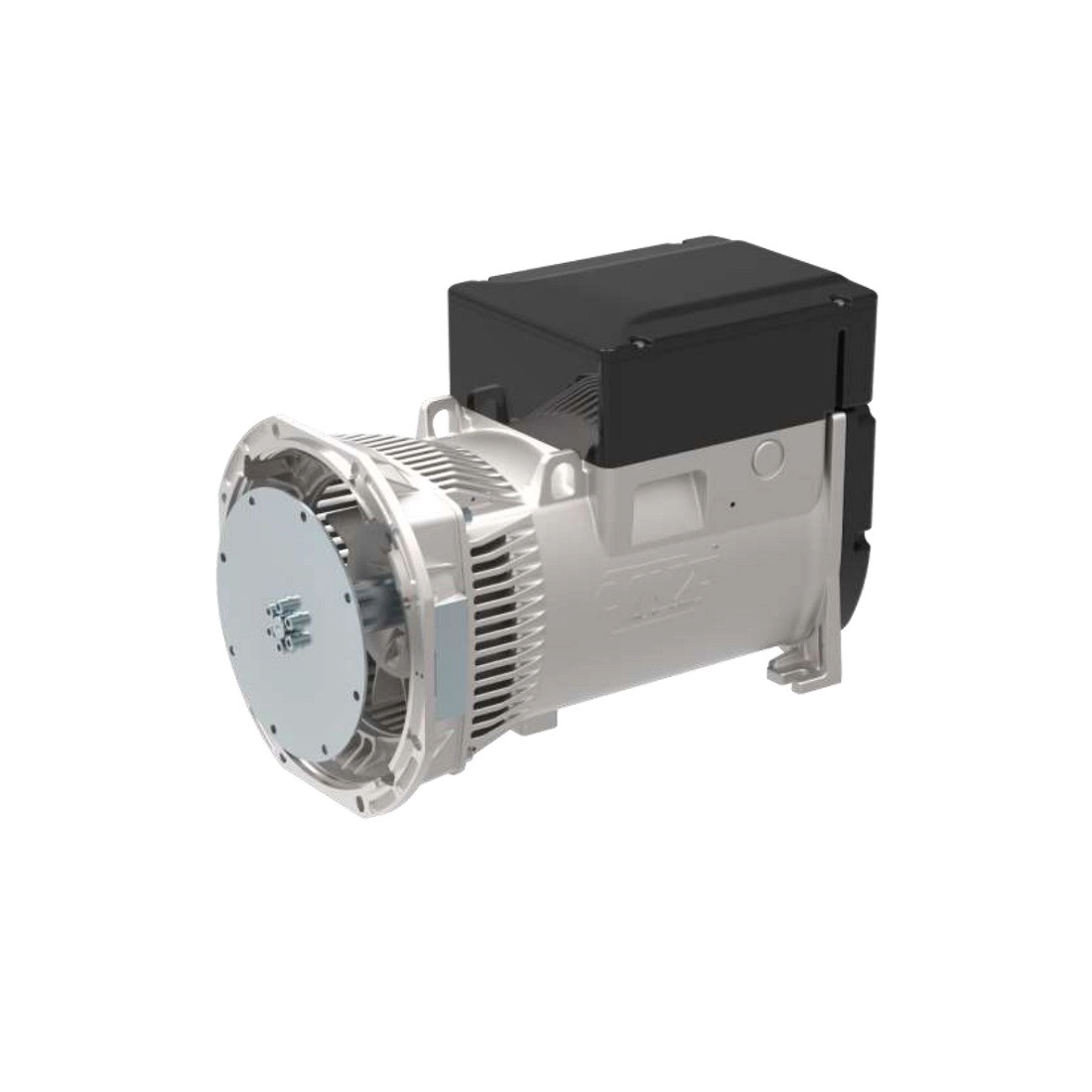

LINZ E1S13M D/4 Three-phase alternator 4 poles 13 kVA 50 Hz Compound
E1S13M D/4 50 Hz J609b
Rated power at 50 Hz (kVA): 13
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: with brushes
Type of regulation: Compound
Insulation class: H
Protection: IP21
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 4.9 at 50 Hz
Suppression standard R.F.F.I. EN55011
List price
tax incl.
tax excl.
Discounted Price
1,326.19 € tax incl.
1,087.04 € tax excl.
E1S13M D/4 50 Hz J609b
Data sheet
- Phase
- Three phase
- Continuous power three phase (KW)
- 10.4
- Continuous power three phase (KVA)
- 13
- Frequency (Hz)
- 50
- Voltage (V)
- 230 / 400
- Engine rpm (rpm)
- 1500
- Alternator
- Synchronous
- Poles
- 4
- Three-phase power (KVA)
- 13
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 403
- Width (mm)
- 270
- Height (mm)
- 373
- Brushes
- Yes
- Type of alternator
- Constant Speed
- Voltage regulator
- Compound
- Weight (Kg)
- 70.5
Specific References
New
E1S13/4 series are three-phase 4 poles alternators with brushes and compound regulation.
CHARACTERISTICS
- Possibility to feed any type of load
- Compact and easy to assemble
- High starting capacity
- High efficiency
- Type: Three-phase alternators
- Poles: 4
- Phases: Three-phase
- Regulation: COMPOUND
- Application: PORTABLE
