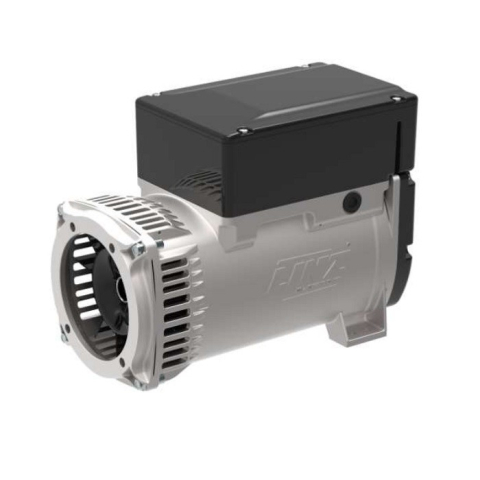

LINZ E1S10M H Three-phase alternator 230/400V 7 kVA 50 Hz Compound

LINZ E1S10M H Three-phase alternator 230/400V 7 kVA 50 Hz Compound
LINZ E1S10M H Three-phase alternator 230/400V 7 kVA 50 Hz Compound
E1S10M H 50 Hz J609a c 19

Rated power at 50Hz (kVA): 7
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushes
Type of regulation: compound
Insulation class: H
Frequency: 50 Hz 60 Hz
Protection: IP21
Maximum excess travel speed (rpm): 4500
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.7 at 50Hz
Suppression standard R.F.F.I. EN55011

Download Technical Data E1S10M H

Phase
Three phase
Continuous power three phase (KW)
5.6
Continuous power three phase (KVA)
7
Frequency (Hz)
50 / 60
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Alternator
Synchronous
Poles
2
Single-phase power (KVA)
7
Protection degree
IP21
Motor insulation class
H
Length (mm)
294
Width (mm)
195
Height (mm)
295
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Compound
Weight (Kg)
33.1
Brand

E1S/2 series are three-phase 2 poles alternators with brushes and compound regulation..

CHARACTERISTICS

  • Possibility to feed any type of load
  • Compact and easy to assemble
  • High starting capacity
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 2
  • Phases: Three-phase
  • Regulation: COMPOUND
  • Application: PORTABLE
    product available 50 Hz and 60 Hz

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€530.45 €530.45
Choose the type of coupling
  • IM B35 - J609b cone 22.14
  • IMB35 J609b cone 25.4
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • IM B35 - J609a cone 19

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
