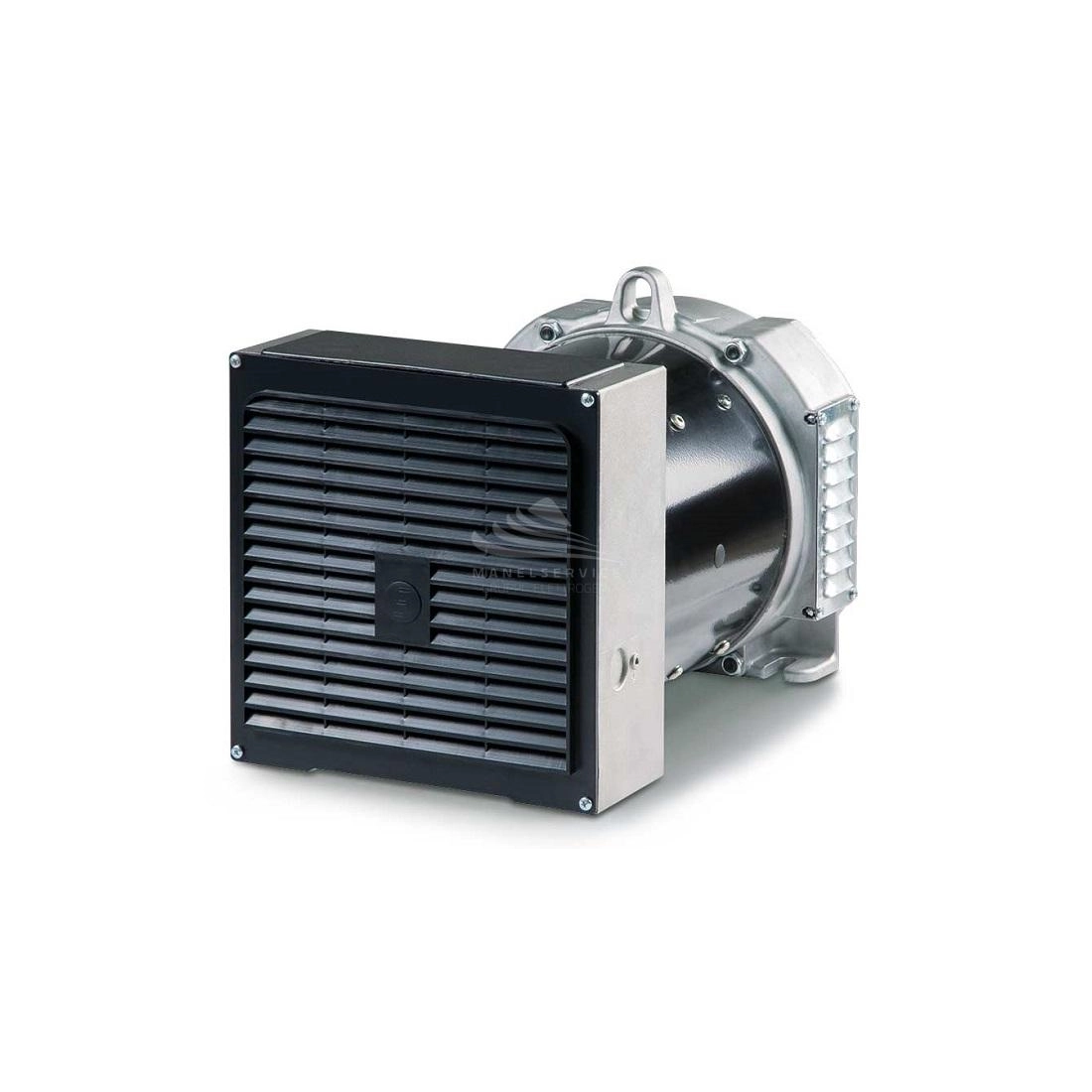

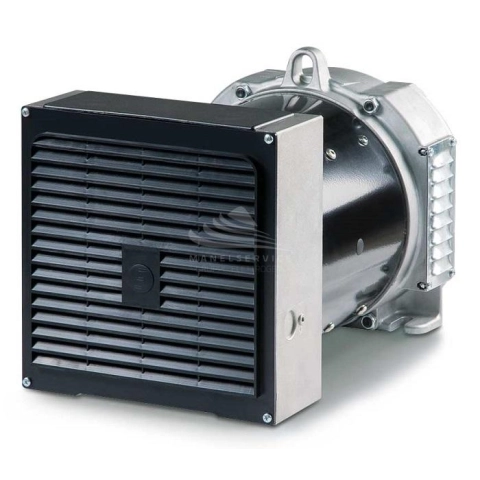

SINCRO GKR2 LA Single Phase Synchronous AC Alternator 20 kVA D-AVR

SINCRO SINGLE PHASE ALTERNATOR GKR2
SINCRO SINGLE PHASE ALTERNATOR GKR2
SINCRO SINGLE PHASE ALTERNATOR GKR2
SINCRO SINGLE PHASE ALTERNATOR GKR2
GKR2 LA J609b c25.4

Phase: Single Phase
Poles: 2
Voltage (V): 230
Frequency (Hz): 50
Rpm Speed: 3000
Single Phase Output (kVA): 20
Constant Speed Alternator
Digital AVR
Brushes
Weight (Kg): 101
Protection: IP23

Download Technical data GKR

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Engine rpm (rpm)
3000
Poles
2
Single-phase power (KW)
20
Single-phase power (KVA)
20
Efficiency (%)
83
Protection degree
IP23
Dry weight (Kg)
101
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
Digital AVR
Brand

Single phase brushes alternator - AVR.

- Self-regulated
- IP23
- Standard voltage 230 V - 50 Hz
- Short circuit current greater than 3 In

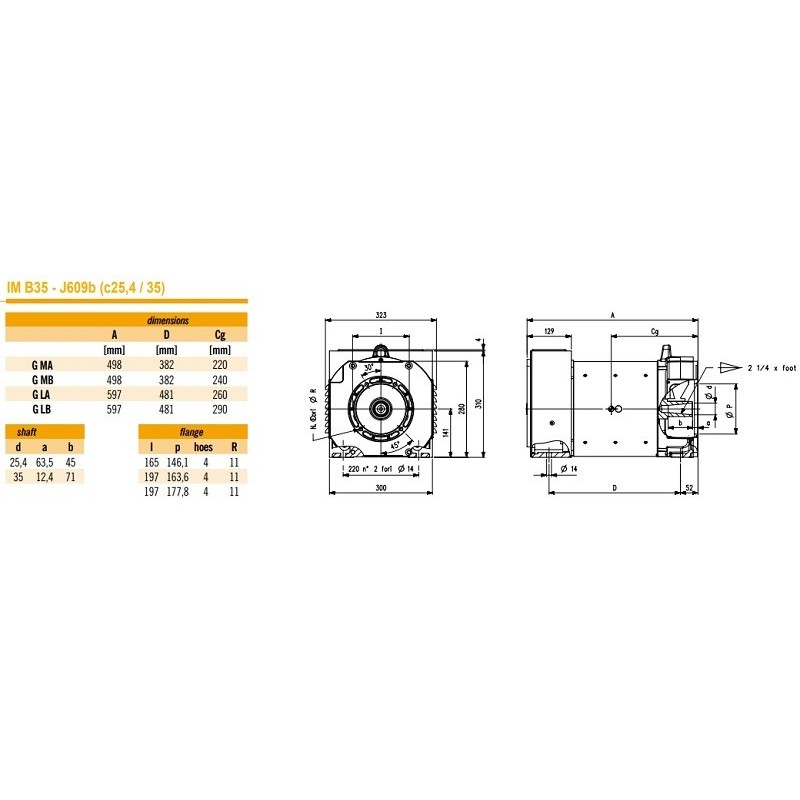

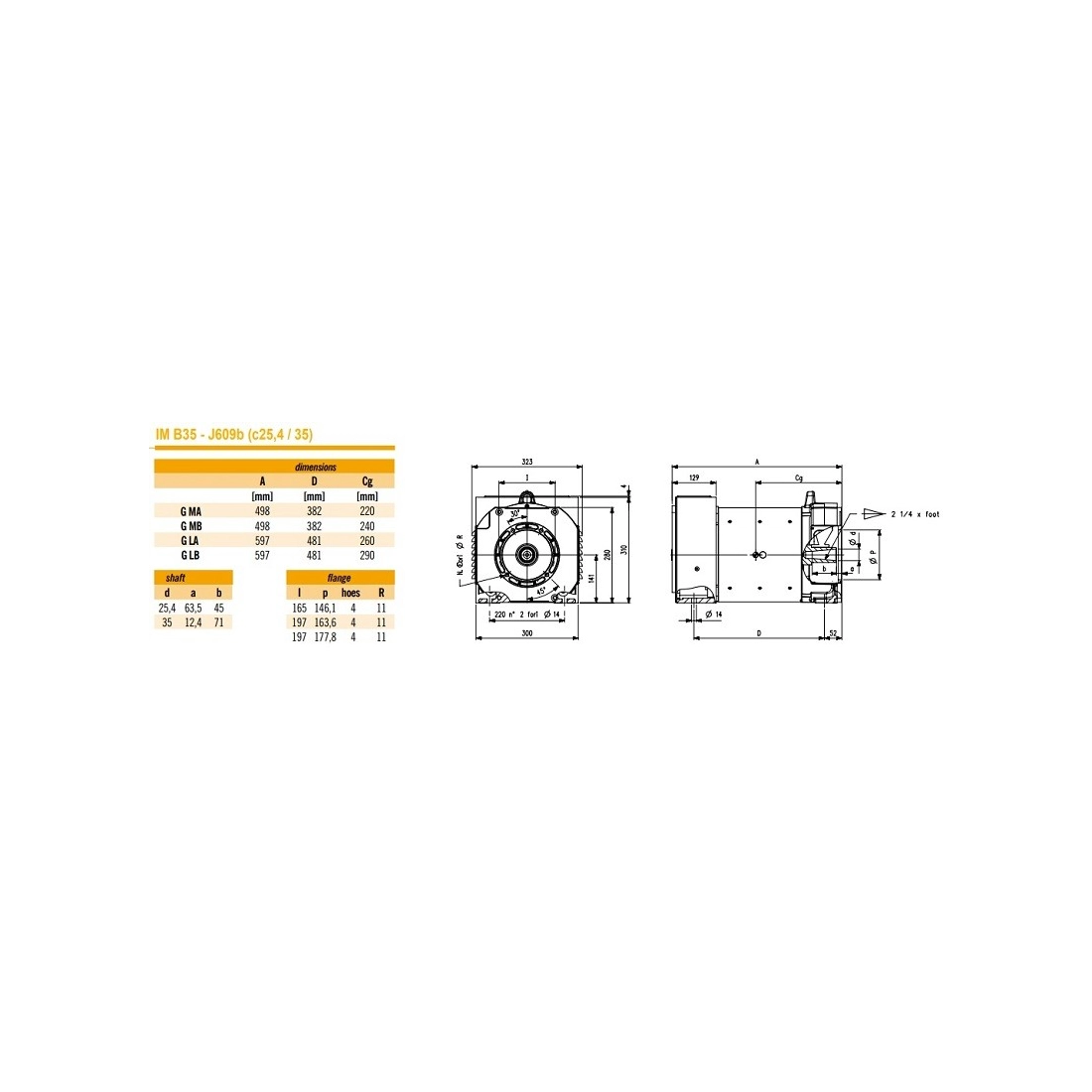

- Standard coupling IM B35 cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE
- DIGITAL AVR

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€1,512.00 €1,512.00
Choose the type of coupling
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 30
  • IM B35 - B3/B9 cone 38
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
