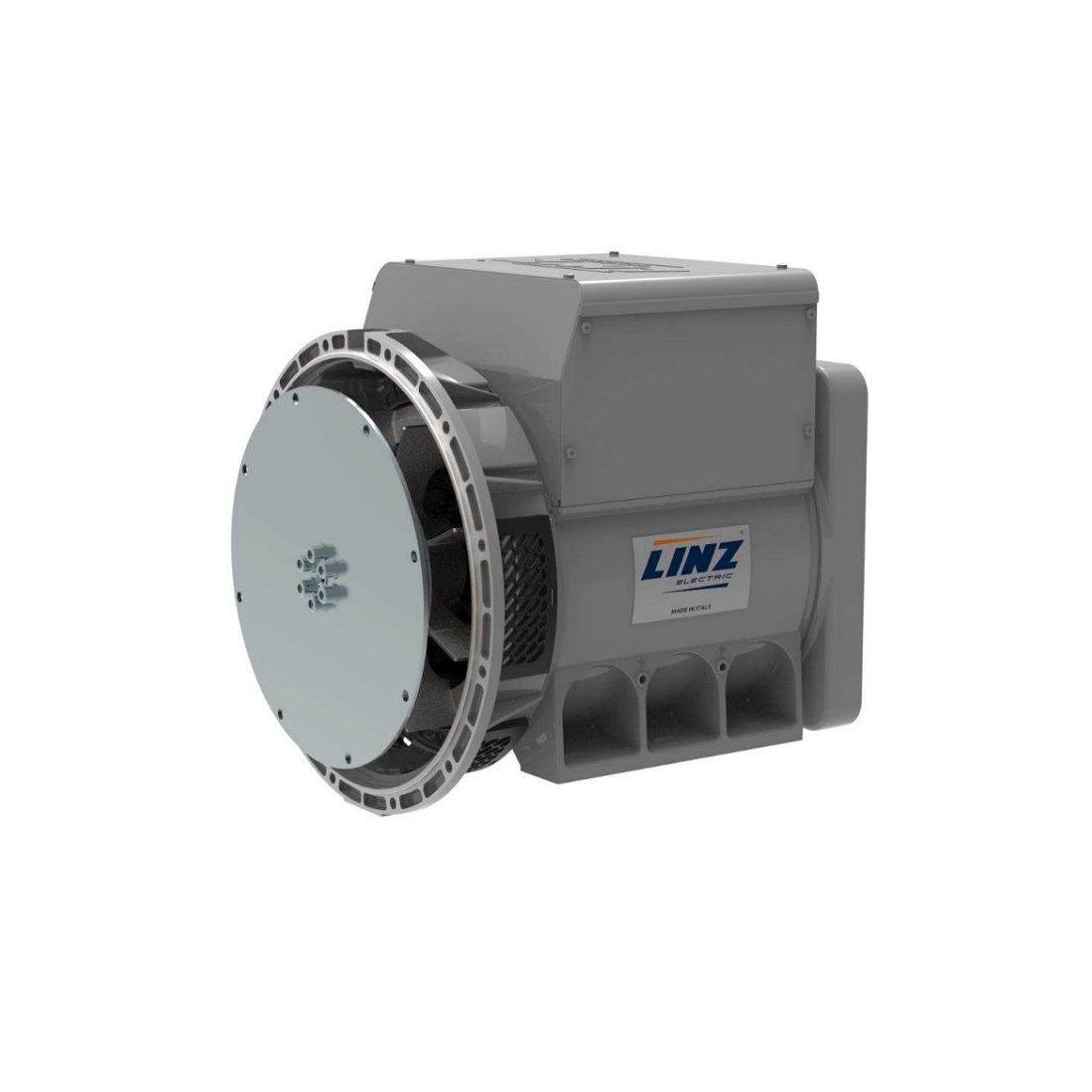

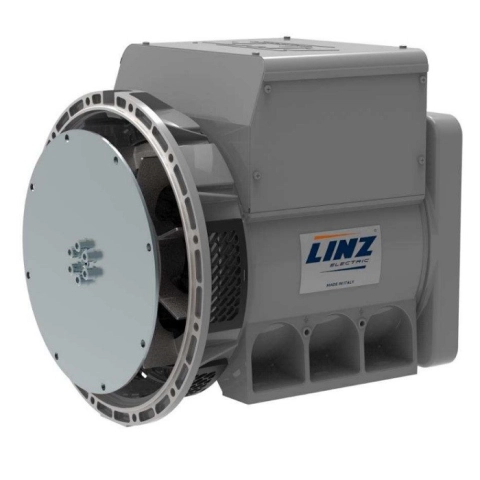

LINZ PRO18S A/4 Three-phase alternator 4 poles 24 kVA 60 Hz AVR

  • New
LINZ PRO18S A/4 Three-phase alternator 4 poles 20 kVA 50 Hz AVR
search
  • LINZ PRO18S A/4 Three-phase alternator 4 poles 20 kVA 50 Hz AVR
  • LINZ PRO18S A/4 Three-phase alternator 4 poles 20 kVA 50 Hz AVR
LINZ ELECTRIC
PRO18S A/4 60 Hz SAE3 d6.5
New product

Rated power at 60 Hz (kVA): 24
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KVA)
24
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
20
Protection degree
IP23
Motor insulation class
H
Length (mm)
460
Width (mm)
362
Height (mm)
373
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
121
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION
