WOOD LATHE HOLZSTAR DB 1100
5921100
Product type : Wood lathe
Maximum turning diameter: 358 mm
Tip height: 179 mm
Tip distance: 1100 mm
Spindle taper: 33x3.5
Speed: 500-2000 rpm
Speed number: Variable, in 10 steps
Motor power 230V 50 Hz: 750 W
Clamp cone: 2
Length: 1620 mm
Width: 340 mm
Height: 430 mm
Weight: 92 Kg.
- Phase
- Single phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Power (KW)
- 0.75
- Fluid type
- Wood
- Length (mm)
- 1610
- Width (mm)
- 340
- Height (mm)
- 430
- Product type
- Lathe
- Weight (Kg)
- 92
WOOD LATHE HOLZSTAR DB 1100

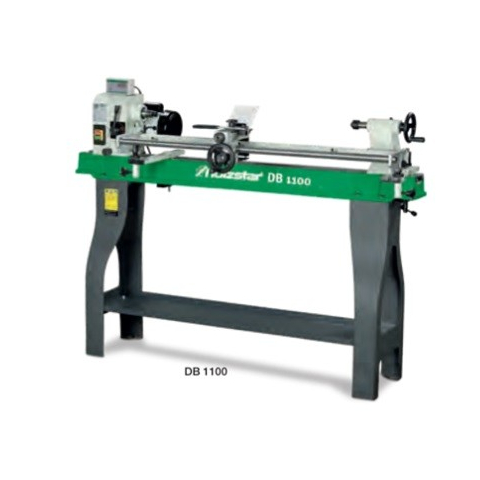

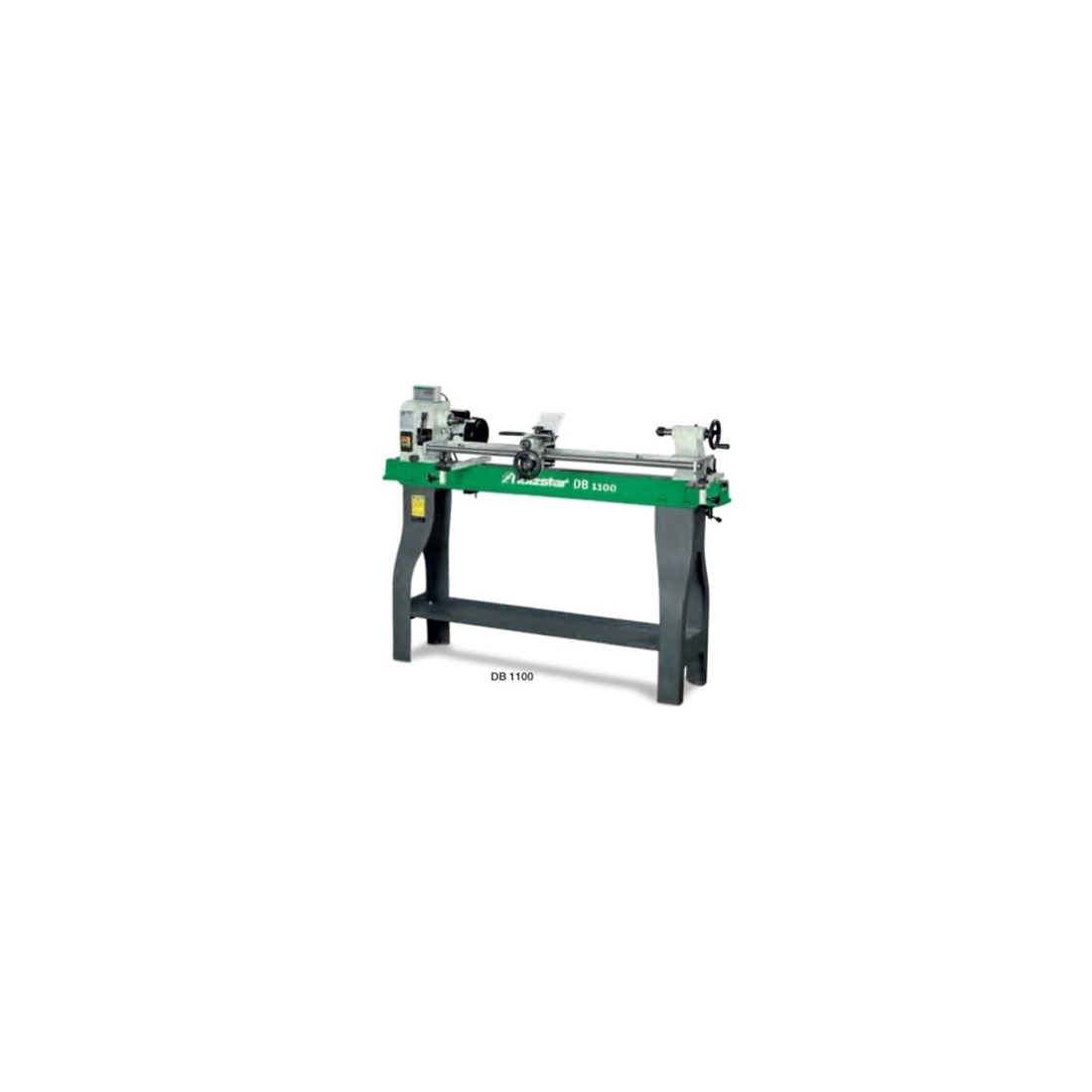

HOLZSTAR DB 1100 wood lathe with grey cast iron head and tailstock.
Standard equipment of the DB900 - DB1100 wood lathe
- Dish diameter 15 cm
- Tailstock
- Cast iron machine base
- 4 tine dragger
Features wood lathe DB900 - DB1100
- grey cast iron head and tailstock
- 50 mm tailstock stroke supplied as standard with rotating tailstock on this lathe
- The head of this wood lathe can be rotated 360° and locked at 45°, 90° and 180°.
TECHNICAL CHARACTERISTICS OF THE HOLZSTAR DB 1100 WOOD LATHE
Product type : Wood lathe
Maximum turning diameter: 358 mm
Tip height: 179 mm
Tip distance: 1100 mm
Spindle taper: 33x3.5
Speed: 500-2000 rpm
Speed number: Variable, in 10 steps
Motor power 230V 50 Hz: 750 W
Clamp cone: 2
Length: 1620 mm
Width: 340 mm
Height: 430 mm
Weight: 92 Kg.
images and technical data not binding
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
