LATHE OPTIMUM TU 2004V
0500P0310
Product type : Lathe
Tip height: 100 mm
Diam. turning on pallet: 200mm
Distance between points: 300 mm
Spindle speed, infinitely adjustable: 150 - 2500 rpm
Speed number: 2
Spindle cone: cm 3
Bar passage: diam. 21 cm
Pallet width: 100 mm
Upper slide stroke: 55 mm
Cross slide stroke: 75 mm
Tailstock cone: cm 2
Tailstock-tailstock stroke: 65 mm
Longitudinal feed: 0.1 to 0.2 mm/rev
Metric threading: from 0.25 to 3 mm/revolution
Thread inches: 44 - 8 threads/1''.
Length: 830 mm
Width: 425 mm
Height: 360 mm
Weight: 61 Kg.
Motor power: 600 W 230 V - 50 Hz
- Phase
- Single phase
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Power (KW)
- 0.6
- Length (mm)
- 830
- Width (mm)
- 425
- Height (mm)
- 360
- Product type
- Lathe
- Weight (Kg)
- 61

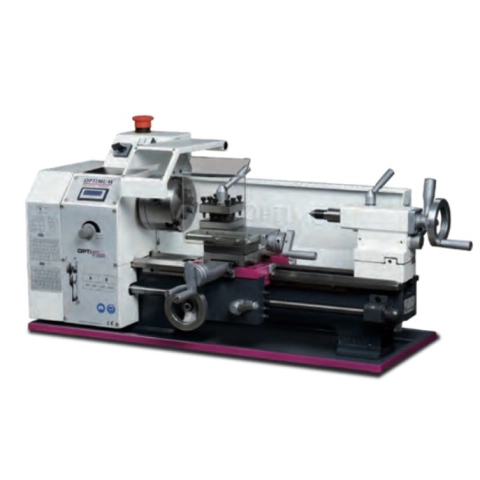

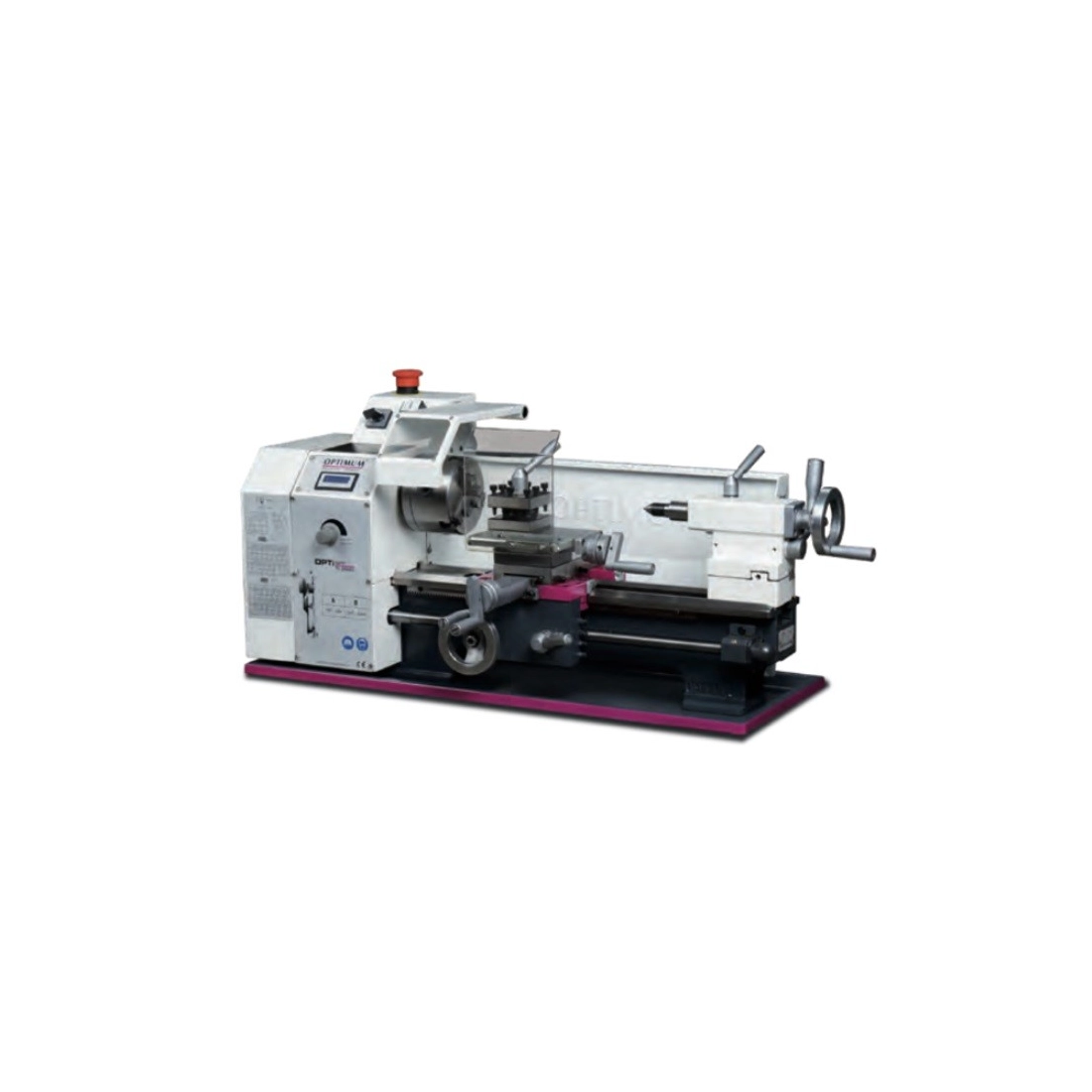

LATHE OPTIMUM TU 2004V
LATHE OPTIMUM TU 2004V with continuous speed adjustment and digital display.
TECHNICAL FEATURES OF THE OPTIMUM TU 2004V LATHE
Product type : Lathe
Tip height: 100 mm
Diam. turning on pallet: 200mm
Distance between points: 300 mm
Spindle speed, infinitely adjustable: 150 - 2500 rpm
Lathe speed number: 2
Spindle cone: cm 3
Bar passage: diam. 21 cm
Pallet width: 100 mm
Upper slide stroke: 55 mm
Cross slide stroke: 75 mm
Tailstock cone: cm 2
Tailstock-tailstock stroke: 65 mm
Longitudinal lathe feed: 0.1 to 0.2 mm/revolution
Metric threading: from 0.25 to 3 mm/revolution
Thread inches: 44 - 8 threads/1''.
Length: 830 mm
Width: 425 mm
Height: 360 mm
Weight: 61 Kg.
lathe motor power: 600 W 230 V - 50 Hz
images and technical data not binding
* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
