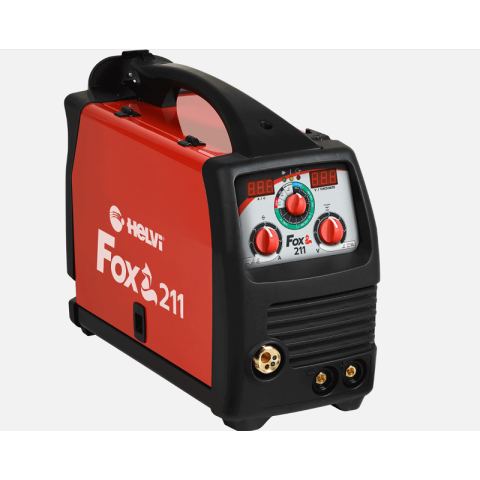

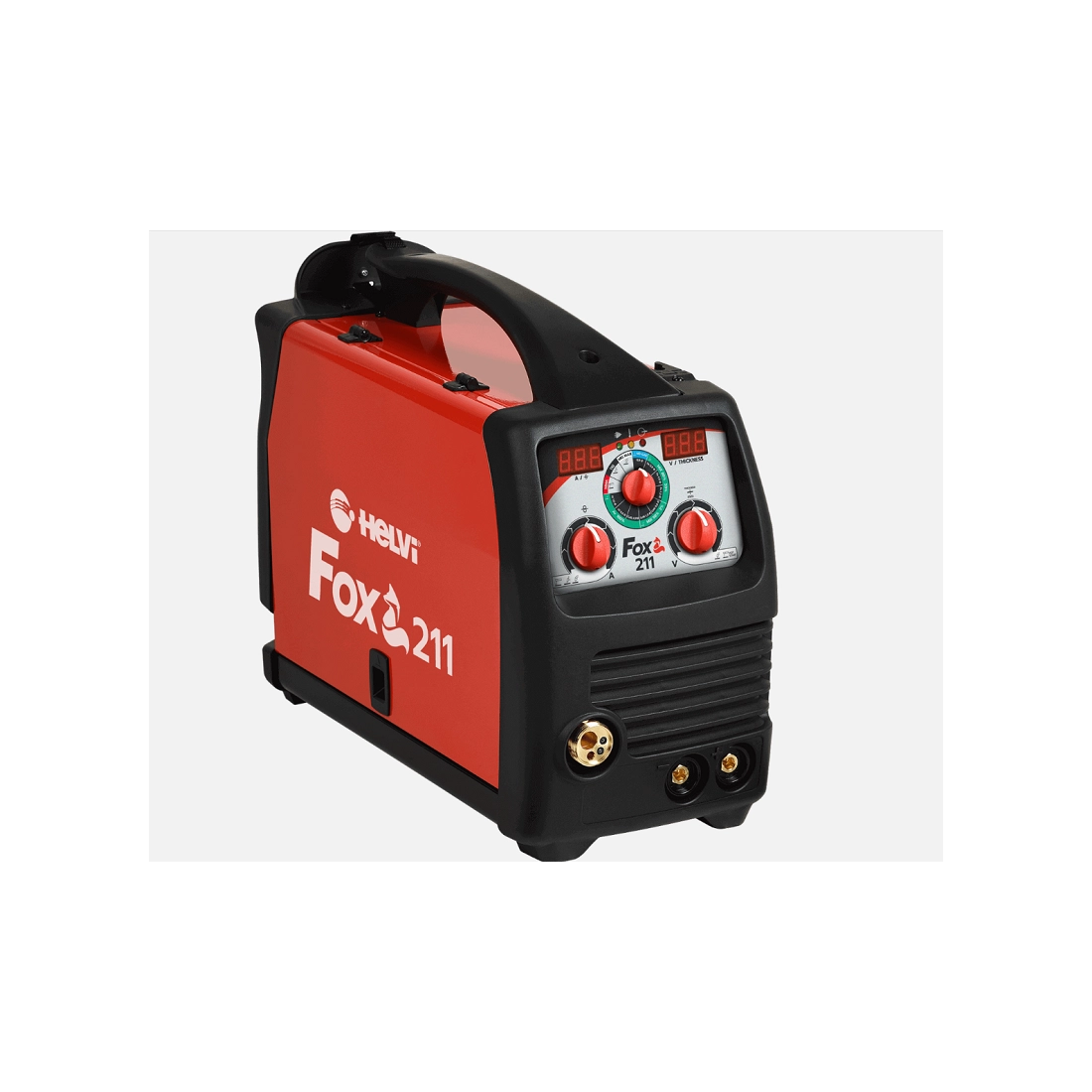

HELVI FOX211 Welding machine

HELVI FOX211 is a microprocessor controlled MIG/MAG, TIG and STICK multi-processed welding machine, which guarantees exceptional arc stability and splash-free welding. In stick position the microprocessor controls the Hotstart, Arc Force and anti-glue functions, in TIG position the lift arc function and in MIG mode gives the possibility of manual welding and total synergy. HELVI FOX211 with motor ascent ramp adjustment, automatic wire coupling for soft arc initiation. Thanks to its simplicity and versatility, the HELVI FOX211 welding machine is ideal for use in bodywork, small carpentry and maintenance work. All the functions of the HELVI FOX211 welding machine are easily selectable on the front panel. On the HELVI FOX211 welding machine there are digital displays for displaying welding voltage and current and the various parameters selected.

The HELVI FOX211 welding machine is designed for MIG/MAG, TIG and STICK welding with electrodes ranging from 1,6 mm to 5 mm in diameter and for wires of different materials:
- steel (diameter from 0,6 mm to 1 mm)
- stainless steel (diameter from 0,8 mm to 1 mm)
- animated (diameter from 0,9 mm)
- aluminium (diameter from 0,8 mm to 1 mm)
- brazing (diameter from 0,8 mm to 1 mm)

HELVI FOX211 is a single-phase welding machine with 230 V power supply and 50/60 Hz frequency. The HELVI FOX211 welding machine has a rated power of 60% of 5500 VA for a maximum current of 200.
The no-load voltage of the HELVI FOX211 welder is 65 V in MMA, 65 V in TIG and 35 V in MIG.
The HELVI FOX211 welder has H insulation and IP22S protection rating.
HELVI FOX211 is very compact and comfortable to transport thanks to its light weight of about 19 Kg and the comfortable handle.

Technical characteristics of the HELVI FOX211 welding machine:
Phase type: Single-phase
Frequency: 50/60 Hz
Voltage: 230 V
Power: 5500 VA
Type of welding: Multiprocess
Open-circuit voltage: 65 V (MMA) / 65 V (TIG) / 35 V (MIG)
Current regulation: 5 - 200 A (MMA) / 5 - 200 A (TIG) / 20 - 200 A (MIG)
Duty cycle at 40°: 200 A at 35% - 120 A at 100% (MMA) / 200 A at 35% - 120 A at 100% (TIG) / 200 A at 35% - 140 A at 100% (MIG)
Maximum current: 200 A
Steel welding wire diameter: 0.6 - 1 mm
Stainless steel welding wire diameter: 0.8 - 1 mm
Flux cored welding wire diameter: 0.9 mm
Aluminium welding wire diameter: 0.8 - 1 mm
Brazing wire diameter: 0.8 - 1 mm
Electrode diameter: 1.6 - 5 mm
Electrode type: 6013 - 7018 - CrNi
Insulation: H
Degree of protection: IP22S
Length: 480 mm
Width: 220 mm
Height: 385 mm
Weight: 19 Kg

If instead you are looking for another product similar to the HELVI FOX211 welding inverter, then we recommend you look at the entire range dedicated to welding machines.

Images and technical data are not binding.
