GENSET LT 10000 K - LIGHT TOWER LED 9 KVA

GENSET LT 10000 K - LIGHT TOWER LED 9 KVA

Maximum power Single-phase: 9 KVA
Maximum power Single-phase: 7.2 KW
Power continuous use Single-phase: 8 KVA
Power continuous use Single-phase: 6.4 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Kubota D1105-E (STAGE V)
Starting: Electric
Consumption: 2 Lt/h
Lamps: 4x360 W LED
Illuminated area: 6000 m²
Riser: Manual
Maximum height: 8 m
Length: 2688 mm
Width: 1522 mm
Height: 2394 mm
Weight: 670 Kg
Super silenced

Payment methods:

Product: GENSET LT 10000 K - LIGHT TOWER LED 9 KVA

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: GENSET LT 10000 K - LIGHT TOWER LED 9 KVA

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: GENSET LT 10000 K - LIGHT TOWER LED 9 KVA

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference LT 10000 K 150W

Data sheet

Phase: Single phase
Maximum power single phase (KW): 7.2
Continuous power single phase (KW): 6.4
Maximum power single phase (KVA): 9
Continuous power single phase (KVA): 8
Fuel: Diesel
Frequency (Hz): 50
Voltage (V): 230
Sockets configuration: 1 x 230V 16A CEE
Engine: KUBOTA D1105-E
Emissions Regulations: Stage 5
Engine rpm (rpm): 1500
Starting system: Electric
Engine capacity (cm³): 1123
Number cylinders: 3
Cooling: Water
Alternator: Synchronous
Protection degree: IP32
Motor insulation class: H
Type of lamps: LED
Lamps: 4 x 360 W
Illuminated area (m²): 6000
Total lumens (Lm): 264000
Lifting System: Manual lifting system
Maximum height (m): 8
Mast rotation: 340°
Open size (mm): 2688 x 2614 x 8400
Closed size (mm): 2688 x 1522 x 2394
Lenght closed (mm): 2688
Width closed (mm): 1522
Height closed (mm): 2394
With generator / Without generator: With generator
Transportability: Slow Trailer
Fuel tank capacity (L): 100
Consumption (L/h): 2
Running time (h): 50
Acoustic power: 97 dB(A)
Acoustic pressure: 72 dB(A) at 7 m
Dry weight (Kg): 670
Silenced: Yes
Super silenced: Yes
Product type: Light tower
Voltage regulator: No
Engine manufacturer: Kubota

Specific References

Condition New

GENSET LT 10000 K

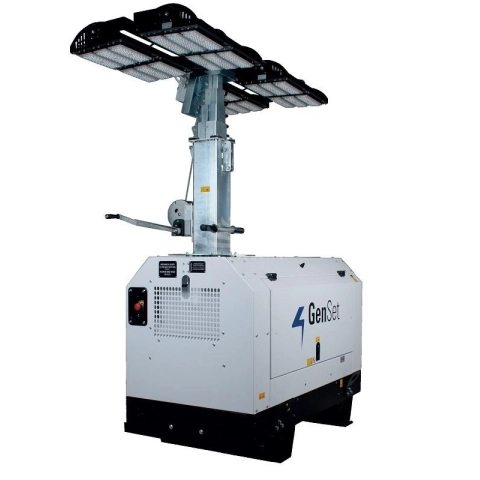

The GENSET LT 10000 K is a light tower with 9 KVA single-phase diesel generator set with electric start.
With a maximum height of 8 meters and thanks to its 4 LED lamps of 360 W each, the GENSET LT 10000 K can illuminate an area of 6000 m².
The GENSET LT 10000 K also has low fuel consumption: only 2 Lt/h at 75% load.
Thanks to the high quality and efficiency of its components, the GENSET LT 10000 K light tower is ideal for lighting various sites - from small sites to large construction sites.

Images and technical data are not binding.
