CGM TP4-160L TP TOWER
TP4-160L
Projectors: 4 x 160W LEDs
Illuminated Area: 3000 m2
Maximum Height: 7 m
Lifting: manual
Telescopic Pole: Galvanized steel
Wind stability: 4 stabilizers
Rotation: 359 degrees
Voltage: 230 V
Frequency: 50 Hz
Maximum wind resistance: 80 km/h
Width: 930 mm
Length: 800 mm
Closed Height: 2350 mm
Open Height: 7000 mm
Dry weight: 230 kg
Prezzo
6,220.00 € tax excl.
7,588.40 € tax incl.
Shipping from 195.20 € to Italy buy it today. tax incl.
Calculate Shipping Cost
TP4-160L
Data sheet
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Type of lamps
- LED
- Lamps
- 4 x 160W
- Telescopic pole
- Galvanized steel
- Illuminated area (m²)
- 3000
- Total lumens (Lm)
- 90000
- Lifting System
- Manual lifting system
- Mast rotation
- 359°
- Open size (mm)
- 930 x 800 x 7000
- Closed size (mm)
- 930 x 800 x 2350
- Dry weight (Kg)
- 230
Specific References
CGM TP4-160L TP TOWER 4x160W

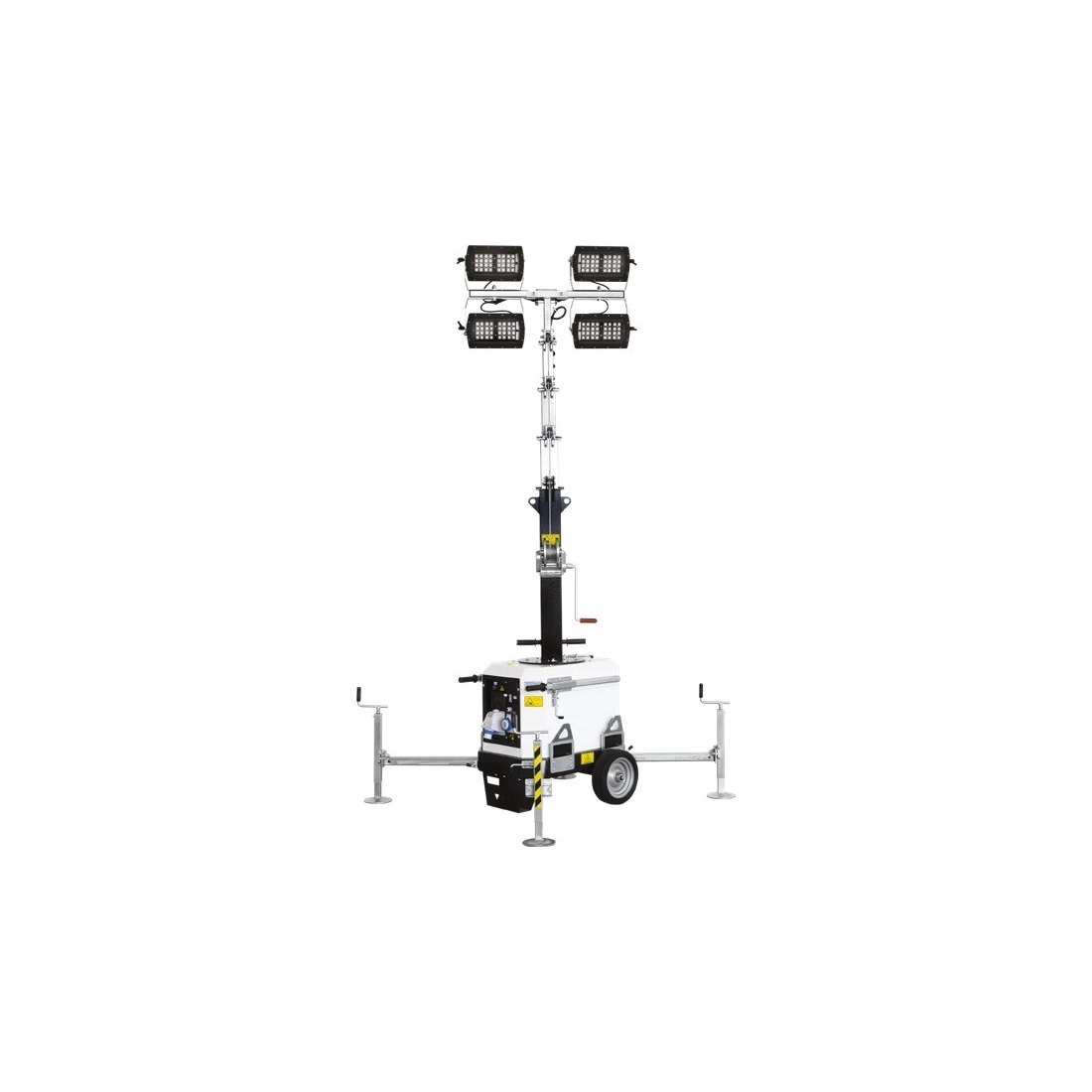

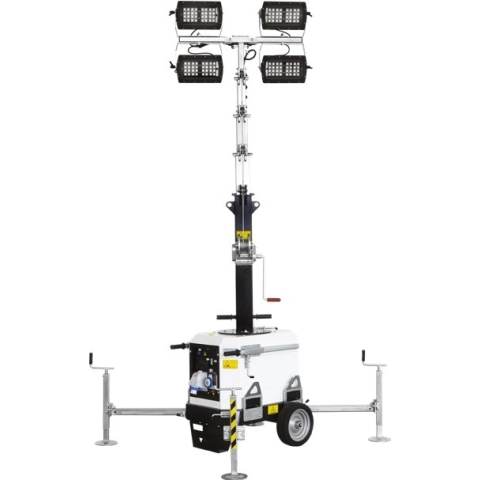

The CGM TP4-160L TP TOWER is a manually hoisted light tower equipped with 4 floodlights, each delivering a light output of 160W.
The CGM TP4-160L is equipped with a galvanized steel lifting tower that can extend to a maximum height of 7 meters, including 4 stabilizing feet to secure the light tower once deployed. The lifting tower is operated manually with a winch, which allows for maximum extension without effort.
The CGM TP4-160L lighting tower does not have a generator and is equipped with a hand-towed trolley.
TECHNICAL CHARACTERISTICS OF THE CGM TP4-160L TP TOWER
Projectors: 4 x 160W LEDs
Illuminated Area: 3000 m2
Maximum Height: 7 m
Lifting: manual
Telescopic Pole: Galvanized steel
Wind stability: 4 stabilizers
Rotation: 359 degrees
Voltage: 230 V
Frequency: 50 Hz
Maximum wind resistance: 80 km/h
Width: 930 mm
Length: 800 mm
Closed Height: 2350 mm
Open Height: 7000 mm
Dry weight: 230 kg
Looking for a product with different features?HERE you can find the entire CGM range or other specialized brands.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
