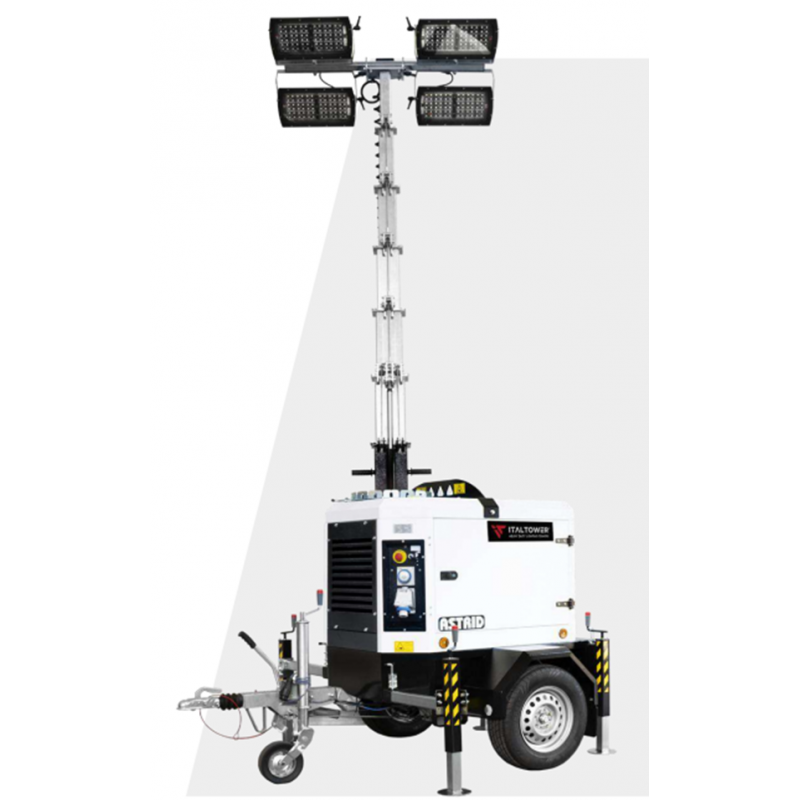

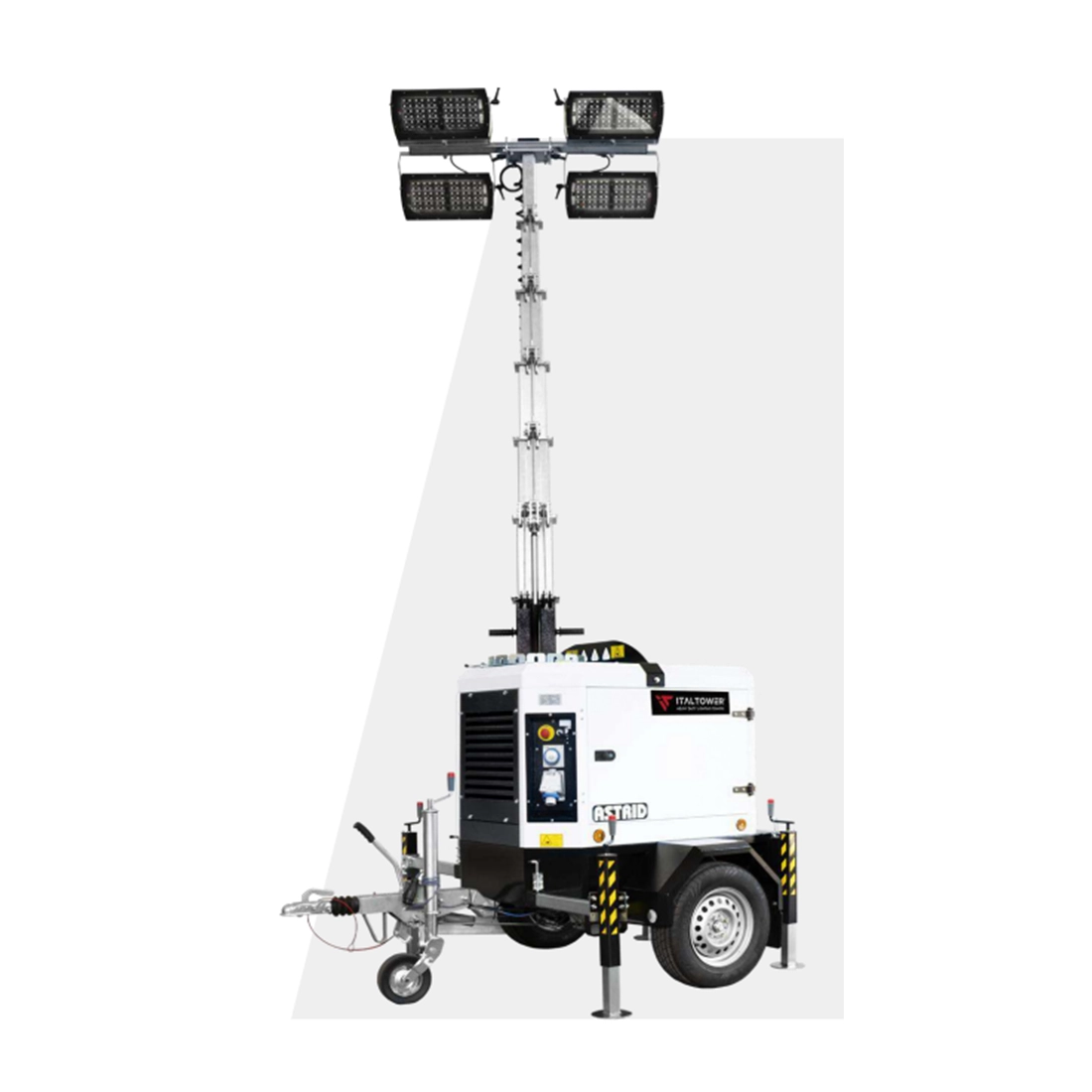

ITALTOWER ASTRID PRO ST-LY 4x320W LED Light Tower with Slow Trolley and Generator
ASTRID_PRO26-LY
Number of floodlights: 4
Lamp power: 320 W LED
Lumen output: 180,000 lm
Illuminated area: 9,300 sqm
Phase type: Single-phase
Maximum power: 3.5 kVA
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar 2TNV70
Speed: 1500 rpm
Cooling: Liquid
Emission standard: Stage V
Alternator: Linz Alumen
Fuel tank capacity: 110 L
Fuel: Diesel
Maximum height: 8.5 m
Lifting system: Hydraulic
Rotation: 355°
Wind resistance: 110 km/h
Trolley: Slow towing trolley
Stabilizers: 4 + 1 (wheels)
Dimensions: 220 x 147 x 245 cm
List price
tax incl.
tax excl.
Discounted Price
15,361.02 € tax incl.
12,591.00 € tax excl.
Calculate Shipping Cost
ASTRID_PRO26-LY
Data sheet
- Phase
- Single phase
- Maximum power single phase (KVA)
- 3.5
- Fuel
- Diesel
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine
- Yanmar 2TNV70
- Emissions Regulations
- Stage 5
- Engine rpm (rpm)
- 1500
- Number cylinders
- 2
- Cooling
- Liquid
- Alternator
- Linz Alumen SB
- Maximum height (m)
- 8.5
- Type of lamps
- LED
- Lamps
- 4 x 320 W
- Telescopic pole
- Vertical
- Illuminated area (m²)
- 9300
- Total lumens (Lm)
- 180.000
- Lifting System
- Hydraulic lifting system
- Mast rotation
- 355°
- With generator / Without generator
- With generator
- Transportability
- Slow Trailer
- Stability to wind (Km/h)
- 110
- Fuel tank capacity (L)
- 110
- Consumption (L/h)
- 0.55
- Running time (h)
- 200
- Engine manufacturer
- Yanmar
- Weight (Kg)
- 855
- stabilisers
- 4 + 1 (wheel)
- Operating temperature
- -20°/+40°
- Frame paint
- Powder coating paint
- Dimension (cm)
- 220x147x245
Specific References
ITALTOWER ASTRID PRO ST-LY LIGHT TOWER 4x320W LED WITH SLOW TROLLEY AND GENERATOR
The ITALTOWER ASTRID PRO ST-LY Light Tower 4x320W LED with Slow Trolley and Generator is the ideal solution for construction sites, events, and industrial applications requiring powerful, reliable, and continuous lighting.
Equipped with 4x320W LED floodlights, this light tower delivers a total luminous flux of 180,000 lumens, illuminating an area of up to 9,300 m².
Main Features ITALTOWER ASTRID PRO ST-LY
Maximum height: 8.5 meters with galvanized telescopic mast
Lifting system: hydraulic with 355° rotation
Wind resistance: up to 110 km/h
Engine: Yanmar 2TNV70 Stage V at 1500 rpm, liquid-cooled
Alternator: Linz Alumen 3.5 kVA
Autonomy: up to 200 hours with 110-liter fuel tank
Average consumption: only 0.55 l/h
Structure and Safety
The ITALTOWER ASTRID PRO ST-LY Light Tower 4x320W LED with Slow Trolley and Generator is equipped with:
Slow tow trailer with reinforced frame
Stabilizers (4+1 wheel) for maximum stability
Integrated 110% spill containment basin
Powder coating and 185/70 R13 tires
Equipment and Functions
DeepSea 3110 control panel with simplified management
Auxiliary socket 1.5 kVA for powering tools and accessories
Dusk-to-dawn sensor with auto ignition
Battery switch and oil extraction pump included
Main Advantages
Low noise: only 61 dB, ideal for residential areas and events
Compact design: 220x147x245 cm
Easy to transport: up to 11 units can be loaded on a truck or 40” container
The ITALTOWER ASTRID PRO ST-LY Light Tower 4x320W LED with Slow Trolley and Generator combines power, reliability, and sustainability.
A professional product designed to reduce fuel consumption, respect the environment, and deliver top-level performance in any operational context.
Looking for a light tower similar to the ITALTOWER ASTRID PRO ST-LY but with different features? CLICK HERE to explore our full range.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.4 other products in the same category:
