TF51 Lighting Tower 5.5 Meters 4x100 LED

TF51 Lighting Tower 5.5 Meters 4x100 LED
search
  • TF51 Lighting Tower 5.5 Meters 4x100 LED
  • TF51 Lighting Tower 5.5 Meters 4x100 LED
CS.3436.NZ
New product

Maximum column height: 5363mm + 282mm T/T HEAD
Minimum closed column height: 1836mm + 282mm T/T HEAD
Maximum sustainable head load: 55 Kg
Maximum wind resistance: 115 Km/h
Internal spiral cable: 9 x 1.5 + 13 x 0.22 mm² or equivalent
Column weight: 24.1 Kg
Weight of the head: 22 Kg
Number of Strolls: 4
Lifting type: pneumatic with CIAO 230V compressor + transformer
Compressor air flow: 179 Lt./min
mechanical switch: YES
Multi-function control panel
Type of headlights: LED
Number of headlights: 4x100W
Impact protection: NO
Tripod: NO

Technical features
Phase
Single phase
Frequency (Hz)
50
Voltage (V)
230
Protection degree
IP65
Intake air (L/m)
179
Colour temperature (°K)
5000
Type of lamps
LED
Lamps
4 x 100 W
Telescopic pole
Aluminum
Total lumens (Lm)
4 x 15350
Lifting System
Pneumatic lifting system
Maximum height (m)
5.5
Mast rotation
360°
Height closed (mm)
1800
Stability to wind (Km/h)
115
Details

TF51 Lighting Tower 5.3 Meters 4x100 LED with compressor 230V

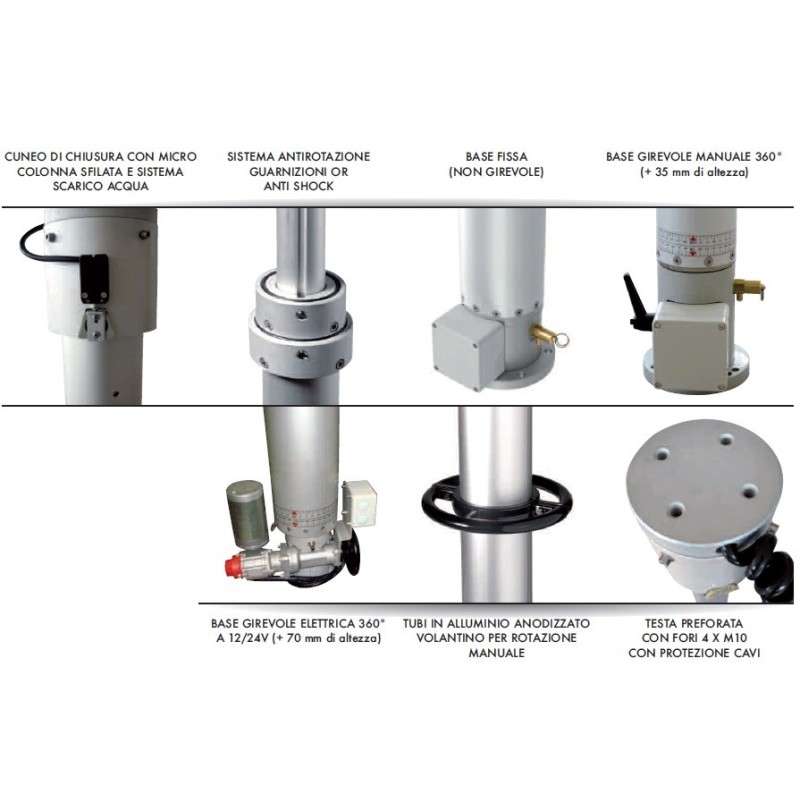

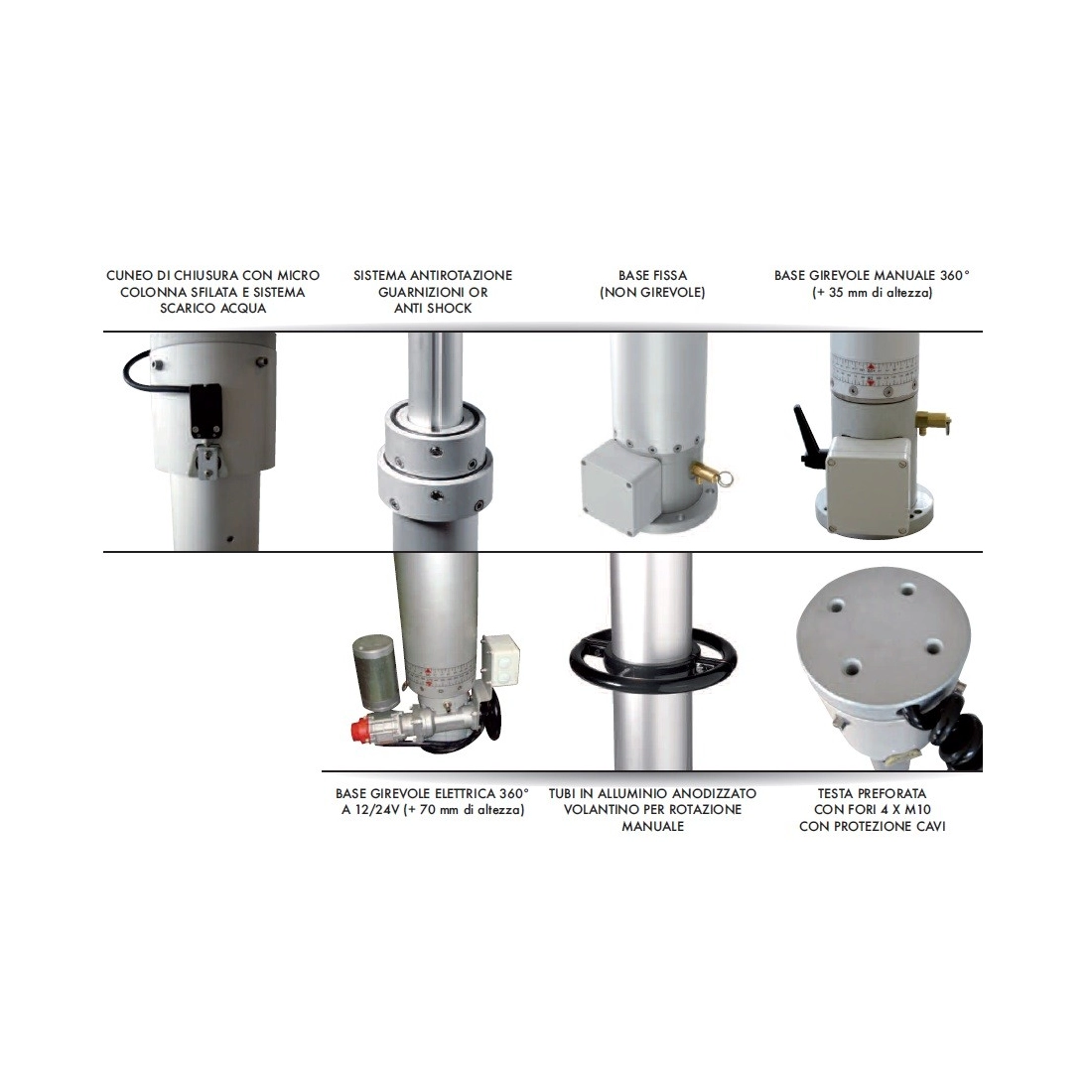

Pneumatic telescopic column in anodized aluminium standard grey colour FIXED STANDARD Ø115 mm 4 extensions code CS.3436.NZ complete with anti-rotation skids on each extension and internal spiral cable:
Maximum height of extension column: 5363 mm (+282mm T/T head)
- Minimum closed column height: 1836mm (+282mm T/T head)
- Maximum sustainable column load with barycentric weight: 55kg (-11kg)
lead)
- Maximum wind resistance INDICATIVE: 115 Km/h with surface area 0,7 m²
- Internal spiral cable: 9 x 1.5 + 13 x 0.22 mm² or equivalent
- Column weight: 24,1 Kg CIRCA + 11Kg head
- Ø last section: 77 mm
Mechanical micro-switch cod. MS.32401.MI for signalling the column.
Combined ELECTRIC head TILT & TURN NOVA 12V cod.
TT.36151_SEM or 24V cod. TT.36152_SEM 2 MOTORS, for the
COMMON electrical rotation and tilt of the headlights.
SINGLE MULTIFUNCTION CONTROL PANEL COD. RC.31746
for command raise/stop/close column, rotation, inclination
electrical COMMON and on/off 2+2 headlamps complete with
4 m of spiral cable for ease of use and AUTOMATIC REST SPRING
OF THE COLUMN AND THE HEADLIGHTS.
Capacity: 40Kg
Weight: 11Kg
4 x Pair of male/female connectors for quick connection of headlights.

Coaxial lubricated single-phase compressor CIAO 230V cod. AI.32801
179 Lt./min., (WITHOUT steel tank 6 Lt.), max pressure 8 bar, complete
of pressure reducer and pressure gauge.
Special model for MULTIFUNCTION.

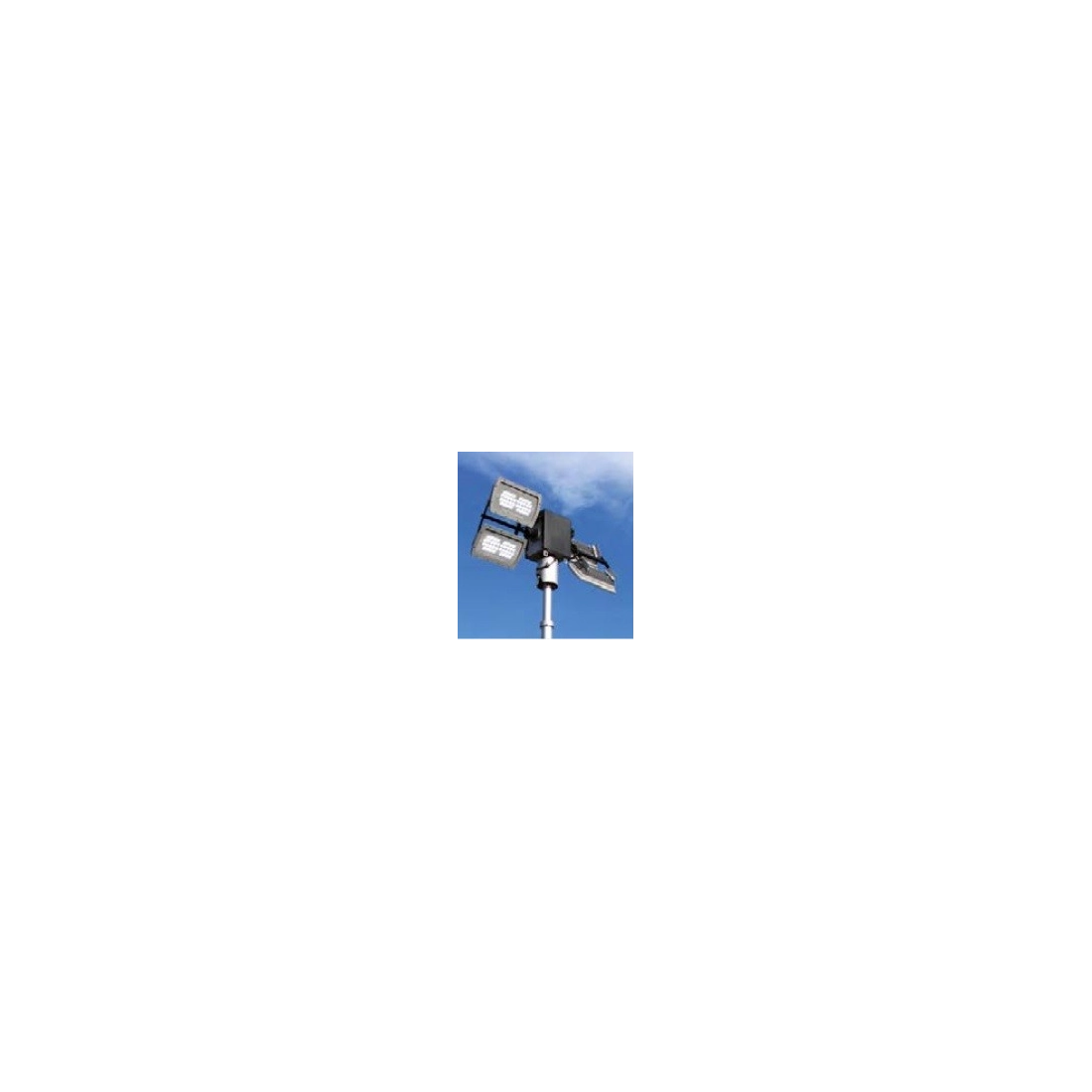

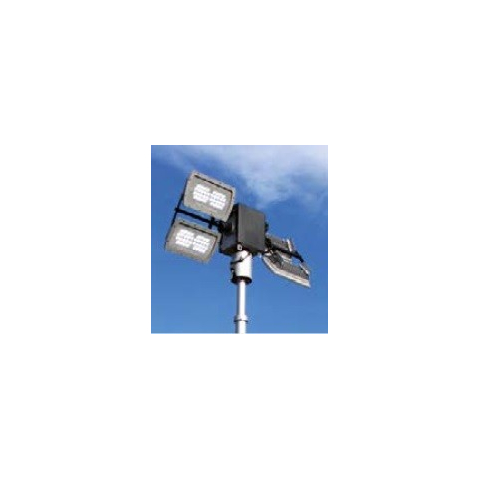

4 x 100W IllumiLED headlight holder head with bracket mounted headlights, wired with
automotive connectors for direct connection to NOVA head, available:
- 24V or 230V + transformer. (NOT 12V, it is necessary to change cable
interior)
- 45° or 90° lens;
Weight: 20/22Kg
Exposed area: 0.18m²
WARNING. no accidental impact protection.

Images and technical data are not binding.

Price
10.351,70 € tax incl.
8.485,00 € tax excl.
