GENSET LT 5000 Y - LIGHT TOWER LED 4 KVA

GENSET LT 5000 Y - LIGHT TOWER LED 4 KVA
search
  • GENSET LT 5000 Y - LIGHT TOWER LED 4 KVA

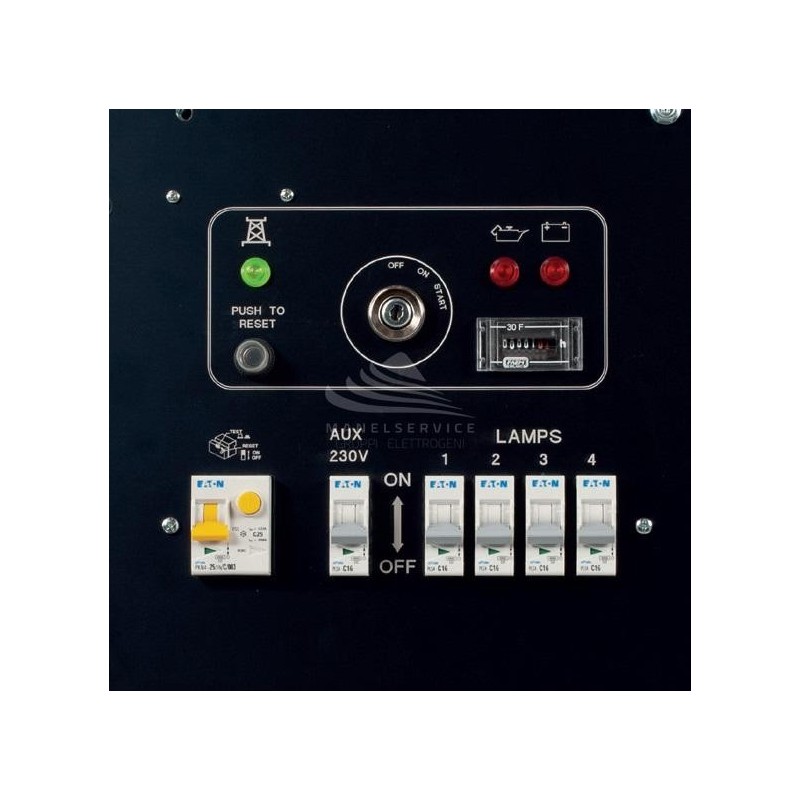

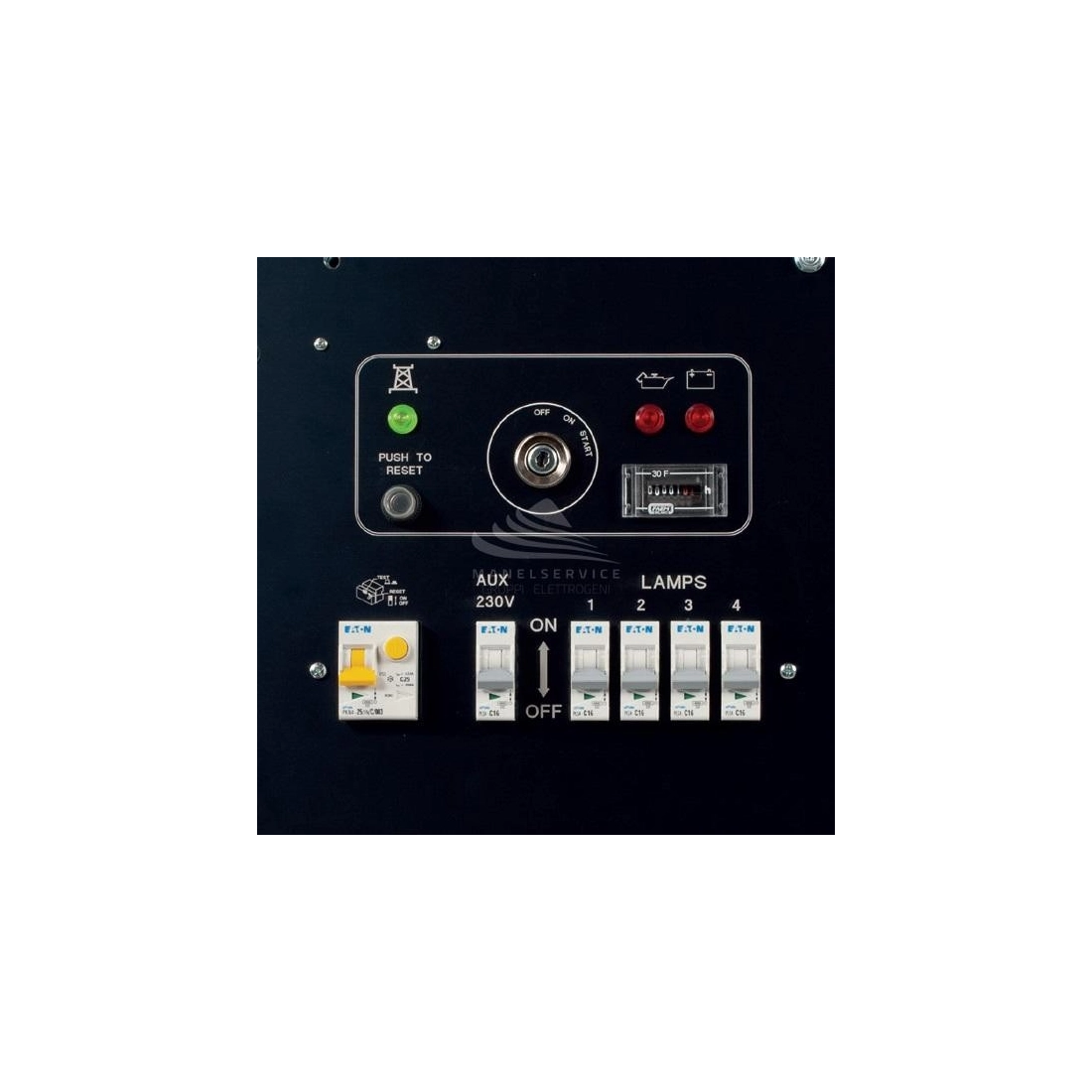

  • GENSET LT 5000 Y - Control panel

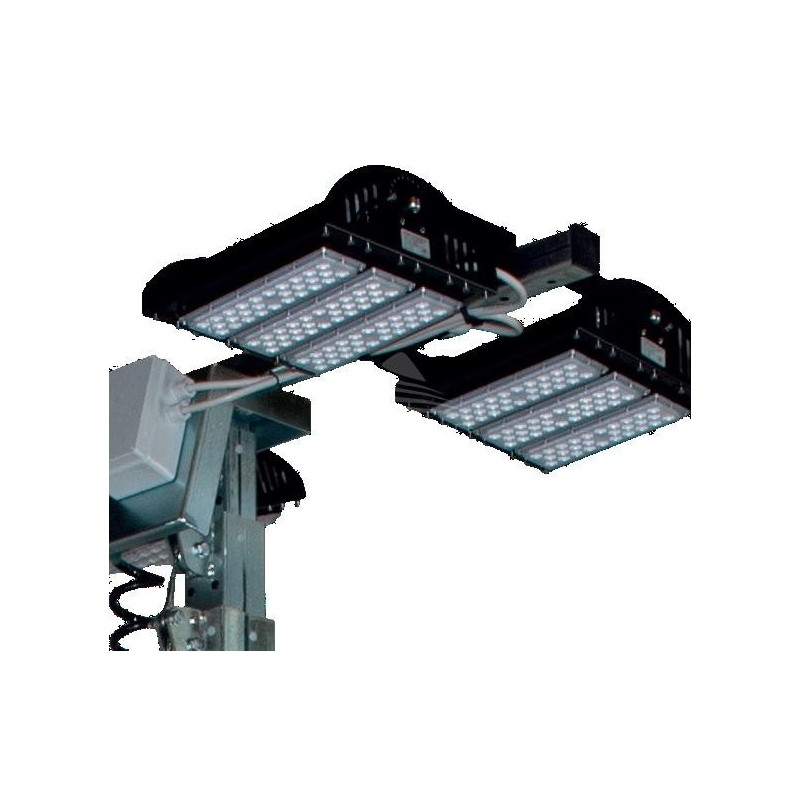

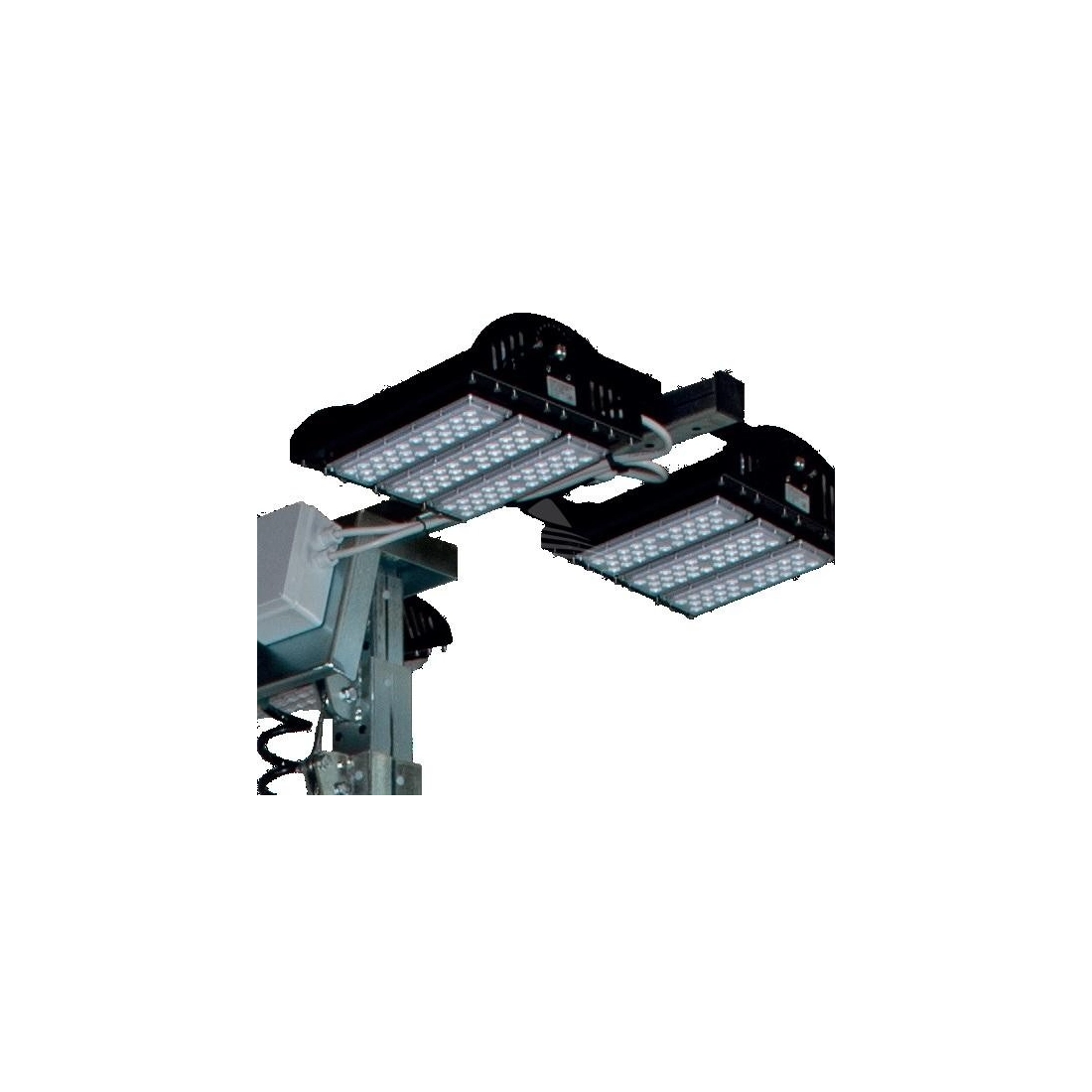

  • GENSET LT 5000 Y - Low consumption LED

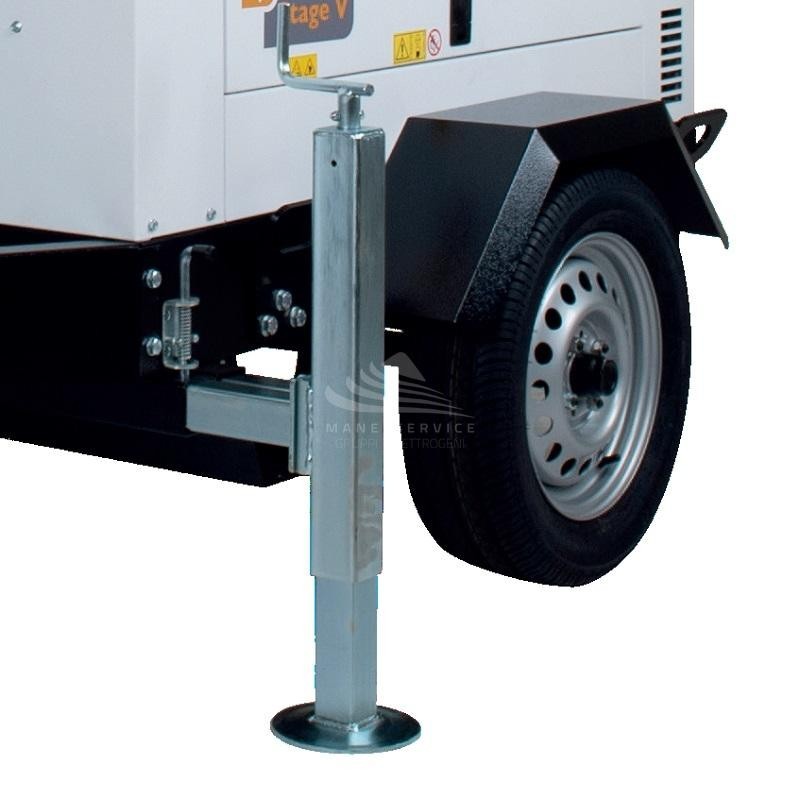

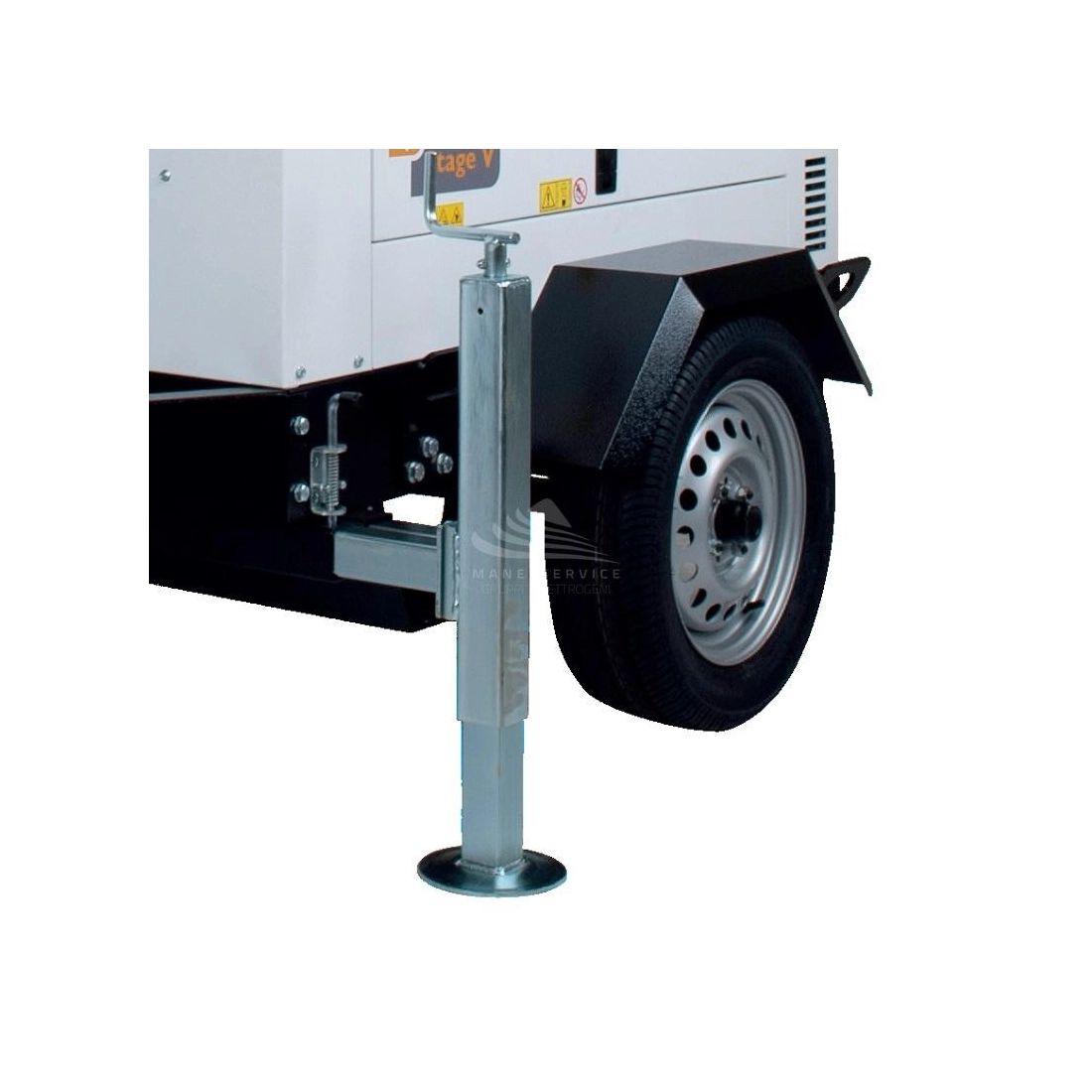

  • GENSET LT 5000 Y - Movable base
GENSET
LT 5000 Y 150W
New product

Maximum power Single-phase: 4 KVA
Maximum power Single-phase: 3.2 KW
Power continuous use Single-phase: 3.6 KVA
Power continuous use Single-phase: 2.88 KW
Fuel: Diesel
Voltage: 230 V
Frequency: 50 Hz
Engine: Yanmar L70V (STAGE V)
Starting: Electric
Consumption: 1 Lt/h
Lamps: 4x150 W LED
Illuminated area: 3400 m²
Riser: Manual
Maximum height: 8 m
Length: 2548 mm
Width: 1520 mm
Height: 2488 mm
Weight: 500 Kg
Super silenced

Technical features
Phase
Single phase
Maximum power single phase (KW)
3.2
Continuous power single phase (KW)
2.88
Maximum power single phase (KVA)
4
Continuous power single phase (KVA)
3.6
Fuel
Diesel
Frequency (Hz)
50
Voltage (V)
230
Sockets configuration
1 x 230V 16A CEE
Engine
Yanmar L70V, 4 stroke
Emissions Regulations
Stage 5
Engine rpm (rpm)
3000
Starting system
Electric
Engine capacity (cm³)
320
Number cylinders
1
Cooling
Air
Alternator
Synchronous
Protection degree
IP23
Motor insulation class
H
Type of lamps
LED
Lamps
4 x 150 W
Illuminated area (m²)
3400
Total lumens (Lm)
110000
Lifting System
Manual lifting system
Maximum height (m)
8
Mast rotation
340°
Open size (mm)
2548 x 2604 x 8000
Closed size (mm)
2548 x 1520 x 2488
Lenght closed (mm)
2548
Width closed (mm)
1520
Height closed (mm)
2488
With generator / Without generator
With generator
Transportability
Slow Trailer
Fuel tank capacity (L)
100
Consumption (L/h)
1
Running time (h)
100
Acoustic power
95 dB(A)
Acoustic pressure
70 dB(A) at 7 m
Dry weight (Kg)
500
Silenced
Yes
Super silenced
Yes
Product type
Light tower
Voltage regulator
No
Engine manufacturer
Yanmar
Details

GENSET LT 5000 Y

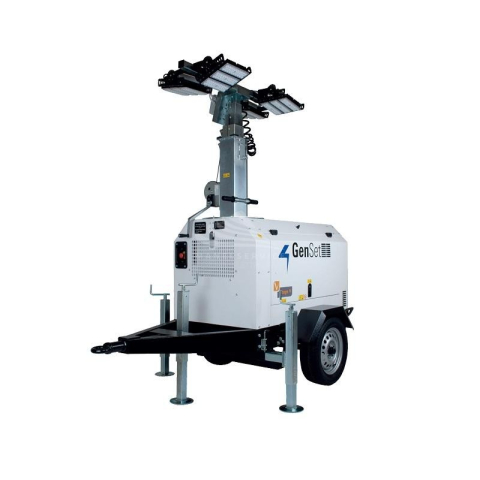

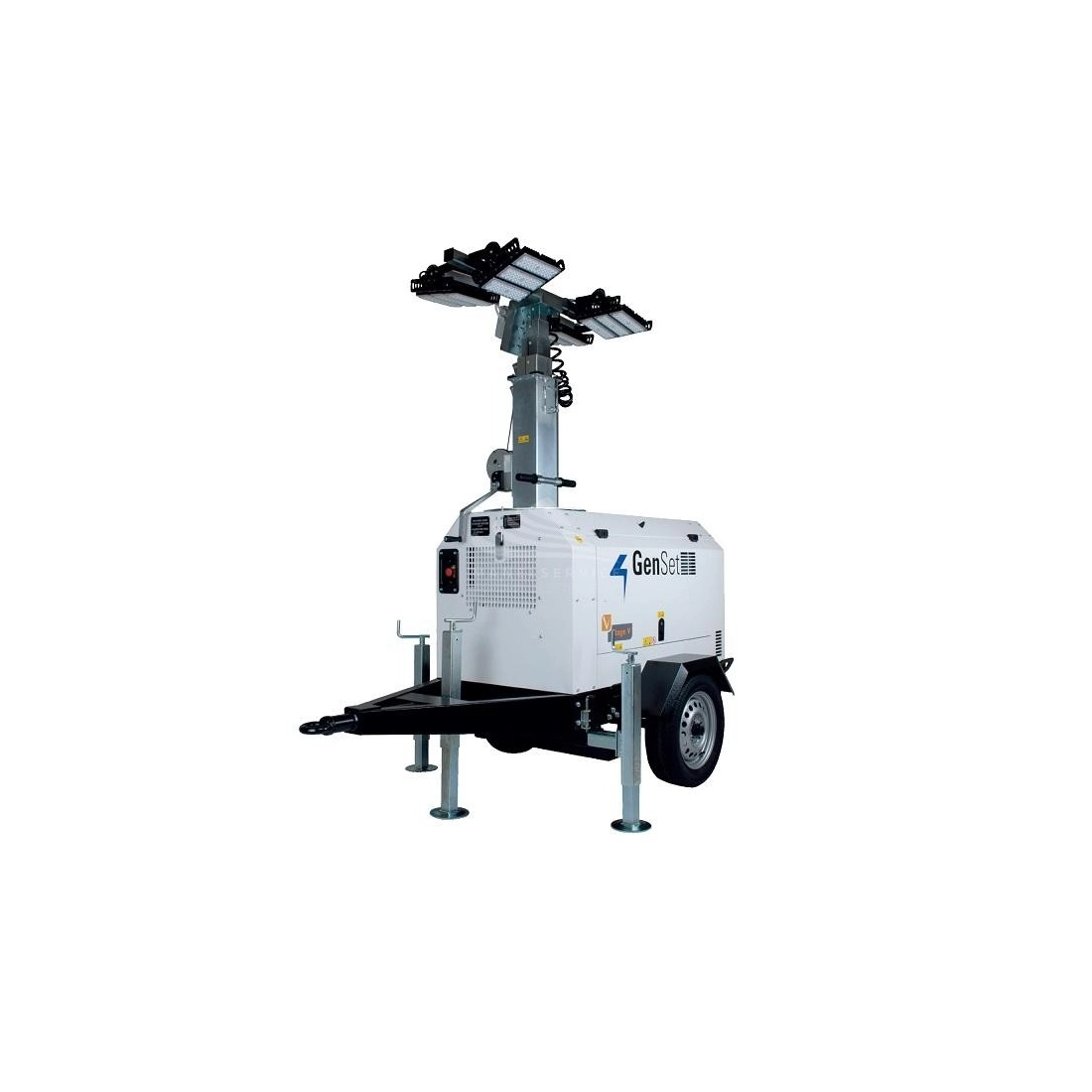

The GENSET LT 5000 Y is a light tower with 4 KVA single-phase diesel generator set with electric start.
With a maximum height of 8 meters and thanks to its 4 LED lamps of 150 W each, the GENSET LT 5000 Y can illuminate an area of 3400 m².
The GENSET LT 5000 Y also has low fuel consumption: only 1 Lt/h at 75% load.
Thanks to the high quality and efficiency of its components, the GENSET LT 5000 Y light tower is ideal for lighting various sites - from small sites to large construction sites.

Images and technical data are not binding.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
Technical Sheet / Manuals

Scheda tecnica LT 5000 Y

(1.58M)

Technical data LT 5000 Y

(1.57M)
List price
17.446,00 € tax incl.
14.300,00 € tax excl.
Discounted Price
13.084,50 € tax incl.
10.725,00 € tax excl.
