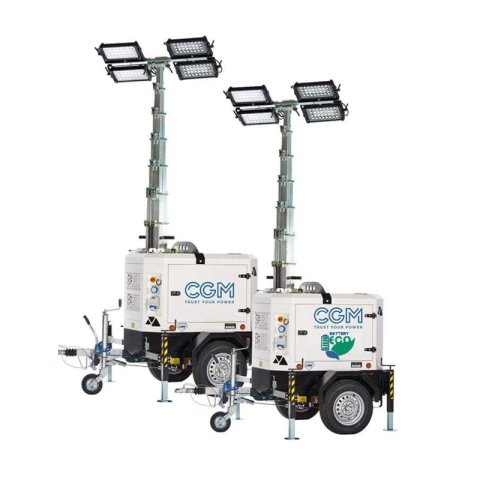

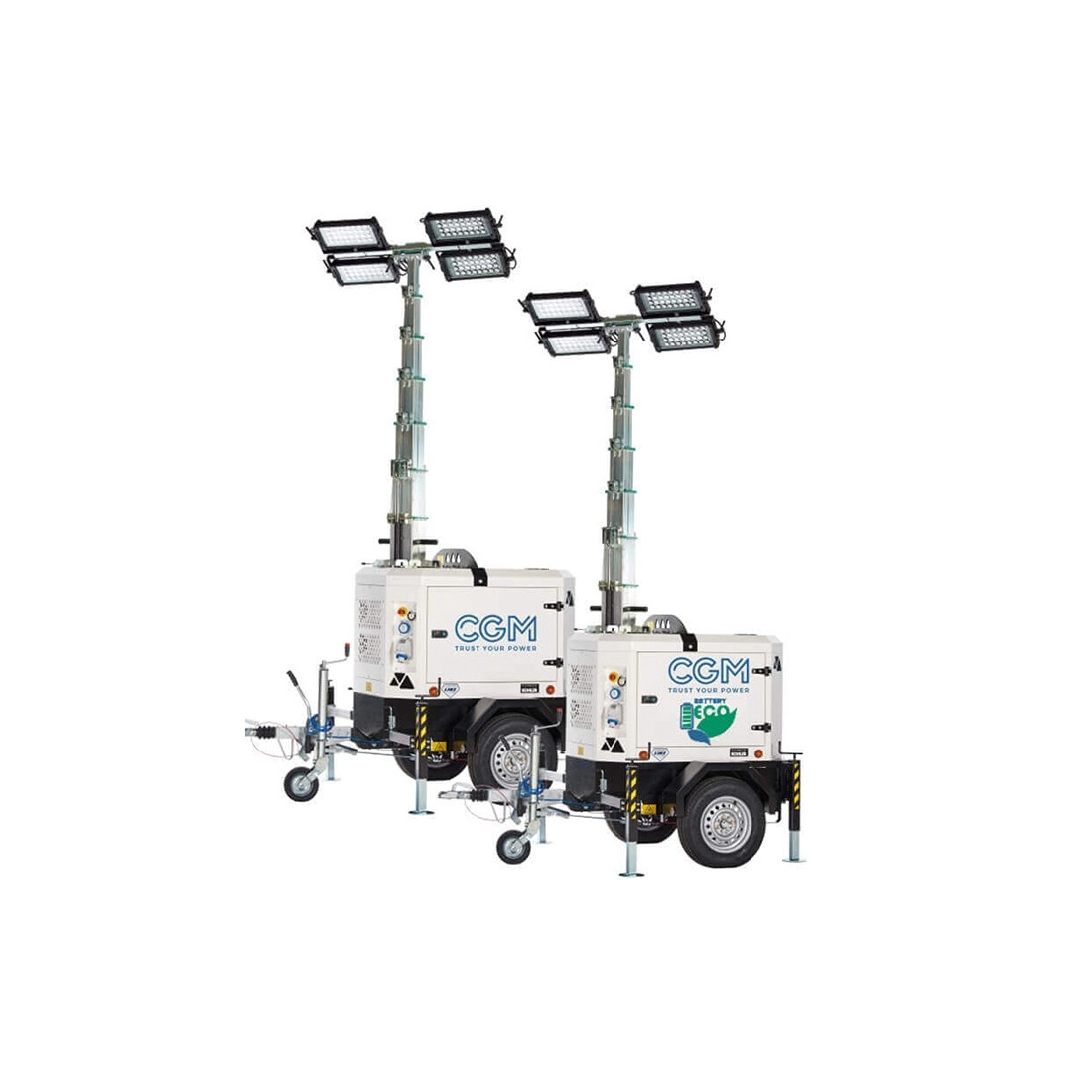

CGM AD4-320L 4 X 320W LIGHTER TOWER

CGM AD4-320L is a light tower with diesel generator and manual lifting winch equipped with 4 floodlights capable of delivering a light output of 320W each.

CGM AD4-320L is equipped with KOHLER KDW702 diesel engine, 1500 rpm with liquid cooling capable of delivering a mechanical power of 6.6 Hp.

CGM AD4-320L is equipped with a galvanized steel lifting tower capable of extending to a maximum height of 8.5 meters, including 4 feet of stabilization to secure the light tower once opened.

CGM AD4-320L is equipped with LINZ ELECTRIC alternator that increases the effectiveness of the KOHLER engine due to its integrated AVR, allowing high efficiency with low consumption. The fairy tower has a 120Lt capacity tank, which allows the continuous operation of the CGM for 240 hours.

TECHNICAL FEATURES CGM AD4-320L

Floodlights: 4 LED 320W
Illuminated Area: 5000 Mq
Max Height: 8.5 Mt
Lift: Hydraulic
Telescopic Pole: Galvanized steel with self-braking winch from 450
Wind Stability: nr 4 stabilizers
Guides for forklift forks: n.4
Lumen per light: 41550 lm
Continuous electric power: 3.5 KVA
Rotation: 359 degrees
Towing trolley: Slow
Power outlet: 16A 230V
Voltage: 230V
Frequency: 50Hz
Number of revolutions: 1500 revolutions/mn
Engine: KOHLER KDW702
Starting type: Battery electric
Tank capacity: 120 Lt
Autonomy with working lights: 240 hr
Engine power: 6.6 Hp / 4.9 KW
N. Cylinders: 2 in Line
Suction: Aspirated
Cooling: Water
Alternator: LINZ ELECTRIC
Type: Brushless
No. of Poles: 4
Width: 2330 mm
Length: 1470 mm
Height Closed: 2450 mm
Height Opened: 8500 mm
Dry weight: 850 Kg
Voltage regulation: AVR

Looking for a light tower with different features? Here you can find the full range CGM or other specialized brands.

Images and technical data are not binding and may be subject to revision by the supplier.
