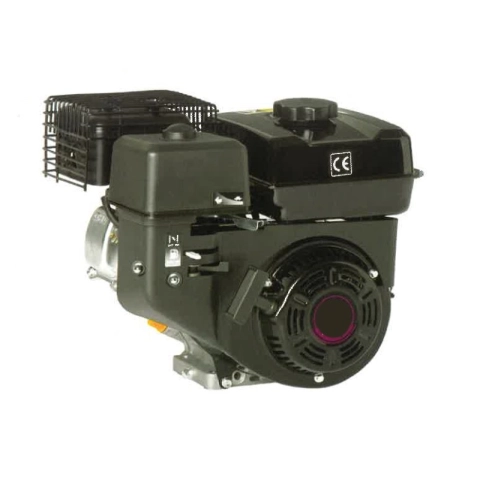

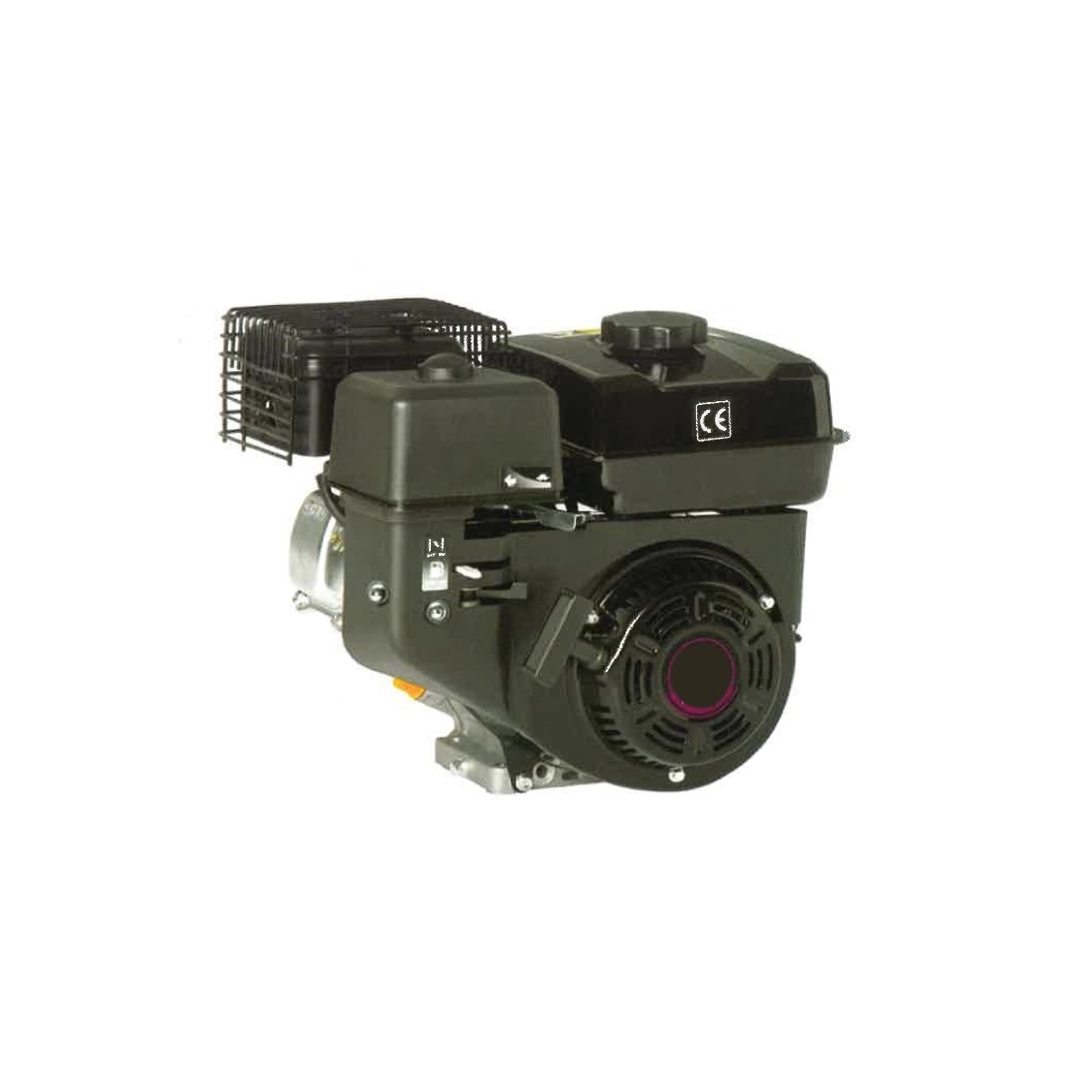

ECO GREEN AMG270 SINGLE-CYLINDER ENGINE 9HP

Fuel: Gasoline
Mechanical power: 9 Hp
Displacement: 290 cc
RPM: 3600 rpm
Bore x stroke: 80 x 58 mm
Compression ratio: 8,2 : 1
Starting: Recoil start with recoil starter
Fuel tank capacity: 6 l
Oil: Multigrade SAE 10W 40 SJ
Oil sump capacity: 1.1 l
Oil alert device: Standard
Air filter: dry / Oil bath
Width: 545 mm
Length: 460 mm
Height: 430 mm
Dry weight: 26 Kg

Payment methods:

Product: ECO GREEN AMG270 SINGLE-CYLINDER ENGINE 9HP

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: ECO GREEN AMG270 SINGLE-CYLINDER ENGINE 9HP

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: ECO GREEN AMG270 SINGLE-CYLINDER ENGINE 9HP

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference AMG270F2

Data sheet

Fuel: Gasoline
Engine: OHV ad albero orizzontale, 4 tempi
Engine rpm (rpm): 3600
Starting system: Pull starter with recoil
Engine capacity (cm³): 290
Number cylinders: 1
Oil capacity (L): 1.1
Cooling: Air
Bore x stroke (mm): 80 x 58
Compression ratio: 8.2 : 1
Net power (kW): 6.4
Air filter system: Dry
Fuel tank capacity (L): 6
Length (mm): 545
Width (mm): 460
Height (mm): 430
Dry weight (Kg): 26

Specific References

ECO GREEN AMG270 SINGLE SHAFT MOTOR 9HP

Engine ECO GREEN AMG270 in horizontal shaft configuration, versatile and suitable for various applications, in the professional field, construction, agriculture.
They can be mounted on agricultural machinery, construction machinery, generators, irrigation and spraying pumps, compressors, woodworking machines, pressure washers, chippers. Different versions available with conical and cylindrical shaft, see dimensions of the variants.

TECHNICAL SPECIFICATIONS ENGINE ECO GREEN AMG270

Are you looking for an engine with different technical characteristics? Here you can find the full range of ECO GREEN engines or other specialized brands.

The images and technical data are purely indicative and may be subject to revision by the manufacturer.
