Engine type: OHV horizontal shaft, eight cycle, 4-stroke
Number of cylinders: 1
Cylinder Arrangement: 25° inclined
Bore x stroke: 68 x 54 mm
Displacement: 196 cm3
Cooling: Forced air
Compression ratio: 8.5 : 1

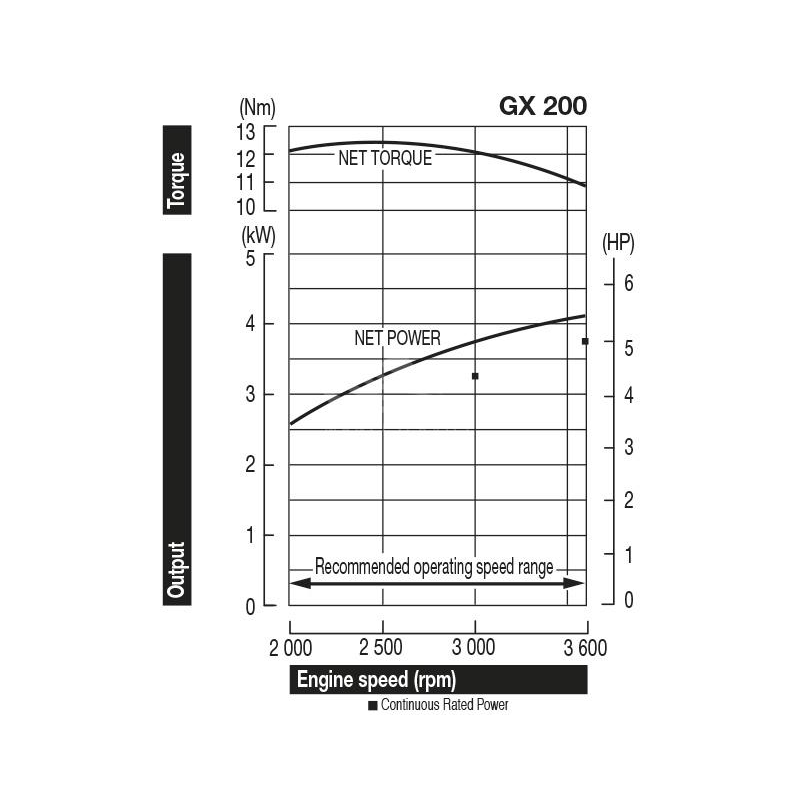

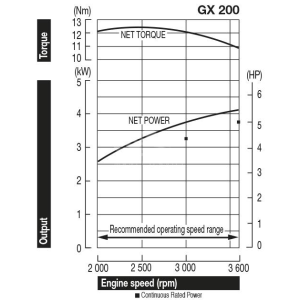

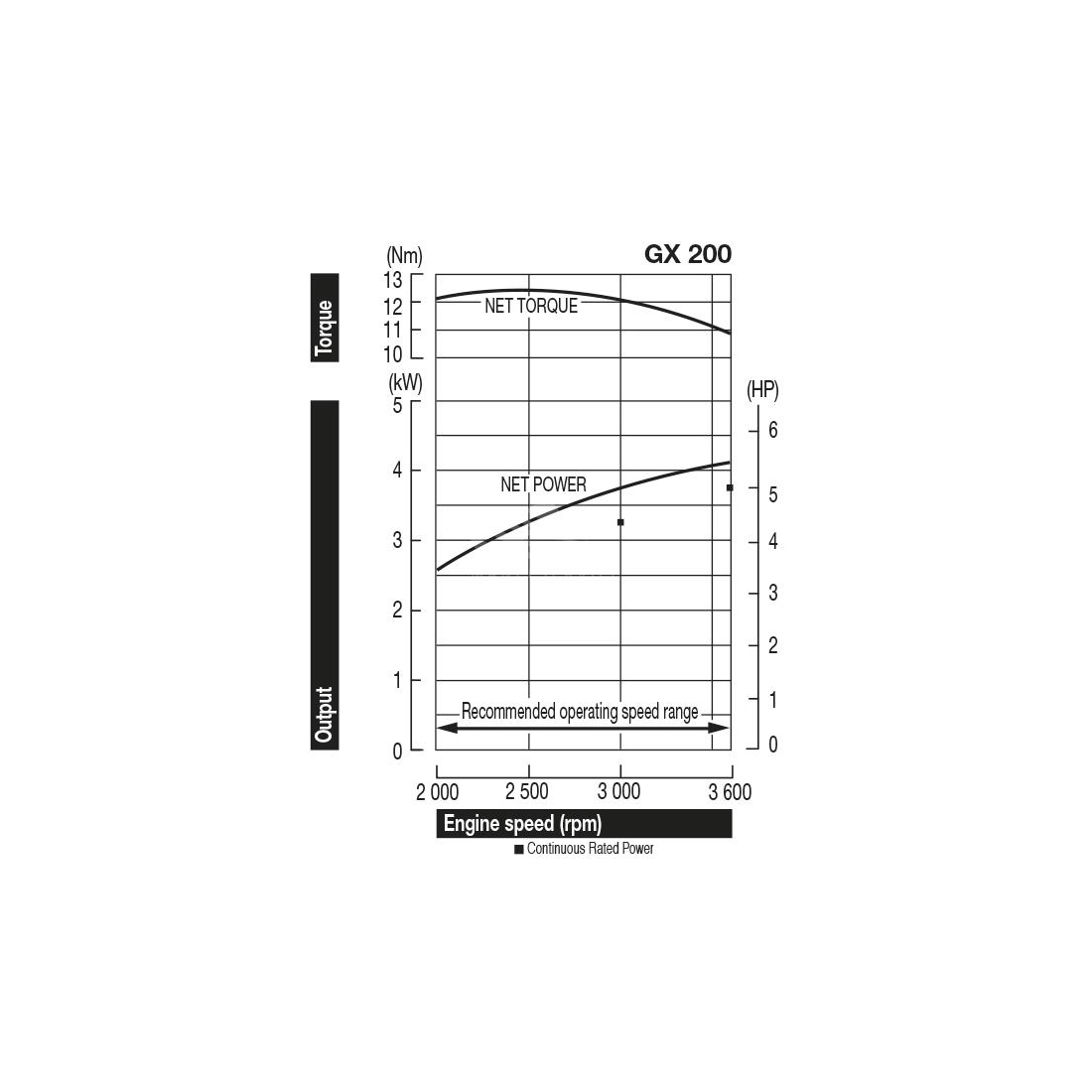

Net power: 4.1 kW (5.5 HP) / 3 600 rpm
Continuous rated power 3000 rpm: 3.3 kW (4.4 HP)
Continuous rated power 3600 rpm: 3.7 kW (5.0 HP) / 3 600 rpm
Maximum torque: 12.4 Nm / 1.26 kgfm / 2 500 rpm
Ignition: Contactless transistor
Starting: Recoil with recoil starter
Fuel tank capacity: 3.1 liters
Fuel consumption at rated power: 1.7 Liters/hour - 3 600 rpm
Oil pan capacity: 0.6 Liters
Length: 313 mm
Width: 376 mm
Height: 346 mm
Net Weight: 16 kg
Data sheet
Specific References

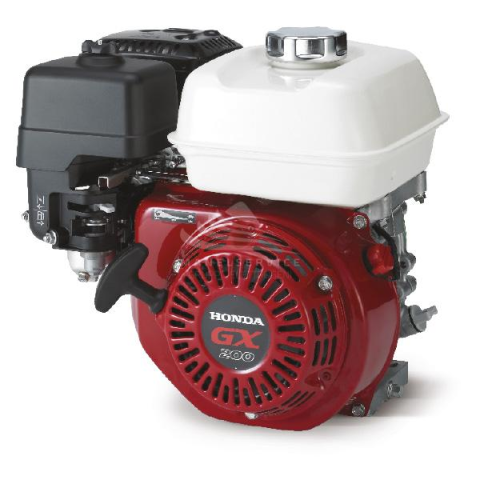

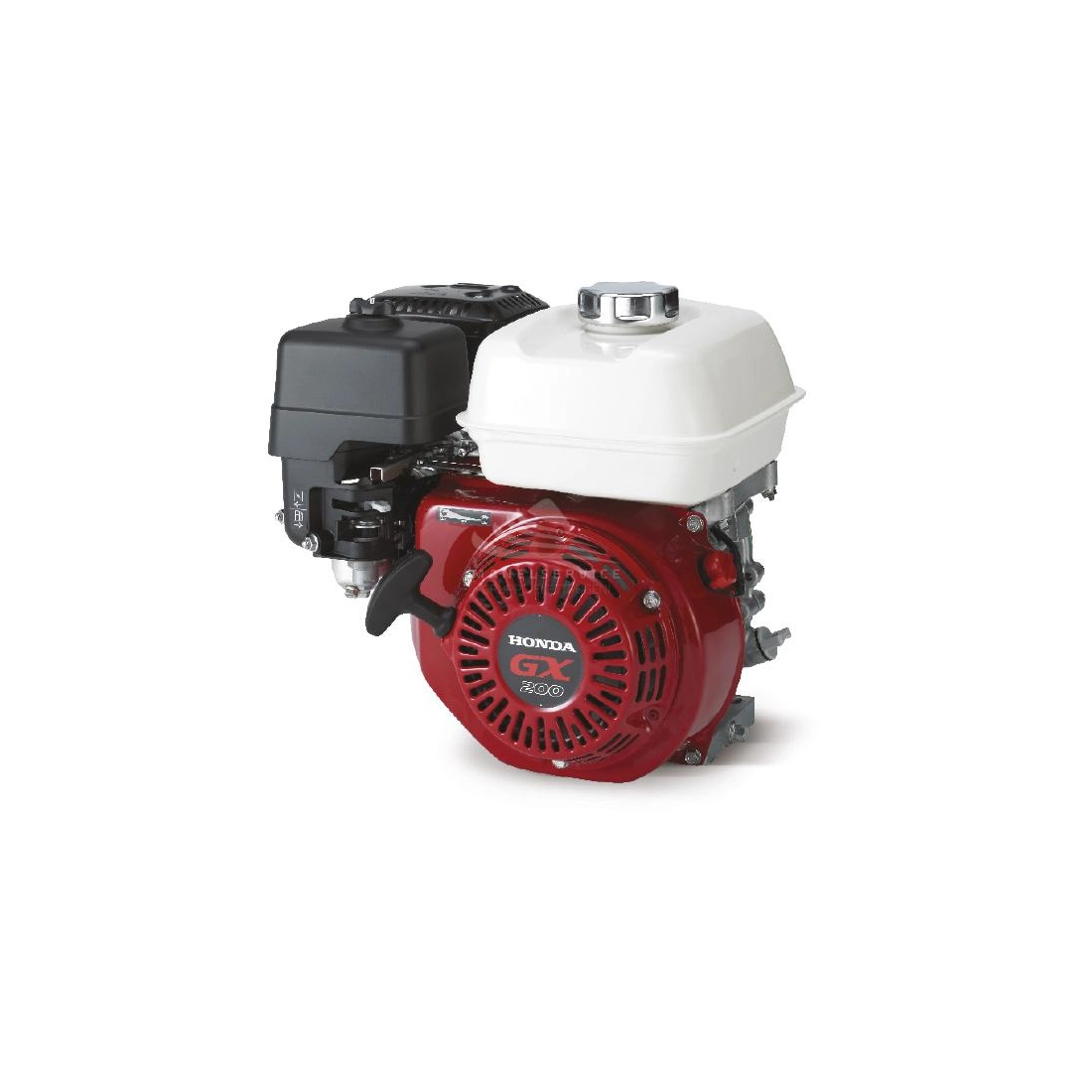

HONDA GX200 SXE5 engines are recommended for a wide range of professional machines in the fields of construction, agricultural machinery, power generators, power welders, motor pumps, and other industrial applications.
Engine type: OHV horizontal shaft, eight cycle, 4-stroke
Number of cylinders: 1
Cylinder Arrangement: 25° inclined
Bore x stroke: 68 x 54 mm
Displacement: 196 cm3
Cooling: Forced air
Compression ratio: 8.5 : 1
Net power: 4.1 kW (5.5 HP) / 3 600 rpm
Continuous rated power 3000 rpm: 3.3 kW (4.4 HP)
Continuous rated power 3600 rpm: 3.7 kW (5.0 HP) / 3 600 rpm
Maximum torque: 12.4 Nm / 1.26 kgfm / 2 500 rpm
Ignition: Contactless transistor
Starting: Recoil with recoil starter
Fuel tank capacity: 3.1 liters
Fuel consumption at rated power: 1.7 Liters/hour - 3 600 rpm
Oil pan capacity: 0.6 Liters
Length: 313 mm
Width: 376 mm
Height: 346 mm
Net Weight: 16 kg
Looking for an engine with different technical characteristics? HERE you can find the area dedicated to HONDA engines or other specialized brands.
Images and technical data are not binding and may be subject to revision.
* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
