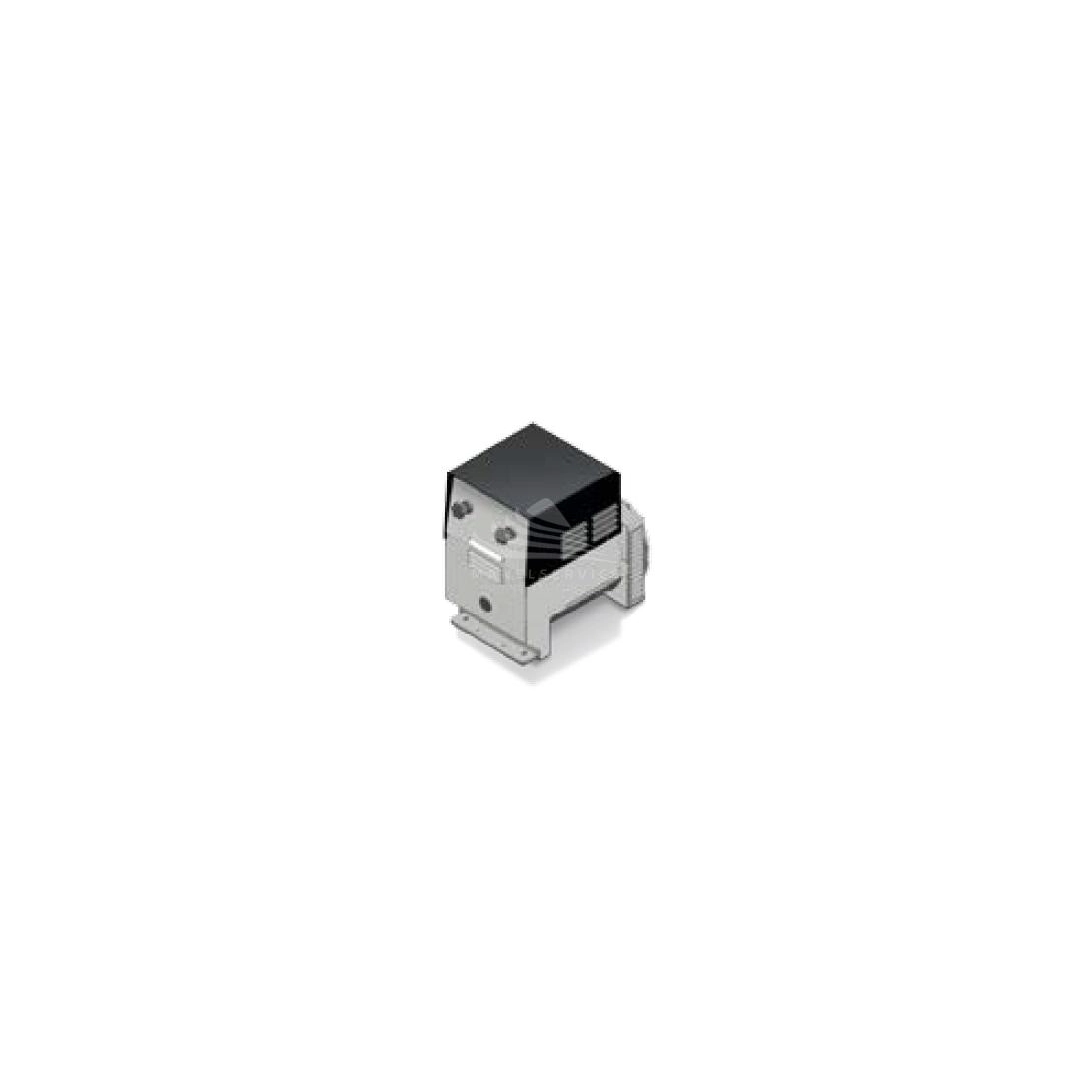

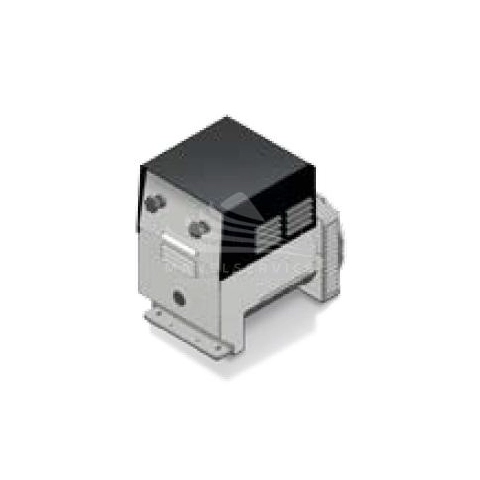

SINCRO FT 4-48/150 Synchronous DC Alternator 7.2 KW AVR

Name: SINCRO FT 4-48/150 Synchronous DC Alternator 7.2 KW AVR
Brand: SINCRO
SKU: FT 4-48/150
Price: 1113 EUR
Availability: InStock

Reference FT 4-48/150

Poles: 4
Voltage (V): 48
Frequency (Hz): 50
Rpm Speed: 1500
Power (KW): 7.2
Current (A): 150
Constant Speed Alternator
AVR
Brushes
Weight (Kg): 48.3
Protection: IP23

Payment methods:

Product: SINCRO FT 4-48/150 Synchronous DC Alternator 7.2 KW AVR

Start of Rental

End of Rental

Where to collect / receive the Product

Do you need cables?

SÌNO

Additional Tank?

SÌNO

PERSONAL DATA

Name

Surname

Phone

Company

City

State

Postal Code

Country

VAT or CF

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Ask a question

Product: SINCRO FT 4-48/150 Synchronous DC Alternator 7.2 KW AVR

Full Name

Company

Phone

City

Country

Postal code

Message

reCAPTCHA

Offer on letterhead

Product: SINCRO FT 4-48/150 Synchronous DC Alternator 7.2 KW AVR

Name

Surname

Company

VAT

Phone

City

Country

Postal code

Shipping address

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference FT 4-48/150

Data sheet

Frequency (Hz): 50
Voltage (V): 48
Engine rpm (rpm): 1500
Poles: 4
Power (KW): 7.2
Protection degree: IP23
Current (A): 150
Brushes: Yes
Type of alternator: Constant Speed
Voltage regulator: AVR
Weight (Kg): 48.3

Specific References

Condition New

Designed for applications requiring 24 & 48 VDC low voltage supply, Sincro DC power solutions are suitable both as battery chargers and emergency power supplies of auxiliary circuits, in the telecommunication, transports and industrial field.

Applications
- Battery chargers
- Low voltage LED light towers
- Power supply of auxiliary circuits, high/medium voltage disconnectors coils, signalling devices
- Power supply of monitoring and alarm systems

General features
- AVR electronic voltage regulation
- Based on three-phase synchronous alternators
- 1500 rpm or 3000 rpm with large speed tollerance
- Constant DC output voltage
- Adjustable output voltage
- Current overload protection
- Fan cooled
- Complying with EN 60034-1, IEC 60034-1, ISO 8528-3

Sectors of use
- Telecommunications
- Industry
- Transports
- Military

Advantages
- High voltage stability in a large speed range
- High efficiency
- Low voltage ripple
- High reliability
- Available with the most common couplings
- Fast recovery time during transient by step load variation

Not binding images and technical data.
