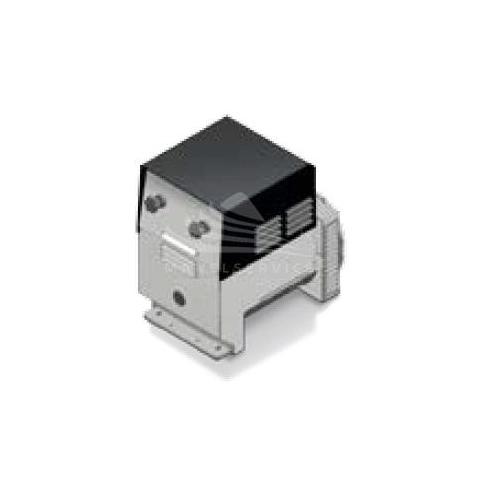

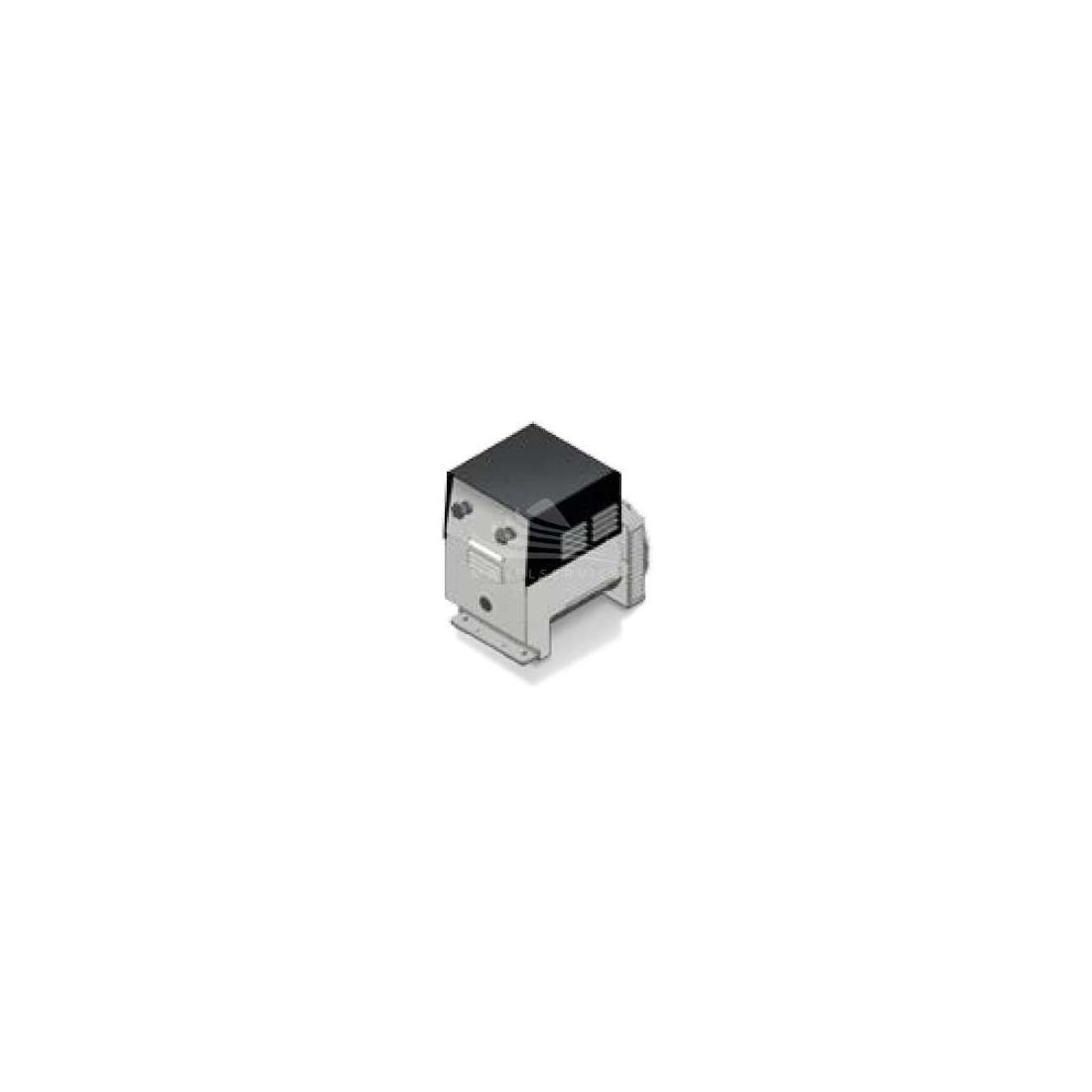

SINCRO FT 2-48/300 Synchronous DC Alternator 14.4 KW AVR

SINCRO DC ALTERNATOR FT
SINCRO DC ALTERNATOR FT
FT 2-48/300

Poles: 2
Voltage (V): 48
Frequency (Hz): 50
Rpm Speed: 3000
Power (KW): 14.4
Current (A): 300
Constant Speed Alternator
AVR
Brushes
Weight (Kg): 69.4
Protection: IP23

Download Technical data 24 & 48 VDC

Frequency (Hz)
50
Voltage (V)
48
Engine rpm (rpm)
3000
Poles
2
Power (KW)
14.4
Protection degree
IP23
Current (A)
300
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
69.4
Brand

Designed for applications requiring 24 & 48 VDC low voltage supply, Sincro DC power solutions are suitable both as battery chargers and emergency power supplies of auxiliary circuits, in the telecommunication, transports and industrial field.

Applications
- Battery chargers
- Low voltage LED light towers
- Power supply of auxiliary circuits, high/medium voltage disconnectors coils, signalling devices
- Power supply of monitoring and alarm systems

General features
- AVR electronic voltage regulation
- Based on three-phase synchronous alternators
- 1500 rpm or 3000 rpm with large speed tollerance
- Constant DC output voltage
- Adjustable output voltage
- Current overload protection
- Fan cooled
- Complying with EN 60034-1, IEC 60034-1, ISO 8528-3

Sectors of use
- Telecommunications
- Industry
- Transports
- Military

Advantages
- High voltage stability in a large speed range
- High efficiency
- Low voltage ripple
- High reliability
- Available with the most common couplings
- Fast recovery time during transient by step load variation

Not binding images and technical data.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.
