SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR
      SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR
      SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR

      SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR

      SK160 MB SAE5 d6.5

      Phase: Single / Three Phase
      Poles: 4
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 1500
      Single Phase Output (kVA): 12
      Three Phase Output (kVA): 20
      Constant Speed Alternator
      AVR
      Brushless
      Weight (Kg): 99
      Protection: IP23

      Choose the type of coupling :
      Download PDF
      Custom Quote
      Product: SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR

      PERSONAL DATA


      Ask a question
      Product: SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR
      Offer on letterhead
      Product: SINCRO SK160 MB SINGLE-THREE-PHASE ALTERNATOR 20KVA AVR
      SINCRO
      SK160 MB SAE5 d6.5

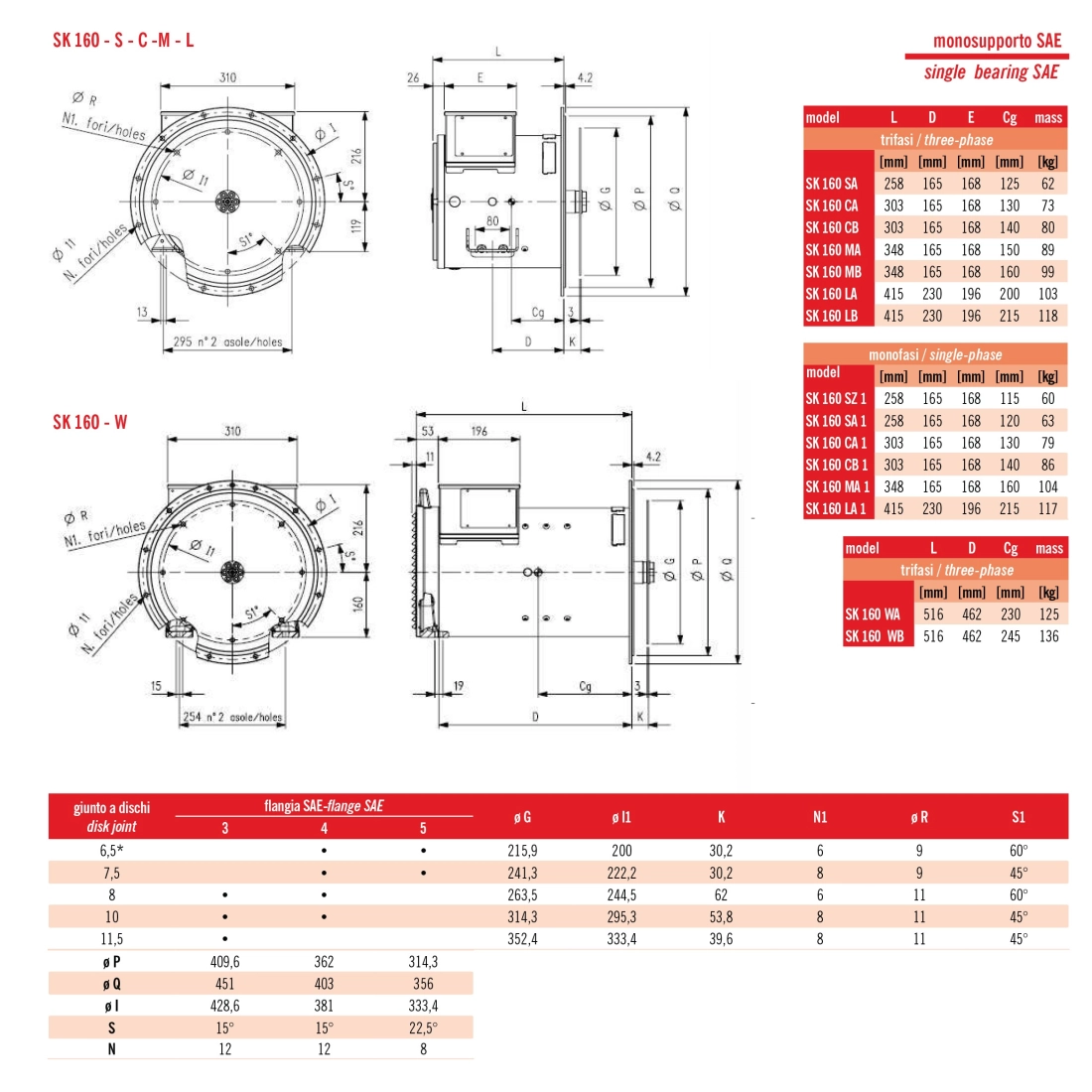

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      400
      Engine rpm (rpm)
      1500
      Poles
      4
      Single-phase power (KW)
      9.6
      Single-phase power (KVA)
      12
      Three-phase power (KW)
      16
      Three-phase power (KVA)
      20
      Efficiency (%)
      86
      Protection degree
      IP23
      Dry weight (Kg)
      99
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      Three phase brushless alternator - AVR.

      - Insulation class H
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Three phase leads 12 / single phase leads 4
      - Bearings: Bearings are dimensioned for heavy duty
      - Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
      - Single-phase operation: IB4 alternators can be connected for single-phase use
      - Tropicalizzation: standard

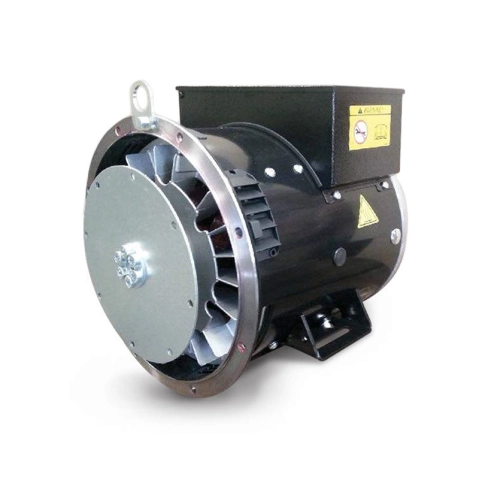

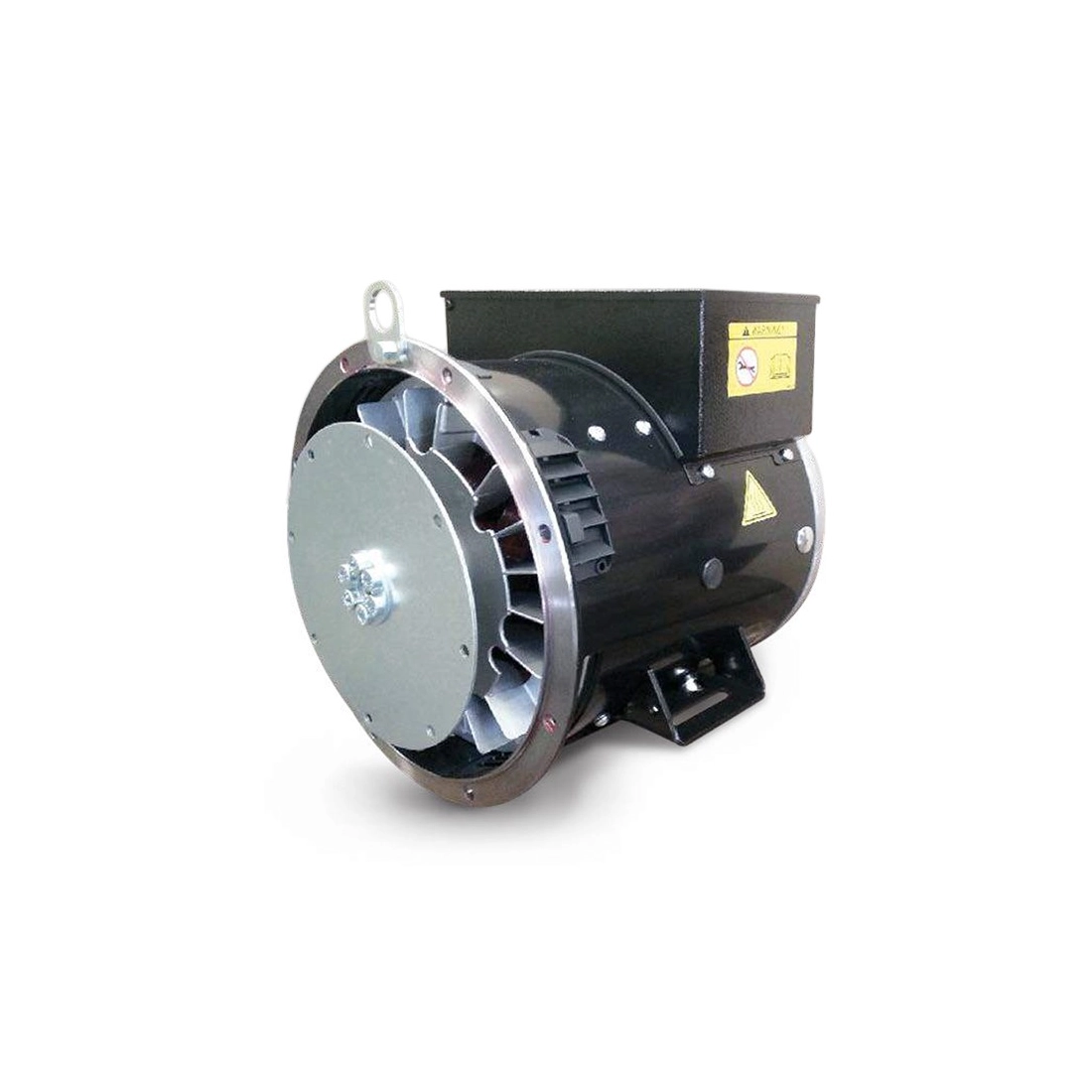

      The image is purely indicative.
