SINCRO SK160 SA1 SINGLE-PHASE ALTERNATOR 9KVA AVR

SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SINCRO THREE PHASE ALTERNATOR SK160
SK160 SA1 SAE5 d6.5

Phase: Single Phase
Poles: 4
Voltage (V): 115 / 230
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): 9
Three Phase Output (kVA): ----
Constant Speed Alternator
AVR
Brushless
Weight (Kg): 63
Protection: IP23

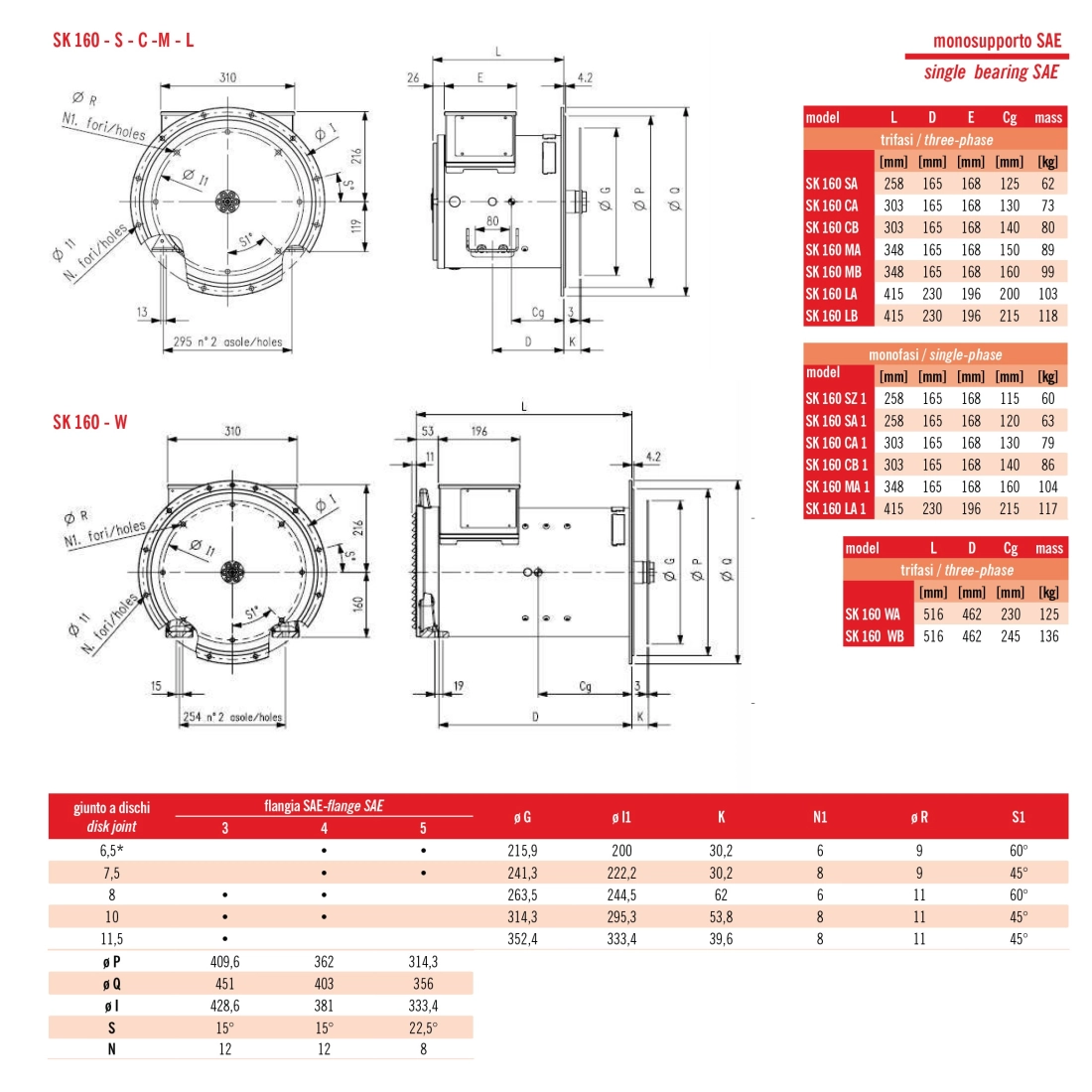

Download Technical data SK160 4 poles

Phase
Single phase
Frequency (Hz)
50
Voltage (V)
115 / 230
Engine rpm (rpm)
1500
Poles
4
Single-phase power (KW)
9
Single-phase power (KVA)
9
Efficiency (%)
84
Protection degree
IP23
Dry weight (Kg)
63
Brushes
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Single phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 230 V - 50 Hz
- Three phase leads 12 / single phase leads 4
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Single-phase operation: IB4 alternators can be connected for single-phase use
- Tropicalizzation: standard

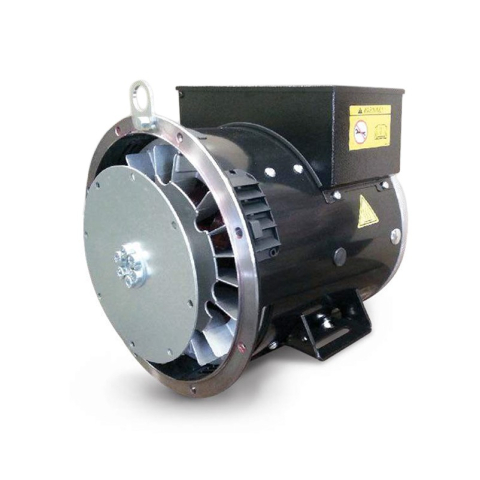

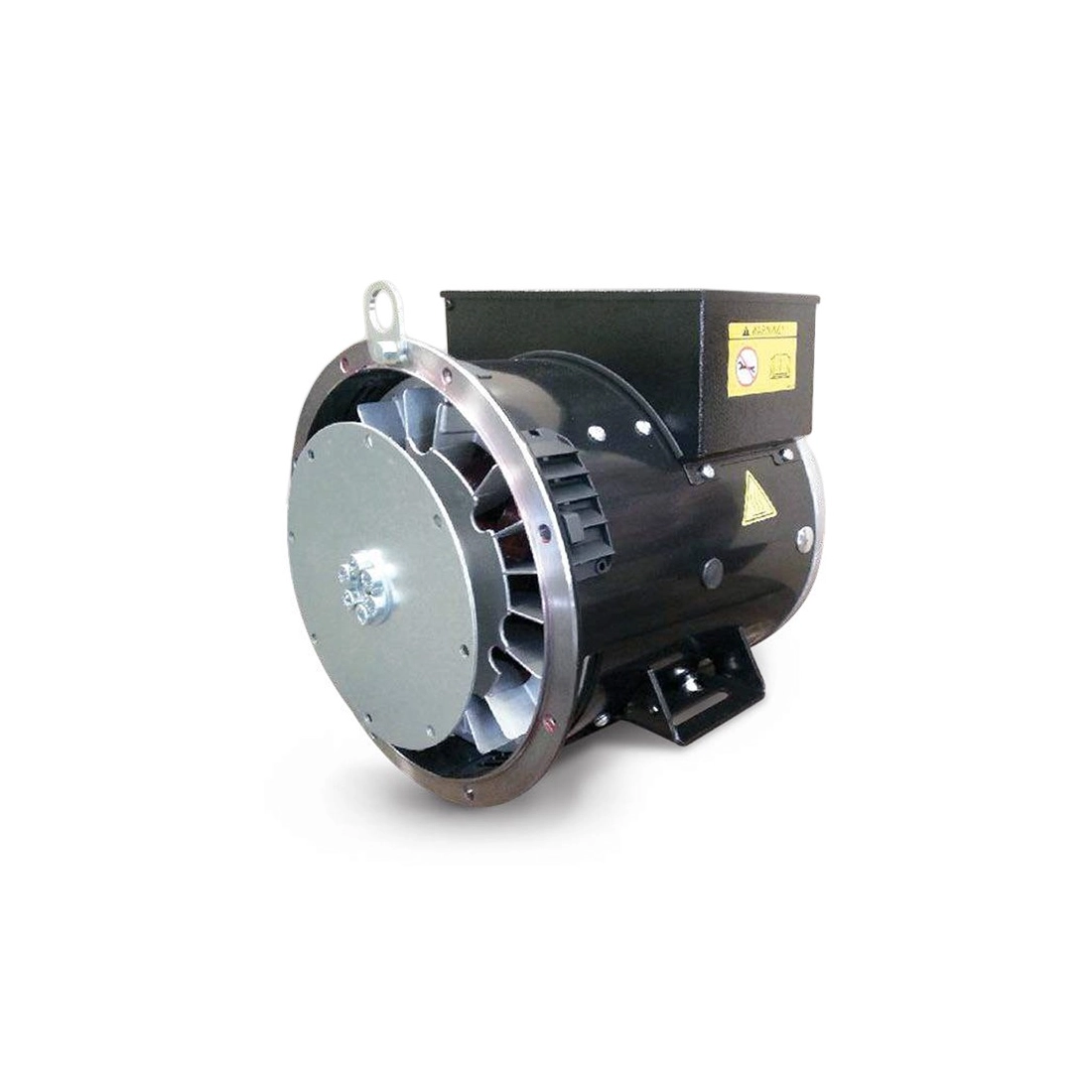

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Unavailable
€1,172.00 €1,172.00
Choose the type of coupling
  • SAE3 disk joint 8
  • SAE3 disk joint 10
  • SAE3 disk joint 11.5
  • SAE4 disk joint 6.5
  • SAE4 disk joint 7.5
  • SAE4 disk joint 8
  • SAE4 disk joint 10
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.

Download PDF
