SINCRO SK500 MC Three Phase Synchronous AC Alternator 2300 kVA PMG D-AVR

Name: SINCRO SK500 MC Three Phase Synchronous AC Alternator 2300 kVA PMG D-AVR
Brand: SINCRO
SKU: SK500 MC

Reference SK500 MC SAE0 d18

Phase: Three Phase
Poles: 4
Voltage (V): 400
Frequency (Hz): 50
Rpm Speed: 1500
Single Phase Output (kVA): ----
Three Phase Output (kVA): 2300
Constant Speed Alternator
D-AVR
Brushless
PMG
Weight (Kg): 3885
Protection: IP23

Payment methods:

Full Name

City

Country

Company

Phone

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

Offer on letterhead

Name

Surname

Company

VAT

Shipping address

Phone

City

Country

Postal code

Message

I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

reCAPTCHA

Reference SK500 MC SAE0 d18

Data sheet

Phase: Three phase
Frequency (Hz): 50
Voltage (V): 400
Engine rpm (rpm): 1500
Poles: 4
Three-phase power (KW): 1840
Three-phase power (KVA): 2300
Efficiency (%): 96.3
Protection degree: IP23
Dry weight (Kg): 3885
Brushes: No
PMG: Yes
Type of alternator: Constant Speed
Voltage regulator: Digital AVR

Specific References

Condition New

Three phase brushless alternator - AVR.

- Insulation class H
- IP23
- Standard voltage 400 V - 50 Hz
- Leads 4
- Excitation PMG: standard
- Bearings: Bearings are dimensioned for heavy duty
- Transient features: Transient voltage drop for rated step load at 0.8 power factor is less than 18%
- Tropicalizzation: standard

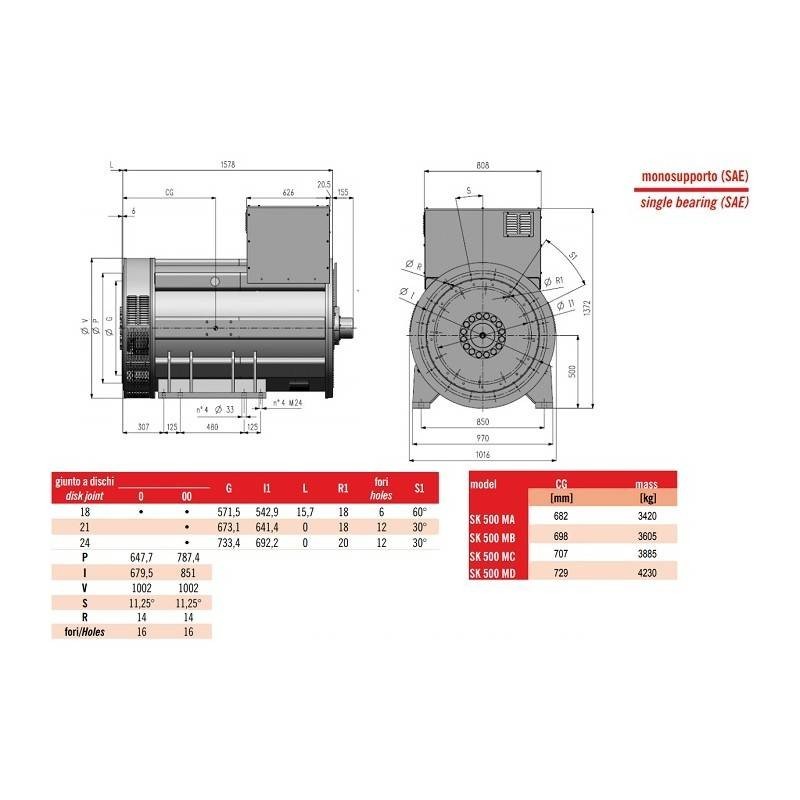

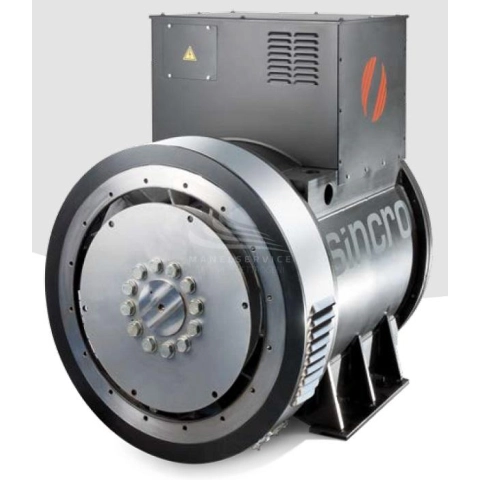

The images are purely indicative.

* Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
