      GK2 LA J609b c25.4

      Phase Type: Single-phase
      Maximum single-phase output: 20.0 KW
      Maximum single-phase continuous output: 16.0 KW
      Maximum single-phase output: 25.0 KVA
      Maximum single-phase continuous output: 20.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Agent speed: 3000 rpm
      Number of poles: 2
      Weight: 111Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      List price
      2,820.64 € tax incl.
      2,312.00 € tax excl.
      Discounted Price
      1,710.01 € tax incl.
      1,401.65 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      GK2 LA J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      20
      Single-phase power (KVA)
      20
      Efficiency (%)
      83
      Protection degree
      IP23
      Dry weight (Kg)
      103
      Brushes
      No
      Type of alternator
      Constant Speed
      Voltage regulator
      Capacitor

      Specific References

      New

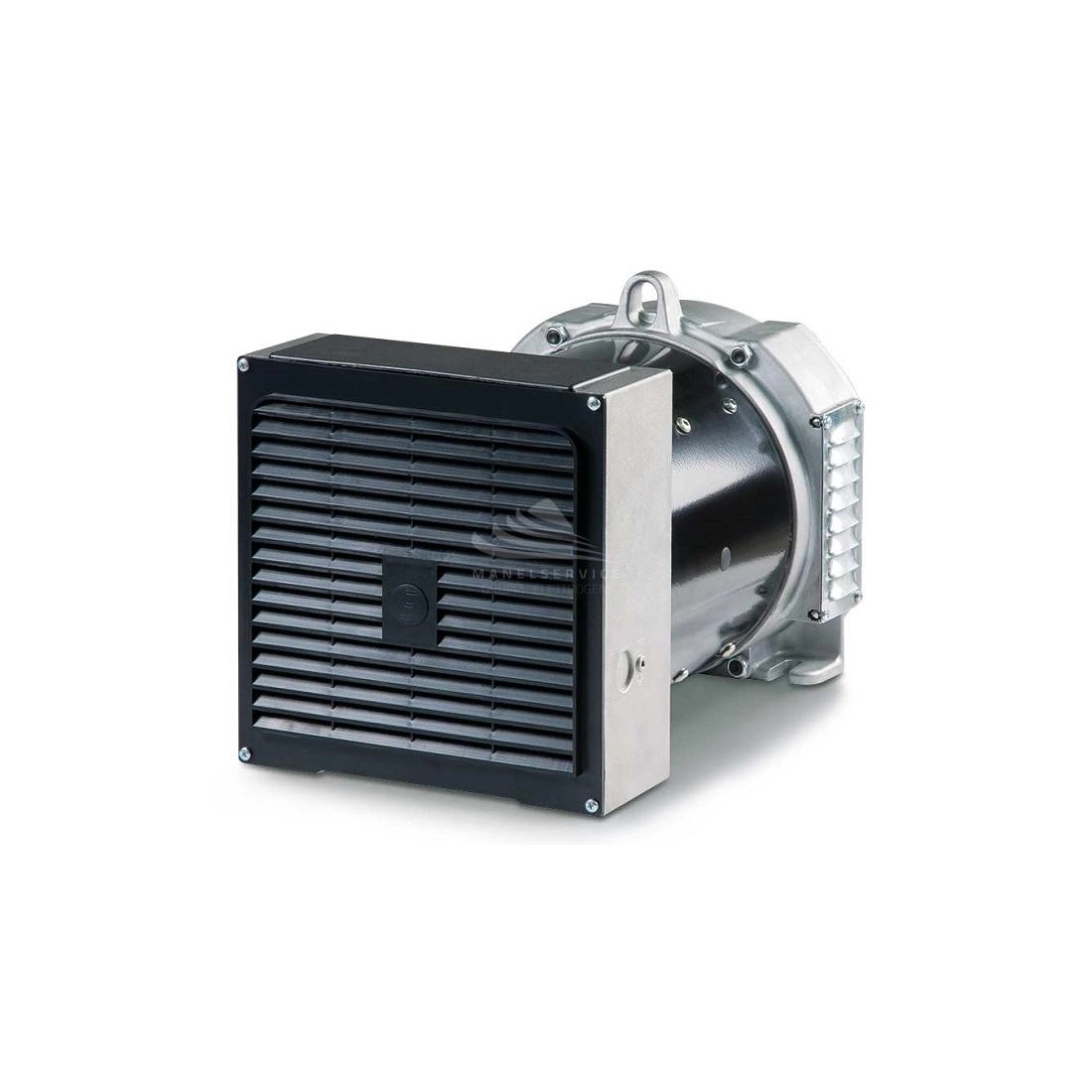

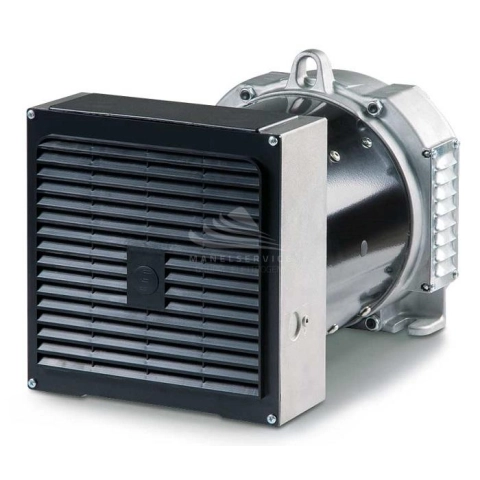

      SINCRO GK2 LA ALTERNATOR 25,0 KVA SINGLE PHASE

      Alternator SINCRO GK2 LA single phase with a power of 25,0KVA, this unit has a Brushless operation equipped with capacitor voltage regulator.

      The alternator is provided for operation at frequency 50 or 60 HZ, the possibility of working on these two frequencies makes it possible the application for any service voltage increasing its versatility, for the correct operation. SINCRO GK2 LA has been realized with the body entirely in steel, this makes the alternator very resistant and suitable for heavy duty use.

      All components that make up the SINCRO GK2 LA alternator are subjected to a specific coating and/or impregnation process to safeguard the functionality of the generator and to protect critical peers under various conditions of use.

      SINCRO GK2 LA is a brushless alternator, this feature together with the high efficiency of the regulator ensure a low level of interference with radio waves.

      SINCRO alternators are all equipped with a voltage regulator, in the case of the GK2 LA capacitor model.

      Select the alternator that meets thetechnical specifications you require, visit our dedicated section to find out how.

      TECHNICAL FEATURES SINCRO GK2 LA

      Phase Type: Single-phase
      Maximum single-phase output: 20.0 KW
      Maximum single-phase continuous output: 16.0 KW
      Maximum single-phase output: 25.0 KVA
      Maximum single-phase continuous output: 20.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Agent speed: 3000 rpm
      Number of poles: 2
      Weight: 111Kg
      Brushless
      Voltage regulator: Condenser
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      foioi oifd iocd sic dso iiod scòo bubd soub cbuib dsòo bsab òunsa nòsa ncd bjcb usiisoa xbbiobsc oiadcbs boasixsn oànxson csicndoi sahihsa òxbusò ubccàdi àovpjsà opcànis xhsaoò hcidh sudfy gcsdg

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
