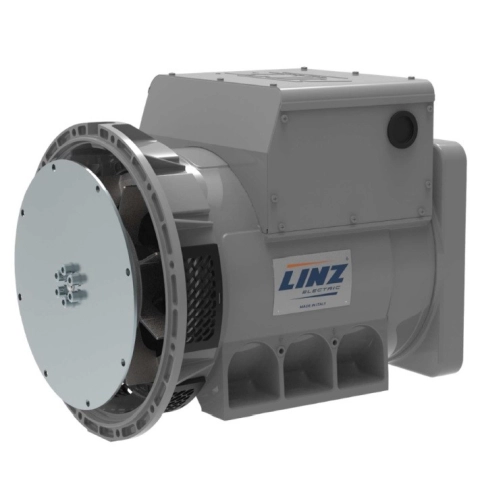

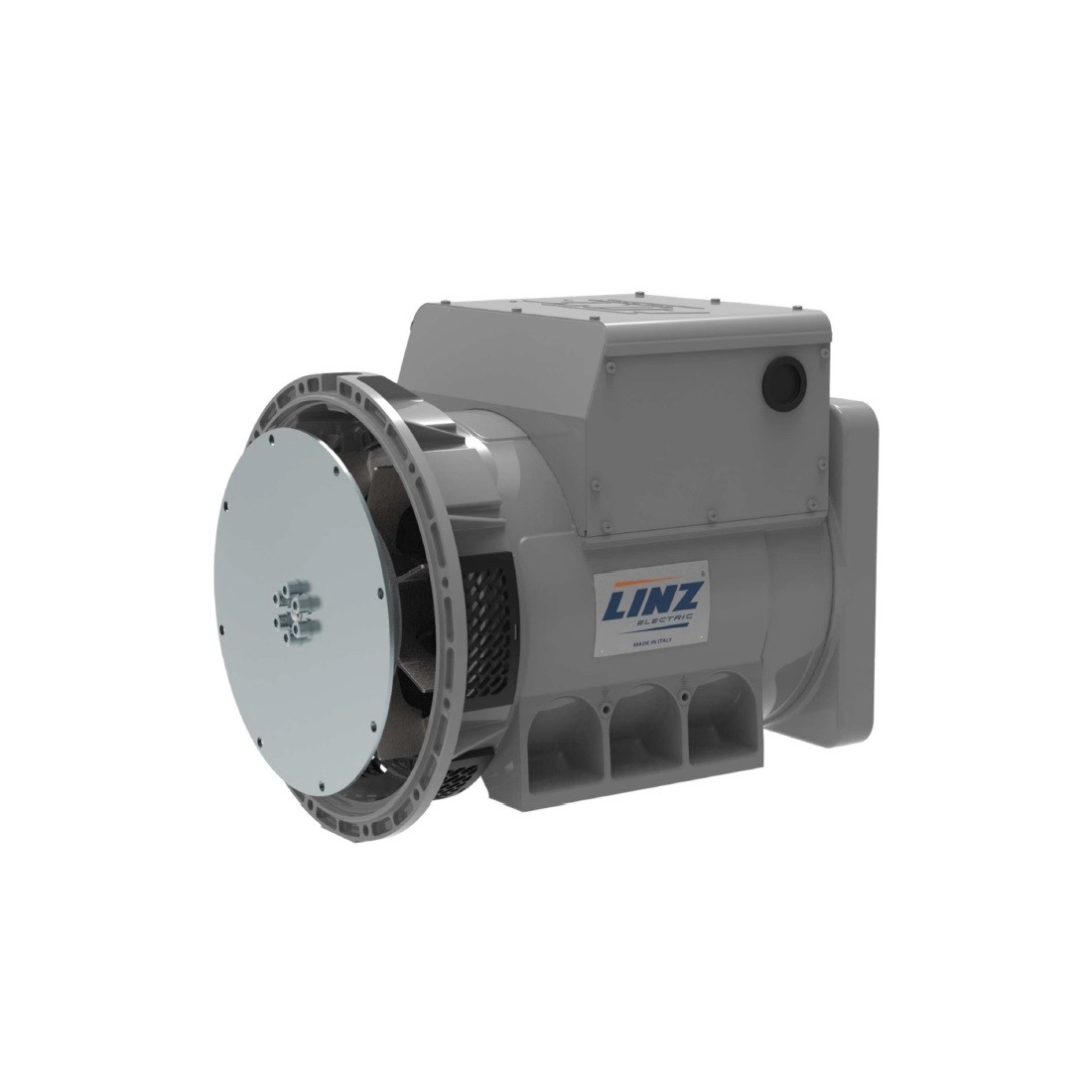

LINZ PRO18M E/4 Three-phase alternator 4 poles 50 kVA 60 Hz AVR

  • New
LINZ PRO18M E/4 Three-phase alternator 4 poles 42 kVA 50 Hz AVR
search
  • LINZ PRO18M E/4 Three-phase alternator 4 poles 42 kVA 50 Hz AVR
  • LINZ PRO18M E/4 Three-phase alternator 4 poles 42 kVA 50 Hz AVR
LINZ ELECTRIC
PRO18M E/4 60 Hz SAE3 d6.5
New product

Rated power at 60 Hz (kVA): 50
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Suppression standard R.F.F.I. EN55011

Technical features
Phase
Three phase
Continuous power three phase (KVA)
50
Frequency (Hz)
60
Voltage (V)
230 / 400
Engine rpm (rpm)
1800
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
33.6
Protection degree
IP23
Motor insulation class
H
Length (mm)
598
Width (mm)
362
Height (mm)
458
Brushes
No
PMG
No
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
202
Details

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

Related Accessories
List price
3.564,84 € tax incl.
2.922,00 € tax excl.
Discounted Price
2.212,99 € tax incl.
1.813,93 € tax excl.
