SINCRO ET2 MCR Three Phase Synchronous AC Alternator 7 kVA AVR

SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
SINCRO THREE PHASE ALTERNATOR ET2
ET2 MCR J609b c22.14

Phase: Three Phase
Poles: 2
Voltage (V): 230 / 400
Frequency (Hz): 50
Rpm Speed: 3000
Three Phase Output (kVA): 7
Constant Speed Alternator
AVR
Brushes
Weight (Kg): 29.3
Protection: IP23

Download Technical data ET2

Phase
Three phase
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
3000
Poles
2
Three-phase power (KW)
5.6
Three-phase power (KVA)
7
Efficiency (%)
78
Protection degree
IP23
Dry weight (Kg)
29.3
Brushes
Yes
Type of alternator
Constant Speed
Voltage regulator
AVR
Brand

Three phase brushes alternator - AVR.

- Self-regulated
- IP23
- Standard voltage 230/400 V - 50 Hz
- Short circuit current greater than 3 In
- Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
- Couplings IM B34, IM B35, SAE

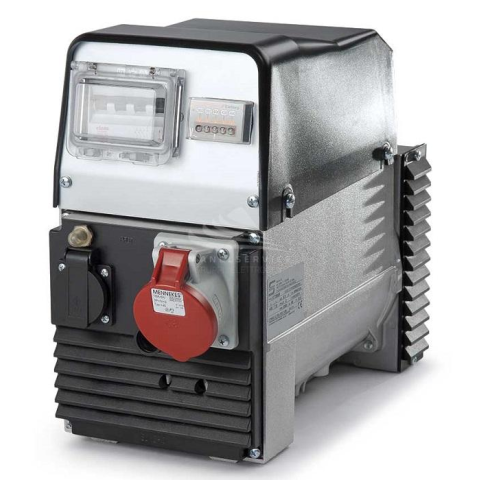

The image is purely indicative.

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€493.49 €493.49
Choose the type of coupling
  • IM B35 - J609b cone 22.14
  • IMB35 J609b cone 25.4
  • IM B35 - J609b cone 35
  • IM B34 - B3/B14
  • IM B35 - B3/B9 cone 23
  • IM B35 - B3/B9 cone 30
  • SAE5 disk joint 6.5
  • SAE5 disk joint 7.5
  • SAE5 disk joint 8
  • SAE6 disk joint 6.5
  • SAE6 disk joint 7.5
  • SAE6 disk joint 8

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
