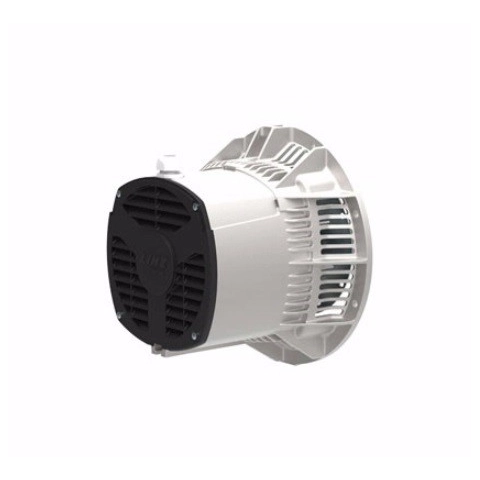

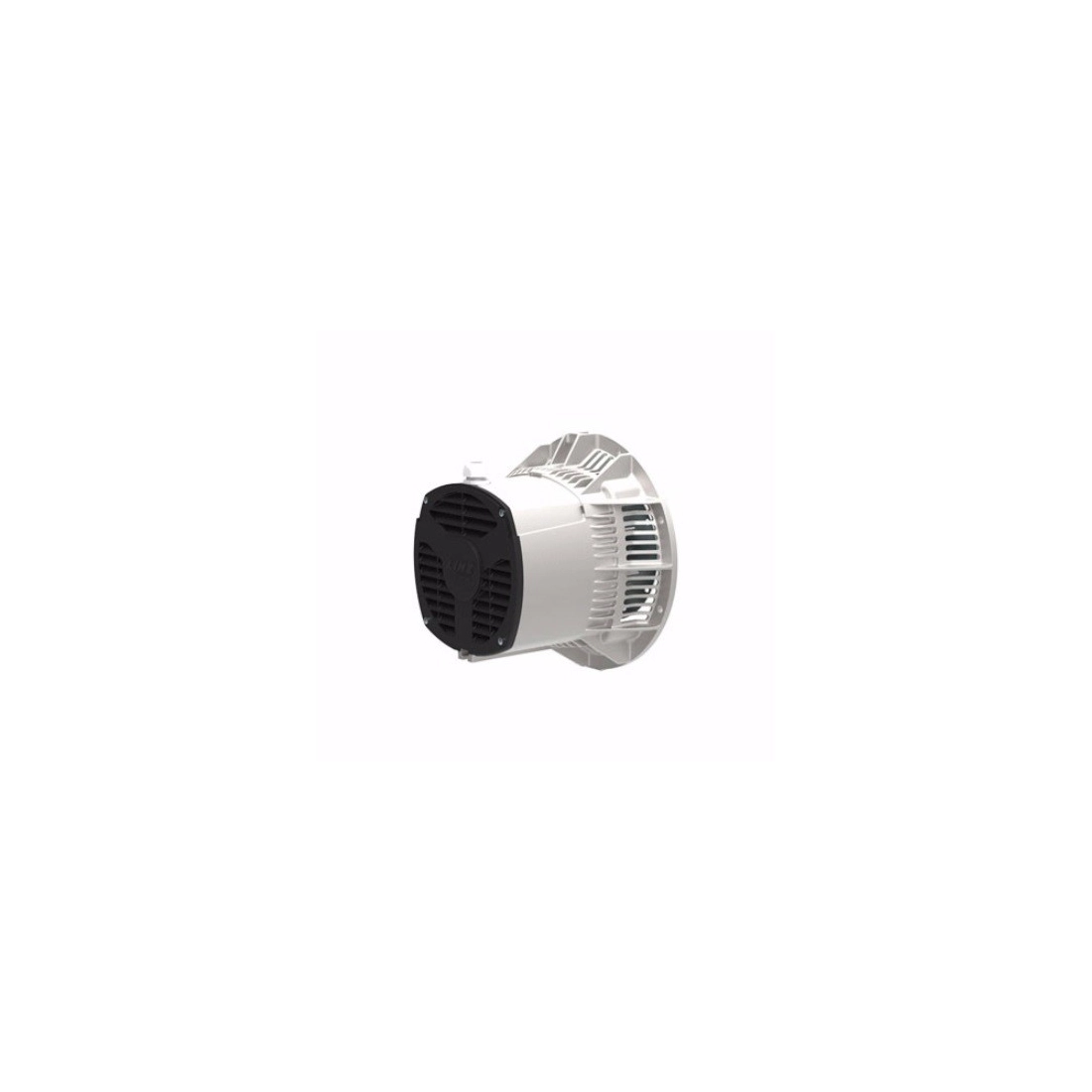

LINZ ALUMEN-X MD Single-phase alternator 5 kVA 50 Hz without Damping Cage
ALUMEN-X MD 6.5 50 Hz
Rated power at 50 Hz (kVA): 5
Rated power factor: 1
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: capacitor
Insulation class: H
Protection: IP21
1500 rpm
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 3.1 at 50 Hz
Suppression standard R.F.F.I. EN55011
Without damping cage and external cable extension
ALUMEN-X MD 6.5 50 Hz
Data sheet
- Phase
- Single phase
- Continuous power single phase (KW)
- 5
- Continuous power single phase (KVA)
- 5
- Frequency (Hz)
- 50
- Voltage (V)
- 230
- Engine rpm (rpm)
- 1500
- Alternator
- Synchronous, brushless
- Poles
- 4
- Single-phase power (KVA)
- 5
- Protection degree
- IP21
- Motor insulation class
- H
- Length (mm)
- 283
- Width (mm)
- 356
- Height (mm)
- 356
- Brushes
- No
- Type of alternator
- Constant Speed
- Voltage regulator
- Capacitor
- Weight (Kg)
- 41.7
Specific References
New
The LINZ ALUMEN series is a set of single-phase, 4-pole brushless alternators with an auxiliary winding to regulate the voltage, loaded onto highly insulated capacitors to protect from high ignition voltage.
This series has been especially designed for use in LIGHTING TOWERS with metal halide, halogen or LED lamps.
CHARACTERISTICS
- Best-in-class efficiency
- Compact and easy to assemble
- Flexible design
- Easy maintenance
- Type: Single-phase alternators
- Poles: 4
- Phases: Single-phase
- Regulation: CAPACITOR
- Application: PORTABLE, LIGHTING TOWERS
