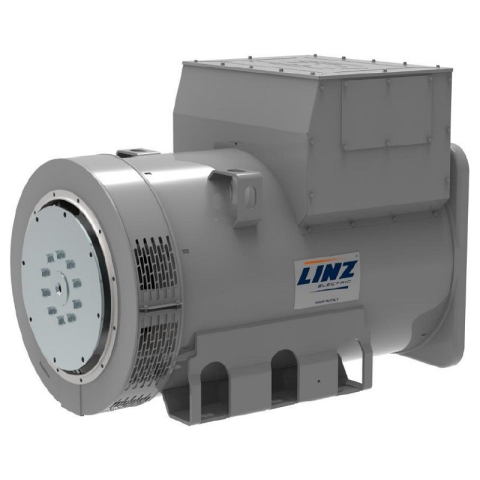

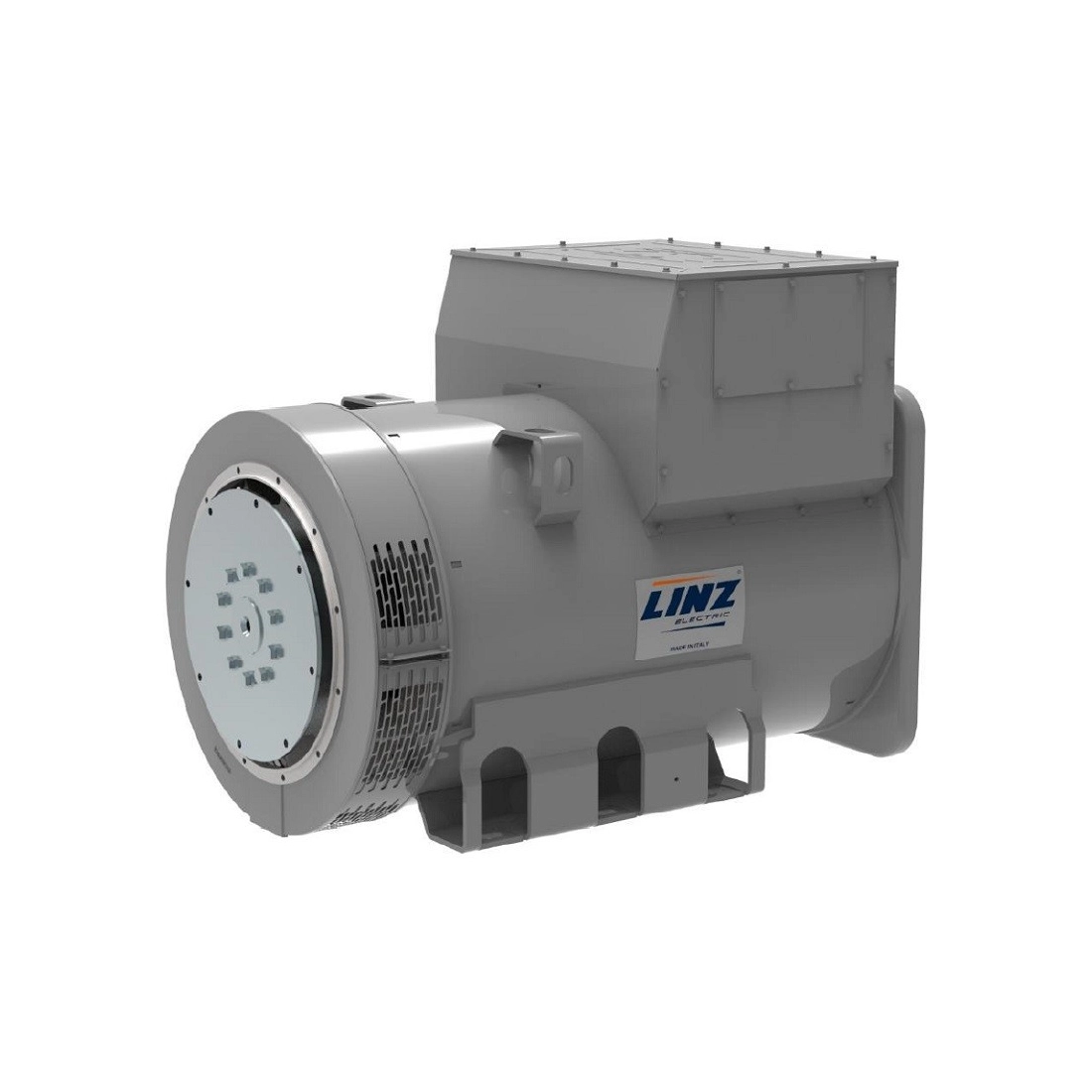

LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR

LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
LINZ PRO35L H/4 Three-phase alternator 4 poles 800 kVA 50 Hz AVR
PRO35L H/4 50 Hz SAE1 d14

Rated power at 50 Hz (kVA): 800
Rated power factor: 0.8
Rated temperature (°C): 40
Control system: self-excited
Design: brushless
Type of regulation: AVR
Insulation class: H
Protection: IP23
Maximum excess travel speed (rpm): 2250
110% overload of rated power for one hour in a 6-hour cycle
Airflow requirement (m3/min): 54.5 at 50 Hz
Suppression standard R.F.F.I. EN55011
6 wires winding


Download Technical Data PRO35L H/4

Phase
Three phase
Continuous power three phase (KW)
640
Continuous power three phase (KVA)
800
Frequency (Hz)
50
Voltage (V)
230 / 400
Engine rpm (rpm)
1500
Alternator
Synchronous
Poles
4
Three-phase power (KVA)
800
Protection degree
IP23
Motor insulation class
H

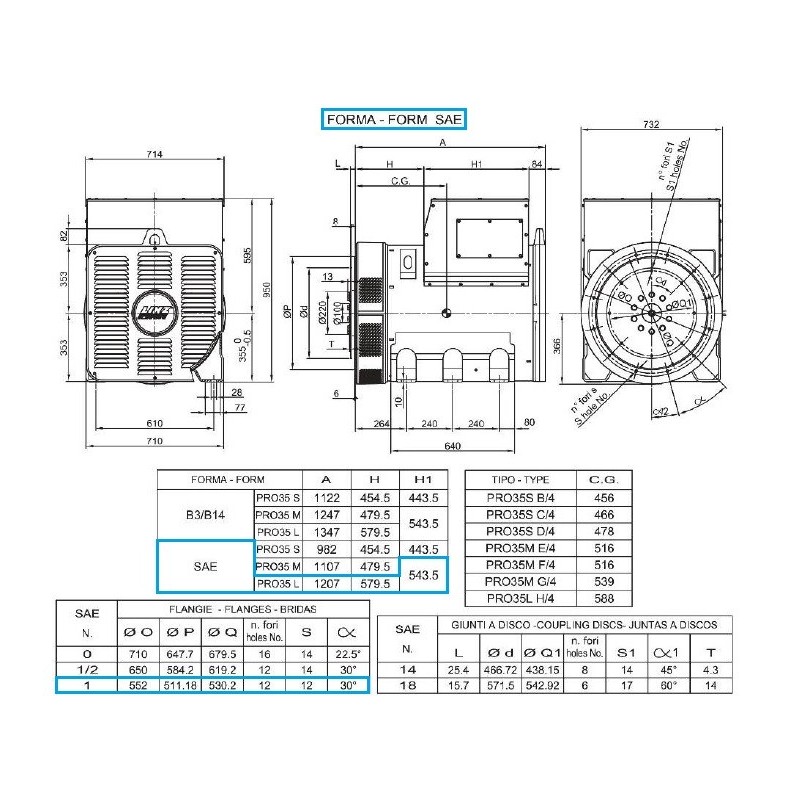

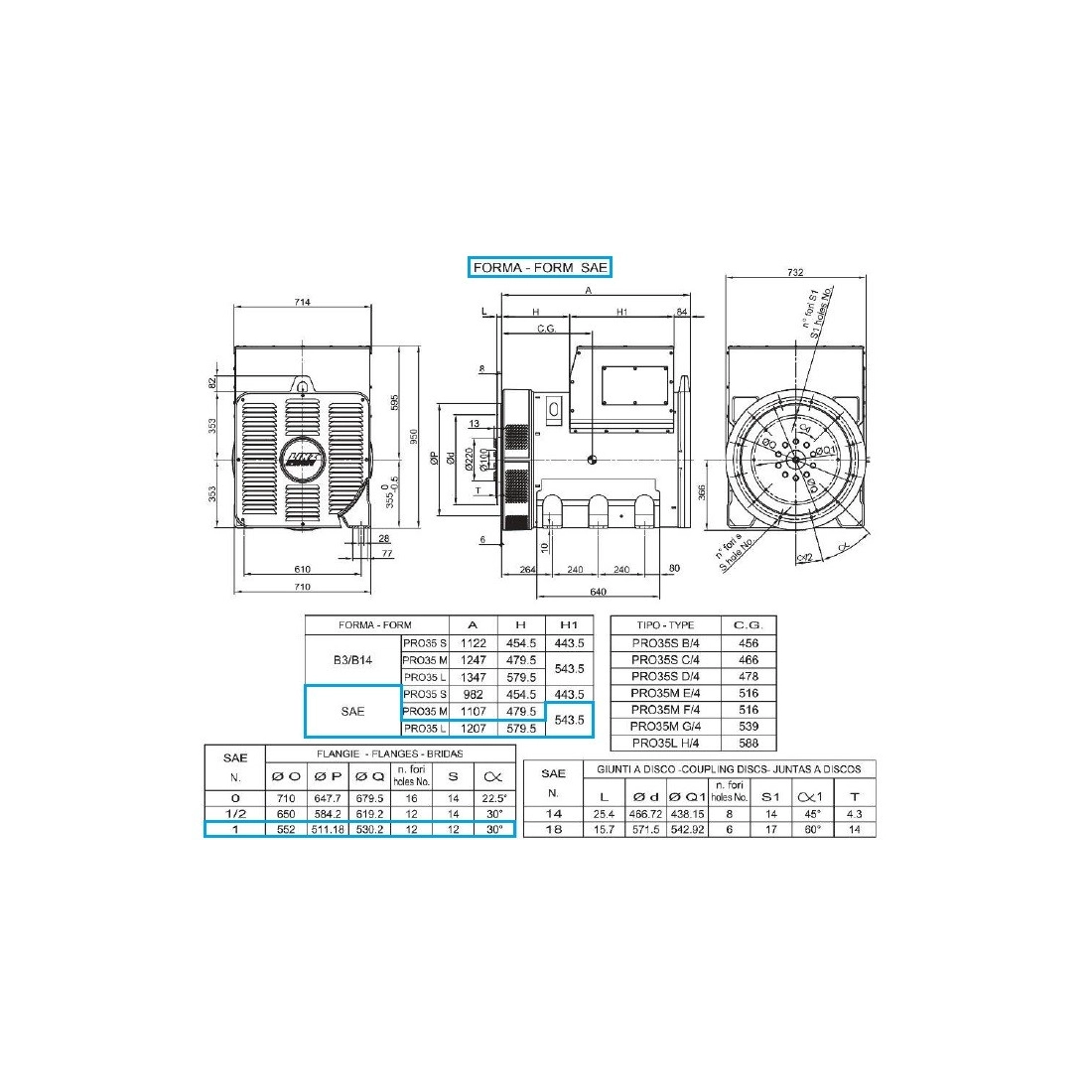

Length (mm)
1207
Width (mm)
732
Height (mm)
950
Brushes
No
PMG
Optional
Type of alternator
Constant Speed
Voltage regulator
AVR
Weight (Kg)
1867
Brand

The alternators of PRO series are three-phase brushless 4 poles with electronic regulation (AVR) with single-phase sensing (PRO18-PRO22) and three-phase sensing (PRO28-PRO35-PRO40).

CHARACTERISTICS

  • Compact and mechanically resistant
  • Excellent wave form
  • Minimum maintenance
  • High efficiency
  • Type: Three-phase alternators
  • Poles: 4
  • Phases: Three-phase
  • Regulation: AVR
  • Application: INDUSTRIAL, COGENERATION

* Images and technical data are not binding. Please always consult the technical data sheet released by the manufacturer. Manel Service does not assume responsibility for any changes made by the manufacturer.

Complete your order with:

Unavailable
€14,478.95 €14,478.95
Choose the type of coupling
  • IM B34 - B3/B14
  • SAE1 disk joint 14
  • SAE1/2 disk joint 14
  • SAE1 disk joint 18
  • SAE1/2 disk joint 18
  • SAE0 disk joint 14
  • SAE0 disk joint 18

This product is not available for order, please contact us and we will provide you a quotation for similar product based on your needs.
