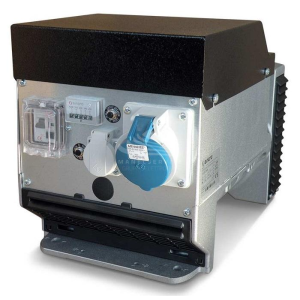

SINCRO FK2 MFA Single Phase Synchronous AC Alternator 12 kVA AVR
      SINCRO FK2 MFA Single Phase Synchronous AC Alternator 12 kVA AVR
      SINCRO FK2 MFA Single Phase Synchronous AC Alternator 12 kVA AVR

      SINCRO FK2 MFA Single Phase Synchronous AC Alternator 12 kVA AVR

      FK2 MFA J609b c25.4

      Phase Type: Single Phase
      Maximum Single Phase Output: 11.5 KW
      Continuous Single Phase Output: 9. 6 KW
      Maximum single-phase output: 14.4 KVA
      Continuous single-phase output: 12.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 55.0 Kg
      With Brushes
      Voltage regulator: AVR
      Type of alternator: constant speed

      List price
      1,448.14 € tax incl.
      1,187.00 € tax excl.
      Discounted Price
      878.03 € tax incl.
      719.70 € tax excl.
      Choose the type of coupling :
      Download PDF
      Custom Quote

      PERSONAL DATA


      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      FK2 MFA J609b c25.4

      Data sheet

      Phase
      Single phase
      Frequency (Hz)
      50
      Voltage (V)
      230
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      12
      Single-phase power (KVA)
      12
      Efficiency (%)
      81.2
      Protection degree
      IP23
      Dry weight (Kg)
      55
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      AVR

      Specific References

      New

      SINCRO FK2 MFA ALTERNATOR 12KVA SINGLE-PHASE

      Alternator SINCRO FK2 MFA single phase with a power of 12KVA, this unit has a Brush operation equipped with AVR voltage regulator.

      The alternator is designed for operation at frequency 50 or 60 HZ, the possibility of working on these two frequencies makes it possible the application for any service voltage increasing its versatility, for the correct operation.

      All the components that make up the SINCRO FK2 MFA alternator are subjected to a specific coating and/or impregnation process aimed at safeguarding the functionality of the generator and protecting the critical peers in the various conditions of use.

      The SINCRO FK2 MFA alternators are designed to be exceptionally versatile, they are made to be suitable for all applications where an easy-to-transport power source is required.

      SINCRO alternators all come equipped with voltage regulators, in the case of the FK2 MFA AVR model.

      The voltage regulator is an electronic device which regulates the alternating current coming from the alternator and converts it into direct current.

      In our field voltage regulators are widely used in the latest generation of synchronous generators.

      All synchronous machines need an electronic control system to work, and this device, known as "voltage regulator" or "AVR" (acronym of Automatic Voltage Regulator), guarantees the good working of the machine and above all of the electric network underneath it.

      Select the alternator that reflects thetechnical specifications you require, visit our dedicated section to understand how.

      SINCRO FK2 MFA TECHNICAL SPECIFICATIONS

      Phase Type: Single Phase
      Maximum SinglePhase Output: 11.5 KW
      Continuous SinglePhase Output: 9. 6 KW
      Maximum singlephase output: 14.4 KVA
      Continuous singlephase output: 12.0 KVA
      Frequency: 50-60 Hz
      Voltage: 230 V
      Protection class: IP23
      Alternator speed: 3000 rpm
      Number of poles: 2
      Weight: 55.0 Kg
      With Brushes
      Voltage regulator: AVR
      Type of alternator: constant speed

      Looking for a product with different features? Here you can find the full range SINCRO and other specialized brands.

      Images and technical data are not binding and subject to changes by the manufacturer

      oiòo cidso òdsb vcudib cvyvcy ewyvcl ibcwb òebsu ubewb òucsd òoebu rubdb csòbvds òobsv dbube bòdsb sdvbsb òcwub ewube wubrò ubeub òxònz xnkcne wiuqw cbuu iqcubi ò cuibcb xnxoòn qiòon ewbuò ecwbu òvuwb

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
      SINCRO IM B34 COUPLINGSINCRO IM B34 COUPLING FOR FK, FK STEEL, GK MODELS
          IM B34 coupling for FK, FK STEEL, GK models.
          55.00 €Price
          SAE 5, SAE 4 coupling for alternators SINCRO EK, FK, FK STEEL, GK.
              SAE 5, SAE 4 coupling for EK, FK, FK STEEL, GK models.
              55.00 €Price
              SAE 3 coupling for alternators SINCRO FK, FK STEEL.
                  SAE 3 coupling for FK, FK STEEL models.
                  110.00 €Price
                  B3/B9 coupling (cone 30). | Manel Service
                      B3/B9 coupling (cone 30).
                      0.00 €Price
                      SINCRO FM10 panel for FK models. Available for models up to 12 KVA.
                          FM10 panel for FK models. Available for models up to 12 KVA. - 1 230V 2P+T 32A CEE - 1 Schuko - Voltmeter - 2 Thermal protection
                          75.00 €Price
                          SINCRO FM13 panel for FK models. Available for models up to 12 KVA.
                              FM13 panel for FK models. Available for models up to 12 KVA. - 1 230V 2P+T 32A CEE - 1 230V 2P+T 16A CEE - Voltmeter - 2 Thermal protection
                              51.00 €Price
                              SINCRO FM14 panel for FK models. Available for models up to 12 KVA.
                                  FM14 panel for FK models. Available for models up to 12 KVA. - 2-pole magnetothermic switch + IP65 cover - 1 230V 2P+T 32A CEE - 1 230V 2P+T 16A CEE - Voltmeter - Thermal protection
                                  142.00 €Price
                                  SINCRO FM15 PANEL FOR FK MODELS
                                      FM15 panel for FK models. Available for models up to 12 KVA. - 2-pole magnetothermic switch + earth leakage breaker (Id = 0.03A) + IP65 cover - 1 230V 2P+T 32A CEE - 1 230V 2P+T 16A CEE - Voltmeter - Thermal protection
                                      155.00 €Price
