SINCRO ET2 MBF Single / Three Phase Synchronous AC Alternator 5.5 kVA Compound

ET2 MBF J609b c22.14
      SINCRO ET2 MBF Single / Three Phase Synchronous AC Alternator 5.5 kVA Compound
      SINCRO ET2 MBF Single / Three Phase Synchronous AC Alternator 5.5 kVA Compound
      SINCRO ET2 MBF Single / Three Phase Synchronous AC Alternator 5.5 kVA Compound

      Phase: Single / Three Phase
      Poles: 2
      Voltage (V): 230 / 400
      Frequency (Hz): 50
      Rpm Speed: 3000
      Single Phase Output (kVA): 2.2
      Three Phase Output (kVA): 5.5
      Constant Speed Alternator
      Compound
      Brushes
      Weight (Kg): 28.3
      Protection: IP23

      List price
      861.32 € tax incl.
      706.00 € tax excl.
      Discounted Price
      522.16 € tax incl.
      428.00 € tax excl.
      Ask a question
      Offer on letterhead
      Choose the type of coupling :
      Ask for availability
      Download PDF
      Ask a question

      I authorize the processing of data pursuant to Legislative Decree 196/2003. I declare that I have read the Privacy Policy*

      Offer on letterhead
      SINCRO
      ET2 MBF J609b c22.14

      Data sheet

      Phase
      Single phase / Three phase
      Frequency (Hz)
      50
      Voltage (V)
      230 / 400
      Engine rpm (rpm)
      3000
      Poles
      2
      Single-phase power (KW)
      2.56
      Single-phase power (KVA)
      3.2
      Three-phase power (KW)
      4.4
      Three-phase power (KVA)
      5.5
      Efficiency (%)
      77
      Protection degree
      IP23
      Dry weight (Kg)
      28.3
      Brushes
      Yes
      Type of alternator
      Constant Speed
      Voltage regulator
      Compound

      Specific References

      New

      Three phase brushes alternator - Compound.

      - Self-regulated
      - IP23
      - Standard voltage 230/400 V - 50 Hz
      - Short circuit current greater than 3 In
      - Standard coupling IM B35 cone 22.14 / cone 25.4 / cone 35
      - Couplings IM B34, IM B35, SAE
      - With reinforced phase

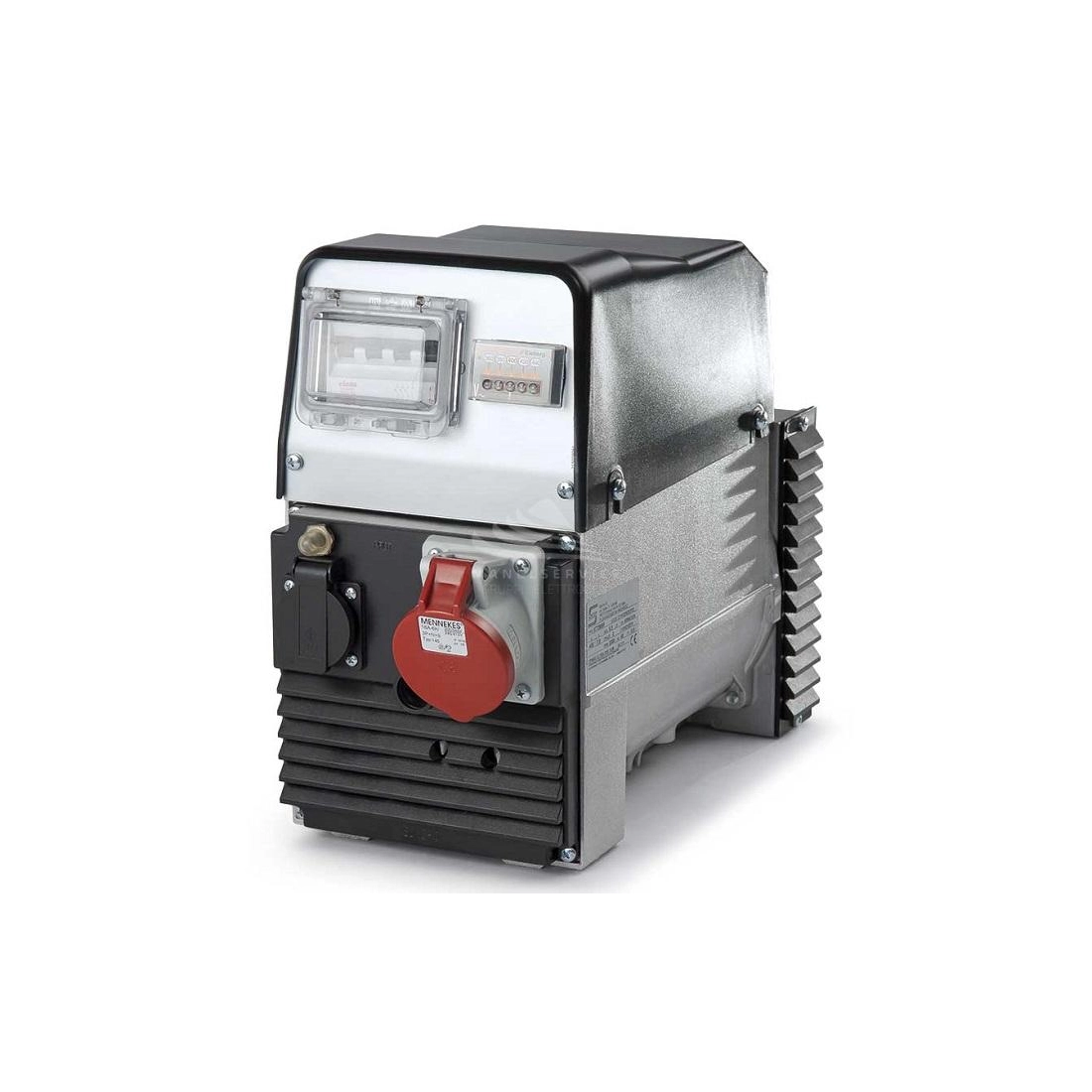

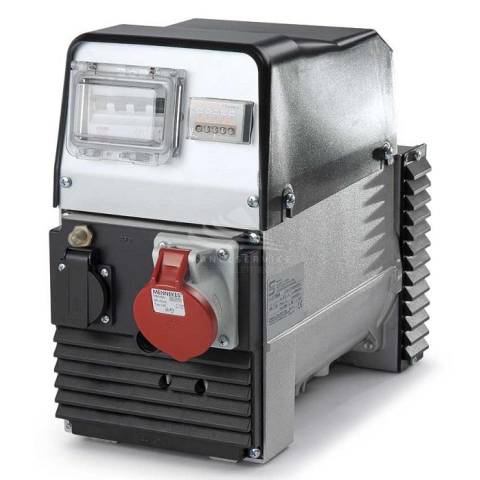

      The image is purely indicative.

      * Images and technical data are not binding. Please always consult the manufacturer's technical data sheet. Manel Service assumes no responsibility for any changes made by the manufacturer or any typographical errors.
